2005 Harley-Davidson Road King FLHR/FLHRI
Back to 2005 Harley-Davidson Motorcycle Index Page

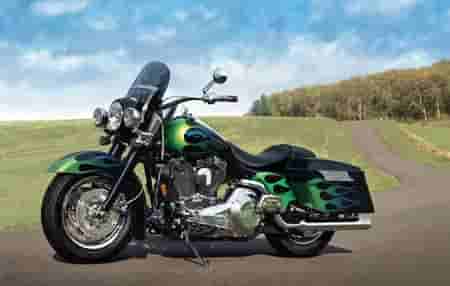

– 2005 Harley-Davidson Road King FLHR/FLHRI
As anyone who loves logging miles will tell you, the Road King® motorcycle is one roadworthy piece of machinery. Check out the bold, strong profile. Full fenders. Large chrome headlight and nacelle. Two-piece throne. And the always ready Twin Cam 88® engine residing in the center. The wrinkle black and chrome V-Twin comes in your choice of carb or EFI. We isolation-mounted it so you can ride for miles on end. And there’s an air-adjustable suspension and refined chassis so each and every mile is pure joy. The fresh new tank graphic is fit for a king. We also gave this royal ride some practical features like a detachable windshield and weather-resistant, lockable saddlebags. There’s no denying Road King has earned the road’s respect. Only question left is, Which roads are worthy of the Road King?
DIMENSIONS U.S. UNITS
Length 93.7 in.
Laden(1) 27.3 in.
Ground Clearance 5.1 in.
Rake Steering Head/Trail 26.0º / 6.2 in.
Wheelbase 63.5 in.
Fuel Capacity(2) 5.0 gals.
Oil Capacity 4.0 qts.
Dry Weight 723.0 lbs.
Running Order N/A
Engine(3) Twin Cam 88®
Displacement 88.0 in.³
Bore x Stroke 3.75 in. x 4.00 in.
Engine Torque(4)(5) 86.0 ft. lbs. @ 3500 rpm
Fuel System(6) Carburetor or Electronic Sequential Port Fuel Injection (ESPFI )
Compression Ratio 8.9:1
Miles per Gallon(7)
Carb. 46 hwy / 37 city
ESPFI 46 hwy / 39 city
Primary Drive Chain
Gear Ratio (overall)
Front Black 9 spoke cast aluminum
Rear Black 9 spoke cast aluminum
Front MT90B16 72H
Rear MU85B16 77H
Electronics Optional security system
Instruments Electronic speedometer; odometer; resettable tripmeter; diagnostic readout
Indicator Lamps Oil pressure; engine diagnostics
Brakes (diameter x width)
Front 11.5 in. x 0.20 in. dual
Rear 11.5 in. x 0.23 in.
Lean Angle (per SAEJ1168) 30º / 31º
Exhaust System Cross-over dual
Vivid black, sierra red pearl, smokey gold pearl, black cherry pearl, black pearl, glacier white pearl, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone black cherry pearl and black pearl, two-tone sierra red pearl and brilliant silver pearl
Large Hiawatha headlight and chrome nacelle; black powder-coated engine with chrome covers; detachable windshield; nylon alloy lockable saddlebags; large, tank-mounted speedometer; two-piece seating; wired for electronic Cruise Control; triple-disc brakes; air-adjustable rear suspension
Vivid black $16,595
Pearl or Sunglo $16,910
Wheel option $450 (profile laced)
H-D® factory security system $275
Freight (applies to the 48 contiguous states and Alaska only) $270
