2005 Kawasaski Vulcan 2000
Back to 2005 Kawasaki Motorcycle Index Page

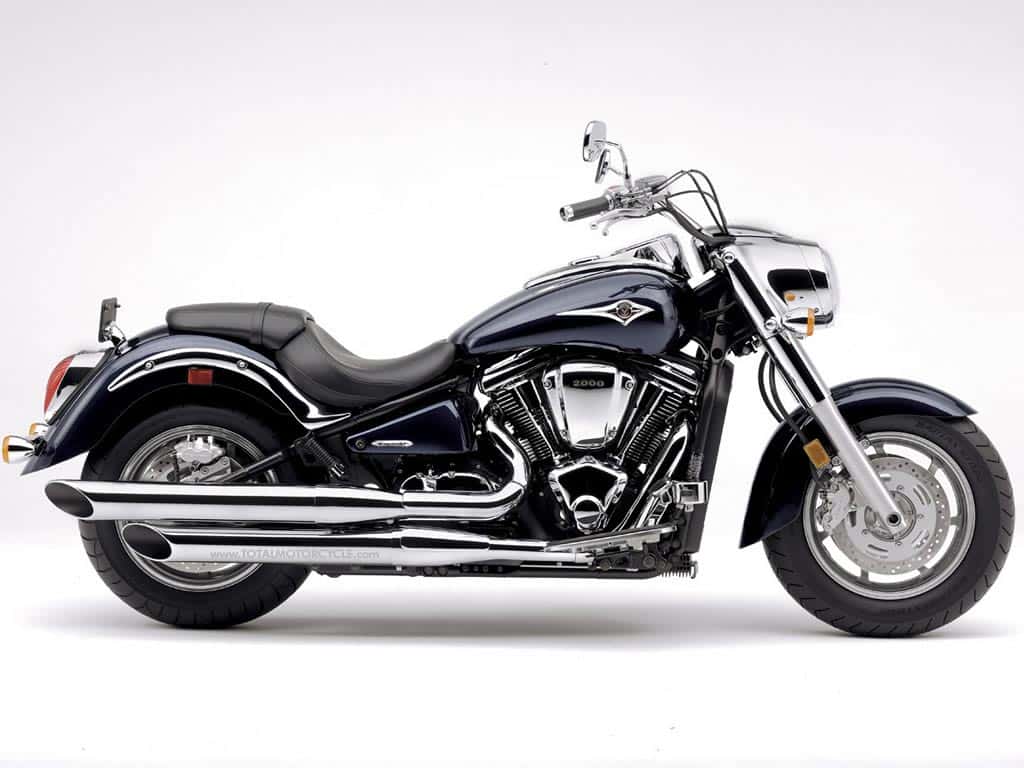

2005 Kawasaki Vulcan 2000
Click to Enlarge for Desktop Sized Photo

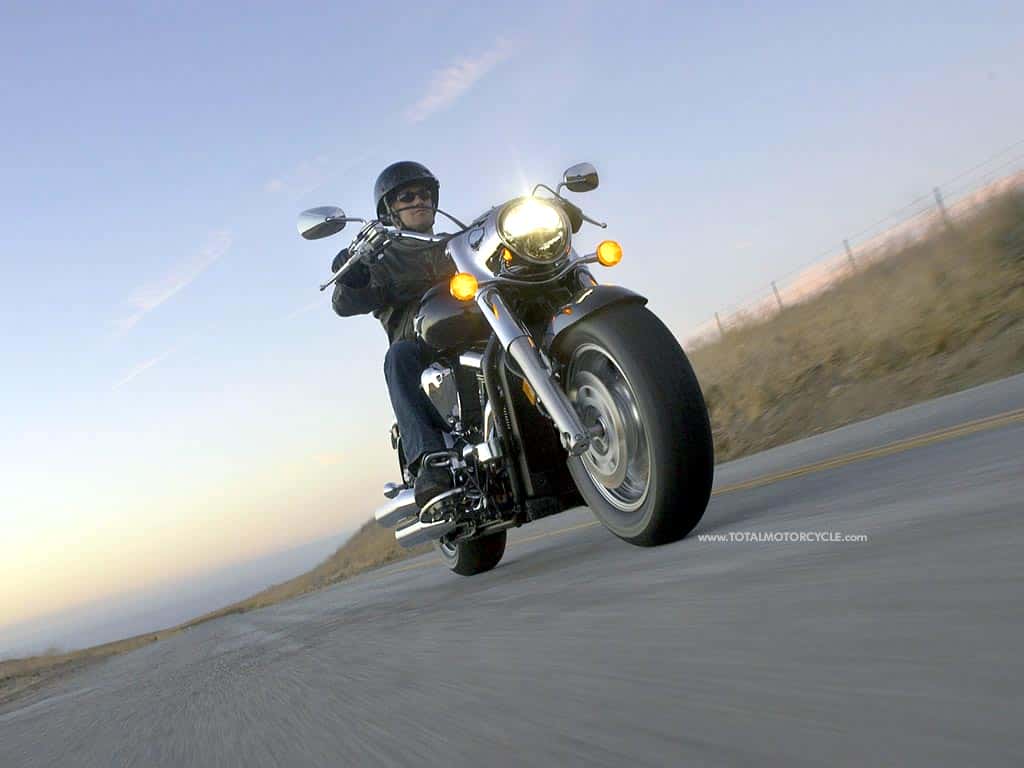

2005 Kawasaki Vulcan 2000
Click to Enlarge for Desktop Sized Photo

2005 Kawasaki Vulcan 2000
Click to Enlarge for Desktop Sized Photo

– 2005 Kawasaki Vulcan 2000

With the largest V-twin engine in a mass-production motorcycle, amazing torque, unique style and superb craftsmanship, the Vulcan® 2000 truly is the king of cruisers.
As the editors of Rider magazine wrote, “In naming Kawasaki’s Vulcan 2000 Cruising Rider’s Bike of the Year, we offer a hearty round of applause for its brawny styling, its powerful engine, excellent fit and finish, and top-notch running gear.”

Their comments were echoed by the editors of Cruising Rider: “Simply put, none of the contenders for our MOTY [Motorcycle of the Year] did everything they are supposed to do as well as the Vulcan 2000. Cruising, touring or stoplight-to-stoplight drag racing, the big Kawi is unmatched.”

Power for this stylish cruiser comes from a massive V-twin engine featuring a bore and stroke of 103 x 123.2mm, forged pistons, alloy-steel connecting rods, huge 220mm flywheels, dual cams located within the one-piece crankcase and right-side pushrods actuating four valves per cylinder. Notably, Kawasaki engineers chose to utilize a push rod design in order to reduce engine height, which directly contributes to the Vulcan 2000’s low center of gravity and relatively low seat height. Plus, hydraulic valve lash adjusters automatically maintain zero valve clearance for smoother, quieter operation.

Cruiser aficionados will appreciate the Vulcan 2000’s classic V-twin sound thanks, in part, to the single-pin crankshaft, while dual counterbalancers and rubber engine mounts keep it running smoothly.

To provide sharp throttle response at any rpm, the Vulcan 2000’s electronic engine control unit (ECU) manages electronic fuel injection with its dual 46mm throttle bodies and sub throttle valves, as well as the iridium spark plug ignition system. The sub throttle valves provide the Vulcan 2000 with a smooth, linear power band, while the highly sophisticated fuel injection system’s fine atomizing injectors deliver an ultra-fine mist of fuel/air mixture to the cylinders for greater combustion efficiency, increased power and optimum fuel economy.

The top quarter of the V-twin engine is liquid cooled, while temperatures for the bottom three-quarters of the engine are managed by stylish and highly functional cooling fins. Plus, the engine and transmission feature built-in oil and water pumps, with the transmission also serving as the oil tank.

The fuel injection system’s air cleaner is nestled between the cylinders, which feature a black matte finish, and the cooling fins are polished to a bright metallic shine. Dual exhaust pipes and mufflers emit a distinctive V-twin rumble, and include honeycomb catalyzers to reduce emissions.

A Hyvo primary drive chain transfers torque from the big V-twin engine to the five-speed transmission case, which houses a multi-plate wet clutch. To fully benefit from the Vulcan 2000’s advanced electronics, a gear position sensor in the transmission sends signals to the ECU, further enhancing fuel injection volume and ignition timing, and thus improving performance. Final drive to the rear wheel is provided by smooth, quiet and low maintenance belt drive.

The V-twin engine is utilized as a member of the Vulcan 2000’s steel, double-cradle frame, which features a large-diameter, box-section single-tube backbone. Coupled to the frame is a simple but elegant rear steel pipe swingarm suspension with a direct-action single shock. The rear suspension provides 3.9 inches of travel, and includes spring preload and rebound adjustment. Up front, large 49mm forks provide precise steering feedback and 5.9 inches of travel.

Styling queues that put the Vulcan 2000 at the forefront of cruiser design include a powerful four-bulb, projector-type headlight encased in a signature chrome Nacelle headlight – the first for a production cruiser. Adding to its high-end status is the chrome instrument panel with its large-face speedometer; mounted on a stretched, 5.5-gallon fuel tank, the V-shaped panel keeps the rider informed with an LCD display and warning lamps. The bucket-type saddle with locking passenger seat complements the Vulcan 2000’s long, curving silhouette while providing all-day riding comfort.

The Vulcan 2000 motorcycle rides on bright, cast aluminum 16-inch wheels with a 150/80 front radial tire and a huge, 200/60 rear radial tire – the biggest stock rear tire on a production V-twin cruiser. Dual 300mm front disc brakes with four-piston calipers and a single rear disc brake with two-piston caliper bring this big cruiser to smooth, powerful stops.



Features and Benefits

– 2,053cc four-stroke engine produces massive torque across the entire rpm range

– Forged pistons and alloy connecting rods are strong and light

– Huge 220 flywheels smooth power delivery

– Push-rod valve actuation contributes to lower engine height, low center of gravity and relatively low seat height

– Hydraulic valve adjusters reduce maintenance

– Engine Control Unit (ECU) manages electronic fuel injection and digital ignition system optimize throttle response

– Fuel injection system features sub throttle valves for a smooth, linear power band

– Fuel injection system’s fine atomizing injectors deliver ultra-fine fuel/air mixture for greater combustion efficiency, increased power and optimum fuel economy

– Center spark plugs enhance combustion for smooth, consistent power and reduced emissions

– Liquid and air cooling maintain consistent operating temperatures

– Engine and transmission feature built-in oil and water pumps, reducing the number of parts and reducing weight

– Single-pin crank contributes to a classic V-twin sound

Transmission / Final Drive

– A gear position sensor in the five-speed transmission sends signals to the ECU, further enhancing fuel injection and ignition performance

– Belt final drive is smooth, quiet, reliable and low maintenance

Frame and Suspension

– Steel double-cradle frame features large-diameter, box-section single-tube backbone for strength

– Engine is utilized as a stressed member of the frame to minimize chassis weight

– Steel pipe swingarm is simple and elegant

– Direct-action single shock features spring preload and rebound damping adjustment with 3.9 inches of travel for a smooth ride

– Large 49mm forks provide precise steering feedback and 5.9 inches of travel

Wheels and Tires

– 16-inch cast aluminum wheels add to the Vulcan 2000’s high-quality look

– 200/60R series rear tire is the largest stock tire size fitted to a production V-twin cruiser

– Radial tires enhance handling and give the Vulcan 2000 a firm, “planted” feel


– Dual 300mm front disc brakes with four-piston calipers and single rear disc brakes provide smooth, powerful stops


– Stylish Nacelle headlight cover – the first for a production cruiser – gives the Vulcan 2000 a high-class look

– Powerful, four-bulb projector-type headlights brighten the road for nighttime rides

– “Stretched” 5.5-gallon fuel tank provides for long-distance road trips

Additional features

– Chrome instrument panel keeps the rider informed with a large-face speedometer, LCD display and warning lamps

– Bucket-type front seat and locking passenger seat provide all-day rider comfort and style


Engine: Four-stroke V-twin, dual cams, 8 valves
Displacement: 2,053cc

Bore x stroke: 103 x 123.2mm

Compression ratio: 9.5:1

Cooling: Liquid, plus cooling fins

Induction: Electronic fuel injection, 46mm throttle bodies

Ignition: Digital

Transmission: Five-speed

Frame: Steel, double-cradle with box-section single-tube backbone

Rake / trail: 32° / 7.2 in.

Suspension type, front: 49mm telescopic fork

Suspension type, rear: Steel pipe swingarm with direct-action single shock

Suspension adjustments, rear: Fully adjustable spring preload, eight-way rebound damping

Wheel travel, front: 5.9 in.

Wheel travel, rear: 3.9 in.

Tire, front: 150/80R16

Tire, rear: 200/60R16

Brakes, front / rear: Dual 300mm discs with four-piston calipers / 320mm disc with dual-piston caliper

Overall length / width / height: 99.8 in. / 40.4 in. / 45.5 in.

Ground clearance: 5.3 in.

Seat height: 26.8 in.

Dry weight: 750 lbs.

Fuel capacity: 5.5 gal.

Wheelbase: 68.3 in.

Colors: Black, Blue, Green

* Price and specifications subject to change
