2005 Moto Guzzi California EV Touring
Back to 2005 Moto Guzzi Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

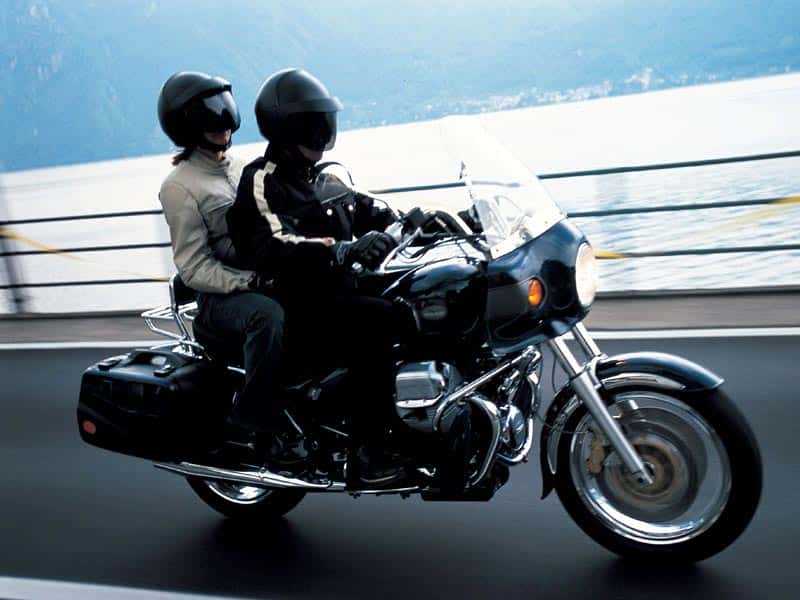

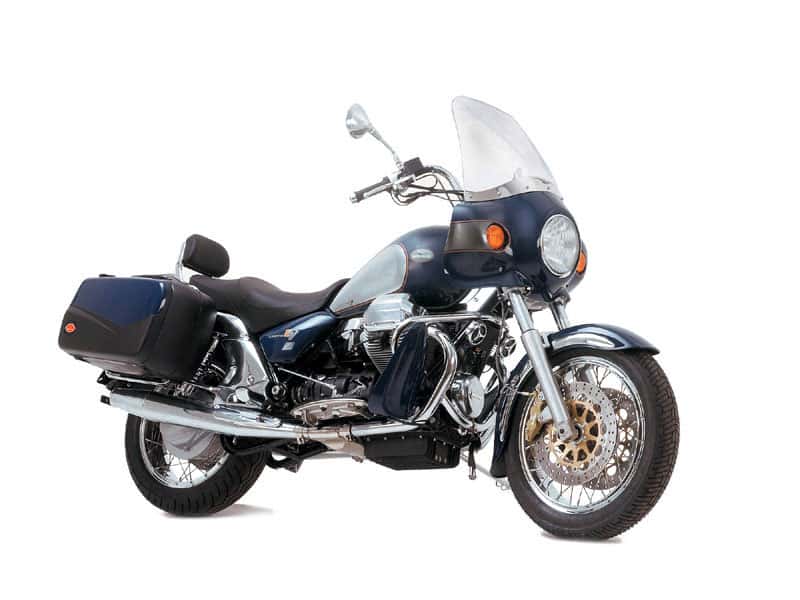

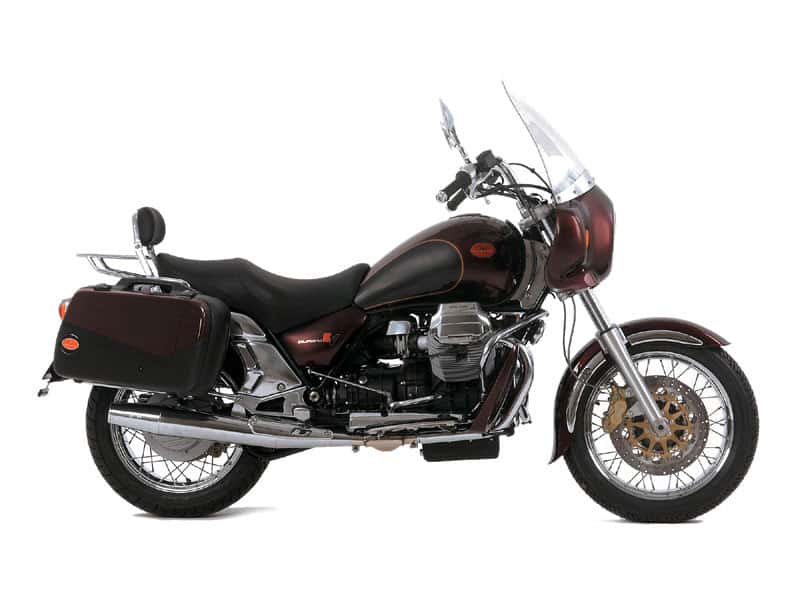

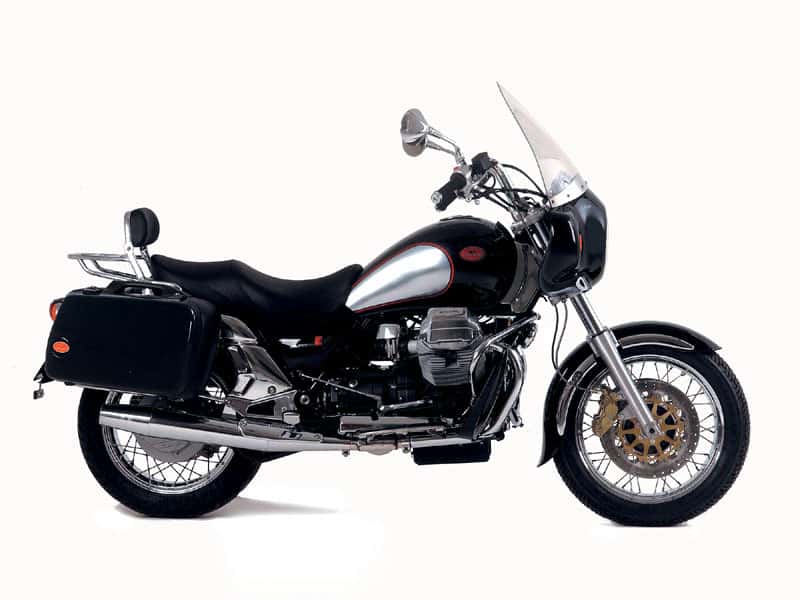

2005 Moto Guzzi California EV Touring
2005 Moto Guzzi California EV Touring

2005 Moto Guzzi California EV Touring
2005 Moto Guzzi California EV Touring

2005 Moto Guzzi California EV Touring
2005 Moto Guzzi California EV Touring

2005 Moto Guzzi California EV Touring
2005 Moto Guzzi California EV Touring



– 2005 Moto Guzzi California EV Touring

California EV Touring –The flagship of the Moto Guzzi touring line. Updated with our newest 90º V-Twin with hydraulic self-adjusting valves. Brembo Gold Series brakes. Integral braking system. Behr steel spoke tubeless rims. Distinctively decked out with a rider’s dream list of standard accessories, including an aerodynamic color-matched fairing and lowers, plus color-matched hard saddlebags, heated hand grips and a 12V accessory plug. Black and Chrome, Red and Black, Blue and Chrome or Dark Silver and Black.


Designed to satisfy


Most people set a limit to what they want. Some of us, however, when we reach that limit, want something more. This is the type of touring rider for whom Moto Guzzi has produced the California EV Touring.

This special version of the Guzzi touring flagship has everything you could possible want (and more!) to turn every journey into an unforgettable touring experience.


All the Guzzi chromosomes are there. The engine is the powerful and tireless Guzzi V twin with hydraulic tappets and catalyzed exhaust.

The design is timeless, with a relaxed riding position and the shiny chrome of a true cruiser. The massive braking system can stop you effortlessly. And the suspensions are what comfort is all about.
Yet the California EV Touring can still amaze with its extra features.

The California EV Touring embodies the same innovations as its twin sister, the California EV, but is even better equipped. The protective windshield is coloured to match the tank and bodywork, as are the stylish inserts on the elegant 40 litre panniers that come as standard. The refined blue colour scheme is also brand new.


And good looks can be functional too, as the new stainless steel pannier racks prove. These new racks will keep their good looks over the years while their new shape gives an improved riding position and aerodynamics.


Everything about the California EV Touring is designed to remove riding limits. Even the handlebar grips are heated to help you break through the cold barrier, for all year round long distance riding pleasure.


On board the California EV Touring you can even charge your mobile phone from the practical 12 V accessory socket.



Specifications:

Engine: 90º V-Twin, 4 stroke
Cylinders: Aluminum alloy with Gilnisil treatment
Pistons: Forged, 2 compression & 1 oil control ring
Cooling system: Air cooled
Displacement: 1064 cc
Bore and stroke: 92 mm x 80 mm
Compression ratio: 9.8:1
Valves & operation: 2 overhead valves moved by light
alloy push-rods and rocker arms with hydraulic valves
Maximum power: 74 hp @ 6400 rpm
Maximum torque: 70 ft/lbs @ 5000 rpm
Fuel system: Magneti Marelli IAW Multipoint phased sequential fuel injection
Starting system: Electric
Ignition: Magneti Marelli IAW electronic digital ignition
with inductive spark
Exhaust system: Steel, 2 tubes connected to an
expansion chamber, connected to 2 steel mufflers catalyzed with Lambda probe
Gear box: 5 speed, constant mesh gears with built-in
cush drive
Lubrication: Wet sump, forced oil, cartridge filter
Transmission: Primary: helical gears
Secondary: shaft drive
Clutch: Single disc, dry
Electrical system: 12 V; 12 V alternator; 16 Ah battery
Instruments: Speedometer with tripmeter, tachometer and warning lights
Frame: Detachable tubular duplex cradle
Trail: 4.258″ (116.4 mm)
Rake: 29.5º Front suspension: Marzocchi 45 mm hydraulic
telescopic fork, separately adjustable
Front wheel travel: 5.51″ (140 mm)
Rear suspension: Swing arm with 2 hydraulic shock absorbers, braking/extension adjustable
Rear wheel travel: 3.50″ (89 mm)
Braking System: Integral braking system with proportioning and delay valve
Front brakes: Two Brembo ORO Series stainless steel 320 mm floating discs with 4 piston caliper
Rear brakes: Single stainless steel 282 mm fixed disc with Brembo 2 piston caliper
Wheels: Behr steel spoke tubeless rims,
Front: 2.50″ x 18″ Rear: 4″ x 17″
Tires: Front: 110/90 VB18″ Rear: 150/80 VB17″
Overall length: 93.7″ (2380mm)
Width: 32.06″ (815 mm)
Height: 55.90″ (1420 mm)
Seat Height: 30.70″ (780 mm)
Ground clearance: 7.48″ (190 mm)
Wheelbase: 61.41″ (1560 mm)
Dry weight: 573.20 lbs (260 Kg)
Fuel capacity: 5.01 gallons (19 liters)
Reserve: 1.05 gallons (4 liters)
Available Colors: Black and Chrome, Red and Black, Blue and Chrome or Dark Silver and Black.
MSRP: $13,490 USD
Technical specifications and colors are subject to change without notice.


Heated hand grips are not available on the Black and Chrome EV Touring.
