2005 Moto Guzzi V11 Coppa Italia
Back to 2005 Moto Guzzi Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

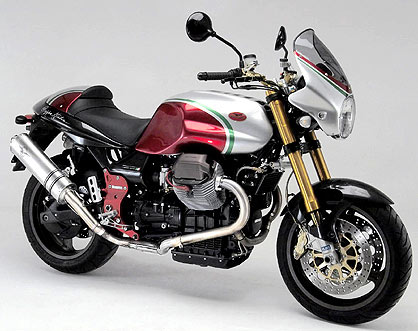

2005 Moto Guzzi V11 Coppa Italia

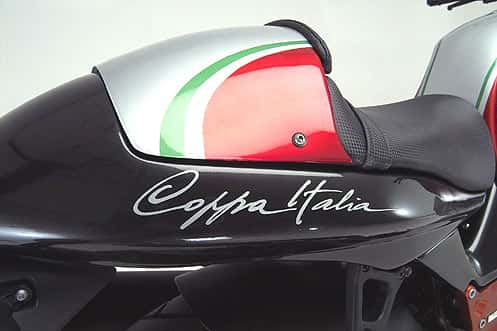

2005 Moto Guzzi V11 Coppa Italia

2005 Moto Guzzi V11 Coppa Italia
2005 Moto Guzzi V11 Coppa Italia



– 2005 Moto Guzzi V11 Coppa Italia

V11 Coppa Italia — The motorcycle produced to celebrate participation in the Italian Naked Bike Championship in ’03. The design is classic, compact and muscular exposing the latest 90º V-Twin with added crossover pipe and increased compression ratio to 9.8:1. Brembo Gold Series brakes. Ohlins front and rear suspension and steering damper. The Sport Bike par excellence from the Mandello del Lario company. Available in limited numbers in Tri-color Silver, Red and Green.



Specifications:

Engine: 90º V-Twin, 4 stroke
Cylinders: Aluminum alloy with Gilnisil treatment
Pistons: Forged, 2 compression & 1 oil control ring
Cooling system: Air cooled
Displacement: 1064 cc
Bore and stroke: 92 mm x 80 mm
Compression ratio: 9.8:1
Valves & operation: 2 overhead valves with light alloy push-rods
Maximum power: 91 hp @7800 rpm
Maximum torque: 70 ft/lbs @ 6000 rpm
Fuel system: Magneti Marelli IAW Multipoint phased sequential fuel injection
Starting system: Electric
Ignition: Magneti Marelli IAW electronic digital ignition
with inductive spark
Exhaust system: Steel, 2 tubes connected to
2 steel mufflers
Gear box: 6 speed
Lubrication: Wet sump, forced oil, cartridge filter
Transmission: Primary: helical gears
Secondary: shaft drive
Clutch: Double discs, dry, with hydraulic command
Electrical system: 12 V; 12 V alternator; 14 Ah battery
Instruments: Speedometer with tripmeter, tachometer
and warning lights
Frame: Monobeam frame
Trail: 4.05″ (103 mm)
Rake: 25º Front suspension: Ohlins USD fork, 43 mm compression/extension adjustable
Front wheel travel: 4.72″ (120mm)
Rear suspension: Cantilever swing arm with Ohlins mono shock compression/extension/preload adjustable
Rear wheel travel: 5.03″ (128 mm)
Front brakes: Two Brembo ORO Series stainless steel 320 mm floating discs with 4 piston caliper
Rear brakes: Single stainless steel 282 mm fixed disc with Brembo 2 piston caliper
Wheels: Brembo spoke light alloy,
Front: 3.5″ x 17″ Rear: 5.5″ x 17″
Tires: Front: 120/70 17″ Rear: 180/55 17″
Overall length: 84.64″ (2150 mm)
Width: 30.90″ (785 mm)
Height: 46.06″ (1170 mm)
Seat Height: 31.49″ (800 mm)
Ground clearance: 7.00″ (178 mm)
Handlebar Height: 39.17″ (995 mm)
Wheelbase: 58.66″ (1490 mm)
Dry weight: 487.22 lbs (221 Kg)
Fuel capacity: 5.46 gallons (20.7 liters)
Reserve: 1.32 gallons (5 liters)
Available Colors: Tri-color Silver, Red and Green
MSRP: $14,990 USD
Technical specifications and colors are subject to change without notice.
