2006 Harley-Davidson FLHRCI Road King Classic
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

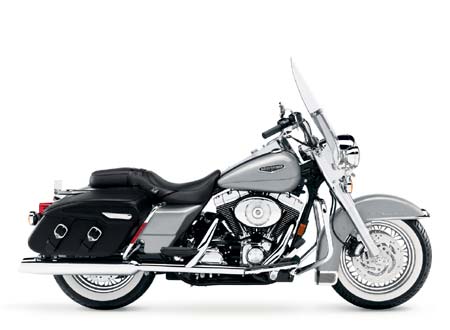

2006 Harley Davidson FLHRCI Road King Classic
2006 Harley-Davidson FLHRCI Road King Classic

2006 Harley Davidson FLHRCI Road King Classic
2006 Harley-Davidson FLHRCI Road King Classic

2006 Harley Davidson FLHRCI Road King Classic
2006 Harley-Davidson FLHRCI Road King Classic



– 2006 Harley-Davidson FLHRCI Road King Classic

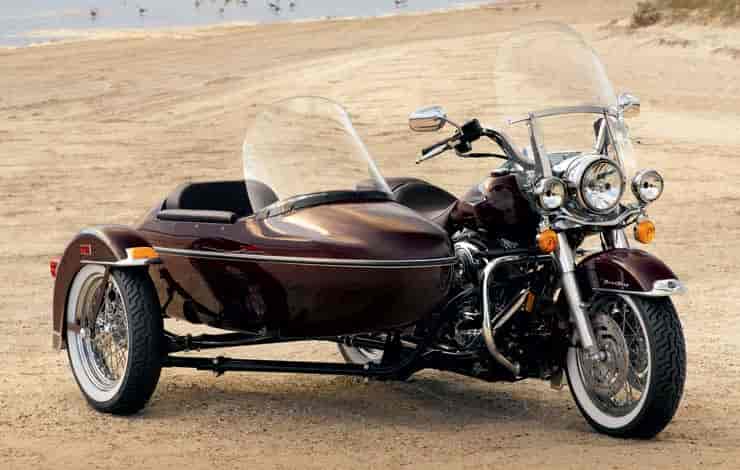

As you’re filling the tank to your Road King® Classic, an admirer moseys up. “She’s a beauty” is all he can manage. You invite him for a closer look. First the sidecar, color-matched with metal trim, steals his attention. Then he notices the rigid leather bags, Laced wheels, detachable windshield, big chrome headlight and nacelle. You notice his eyes grow two sizes so you mention the EFI Twin Cam 88®, refined chassis, air-adjustable suspension, triple-disc brakes and cruise control. As he’s about to reach for the tooled leather seat, the pump dings. He steps back, content with his little taste of freedom. You ride off, no doubt to fuel another dream at the next pump.


OVERVIEW
FLHRCI Road King® Classic Model Overview
Immersed in Harley-Davidson heritage, the FLHRCI Road King Classic offers appealing details like wide whitewall tires wrapped over steel laced wheels, a tooled leather Touring seat and leather-covered hard-shell saddlebags, and unique metal trim items. It’s a stunning motorcycle, and always ready for the open road with a large detachable windshield, air-adjustable rear suspension, auxiliary passing lights, triple-disc brakes and standard Electronic Sequential Port Fuel Injection and cruise control. Offered in 10 solid, Sunglo and two-tone color combinations for 2006.

FLHRCI Road King Classic features:

Vibration-isolated, 1450cc Twin Cam 88 engine with ESPFI
Black powder-coated engine with chrome covers
New low-effort clutch
Detachable windshield
Large, tank-mounted speedometer
Leather-wrapped, hard saddlebags
Tooled leather seat
Chrome tank and fender emblems
Wide whitewall tires
Steel laced wheels
Triple-disc brakes
Air-adjustable rear suspension
Electronic cruise control
New clear-lens, reflector-optic auxiliary lamps
New footboard inserts
New 50 amp/650 watt charging system



2006 FLHRCI ROAD KING® CLASSIC SPECIFICATIONS1

DIMENSIONS
Length 93.7 in. (2380.0 mm)
Seat Height:
Laden2 26.9 in. (683.3 mm)
Unladen 29.5 in. (749.3 mm)
Ground Clearance 5.1 in. (129.5 mm)
Rake (steering head) 26°
Fork Angle 29.3°
Trail 6.2 in. (157.5 mm)
Wheelbase 63.5 in. (1612.9 mm)
Tires (Dunlop® Harley-Davidson Series):
Front – D402F WW MT90B16 72H
Rear – D402 WW MU85B16 77H
Fuel Capacity3 5.0 gal. (18.9 L)
Reserve Fuel Capacity No reserve due to fuel injection
(warning light at approx. 1.0 gal.)
Oil Capacity 4.0 qts. (3.8 L)
Weight:
Dry Weight 710 lbs. (322 kg)
Vehicle Weight in Running Order 741 lbs. (336 kg)
Gross Vehicle Weight Rating 1259 lbs. (571 kg)



ENGINE
Engine (vibration isolation-mounted) Air-cooled, Twin Cam 88®
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)



DRIVETRAIN
Primary Drive Chain, 36/25 ratio
Final Drive Belt, 32/70 ratio
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150



CHASSIS
Frame Mild steel, square-section
backbone w/twin downtubes
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 41.3 mm telescopic
Rear Shocks Air-adjustable
Wheels5 (Chrome Aluminum Profi le Laced option): Steel Laced
Front 16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Rear 16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Brakes:
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front (dual) 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 4.6 in. (116.8 mm)
Rear Wheel 3.0 in. (76.2 mm)



PERFORMANCE
Engine Torque (per SAE J607)6:
North America 86 ft. lbs. @ 3500 rpm (117 NM @ 3500 rpm)
Lean Angle (per SAE J1168): Right: 31° Left: 30°
MPG (EPA urban/highway test)7: 39/46 mpg (6.0/5.1 L/100 km)



ELECTRIC
Battery Sealed, maintenance-free, 12V, 28-amp/hour,
270 cca (per Battery Council International Rating)
Charging Three-phase, 50-amp system
(585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Auxiliary Lamps Two @ 35W ea. (except where prohibited by law)
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure, engine
diagnostics, turn signals, cruise control,
security system8 (optional)



STYLING/CONVENIENCE
Engine Trim Black powder-coated w/chrome treatment
Exhaust System Chrome, cross-over duals
Handlebars Stainless steel, Buffalo
Seat Two-up
Footboards Height-adjustable operator and passenger
Windshield Large, clear Lexan,® quick-detachable
Brake and Shift Levers Heel/toe
Instruments Electronic speedometer w/odometer,
and resettable tripmeter, diagnostic readout,
fuel gauge w/low fuel light
Cruise Control Electronic w/set, resume, accelerate and decelerate
Handlebar Controls Start, engine cutoff, left/right turn
signals, horn, hi/low beam, cruise
on/off and set/resume
Hazard Warning Integrated into turn signal controls
Electrical Power Outlet Accessory connector under seat
Saddlebags Leather hard bags volume: 1.86 cu.ft. (52.6 L)
Fork Lock Standard fork-top



COLORS6
Vivid Black, Brilliant Silver Pearl, Black Cherry Pearl,
Chopper Blue Pearl, Rich Sunglo Blue, Brandy Wine Sunglo,
Two-Tone Rich Sunglo Blue/Chopper Blue Pearl, Two-Tone
Black Cherry Pearl/Black Pearl, Two-Tone Fire Red Pearl/Vivid Black,
Two-Tone Deep Cobalt Pearl/Brilliant Silver Pearl



WARRANTY
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter11



1 Harley-Davidson reserves the right to discontinue models or change specifications at any
time without incurring any obligations. Vehicle specifications may vary from country to
country depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures. Your
mileage will vary depending on your personal riding habits, weather conditions, trip length,
vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the security
system includes immobilizer and siren.
9 Availability may vary from dealer to dealer, and is subject to change without notice.
10 See motorcycle owner’s manual for complete details.
11 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
