2006 Harley-Davidson FLHR/I Road King
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

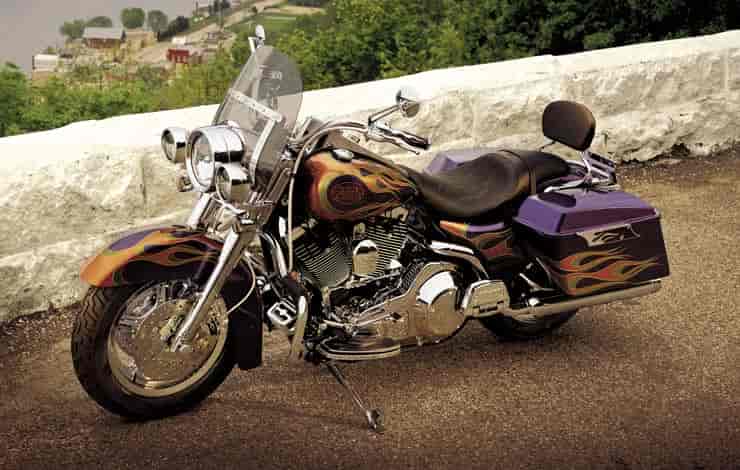

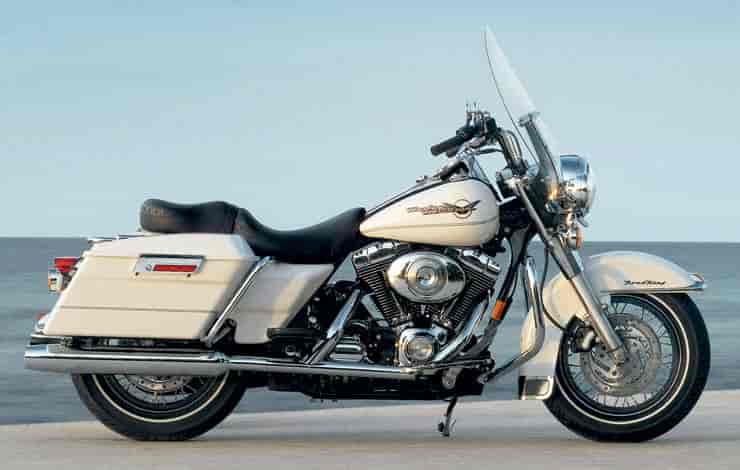

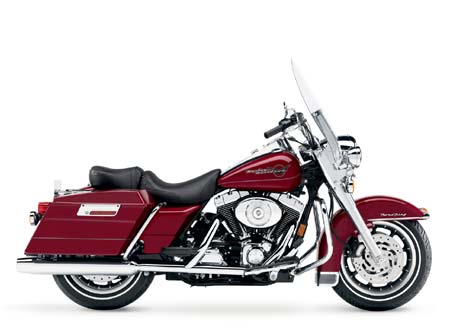

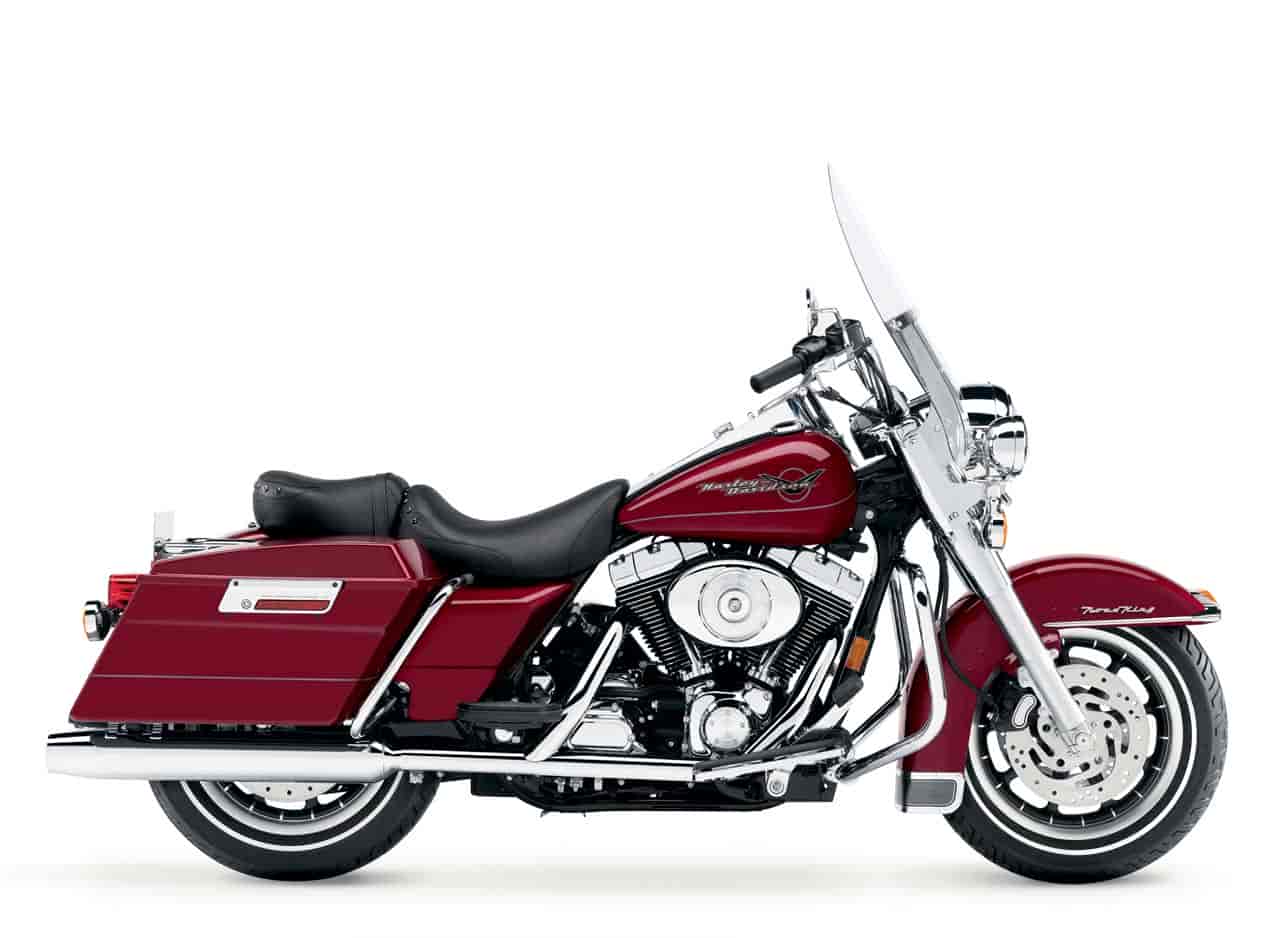

2006 Harley Davidson FLHR/I Road King
2006 Harley-Davidson FLHR/I Road King

2006 Harley Davidson FLHR/I Road King
2006 Harley-Davidson FLHR/I Road King

2006 Harley Davidson FLHR/I Road King
2006 Harley-Davidson FLHR/I Road King



– 2006 Harley-Davidson FLHR/I Road King

Get in the saddle of a Road King® and instantly you declare there is no horizon too distant. The bold profile hits you first. FL forks. Full fenders. Big chrome headlight and nacelle. Everything here is fit for a royal journey. Like an air-adjustable suspension and refined chassis. Detachable windshield. Weather-resistant, lockable saddlebags. Two-up seat. Beneath all the form lies the function an isolation-mounted, black powder-coated and chrome-covered Twin Cam 88® engine in carb or EFI. More riders are choosing the EFI option for the smoothest, most reliable starting and operating. The Road King commands you to ride. You nod, thumb the starter and gladly obey.


OVERVIEW
FLHR/I Road King® Model Overview
The FLHR/I Road King offers classic Harley-Davidson styling with the long-range comfort of the Touring chassis. Locking, weather-resistant hard-shell saddlebags and a large, detachable windshield handle luggage and the weather. A two-piece touring seat, air-adjustable rear Touring suspension and footboards make for all-day comfort. The big, clear-lens Hiawatha headlight and new clear-lens auxiliary passing lights, console-mounted speedometer and a deep skirted FL front fender deliver the style. There are 10 color options for 2006 including four two-tone combinations.

FLHR/I Road King features:

Vibration-isolated, 1450cc Twin Cam 88 engine
Black powder-coated engine with chrome covers
New low-effort clutch
Heritage styling
Large Hiawatha headlight
Detachable windshield
Large, tank-mounted speedometer
Two-piece Touring seat
Locking GTX nylon alloy saddlebags
Triple-disc brakes
Air-adjustable rear suspension
Cruise control-ready
New clear-lens, reflector-optic auxiliary lamps
New Pinstripe footboard inserts
New 50 amp/650 watt charging system



2006 FLHR/I ROAD KING® SPECIFICATIONS1


DIMENSIONS
Length 93.7 in. (2380.0 mm)
Seat Height:
Laden2 27.3 in. (693.4 mm)
Unladen 29.9 in. (759.5 mm)
Ground Clearance 5.1 in. (129.5 mm)
Rake (steering head) 26°
Fork Angle 29.3°
Trail 6.2 in. (157.5 mm)
Wheelbase 63.5 in. (1612.9 mm)
Tires (Dunlop® Harley-Davidson Series, narrow whitewall):
Front – D402F NW MT90B16 72H
Rear – D402 NW MU85B16 77H
Fuel Capacity3 (includes 1.0-gallon reserve) 5.0 gal. (18.9 L)
Reserve Fuel Capacity 1.0 gal. (3.8 L)
(warning light at approx. 1.0 gal. for ESPFI models)
Oil Capacity 4.0 qts. (3.8 L)
Weight:
Dry Weight 723 lbs. (328 kg)
Vehicle Weight in Running Order 754 lbs. (342 kg)
Gross Vehicle Weight Rating 1259 lbs. (571 kg)



ENGINE
Engine (vibration isolation-mounted) Air-cooled, Twin Cam 88®
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System4 Carburetor or Electronic Sequential
Port Fuel Injection (ESPFI)



DRIVETRAIN
Primary Drive Chain, 36/25 ratio
Final Drive Belt, 32/70 ratio
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150



CHASSIS
Frame Mild steel, square-section
backbone w/twin downtubes
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 41.3 mm telescopic
Rear Shocks Air-adjustable
Wheels5 (Chrome Aluminum Profi le Laced option):
Black, 9-spoke cast aluminum
Front 16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Rear 16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Brakes:
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front (dual) 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 4.6 in. (116.8 mm)
Rear Wheel 3.0 in. (76.2 mm)



PERFORMANCE
Engine Torque (per SAE J607)6:
North America 86 ft. lbs. @ 3500 rpm (117 NM @ 3500 rpm)
Lean Angle (per SAE J1168): Right: 31° Left: 30°
MPG (EPA urban/highway test)7: Carbureted: 37/46 mpg (6.4/5.1 L/100 km)
ESPFI: 39/46 mpg (6.0/5.1 L/100 km)



ELECTRIC
Battery Sealed, maintenance-free, 12V, 28-amp/hour,
270 cca (per Battery Council International Rating)
Charging Three-phase, 50-amp system
(585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Auxiliary Lamps Two @ 35W ea. (except where prohibited by law)
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure,
engine diagnostics, turn signals,
security system5 (optional)



STYLING/CONVENIENCE
Engine Trim Black powder-coated w/chrome treatment
Exhaust System Chrome, cross-over duals
Handlebars Stainless steel, Buffalo
Seat Two-piece, two-up
Footboards Height-adjustable operator and passenger
Windshield Large, clear Lexan,® quick-detachable
Brake and Shift Levers Heel/toe
Instruments Electronic speedometer w/odometer
and resettable tripmeter, fuel gauge
w/low fuel light, diagnostic readout
Cruise Control Wired to accept cruise control
Handlebar Controls Start, engine cutoff, left/right turn
signals, horn, hi/low beam
Hazard Warning Integrated into turn signal controls
Electrical Power Outlet Accessory connector under seat
Saddlebags Injection-molded GTX® volume: 2.26 cu.ft. (64.0 L)9
Luggage Locks Saddlebag, barrel key; common w/ignition
Fork Lock Standard fork-top



COLORS10
Vivid Black, Black Cherry Pearl, Black Pearl, Fire Red Pearl,
Deep Cobalt Pearl, Glacier White Pearl, Two-Tone Rich Sunglo Blue/
Chopper Blue Pearl, Two-Tone Chopper Blue Pearl/
Brilliant Silver Pearl, Two-Tone Black Cherry Pearl/Black Pearl,
Two-Tone Fire Red Pearl/Vivid Black



WARRANTY
Warranty11 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter12




1 Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures. Your mileage will vary depending on your personal riding habits, weather conditions, trip length, vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9 GTX is a registered trademark of General Electric Company.
10 Availability may vary from dealer to dealer, and is subject to change without notice.
11 See motorcycle owner’s manual for complete details.
12 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
