2006 Harley-Davidson FLHTCUSE Screamin’ Eagle Ultra Classic Electra Glide
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

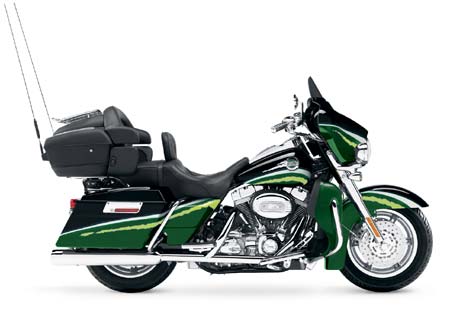

2006 Harley Davidson FLHTCUSE Screamin' Eagle Ultra Classic Electra Glide
2006 Harley-Davidson FLHTCUSE Screamin’ Eagle Ultra Classic Electra Glide

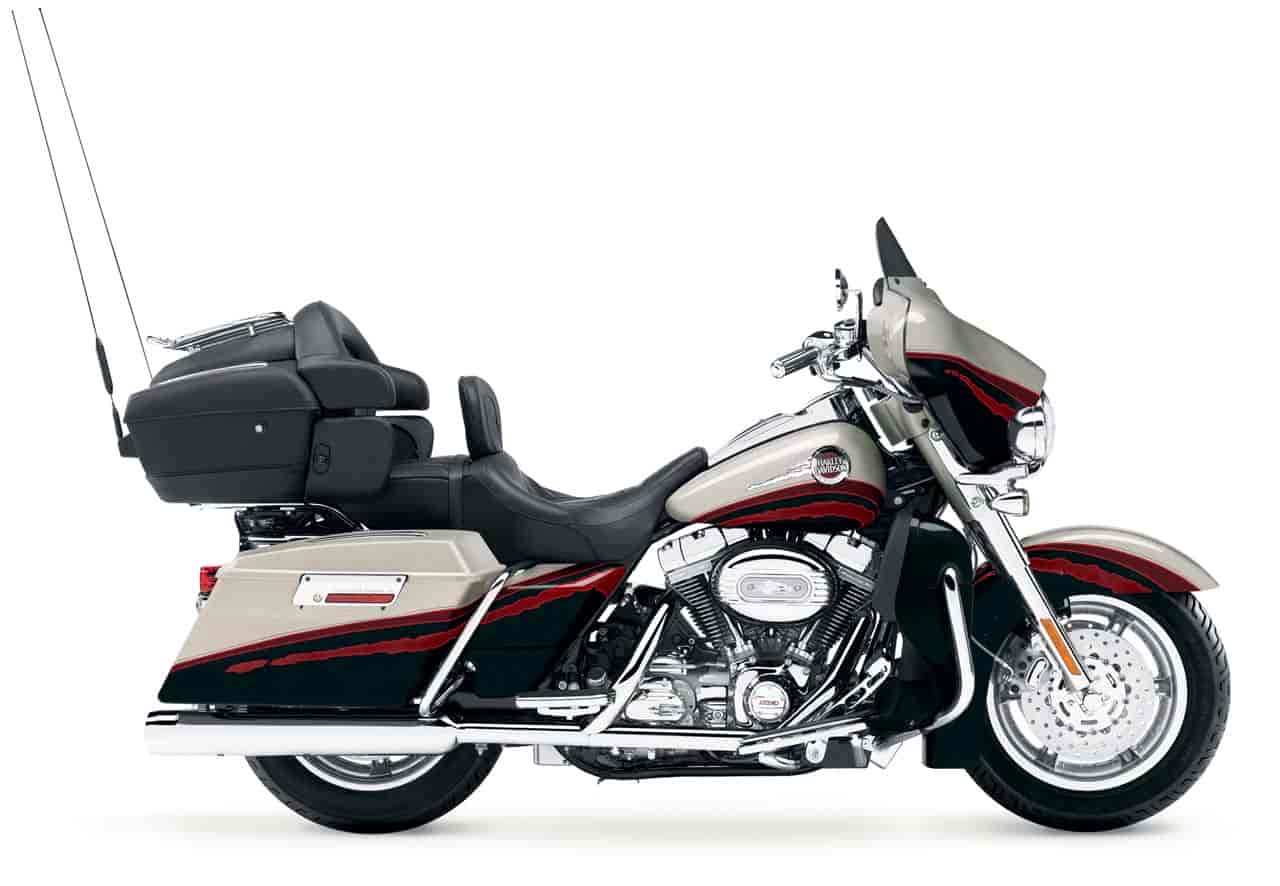

2006 Harley Davidson FLHTCUSE Screamin' Eagle Ultra Classic Electra Glide
2006 Harley-Davidson FLHTCUSE Screamin’ Eagle Ultra Classic Electra Glide

2006 Harley Davidson FLHTCUSE Screamin' Eagle Ultra Classic Electra Glide
2006 Harley-Davidson FLHTCUSE Screamin’ Eagle Ultra Classic Electra Glide


– 2006 Harley-Davidson FLHTCUSE Screamin’ Eagle Ultra Classic Electra Glide

FLHTCUSE Screamin’ Eagle® Ultra Classic® Electra Glide® Model Overview

Features of the 2006 FLHTCUSE Screamin’ Eagle Ultra Classic Electra Glide include:

Custom Colors:
Black Emerald and Majestic Green Pearl
Black Candy Crimson and Charcoal Slate
Autumn Haze and Vivid Black
Color-matched vented fairing lowers with storage compartments
Color-matched inner fairing and switch panel
Color-matched saddlebag filler strips
Custom leather Tour-Pak styled with custom leather braiding and stitching including:
LED interior light
Luggage rack
Lumbar support passenger backrest
Plush Tour-Pak and saddlebag liners
Custom leather dash pad with chrome accent
Twin Cam 103 powertrain finished in silver and chrome
ScreaminÕ Eagle SYN3 synthetic lubricant
Black high-torque 1.4 kW starter
High-performance clutch with hydraulic actuation
Custom oil cooler with chrome cover
Custom oil filter mount with internal thermostat
Chrome oil line cover
Chrome oil vent line with chrome fitting
Chrome voltage regulator
Stratum Collection chrome billet timer and derby covers with color-filled script
Ribbed air cleaner cover with ScreaminÕ Eagle insert
Chrome slotted six spoke (cast) custom wheels
Chrome front slotted six spoke custom floating brake discs
Silver brake calipers with billet-style inserts
Chrome front axle covers
Chrome fork sliders and chrome upper fork covers
Chrome lower triple tree cover
Dual bulb halogen headlamp
Chrome custom auxiliary lamp brackets with bullet-style front turn signals
Smoked turn signal lenses with amber bulbs
Dark tinted mini wind deflector and matching air deflectors
Spun aluminum metal-faced speedo and tachometer with backlighting
Spun aluminum metal-faced 2-inch auxiliary gauges with backlighting
Advanced Audio System by Harman Kardon, XM Satellite Radio, CB/intercom, amplifier
Front and rear speakers
Chrome 1-inch diameter handlebar with internal wiring
Chrome clutch and brake master cylinders
Chrome switch housings and hand levers
Bullet-style mirrors
Cruise control
Clear-coated, braided stainless steel control cables
Clear-coated, braided stainless steel front brake and clutch lines
Chrome CB pod with color-matched inserts
Chrome extended-reach billet brake lever
Chrome billet heel/toe shift levers
Polished stainless steel hex shift linkage
Chrome rider and passenger footboard supports
Stealth Collection:
Passenger footboard inserts
Rider footboard inserts
Stealth Collection chrome and rubber heated handgrips with chrome end caps
Brake pedal pad
Shifter pegs
Custom leather dual control heated seat
Adjustable rider backrest
Chrome saddlebag cover trim
Chrome valve stem caps
Chrome front wheel bearing spacers
Chrome 4-inch Touring mufflers with chrome billet end caps
Chrome Touring muffler shields
Right-hand front exhaust heat shield
Bullet-style rear turn signals mounted on a chrome narrow turn signal bar
Chrome push-button fuel door
Integral garage door opener and receiver
Carryout saddlebag and Tour-Pak liners
Harley-Davidson factory security system with smart siren
Indoor storage cover with embroidered CVO logo
Commemorative CVO ignition key w/ box



Length 97.01 in. (2464.0 mm)
Seat Height
Laden2 27.3 in. (693.4 mm)
Unladen 30.7 in. (779.8 mm)
Ground Clearance 5.1 in. (129.5 mm)
Rake 26°
Trail 6.2 in. (157.5 mm)
Wheelbase 63.5 in. (1612.9 mm)
Tires (Dunlop® Harley-Davidson Series):
Front – D402F MT90B16 72H
Rear – D402 MU85B16 77H
Fuel Capacity3 5.0 gal. (18.9 L)
Reserve Fuel Capacity No reserve due to fuel injection
(warning light at approx. 1.0 gal.)
Oil Capacity 4.0 qts. (3.8 L)
Dry Weight 845 lbs. (384 kg)
Vehicle Weight in Running Order 885 lbs. (402.3 kg)
Gross Vehicle Weight Rating 1258 lbs. (572 kg)


Engine Oil-cooled, Twin Cam 103TM powder-coated
Silver w/chrome covers
Bore x Stroke 3.87 in. x 4.37 in. (85.25 mm x 110.8 mm)
Displacement 103 cu. in. (1690 cu. cm)
Compression Ratio 9:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner High effi ciency, pleated paper construction
Lubrication System Dry sump, internally mounted, crank driven
gerotor pressure and dual scavenge pump
w/spin-on 10 micron pressurized oil fi lter


Primary Drive Double-row chain, oil bath, mechanical
tensioner; 36/25 tooth sprockets (1.44:1)
Secondary Drive Gates carbon fi ber reinforced poly chain belt;
32/70-tooth sprockets; (2.188:1)
Clutch Hydraulically actuated, 9-plate, wet
Transmission 5-speed, constant mesh
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.852
5th 3.150


Frame Mild steel, square-section backbone w/twin downtubes
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 41.3 mm
Wheels5: Chrome, slotted 6-spoke
Front 16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Rear 16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Chrome, fl oating brake rotors (front),
Patented, uniform expansion rotor (rear)
Front (dual) 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 4.6 in. (116.8 mm)
Rear Wheel 3.0 in. (76.2 mm)


Engine Torque (per SAE J607)6:
World (ft. lbs at rpm) 100 ft. lbs. @ 4000 rpm (138 NM @ 4000 rpm)
Lean Angle (per SAE J1168):
Right 31°
Left 30°
MPG (EPA urban/highway test)7 34/46 mpg (6.78/5.1 L/100 km)

Battery Sealed, maintenance-free, 12V, 28-amp/hour,
270 cca (per Battery Council International Rating)
Charging Three-phase, 50-amp system
(585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.4 kW electric w/solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, dual high beam
(35 watts and 55 watts)
Passing Lamps Sealed beam, 2 @ 27-watt each
(except where prohibited by law)
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure, engine
diagnostics, turn signals, low fuel warning,
cruise control, battery, and security system8


Engine Trim Silver powder-coated w/chrome covers
Exhaust System Cross-over dual w/chrome 4-in. Touring
muffl ers w/chrome billet end caps
Handlebars Chrome 1-in. dia. w/internal wiring
Seat Custom leather two-up dual control heated seat
w/adjustable rider backrest
Passenger Backrest Tour-Pak® mounted w/lumbar support
Footboards Operator and passenger
Fairing Fork-mounted
Wind Defl ector Dark smoked Lexan®, mini
Fairing Air Defl ectors Dark smoked
Vented Lower Fairings Color-matched w/storage compartments
Instruments Custom engine turned metal faced w/colored LEDs and
matching illumination. Electronic speedometer w/odometer
and resettable dual tripmeter; electronic tachometer
w/cruise control light, fuel gauge, air temperature
gauge, voltmeter gauge, and oil pressure gauge
Stereo Advanced Audio System by Harman/Kardon® w/front and
rear speakers, XM satellite radio, CB/intercom, amplifi er
Antenna Dual rear (Tour-Pak backrest) mounted
Intercom / CB / Headset Standard
Cruise Control Factory-installed w/integrated hand controls
Handlebar Controls Start; engine cutoff; L/R turn signals; horn; hi/low
beam; cruise on/off and set/resume; radio
controls; and garage door opener control
Hand Grips Stealth Collection chrome and rubber heated grips
Hazard Warning Integrated into turn signal controls
Elecrical Power Outlet 4-pin accessory connector beneath seat
Tour-Pak® Custom leather, styled w/custom leather braiding
and stitching. Equipped standard w/LED interior light,
luggage rack, and lumbar support passenger backrest
Saddlebags Injection-molded GTX® w/hinged lid and chrome
slant latches, volume: 2.26 cu. ft. (64 L) per bag9
Luggage Locks Tour-Pak and saddlebag, barrel key, common w/ignition
Fork Lock Barrel-key, common w/ignition
Gas Cap Push-button fuel door
CVO Key Custom gold key w/CVO mark
Security System Factory installed w/siren


Two-Tone Black Emerald/Majestic Green Pearl, Two-Tone Black Candy
Crimson/Charcoal Slate, Two-Tone Autumn Haze/Vivid Black


Warranty11 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter12
1 Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures. Your mileage will vary depending on your personal riding habits, weather conditions, trip length, vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9 GTX is a registered trademark of General Electric Company.
10 Availability may vary from dealer to dealer, and is subject to change without notice.
11 See motorcycle owner’s manual for complete details.
12 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
