2006 Harley-Davidson FLSTN/I Softail Deluxe
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

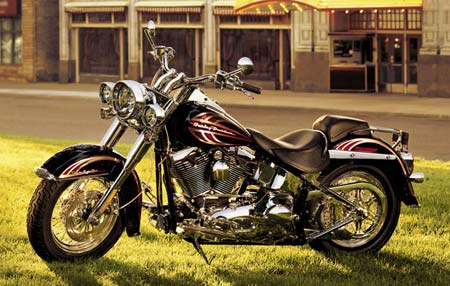

2006 Harley Davidson FLSTN/I Softail Deluxe
2006 Harley-Davidson FLSTN/I Softail Deluxe

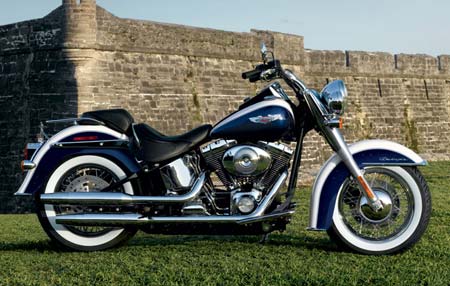

2006 Harley Davidson FLSTN/I Softail Deluxe
2006 Harley-Davidson FLSTN/I Softail Deluxe

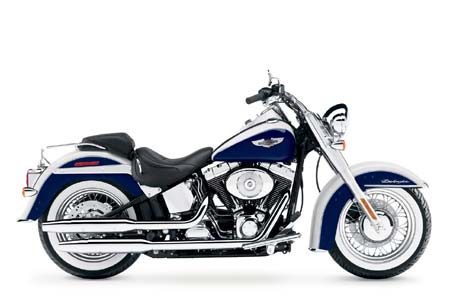

2006 Harley Davidson FLSTN/I Softail Deluxe
2006 Harley-Davidson FLSTN/I Softail Deluxe



– 2006 Harley-Davidson FLSTN/I Softail Deluxe

When the Softail® Deluxe hit the showrooms, riders big and small couldn’t wait to take this plush ride to the road. How could we blame them? Whitewall to whitewall, every detail is sheer beauty. Long-barreled shotgun pipes. Clean front light bars with bullet turn signals. Tombstone taillight. Low seat with grab rail — you’re just 24.5″ off the ground. Pullback riser and handlebar. Long floorboards. Integrated luggage rack. Tank and fender emblems. And a big retro-style speedometer like nothing else you’ve seen in decades. Power is big and modern. You get a wrinkle black and chrome Twin Cam 88B™ engine in carb or EFI. Once brought to life, no one can resist its lure.


OVERVIEW
FLSTN/I Softail® Deluxe features Model Overview
FLSTN/I Softail Deluxe combines easy-riding comfort with a heavy dose of nostalgia to create an eye-catching custom that’s a joy to ride. It hugs the road on lowered suspension. The pull-back riser and handlebars and 24.5-inch seat height make the Softail Deluxe comfortable for a wide range of riders. It’s also the lowest Softail in the line. Custom details include a tapered chrome luggage rack, checked seat side panels and a chrome grab rail, tapered floorboards with chrome trim and clean front and rear light bars with bullet signals. Wide whitewall tires over laced chrome wheels, distinctive tank and fender emblems and a classic tombstone tail light recall another era. Choose from seven paint schemes, including the two-tone combinations of Glacier White/Deep Cobalt and Glacier White/ Vivid Black. Chrome Aluminum Profile Laced wheels are available as a factory-installed option.

FLSTN/I Softail Deluxe features:

Rigid-mount, 1450cc Twin Cam 88B balanced engine
Black powder-coated engine with chrome covers
Hardtail styling with hidden, horizontal rear shocks
New clear-lens reflector-optics auxiliary lamps
Low 24.5-inch seat height
Wide whitewall tires
Laced wheels
Chrome oil tank
Chrome shotgun exhaust
Pull-back risers and handlebars
Chrome luggage rack and seat rail
Tombstone taillight
Distinctive headlight nacelle
Easily removable passenger pillion
Floorboards with heel-and-toe shifter
New easy-reach sidestand




2006 FLSTN/I SOFTAIL® DELUXE SPECIFICATIONS1

DIMENSIONS
Length 94.7 in. (2405.4 mm)
Seat Height:
Laden2 24.5 in. (622.3mm)
Unladen 26.5 in. (673.1 mm)
Ground Clearance 4.8 in. (121.9 mm)
Rake (steering head) 32°
Fork Angle 32°
Trail 5.8 in. (147.3 mm)
Wheelbase 64.5 in. (1638.3 mm)
Tires (Dunlop® Harley-Davidson Series):
Front – D402F MT90-16
Rear – D402 MU85B16
Fuel Capacity3 (includes 0.5-gallon reserve) 5.0 gal. (18.9 L)
Reserve Fuel Capacity Carburetor: 0.5 gal. (1.9 L)
(warning light at approx. ESPFI: No reserve due
1.0 gal. for ESPFI models) to fuel injection
Oil Capacity 3.5 qts. (3.3 L)
Weight:
Dry Weight 693 lbs. (315 kg)
Vehicle Weight in Running Order 724 lbs. (329 kg)
Gross Vehicle Weight Rating 1160 lbs. (527 kg)



ENGINE
Engine4 Air-cooled Twin Cam 88BTM (balanced)
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18 mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System3 Carburetor or Electronic Sequential
Port Fuel Injection (ESPFI)



DRIVETRAIN
Primary Drive Chain, 36/25 ratio
Final Drive Belt, 32/70 ratio
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150



CHASSIS
Frame Mild steel tubular frame; rectangular section
backbone; stamped, cast and forged junctions;
forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 41.3 mm telescopic w/”beer can” covers
Wheels5 (Chrome Aluminum Profi le Laced option):
Front 16-inch Steel Laced
Rear 16-inch Steel Laced
Brakes:
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 5.1 in. (129.5 mm)
Rear Wheel 4.3 in. (109.2 mm)



PERFORMANCE
Engine Torque (per SAE J607)6:
North America 85 ft. lbs. @ 3000 rpm (115 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
Right 28°
Left 28°
MPG (EPA urban/highway test)7:
Carbureted 42/50 mpg (5.6/4.7 L/100 km)
ESPFI 44/50 mpg (5.3/4.7 L/100 km)



ELECTRIC
Battery Sealed, maintenance-free, 12V, 19-amp/hour,
270 cca (per Battery Council International Rating)
Charging Three-phase, 38-amp system
(439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift
starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Passing Lamps Chrome
Indicator Lamps High beam, neutral, low oil pressure,
turn signals, engine diagnostics,
security system8 (optional)



STYLING/CONVENIENCE
Engine Trim Silver powder-coated w/chrome treatment
Exhaust System Chrome, over/under straight
shotgun exhaust w/shorty duals
Oil Tank Chrome “horseshoe” w/chrome external oil lines
Ignition Tank console-mounted
Seat Two-up
Handlebars Stainless steel, low-rise
Foot Supports Full-length operator fl oorboards
w/heel/toe shift lever
Rear Fender Full coverage
Rear Fender Supports Chrome
Fork Lock Common w/ignition key
Instruments Electronic speedometer w/odometer and
resettable tripmeter, diagnostic readout
Hazard Warning Integrated into turn signal controls



COLORS9
Vivid Black, Black Cherry Pearl, Black Pearl, Deep Cobalt Pearl,
Brandy Wine Sunglo, Two-Tone Glacier White Pearl/Vivid Black,
Two-Tone Glacier White Pearl/Deep Cobalt Pearl



WARRANTY
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter11




1 Harley-Davidson reserves the right to discontinue models or change specifications at any
time without incurring any obligations. Vehicle specifications may vary from country to
country depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures. Your
mileage will vary depending on your personal riding habits, weather conditions, trip length,
vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the security
system includes immobilizer and siren.
9 Availability may vary from dealer to dealer, and is subject to change without notice.
10 See motorcycle owner’s manual for complete details.
11 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
