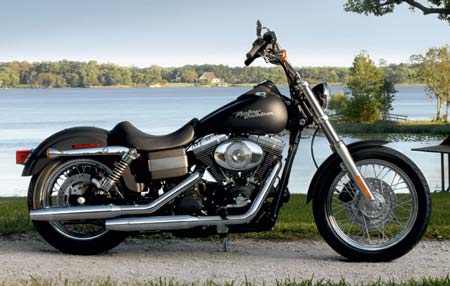

– 2006 Harley-Davidson FXDBI Dyna Street Bob
This one might take you back to the middle of the century when riders looking for a little extra speed and a unique custom look on a Harley® started stripping off the shiny parts. Check out the raked front end, solo seat and Black Denim paint option. Now get ready to put two fists in the wind, courtesy of factory ape hangers framing the road ahead. The emblem on the Fat Bob™ tank looks like it was carved from a block of solid metal. Laced wheels. Black powder-coated, polished Twin Cam 88® powertrain. And the new 6-speed Cruise Drive™ transmission via mid-mount controls. Kick it into gear and you’re riding clean and pure. It’s just what the open road calls for.
FXDBI Dyna Street Bob™ Model Overview
The new FXDBI Street Bob takes minimalist styling to a new extreme. Inspired by the post-World War II “bobber” movement, the Street Bob discards any component not required by law … a passenger seat and pegs, for example. A solo seat sets the tone for a motorcycle designed for the individualist. Seat height is just 25.8 inches. Mini ape-hanger handlebars, the classic Fat Bob fuel tank, a new wrap-around rear fender and steel laced wheels complete a profile that will stand out in the cruiser crowd. A new wrinkle-black finish is applied to the battery box, console and belt guard. Four color choices include new Black Denim, a flat-black finish.
FXDBI Street Bob features:
Vibration-isolated Twin Cam 88 engine with ESPFI
Black powder-coated engine with polished covers
Chrome staggered shorty dual exhaust
New 6-speed Cruise Drive transmission
New 49 mm forks
New 29 degree fork angle/29 degree steering head angle
Mini ape-hanger handlebars
Fat Bob fuel tank
Street Bob air cleaner trim ring
Special tank emblems
Wrinkle-black console with turn signal indicators
Wrinkle-black battery cover with polished trim
Wrinkle-black belt guard
Mid-mounted foot controls
New wrap-around rear fender
New 160 mm rear tire
Steel Laced wheels
New Black Denim paint available
NEW 2006 FXDBI DYNA STREET BOB SPECIFICATIONS1
Length 92.8 in. (2358.0 mm)
Laden2 25.8 in. (655.3 mm)
Unladen 26.8 in. (680.0 mm)
Ground Clearance 5.6 in. (142.0 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.7 in. (119.4 mm)
Wheelbase 64.2 in. (1630.0 mm)
Tires (Dunlop® Harley-Davidson Series):
Front – D401F 100/90-19 57H
Rear – D401 160/70B16 73V
Fuel Capacity3 4.7 gal. (17.8 L)
Reserve Fuel Capacity No reserve due to fuel injection
(warning light @ approx. 1.2 gal.)
Oil Capacity 3.0 qts. (2.8 L)
Dry Weight 634 lbs. (288 kg)
Vehicle Weight in Running Order 667 lbs. (303 kg)
Gross Vehicle Weight Rating 1085 lbs. (493 kg)
Engine4 (vibration isolation-mounted) Air-cooled, Twin Cam 88®
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18 mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Primary Drive Chain
Final Drive Belt, 70/32 ratio (68/32 ratio)
Clutch 9-plate, wet
Frame Mild steel, tubular frame; rectangular section
backbone; stamped, cast and forged junctions;
forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 49 mm w/polished aluminum fork
triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels5: Steel Laced
Front 19 in. x 2.5 in. (482.6 mm x 57.15 mm)
Rear 17 in. x 4.5 in. (431.8 mm x 102.87 mm)
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front (single fl oating) 11.81 in. x .20 in. (300 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Front Wheel 5.0 in. (127.0 mm)
Rear Wheel 4.1 in. (104.10 mm)
Engine Torque (per SAE J607)6:
North America 85 ft. lbs. @ 3000 rpm (115 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
MPG (EPA urban/highway test)7 44/50 mpg (5.3/4.7 L/100 km)
Battery Sealed, maintenance-free, 12V, 19-amp/hour,
270 cca (per Battery Council International Rating)
Charging Single-phase, 45-amp system
(559W @ 13V, 2000 rpm, 599W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift
starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure,
turn signals, engine diagnostics,
security system8 (optional)
Electrical Power Outlet Standard
Engine Trim Black powder-coated w/wrinkle-black treatment
Exhaust System Chrome, staggered shorty duals
Oil tank Under transmission
Front Fender Sport style w/painted brace
Rear Fender Sport wrap-around w/chrome supports
Brake and Shift Lever Mid-mount controls
Handlebars Stainless steel, mini ape-hanger
Rider Foot Conrols Footpegs
Instruments Electronic speedometer w/odometer and
resettable tripmeter, diagnostic readout, fuel gauge
Fork Lock Barrel key on steering head; key common w/ignition
Hazard Warning Integrated into turn signal controls
Vivid Black, Black Cherry Pearl, Deep Cobalt Pearl, Black Denim10
Warranty11 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter12
1 Harley-Davidson reserves the right to discontinue models or change specifications at any
time without incurring any obligations. Vehicle specifications may vary from country to
country depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures. Your
mileage will vary depending on your personal riding habits, weather conditions, trip length,
vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the security
system includes immobilizer and siren.
9 Availability may vary from dealer to dealer, and is subject to change without notice.
10 The FXDBI Street Bob™ and VRSCD Night Rod™ motorcycles are the only 2006 models
finished in Black Denim. This finish has qualities which differ from high gloss finishes
on all other Harley-Davidson® motorcycles. Like denim fabric, Black Denim paint will
burnish or mar with age and use, thus adding character and personality to the finish of the
motorcycle. If scratched, the color coat of paint does nick/scuff and these marks cannot be
rubbed out. If polished, the finish will become glossier and less flat (or matte) over time.
Please see your owner’s manual for details on the finish and its care.
11 See motorcycle owner’s manual for complete details.
12 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
