2006 Harley-Davidson FXST/I Softail Standard
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

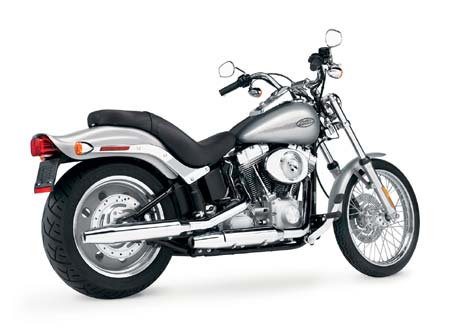

2006 Harley-Davidson FXST/I Softail Standard

2006 Harley-Davidson FXST/I Softail Standard

2006 Harley-Davidson FXST/I Softail Standard



– 2006 Harley-Davidson FXST/I Softail Standard

Sometimes the best trip you can take is one back to the basics. The Softail® Standard is just the bike for the job. Beautiful as seen here or decked out in Genuine Motor Parts and Accessories. The simple, classic lines begin with a raked fork. Head back to the horseshoe oil tank and the unmistakable shape of a wide bobtail fender. Once there, check out the brawny 200mm rear tire — a custom touch new for this year. It feels great teamed with the taut hidden suspension. Fire up the dual-counterbalanced, silver powder-coated Twin Cam 88B™, in carb or EFI, and your primal urge to blow out of town is about to be satisfied. Just gas up and go. Nothing is more basic than that.

OVERVIEW
FXST/I Softail® Standard Model Overview
The pure custom styling of the FXST/I Softail Standard makes it the perfect starting point for any owner planning to create a personal interpretation of a classic motorcycle profile. It’s a clean canvas that enables the process of customization with a wide selection of accessories.

FXST/I Softail Standard features:

Rigid-mount, Twin Cam 88B balanced engine
Clear-lens, reflector-optics headlight
Silver powder-coated engine
Laced wheels
Bobtail rear fender
Black horseshoe oil tank
Raked FX forks



2006 FXST/I SOFTAIL® STANDARD SPECIFICATIONS1

DIMENSIONS
Length 95.0 in. (2413.0 mm)
Seat Height:
Laden2 25.2 in. (640.1 mm)
Unladen 27.4 in. (696.0 mm)
Ground Clearance 6.0 in. (152.4 mm)
Rake (steering head) 32°
Fork Angle 33.5°
Trail 5.0 in. (127.0 mm)
Wheelbase 66.9 in. (1699.3 mm)
Tires (Dunlop® Harley-Davidson Series):
Front – D402F MH90-21 54H
Rear – D401 200/55R17 78V
Fuel Capacity3 (includes 0.5-gallon reserve) 5.0 gal. (18.9 L)
Reserve Fuel Capacity Carburetor: 0.5 gal. (1.9 L)
(warning light at approx. ESPFI: No reserve due
1.0 gal. for ESPFI models) to fuel injection
Oil Capacity 3.5 qts. (3.3 L)
Weight:
Dry Weight 651 lbs. (296 kg)
Vehicle Weight in Running Order 682 lbs. (310 kg)
Gross Vehicle Weight Rating 1125 lbs. (511 kg)



ENGINE
Engine4 Air-cooled Twin Cam 88BTM (balanced)
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18 mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System3 Carburetor or Electronic Sequential
Port Fuel Injection (ESPFI)



DRIVETRAIN
Primary Drive Chain, 36/25 ratio
Final Drive Belt, 32/70 ratio
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150



CHASSIS
Frame Mild steel tubular frame; rectangular section
backbone; stamped, cast and forged junctions;
forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Rear Shocks Hidden, horizontal-mounted, coil-over
Front Fork 41.3 mm telescopic
Wheels5 (Chrome Aluminum Profi le Laced front; forged aluminum disc rear option):
Front 21-inch Steel Laced
Rear 17-inch silver cast aluminum disc
Brakes:
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 5.6 in. (142.2 mm)
Rear Wheel 4.3 in. (109.2 mm)



PERFORMANCE
Engine Torque (per SAE J607)6:
North America 85 ft. lbs. @ 3000 rpm (115 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
Right 35°
Left 34°
MPG (EPA urban/highway test)7:
Carbureted 42/50 mpg (5.6/4.7 L/100 km)
ESPFI 44/50 mpg (5.3/4.7 L/100 km)



ELECTRIC
Battery Sealed, maintenance-free, 12V, 19-amp/hour,
270 cca (per Battery Council International Rating)
Charging Three-phase, 38-amp system
(439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift
starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure,
turn signals, engine diagnostics,
security system8 (optional)



STYLING/CONVENIENCE
Engine Trim Silver powder-coated w/polished treatment
Exhaust System Chrome, staggered shorty duals
Oil Tank Black “horseshoe” w/chrome external oil lines
Ignition Tank console-mounted
Seat Two-up
Handlebars Stainless steel, low-rise
Foot Supports Forward-mounted footpegs and controls
Rear Fender Bobtail
Rear Fender Supports Chrome
Fork Lock Common w/ignition key
Instruments Electronic speedometer w/odometer and
resettable tripmeter, diagnostic readout
Hazard Warning Integrated into turn signal controls



COLORS9
Vivid Black, Brilliant Silver Pearl, Chopper Blue Pearl, Fire Red Pearl



WARRANTY
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter11



1 Harley-Davidson reserves the right to discontinue models or change specifications
at any time without incurring any obligations. Vehicle specifications may vary from
country to country depending on local laws. Some models are not available in
certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures.
Your mileage will vary depending on your personal riding habits, weather conditions,
trip length, vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 Availability may vary from dealer to dealer, and is subject to change without notice.
10 See motorcycle owner’s manual for complete details.
11 Inspections of certain systems and components are required at 2,500 mile
