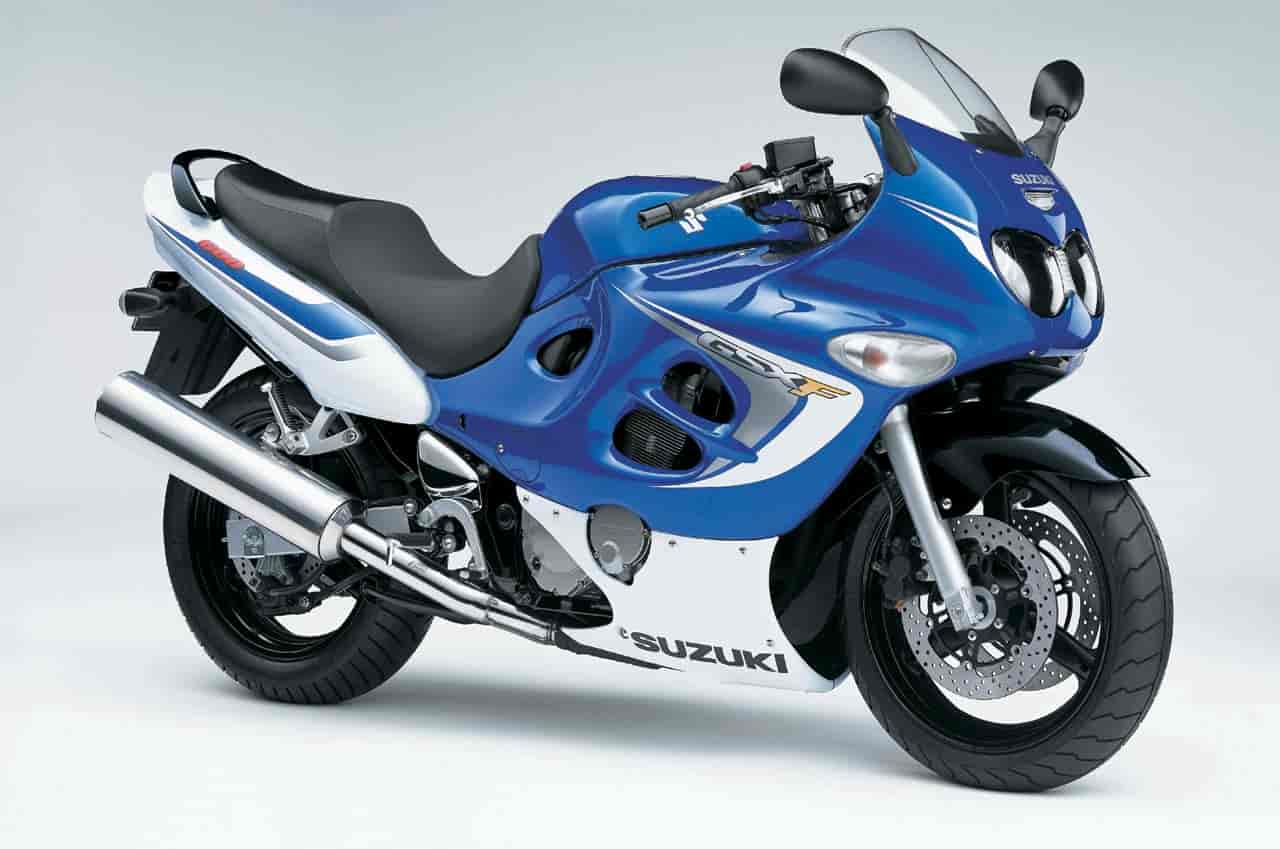

2006 Suzuki Katana 600
Back to 2006 Suzuki Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2006 Suzuki Katana 600

2006 Suzuki Katana 600

2006 Suzuki Katana 600



– 2006 Suzuki Katana 600

2006 Suzuki Katana 600

You’re looking at the ideal fusion of sport-bike performance and sport-touring comfort – the Suzuki Katana 600. For proof, check out the Katana’s impeccable performance credentials.

It has a strong, lightweight and rigid perimeter-style frame for exceptional handling on the back roads. Its triple-disc hydraulic braking system offers outstanding braking power.

A high-performance, 16-valve engine derived from the original, legendary GSX-RTM offers crisp throttle response, strong midrange performance and something true sport riders will really appreciate – a terrific top-end charge. Put it all together and you have a light and responsive sport bike that can take on the tight, twisty roads – and come back for more.

In the mood for some sport-touring? The Katana 600 is designed to accommodate. It has a roomy seating position and a comfortable saddle. Its aerodynamic windshield offers excellent wind protection for both the rider and passenger. And its suspension provides smooth, supple performance for long-distance comfort.

The 2006 Katana 600 – the sport bike that specializes in versatility.

New Features
Front and rear turn signals have clear lenses for a clean and modern new look

Engine Features
Reliable four-stroke, 4-cylinder, air/oil cooled, DOHC 16-valve engine

Valve timing tuned for strong low to mid-range performance

32mm Mikuni carburetors with throttle position sensor provide quick throttle response and enhance mid-range power

Attractive stainless steel 4-into-1 exhaust system is tuned for strong low and mid-range power – exhaust catalyzer added to exhaust system on California model to further reduce emissions

Silent-type cam chain and oil pan with honeycomb construction to reduce engine noise

Twin Swirl Combustion Chambers (TSCC) for quick throttle response

Suzuki Advanced Cooling System (air/oil) with large oil cooler and high cooling capacity

Large intake valves (23mm) and exhaust valves (20mm) for strong engine performance

Screw/locknut valve adjustment system for simplified maintenance

Digital ignition system for optimum ignition timing with maintenance-free battery

Large air cleaner box for strong engine performance

Chassis Features
Aerodynamic fairing design with twin headlights and an attractive sporting look

Design is compact while maintaining a comfortable, sporting ride position

Smooth, compliant ride provided by 41mm front forks with 4-way adjustable rebound damping

Link-type rear suspension and single shock absorber with 4-way adjustable rebound damping and 7 preload settings

Z speed-rated radial tires (120/70 front & 150/70 rear)

Wide, hollow 3-spoke type wheel rims, (3.50 x 17 front, 4.50 x 17 rear)

Large 290 mm floating type front brake discs with twin piston calipers

Single 240mm rear disc with twin piston caliper

Large capacity fuel tank (20 liter/5.3 gal.)

Standard 4-way emergency flasher and high-beam passing switch
Aluminum passenger grab bar

Teardrop shaped rear view mirrors

Adjustable front brake lever position

SPECIFICATIONS

Engine: 600cc, four-stroke, 4-cylinder, 16 valve air/oil cooled with DOHC and TSCC
Bore Stroke: 62.6 x 48.7 mm
Compression Ratio: 11.3:1
Fuel System: Mikuni BSR32
Lubrication: Wet sump
Ignition: Digital/Transistorized
Transmission: 6-speed
Final Drive: #530 chain
Overall Length: 2140mm (84.3 in.)
Overall Width: 755mm (29.7 in.)
Overall Height: 1195mm (47.0 in.)
Seat Height: 785mm (30.9 in.)
Ground Clearance: 120mm (4.7 in.)
Wheelbase: 1470mm (57.9 in.)
Dry Weight: 208kg (458 lbs.) 210kg (462 lbs.) CA. model
Suspension Front: Telescopic, oil damped, 4-way adjustable rebound damping
Suspension Rear: Link-type suspension, 4-way adjustable rebound damping, 7-way adjustable preload
Brakes Front: Dual hydraulic disc
Brakes Rear: Single hydraulic disc
Tires Front: 120/70-ZR-17
Tires Rear: 150/70 ZR17
Fuel Tank Capacity: 20 liter (5.3 gal.) 18.5 liter (4.9 gal.) CA model
Color: White/Blue, Black
