2006 Yamaha FZ1
Back to 2006 Yamaha Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

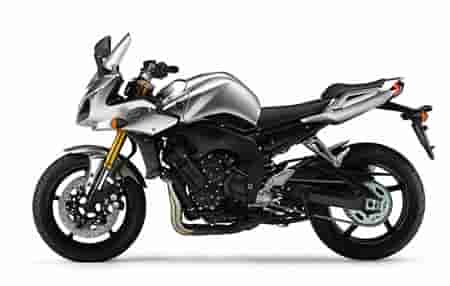

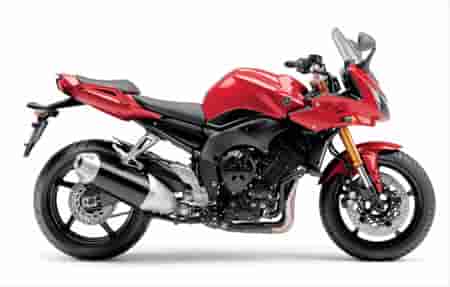

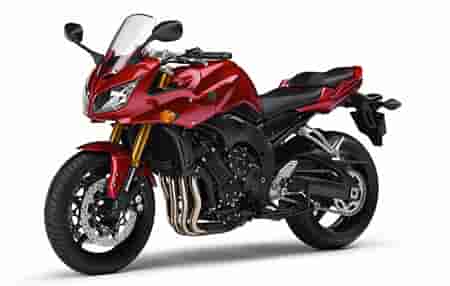

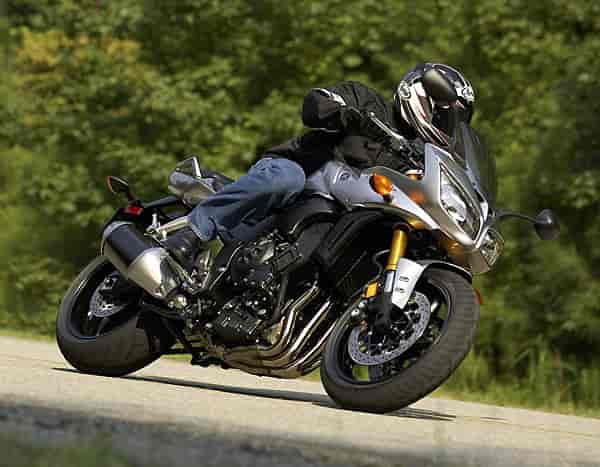

2006 Yamaha FZ1
2006 Yamaha FZ1

2006 Yamaha FZ1
2006 Yamaha FZ1

2006 Yamaha FZ1
2006 Yamaha FZ1

2006 Yamaha FZ1
2006 Yamaha FZ1

2006 Yamaha FZ1
2006 Yamaha FZ1



– 2006 Yamaha FZ1

FZ1 – Real World High Performance

For 2006 , the world’s best streetfighter is all new, blending exceptional style and character with open class performance like only Yamaha can.

A current generation fuel injected R1 engine, tuned for the real world sits low and forwarding an all new aluminum frame with a longer CF die cast swingarm. The new FZ1 is a more focused, more aggressive, more intensely high performance motorcycle in a smaller, tighter , meaner package.

The FZ1 is not intended for novice or inexperienced riders.



Features:

All new aluminum frame is 57% lighter

Aggressive yet comfortable upright riding position

C.F. die cast swingarm is 45mm longer than last year

Fuel injection with motor-driven secondary throttle valves

Four into one exhaust system with EXUP

43mm inverted forks with left leg compression damping adjustment and right leg rebound damping adjustment

Dual 320mm front discs squeezed by 4-piston calipers

Shift Red; Silver




Specifications:

Engine
Type 998cc, liquid-cooled, 20-valve, DOHC, in-line four-cylinder

Bore x Stroke 77 x 53.6mm

Compression Ratio 11.5:1

Carburetion Fuel injection

Ignition Digital TCI

Transmission 6-speed w/multi-plate clutch

Final Drive O-ring chain


Chassis
Suspension/Front 43mm telescopic fork w/adjustable preload, compression and rebound damping; 5.1″ travel

Suspension/Rear Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 5.1″ travel

Brakes/Front Dual 320mm floating discs w/4-piston calipers

Brakes/Rear 245mm disc w/single-piston caliper

Tires/Front 120/70-ZR17

Tires/Rear 190-55-ZR17


Dimensions
Length 84.3″

Width 30.3″

Height 47.4″

Seat Height 32.1″

Wheelbase 57.5″

Rake (Caster Angle) 25.0°

Trail 4.3″

Fuel Capacity 4.75 Gallons

Oil Capacity (with oil filter change) N/A

Dry Weight N/A


Other

Warranty 1 Year (Limited Factory Warranty)
