2007 BMW G650X Challenge

Back to 2007 BMW Motorcycle Index Page

Click photos to enlarge for detail.
They make great desktop images.

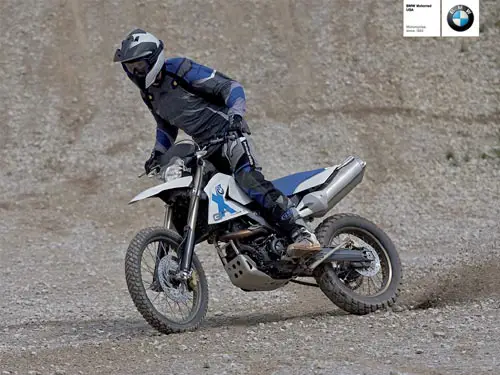

2007 BMW G650X Challenge
2007 BMW G650X Challenge

2007 BMW G650X Challenge
2007 BMW G650X Challenge

– 2007 BMW G650X Challenge

2007 BMW G650X Challenge

The right stuff for the tight stuff.

Got dirt in your blood? Dreaming of whoops, ruts, sand washes and gnarly singletrack? Want an off-road bike that can slalom around trees roots, and rocks without getting hung up? Then the rippin’ new G 650 Xchallenge is your ride. Boasting a 53 bhp single cylinder engine with plenty of pulling power, this is an enduro that’s lightweight in terms of heft, but certainly not in its ability. With the same air damping rear suspension as the HP2 Enduro you’ll thrash over just about anything, even the tightest trails on that dual sport ride out in the woods. Front mudguards, an asymmetric headlight, a cast aluminum rear swing arm, and a lightweight wave design front brake disc complete the package. The new G 650 Xchallenge – a single cylinder enduro that can’t wait to tear it up.

Sporty. Exciting. Consistent. To this single-cylinder bike by BMW Motorrad, asphalt is almost an insult: 270 mm of spring travel, a genuine 53 horsepower, a superb frame, contemporary geometry specs and nothing to get in the way of a ride through the mud.



MSRP*: $11,000.00 Canada *Freight, retailer preparation & taxes extra.
MSRP: $8,500 USA Destination charge (not included in MSRP): $475



Standard Equipment

Closed-loop 3-way Catalytic Converter
Hazard Warning Flashers
Heated Grips
Luggage Rack

Available Equipment:
ABS Brakes (disengageable)
Anti-Theft Alarm System
Low Seat (830mm)






Specifications USA

Engine
Type Liquid-cooled single-cylinder
Bore x Stroke 100.0 mm x 83.0 mm
Displacement 652 cc
Horsepower 53 bhp @ 7000 rpm
Torque 44 lb/ft @ 5250 rpm
Compression Ratio 11.5 :1
Valve Gear DOHC, chain-driven with bucket tappets
Valves 2 x 36 mm intake / 2 x 31 mm exhaust
Valves / Cylinder Four
Engine Oil Capacity 2.4 quarts
Engine Management BMW Motor Controller – Compact (BMS-C II)
Fuel Requirement Premium Unleaded
Fuel Tank HDPE, internal pump and external filter
Fuel Capacity 2.5 U.S. gallons including one gallon reserve
Charging System 280 Watts @ 14 Volts
Battery 12 Volts 10 Amps/hour maintenance-free
Cooling System Single Radiator, 50/50 water/anti-freeze mix
Drivetrain
Primary Drive 1:1.946
Clutch Multiple plate in oil bath
1st Gear Ratio 2.75:1
2nd Gear Ratio 1.75:1
3rd Gear Ratio 1.31:1
4th Gear Ratio 1.05:1
5th Gear Ratio 0.84:1
6th Gear Ratio N/A
Final Drive System Chain
Final Drive Ratio 3.13:1
Frame and Suspension
Frame Steel bridge tubular frame
Front Suspension UPSD fork 45 mm
Front Travel 10.6 inches
Rear Suspension Aluminum two unit cast swing arm, air damping
Rear Travel 10.6 inches
Brakes
Brake System Front and rear disc with optional ABS
Front Brakes One two piston caliper
Front Rotor 11.8 inch fixed rotor
Rear Brake One, single-piston floating caliper
Rear Rotor 9.5 inch fixed rotor
Actuation Method Hydraulic, DOT 4 fluid type
Wheels and Tires
Front Wheel 1.60 x 21 wire-spoke
Rear Wheel 2.50 x 18 wire-spoke
Front Tire 90/90 x 21 tube-type
Rear Tire 140/80 x 18 tube type
Dimensions
Overall Length 86.8 inches
Overall Width 35.7 inches
Wheelbase 59.1 inches
Ground Clearance Info. Unavailable
Seat Height 36.6 inches
Steering Angle 62.5 degrees
Front Wheel Trail 4.6 inches
Weight – Dry 318 lbs. excluding options & accessories
Weight – Wet 344 lbs. excluding options &accessories
Maximum Load 739 lbs. GVWR




Specifications Canada:
BMW G650X Challenge


Engine
Type . . . . . . . . . . . . . . . . . . . . . . . . Water-cooled, single-cylinder
4-stroke, four valves, two overhead camshafts, dry sump lubrication
Bore / stroke. . . . . . . . . . . . . . . . . . 100 mm x 83 mm
Capacity. . . . . . . . . . . . . . . . . . . . . 652 cc
Rated output . . . . . . . . . . . . . . . . . 39 kW (53 hp) at 7,000 rpm
Max. torque . . . . . . . . . . . . . . . . . . 60 Nm at 5,250 rpm
Compression ratio . . . . . . . . . . . . . 11.5 : 1
Fuel / engine management. . . . . . . Electronic intake pipe injection / BMW engine management, twin spark ignition
Emission control . . . . . . . . . . . . . . Closed-loop 3-way catalytic
converter, emission standard EU-3
Performance / fuel consumption
Maximum speed. . . . . . . . . . . . . . . approx. 165 km/h
Fuel consumption per 100 km
at constant 90 km/h. . . . . . . . . . . . 3.6 l
at constant 120 km/h. . . . . . . . . . . 5.1 l
Fuel type . . . . . . . . . . . . . . . . . . . . Unleaded super, minimum octane rating 95 (RON)
Electrical system
Alternator. . . . . . . . . . . . . . . . . . . . three-phase alternator 280 W
Battery . . . . . . . . . . . . . . . . . . . . . . 12 V / 10 Ah, maintenance-free
Power transmission
Clutch. . . . . . . . . . . . . . . . . . . . . . . Multiple-disc clutch in oil bath, mechanically operated
Gearbox . . . . . . . . . . . . . . . . . . . . . Constant mesh 5-speed gearbox integrated into crankcase
Drive. . . . . . . . . . . . . . . . . . . . . . . . Endless O-ring chain with shock damping in rear wheel hub
Chassis / brakes
Frame . . . . . . . . . . . . . . . . . . . . . . Bridge-type steel section frame with bolted-on cast aluminium side elements, bolted-on aluminium rear section
Front suspension . . . . . . . . . . . . . . Upside-down front fork, ø 45 mm, rebound and compression damping adjustable
Rear suspension. . . . . . . . . . . . . . . Cast aluminium dual swing arm, Air Damping System, spring pre-load and damping continuously variable
by air pressure
Travel front / rear . . . . . . . . . . . . . . 270 mm / 270 mm
Wheelbase1 . . . . . . . . . . . . . . . . . . 1,500 mm
Castor1 . . . . . . . . . . . . . . . . . . . . . . 118 mm
Steering head angle1 . . . . . . . . . . . 62.5°
Wheels . . . . . . . . . . . . . . . . . . . . . . Wire spoke
Rim, front . . . . . . . . . . . . . . . . . . . . 1.60 x 21″
Rim, rear. . . . . . . . . . . . . . . . . . . . . 2.50 x 18″
Tyre, front . . . . . . . . . . . . . . . . . . . 90/90 S 21
Tyre, rear. . . . . . . . . . . . . . . . . . . . . 140/80 S 18
Brake, front. . . . . . . . . . . . . . . . . . . Single disc, ø 300 mm, double-
piston floating caliper
Brake, rear . . . . . . . . . . . . . . . . . . . Single disc, ø 240 mm, single-
piston floating caliper
ABS2. . . . . . . . . . . . . . . . . . . . . . . . BMW Motorrad ABS
(can be switched off)
Dimensions / weights
Seat height. . . . . . . . . . . . . . . . . . . 930 mm (low seat2: 910 mm)
Inner leg curve . . . . . . . . . . . . . . . . 2,000 mm (low seat2: 1,960 mm)
Unladen weight, road ready3 . . . . . 156 kg
Dry weight4. . . . . . . . . . . . . . . . . . . 144 kg
Permitted total weight . . . . . . . . . . 335 kg
Payload (with standard equipment) 179 kg
Usable tank volume . . . . . . . . . . . . 9.5 l
Reserve . . . . . . . . . . . . . . . . . . . . . approx. 2 l
Length . . . . . . . . . . . . . . . . . . . . . . 2,205 mm
Height (excl. mirrors) . . . . . . . . . . . 1,255 mm
Width (incl. mirrors) . . . . . . . . . . . . 907 mm


Specifications and features are subject to change
