2008 Bimota DB5R

You are here: HomeNew 2008 Models — 2008 Bimota Motorcycle Models

2008 Bimota DB5R
Back to 2008 Bimota Motorcycle Index Page

Click photos to enlarge for detail.
They make great desktop images.

2008 Bimota DB5R
2008 Bimota DB5R

2008 Bimota DB5R
2008 Bimota DB5R

2008 Bimota DB5R
2008 Bimota DB5R

2008 Bimota DB5R
2008 Bimota DB5R

2008 Bimota DB5R
2008 Bimota DB5R Prototype

2008 Bimota DB5R
2008 Bimota DB5R Prototype

– 2008 Bimota DB5R

2008 Bimota DB5R

The DB5R is the most extreme version of the DB5. With the R, the DB5’s superb agililty and easy handling have reached new heights.

Lighweight and agile. Thanks to these two characteristics, this twin-cylinder sports bike with its classic Ducati 1000 DS engine produces a unique and emotive riding experience: lightning-fast corner entry and mid-corner speeds can be achieved, with super-precise lines and easy direction changes. Handling is the best you can ask for in a motorcycle born for the racetrack. Suspension is Ohlins – the front gets fully-adjustable (preload, rebound and compression) 43mm upside-down forks with TiN-coated stanchions, while the rear gets a fully adjustable (preload, rebound, compression and ride height) monoshock. These components work extremely well in such a lightweight chassis. The DB5R gets a taller ride height than the standard DB5 to make it turn in even quicker. This results in an even sportier ride.

The powerful and progressive brakes are Brembo, with a 320mm front discs (these are bigger than the standard DB5’s 298mm discs) that are squeezed by four-piston radial calipers, which in turn are operated by a 19mm radial master cylinder. On the rear you’ll find the typical 230mm disc with Brembo caliper. A pair of gorgeous forged aliminium OZ Racing wheels complete the package. These lightweight components reduce inertia to a minimum, letting you fly into corners and change direction faster than ever.

The brake and clutch levers that bend in a crash, preventing them from snapping off, further justify the “R” in this Bimota’s name. Then of course, there’s the slipper clutch that works so well it lets the rider to brake and slam down the gears at the very last moment, and still the bike remains composed. The state-of-the-art slipper clutch makes it almost impossible to lock the rear wheel under the heavy V-twin engine braking.

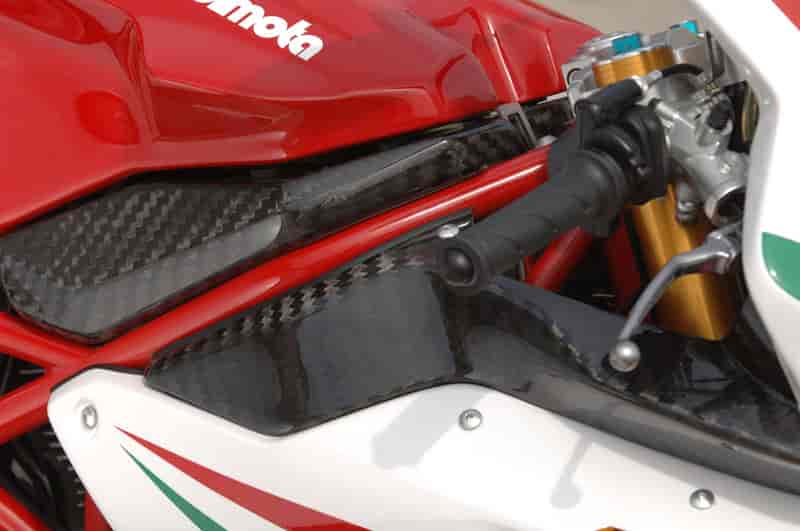

The DB5R’s bodywork is made entirely of carbon fibre, as are the airbox and engine covers. The lot is painted in red, green and white – the traditional colours of the Italian flag. This encapsulates the spirit of Italian sports bikes, as does the roar from the engine that sounds more glorious than ever thanks to the gorgeous titanium silencers.



Price $36,800 MSRP

Type: Ducati 1100DS

Configuration: 90 degree L-Twin

Displacement: 1079cc

Cooling: air/oil

Compression Ratio: 10.5±0.5:1

Valves per Cylinder: 2

Bore x Stroke: 98.0mm x 71.5mm

Redline: 9000rpm

Valve Angle: intake: 28 degree, outlet: 28 degree

Valvetrain Type: Desmodromic

Fuel Pump: Bitron 3.5bar, electronic

Throttle Body: 45mm

Air Filter: Foam

Exhaust System: 2 in 1 in 2, inox

Injection: Magneti Marelli

Lubrication: Wet Sump

Fuel Tank: 4.2gal/1.3gal reserve (16l/5l reserve)


2008 Bimota DB5R Slipper Clutch

Type: Dry Clutch, multi-disc

Clutch: Slipper Clutch

Primary Drive: 32/59 teeth

Final Drive: 15/40 teeth

Gear Ratio:

I – 15/37
II – 17/30
III – 20/27
IV – 22/24
V – 24/23
VI – 28/24

Chassis and Dimensions

2008 Bimota DB5R Frame

Wheelbase: 56.1in (1425mm)

Swingarm Lenth: 20.3±0.8in (515±20mm)

Seat Height: 31.9in (810mm)

Footpeg Height: 14.6in – 15.32in (370mm – 385mm)

Handlebar Height: 33.9in (860mm)

Steering Stem to Seat Center: 25.2in (640mm)

Front Suspension: 43mm UD Öhlins TIN Coated Fork, fully adjustable (Pre-load, Compression, Rebound), travel 4.7in (120mm)

Front Wheel: 3.50 x 17.0 OZ Forged Alluminium

Front Brake: Double 320mm Brembo floating discs, Brembo Radial Caliper, 4-piston, 4-pad

Rear Suspension: Öhlins Monoshock, fully adjustable (Pre-load – External Hydraulic Device, Compression, Rebound)

Rear Wheel: 5.50 x 17.0 OZ Forged Aluminium

Rear Wheel Trail: 4.7in (120mm)

Rear Brake: 230mm Brembo Disc , 2-piston, 2-pad

Curb Weight: 375lb (170kg)


Media Press Release:

January 29, 2008 – Bimota introduces the DB5R race bike, the ultimate twin track tool based on the roadgoing DB5R. The race bodywork of the Bimota DB5R race bike comes with the race oil-catch pan as required by the AMA to pass requirements. Additionally the DB5R race bike’s slipper clutch is protected by a full steel clutch cover to save it in the event of a track mishap.

The DB5R race bike is homologated and approved for Moto ST. When you are serious about competing in a twin race-class this is your ride!
