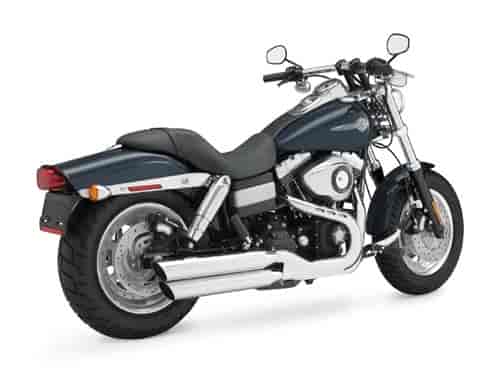

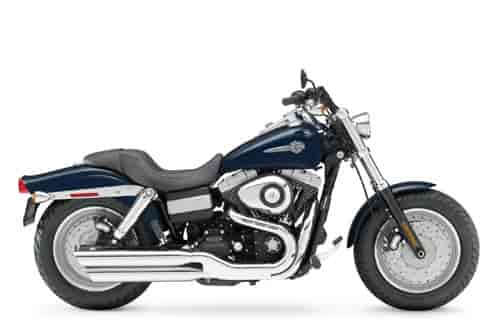

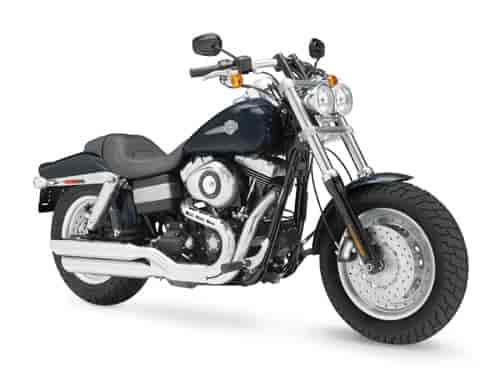

2008 Harley-Davidson FXDF Dyna Fat Bob

– 2008 Harley-Davidson FXDF Dyna Fat Bob

2008 Harley-Davidson FXDF Dyna Fat Bob

A massive new presence in the Dyna family, FXDF Dyna Fat Bob takes factory-custom styling in a bold, new direction. The dual headlamps mounted between polished triple-clamps are a signature Fat Bob element. Chunky new tires front and rear are mounted on 16-inch Slotted Cast Aluminum wheels. The gleaming chrome Tommy Gun 2-1-2 exhaust – named for its slotted exhaust shield – snakes around the side of the black-and-polished Twin Cam 96 engine. Flat drag bars and forward foot controls put the rider in a position that’s instant cool. (See separate release for more information on the FXDF Fat Bob).

New on Dyna for 2008:

Braided Brake Lines: Braided stainless steel brake lines enhance both the style and brake feel on all 2008 Dyna models.

105th Anniversary Edition: A limited-edition, serialized 105th Anniversary FXDWG Dyna Wide Glide, FXDC Dyna Super Glide Custom, and FXDL Dyna Low Rider will be available in 2008 (see separate release for details on the 105th Anniversary package).

FEATURES:

FXDF Dyna® Fat Bob™ features:

Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Black powdercoated engine with polished treatment
NEW Braided brake lines
NEW airbox cover
“Full metal jacket” chrome-covered shock absorber springs
Chrome Tommy Gun exhaust with Staggered Dual mufflers
180 mm-16 rear / 130 mm-16 front tires
Cast Aluminum Slotted Disc 16-inch front/rear wheels
Bobtail rear fender
5.1-gallon Fat Bob fuel tank

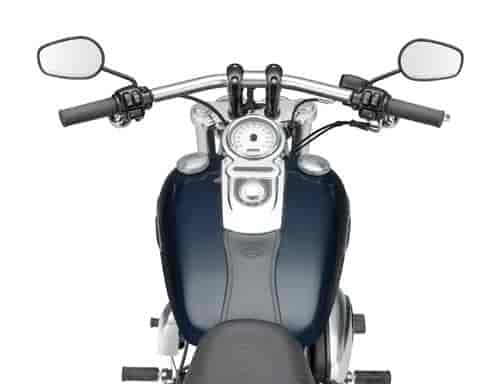

Black drag-style handlebar on black riser
Polished aluminum triple clamps
Black fork lowers and mirrors
28-degree fork angle
Dual headlamps
Forward foot controls
Optional Smart Security System

SPECIFICATIONS:

2008 harley-davidson® SPECIFICATIONS1 dyna® FXDF Dyna® Fat Bob™

DIMENSIONS
Length 91.73 in. (2329.94 mm)
Overall Width 35.03 in. (889.76 mm)
Overall Height 44.56 in. (1131.82 mm)
Seat Height:
– Laden2 26.10 in. (662.94 mm)
– Unladen 27.08 in. (687.83 mm)
Ground Clearance 4.92 in. (124.99 mm)
Rake (steering head) 29°
Fork Angle 28°
Trail 4.92 in. (124.97 mm)
Wheelbase 63.77 in. (1619.76 mm)
Tires (Dunlop® Harley-Davidson® Series, bias blackwall front and rear):
– Front – D427F 130/90B16
– Rear – D427 180/70B16
Fuel Capacity (warning light at approximately 0.9 gal.) 5 gal. (19.31 L)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity3 1 qts. (0.95 L)
Weight:
– As Shipped 669.70 lbs. (303.77 kg)
– In Running Order 703 lbs. (318.88 kg)
– Gross Vehicle Weight Rating 1085 lbs. (492.15 kg)
Gross Axle Weight Rating:
– Front 390 lbs. (176.90 kg)
– Rear 695 lbs. (315.25 kg)

ENGINE
Engine4 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. (95.25 mm) x 4.38 in. (111.25 mm)
Displacement4 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System5 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive6 Belt, 32/66 ratio
Clutch 9-plate, wet
Transmission 6-Speed Cruise Drive™
Gear Ratios (overall): U.S. HDI JPN
1st 9.312 9.312 9.030
2nd 6.421 6.421 6.266
3rd 4.774 4.774 4.630
4th 3.926 3.926 3.807
5th 3.279 3.279 3.179
6th 2.790 2.790 2.706

CHASIS
Frame Mild steel, tubular frame; rectangular section backbone; stamped,
cast, and forged junctions; forged fender supports; MIG welded
Swing Arm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Fork 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels4
– Front Silver, Slotted Disc Cast Aluminum
16 in. x 3.5 in. (406.40 mm x 88.90 mm)
– Rear Silver, Slotted Disc Cast Aluminum
16 in. x 5 in. (406.40 mm x 127 mm)
Brakes:
– Caliper Type 4-piston front and 2-piston torque-free rear
– Rotor Type (diameter x width): Patented, uniform expansion rotors
rear and dual floating front
– Front (dual floating) 11.80 in. x .20 in. (299.72 mm x 5.08 mm)
– Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)
Suspension Travel:
– Front Wheel 5 in. (127 mm)
– Rear Wheel 3.10 in. (78.74 mm)

PERFORMANCE
Engine Torque (per SAE J1349) 8:
– North America 92 ft. lbs. @ 3000 rpm (124.75 NM @ 3000 rpm)
Lean Angle (per SAE J1168): Right: 30° Left: 31°
Fuel Economy: (EPA urban/highway test) 9 34/53 mpg (6.92/4.44 L /100 km)

ELECTRIC
Battery Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
(per Battery Council International Rating)
Charging Three-Phase, 40-amp system
(493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Tail/Stop Lights 8W/28W (5W/21W)
– Turn Signal Lights 28W (21W) self-canceling
– Indicator Lamps High beam, directional light bar, neutral,
low oil pressure, engine diagnostics, turn signals,
security system10 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard

STYLING/CONVENIENCE
Engine Trim Black powder-coated engine with polished treatment covers
Exhaust System Chrome, 2-1-2 collector exhaust with dual mufflers
Fenders and Supports
– Front Sport fender with painted brace supports
– Rear Bobtail fender with chrome supports
Foot Supports and Controls
– Passenger Standard footpegs
Handlebar Style Stainless steel, drag
Seat Type and Style One-piece, two-up Dyna™ classic
Fork Lock Common with ignition key
Hazard Warning Integrated into turn signal controls
Smart Security System Next-generation hands-free security fob; operates based on
proximity to vehicle

COLORS12
Vivid Black, Black Pearl, Dark Blue Pearl (new), Black Denim, Candy Red Sunglo (new)

WARANTY
Warranty11 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and hanges can occur and
complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation.

Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited
mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional fuel systems may vary by country and region.
6 U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
7 Standard and optional wheels may vary by country and region. Standard 105TH Anniversary wheel for FLHTCU, FXDL, XL1200L, FLTR and FLHX models is Gloss Black Painted Cast Aluminum.
8 Values shown are nominal. Performance may vary by country and region.
9 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather
conditions, trip length, vehicle condition and vehicle configuration, and other conditions. Break-in mileage may vary.
10 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
11 See motorcycle owner’s manual for complete details.
12 Availability of colors may vary from dealer to dealer, and is subject to change without notice.

Media Press Release:

2008 HARLEY-DAVIDSON DYNA LINE FEATURES NEW FXDF FAT BOB
New Braided Brake Lines on all Dynas plus Three 105th Anniversary Models

MILWAUKEE (July 9, 2007) – The bold new FXDF Dyna Fat Bob leads the 2008 line of Dyna performance factory customs from Harley-Davidson. Unmistakable behind dual headlamps and rolling on chunky, aggressive tires, the Fat Bob takes Dyna styling in a bold new direction. Other Dyna news for 2008 includes braided stainless steel brake lines as standard equipment on all models, and the availability of three Dyna models with a Limited Edition 105th Anniversary package of special paint, badges and serialization.

The Harley-Davidson Dyna family stays faithful to the formula established by the early factory customs produced by the Motor Company in the 1970s, bikes that combined Big Twin power with the style of the lighter FX front end. Over the years, the Dyna line has established a reputation for great handling and exhilarating performance.

All Dyna models are powered by a 1584 cc Twin Cam 96 powertrain with Electronic Sequential Port Fuel Injection (ESPFI) mated to the 6-Speed Cruise Drive transmission. In the Dyna platform, the Twin Cam 96 pounds out 91 ft.-lbs. of torque at 3000 rpm. Shared Dyna characteristics include the under-seat battery box, exposed rear shock absorbers, and a classic Fat Bob fuel tank with console.

New on Dyna for 2008:

Braided Brake Lines: Braided stainless steel brake lines enhance both the style and brake feel on all 2008 Dyna models.

105th Anniversary Edition: A limited-edition, serialized 105th Anniversary FXDWG Dyna Wide Glide, FXDC Dyna Super Glide Custom, and FXDL Dyna Low Rider will be available in 2008 (see separate release for details on the 105th Anniversary package).
New FXDF Dyna Fat Bob

A massive new presence in the Dyna family, FXDF Dyna Fat Bob takes factory-custom styling in a bold, new direction. The dual headlamps mounted between polished triple-clamps are a signature Fat Bob element. Chunky new tires front and rear are mounted on 16-inch Slotted Cast Aluminum wheels. The gleaming chrome Tommy Gun 2-1-2 exhaust – named for its slotted exhaust shield – snakes around the side of the black-and-polished Twin Cam 96 engine. Flat drag bars and forward foot controls put the rider in a position that’s instant cool. (See separate release for more information on the FXDF Fat Bob).

FXDF Dyna Fat Bob features:

Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Black powdercoated engine with polished treatment
NEW Braided brake lines
NEW airbox cover
“Full metal jacket” chrome-covered shock absorber springs
Chrome Tommy Gun exhaust with Staggered Dual mufflers
180 mm-16 rear / 130 mm-16 front tires
Cast Aluminum Slotted Disc 16-inch front/rear wheels
Bobtail rear fender
5.1-gallon Fat Bob fuel tank
Black drag-style handlebar on black riser
Polished aluminum triple clamps
Black fork lowers and mirrors
28-degree fork angle
Dual headlamps
Forward foot controls
Optional Smart Security System
FXDB Dyna Street Bob
A modern interpretation of the post-World War II “bobber” movement, the FXDB Dyna Street Bob appeals to the minimalist. A solo saddle, mini ape-hanger bars, and laced wheels speak to classic style. Wrinkle-black details add tough texture.

FXDB Street Bob features:

Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Black powder-coated engine with polished covers
NEW Braided brake lines
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 90 mm-19 front tires
Chrome Laced steel wheels 19-inch front / 17-inch rear
Wrap-around rear fender
4.8-gallon Fat Bob fuel tank
Mini ape-hanger-style handlebars
29-degree fork angle
Wrinkle-black console, battery cover, and belt guard
Solo seat
Mid-mount foot controls
Optional Smart Security System
FXD Dyna Super Glide
The Dyna in it purest form, the FXD Dyna Super Glide plants Twin Cam 96 power under a solo seat in an agile Dyna chassis. It’s all the motorcycle a rider could want. But this most-affordable Harley-Davidson Big Twin model also presents the ideal starting point for creative customization.

FXD Dyna Super Glide features:

Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Silver powder-coated engine and polished covers
NEW Braided brake lines
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 100 mm-19 front tires
Silver 10-spoke Cast Aluminum wheels
Wrap-around rear fender
4.8-gallon Fat Bob fuel tank
Low-rise handlebar
29-degree fork angle
Handlebar-mounted speedometer
Solo seat
Mid-mount foot controls
Optional Smart Security System
FXDC Dyna Super Glide Custom
Laced wheels, two-up seat and more chrome distinguish the FXDC Dyna Super Glide Custom. The speedometer is mounted on a chrome console atop the 5.1-gallon Fat Bob tank. This is Super Glide performance with a little extra flash and function.

FXDC Super Glide Custom features:

Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Silver powder-coated engine with chrome treatment
NEW Braided brake lines
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 100 mm-19 front tires
Chrome Laced steel wheels 19-inch front / 17-inch rear
29-degree fork angle
Wrap-around rear fender
5.1-gallon Fat Bob fuel tank
Low-rise handlebar
29-degree fork angle
Console-mounted speedometer
Chrome tank console with leather strap
Two-up Dyna Classic seat
Mid-mount foot controls
Optional Chrome Aluminum Profile laced wheels
Optional Smart Security System
FXDL Dyna Low Rider
The 25.8-inch seat height of the FXDL Dyna Low Rider is among the lowest in the Harley-Davidson line. Lower rear shocks, pull-back handlebar riser, mid-mount foot controls, raked-out fork and standard highway pegs contribute to its long-range comfort.

FXDL Dyna Low Rider features:

Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Silver powder-coated engine with chrome treatment
NEW Braided brake lines
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 100 mm-19 front tires
Black 10-spoke Cast Aluminum wheels 19-inch front / 17-inch rear
Wrap-around rear fender
4.8-gallon Fat Bob fuel tank
Low-rise handlebar on pull-back risers
30.5-degree fork angle
Lowered rear suspension
Two-up Dyna Classic seat
Mid-mount foot controls
Highway pegs
Handlebar-mounted indicator cluster
Single floating front brake rotor
Optional Chrome Aluminum Profile laced wheels
Optional Smart Security System
105th Anniversary FXDWG Dyna Wide Glide
Available only as a Limited Edition 105th Anniversary model in 2008, the FXDWG Dyna Wide Glide displays the classic chopper profile, with a Bobtail rear fender and wide, raked-out, 36-degree forks holding a 21-inch Chrome Laced wheel. Fat mini-ape hanger handlebar and a stepped seat complete the theme. A two-tone paint scheme in Anniversary Copper and Vivid Black is traced with orange and pale gold pin striping. A copper Bar and Shield tank cloisonné and 105th Anniversary badges adorn the air cleaner and timing cover inserts. (See separate release for details on the Limited Edition 105th Anniversary package).

105th Anniversary FXDWG Dyna Wide Glide features:

Vibration isolated Twin Cam 96 engine
6-Speed Cruise Drive transmission
Black powder-coated engine with chrome covers
NEW Braided brake lines
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 90 mm-21 front tires
Chrome Aluminum Profile Laced wheels 17-inch rear / 21-inch front
Bobtail rear fender
5.1-gallon Fat Bob fuel tank
1.25-inch mini ape-hanger style handlebar with internal wiring
36-degree fork angle
Stylized battery cover
105th Anniversary badging
Forward foot controls
Large, tank-mounted speedometer
Anniversary Copper and Vivid Black two-tone paint
Two-up seat with copper-vinyl insert
Optional Smart Security System
Harley-Davidson Motor Company, the only major U.S.-based motorcycle manufacturer, produces heavyweight motorcycles and a complete line of motorcycle parts, accessories and general merchandise. For more information, visit Harley-Davidson’s Web site at www.harley-davidson.com.

Media Release #2

HARLEY-DAVIDSON UNLEASHES ROCKER AND DYNA FAT BOB
105th Anniversary Models and ABS Option for FL and VRSC Models for 2008

MILWAUKEE (July 9, 2007) – Harley-Davidson takes factory-custom motorcycle design to a new extreme with the introduction of three radically styled new models. The Dyna Fat Bob, the Rocker and the Rocker C are additions to a diverse line of 2008 motorcycles that also includes 14 models available in limited-edition 105th Anniversary styling. A host of technical refinements for 2008 includes the availability of an all-new Anti-Lock Braking System (ABS) as an option on Touring and VRSC models.

“Only Harley-Davidson could style and engineer a motorcycle as visually exciting as the new Rocker,” said Bill Davidson, director of motorcycle product development. “To offer this level of customization in a reliable, production motorcycle is simply unprecedented. We’ve also got the Fat Bob taking the Dyna platform in a bold, new direction. And the beautiful copper-and-black 105th Anniversary models are icing on the Motor Company birthday cake for 2008.”

For more than a century, Harley-Davidson motorcycles have stoked the passion of riders around the world with a distinctive combination of performance and visual appeal that simply can not be duplicated. The energy, dedication and pure enthusiasm of each individual at Harley-Davidson maintains that full-throttle intensity, season after season.

Highlights of the 2008 Harley-Davidson line include:

The new FXCW Rocker and FXCWC Rocker C feature the Rockertail rear end that mounts a form-fitting fender directly to the swingarm over a 240 mm tire. The result is a reproduction of the authentic lines of a slammed hard-tail custom with the comfortable ride of a modern suspension as the rear wheel and fender move together. The Rocker comes with a solo seat and a monochrome, satin stainless metallic paint scheme. The Rocker C is a chromed-out beauty with the innovative Trick seat that conceals a passenger pillion under a solo cushion.

Twin headlights signal the arrival of the massive new Dyna Fat Bob. The new Tommy Gun exhaust speaks pure performance, while a new seat shape and drag bars put the rider in a position that’s instant cool. Black fork lowers and handlebar risers, and a new, aggressive tread pattern on 180 mm rear tire and 130 mm front tires, reinforce the aggressive nature of this new model. The Fat Bob can be ordered from the factory with a choice of mid-mount or forward foot controls.

A limited-edition 105th Anniversary package of shimmering Anniversary Copper and Vivid Black paint, a seat with a copper-colored insert, a special copper air cleaner cover, plus exclusive badging will be offered on 14 different 2008 Harley-Davidson models. Production of these motorcycles will be limited and serialized.

A new Anti-Lock Braking System (ABS) is available as a factory-installed option on all Touring and VRSC models, and is standard equipment on the 2008 Electra Glide Ultra Classic 105th Anniversary Edition, CVO Screamin’ Eagle Electra Glide Ultra Classic, and CVO Screamin’ Eagle Road King.

All VRSC models get a power boost from a high-performance, 1250cc version of the liquid-cooled Revolution V-Twin engine tuned to make up to 125 horsepower and 85 ft.-lbs. of torque. The engine is mated to a new slipper-style clutch with lighter lever action. Anti-Lock Braking System (ABS) is offered as a factory-installed option on all 2008 VRSC models.

A new six-gallon fuel tank extends the range of all Touring models, which also feature new Brembo brakes and available ABS. Cruise control is now a factory-installed option on all Touring models not already equipped with this feature.

All Touring models feature a new Isolated Drive System that reduces noise and vibration to the rider for improved ride quality under acceleration, shifting and cruising.

The high-performance Twin Cam 110 engine powers four 2008 models from Harley-Davidson Custom Vehicle Operations (CVO): the Screamin’ Eagle Road King, the Screamin’ Eagle Ultra Classic Electra Glide, the Screamin’ Eagle Softail Springer, and the Screamin’ Eagle Dyna. Each features new accessories and paint schemes.

Harley-Davidson will offer 15 new color combinations for 2008, plus three custom color combinations.

Harley-Davidson Motor Company, the only major U.S.-based motorcycle manufacturer, produces heavyweight motorcycles and a complete line of motorcycle parts, accessories and general merchandise. For more information, visit Harley-Davidson’s Web site at www.harley-davidson.com.

Media Release #3

NEW HARLEY-DAVIDSON DYNA FAT BOB HAS BOLD STREET PRESENCE
Dual Headlamps and Tommy Gun Exhaust are Signature Custom Features

MILWAUKEE (July 9, 2007) – With dual headlamps blazing and chunky tires rolling out a distinctive footprint, the new Harley-Davidson FXDF Dyna Fat Bob aims to occupy a wide patch of pavement. Named for the iconic fuel tank shape that has defined a generation of massive Harley-Davidson factory customs, the Fat Bob combines signature Dyna performance with a new profile that communicates cool authority.

The dual four-inch headlamps, framed by 49 mm forks and new polished aluminum triple-clamps, are the most obvious indication that the Fat Bob is a new breed of Dyna. But it’s a big 130 mm front tire on a 16-inch by 3.5-inch slotted cast aluminum wheel that really leads the way. A new, aggressive tread design exaggerates the tire’s chubby profile. Black painted fork lowers highlight the silver wheels and dual disc brakes, and match black risers holding a V-shaped drag bar. This is a front end that makes a bold statement.

The Fat Bob is powered by a Twin Cam 96 engine that pounds out 92 ft.-lbs. of torque through a 6-speed Cruise Drive transmission. The black-and-polished Twin Cam 96 powertrain breathes through a distinctive new airbox cover and exhales through the wild new Tommy Gun exhaust system, a 2-1-2 configuration that snakes the rear pipe forward and around the engine timing cover to merge with the front pipe. The pipes then split and dump into staggered dual mufflers. A slotted exhaust shield gives the system its name.

Above the engine resides the famous 5.1-gallon Fat Bob fuel tank adorned with a new medallion and chrome, low profile fuel tank console. The Fat Bob can be ordered from the factory with a choice of forward foot controls or mid-mount foot controls, to suit rider preference or stature. A new two-up seat shape combined with the drag bars to put the rider in a position that’s nonchalant cool. Seat height is just 26.1 inches.

A beefy 180 mm rear tire with an aggressive tread pattern wraps a 16-inch by five-inch slotted aluminum rear wheel, a combination that gives the Fat Bob a substantial rear profile but also preserves the great handling qualities of the Dyna chassis. A new wide Bobtail fender covers the rear tire, and the rear shock absorber springs are concealed with chrome “full metal jacket” covers.

The Fat Bob is available in seven solid-color paint options, including three low-gloss Denim paint selections.

Harley-Davidson Motor Company, the only major U.S.-based motorcycle manufacturer, produces heavyweight motorcycles and a complete line of motorcycle parts, accessories and general merchandise. For more information, visit Harley-Davidson’s Web site at www.harley-davidson.com.
