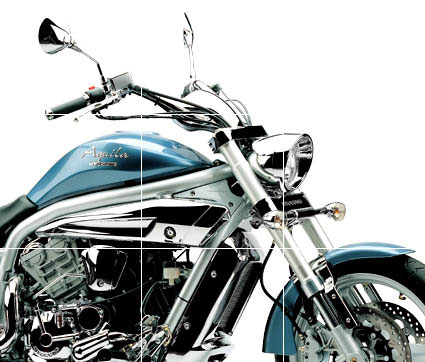

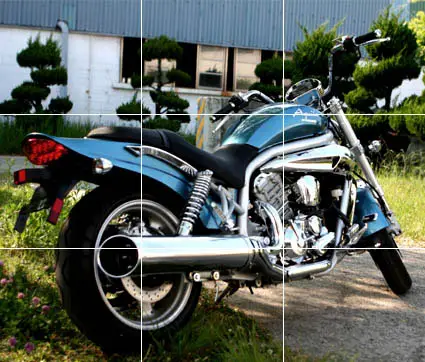

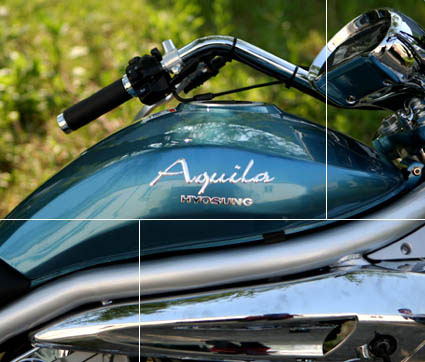

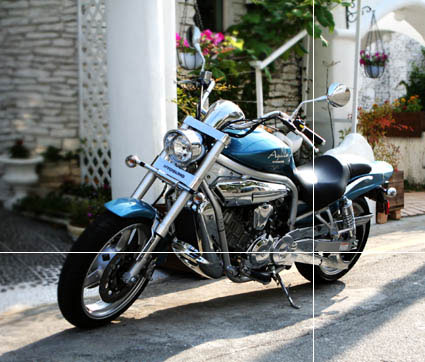

2008 Hyosung GV650 Aquila

– 2008 Hyosung GV650 Aquila

2008 Hyosung GV650 Aquila

The ultimate freedom machine.

Features & Benefits

– Inverted front forks give the control of a sport Bike and the comfort of a Cruiser.

– Electronic VFD instrument panel Uplift the image as a large size deluxe automobile by employing VFD digital speedometer for the first in the world in cruise type.

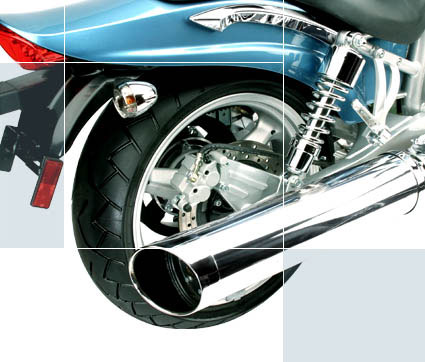

– Rear Suspension Double Shock Absorber

– Belt-driven Drive Employs semi-permanent belt-driven method which is 3 times superior to the chain-type for the first time in domestic market realizing modesty (anti-noise) and maintenance-free.

– Length-control-type foot rest

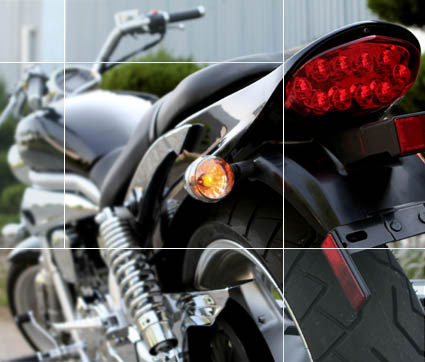

– LED Type Tail & Stop Lamp low maintenance

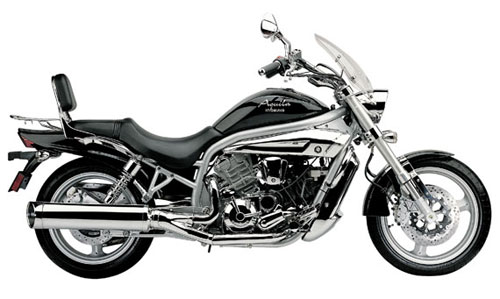

– Wind screen

– Chrome engine guard

Specifications USA

Specification & Capacity
Full length(mm) 2,430
Full width(mm) 840
Full height(mm) 1,155
Ground clearance(mm) 160
Wheel base 1,665
Seat height(mm) 795
Dry mass(kg) 200


Engine
Engine system 4stroke, Water-cooled, V-twin 8 Valve
Displacement(cc) 647
Carburetor MIKUNI-BDSR39 * 2
Starter system Electric


Transmission
Clutch Wet Multi-Plate Type
Gear Box 5 speed


Body
Tire (Front) 120/70-ZR 18 59W
Tire (Rear) 180/55-ZR 17 73W
Suspension (Front) Telescopic
Suspension (Rear) Swing Arm
Brake (Front) Double Disk
Brake (Rear) DISK


Capacity
Fuel tank 17
Oil 3.8

Specifications Canada:

Model:
Hyosung GV 650 Aquila

Category:
Custom / cruiser

Engine and transmission

Displacement :
647.00 ccm (39.48 cubic inches)

Engine type :
V 2

Stroke :
4

Valves per cylinder:
4

Fuel control:
DOHC

Cooling system :
Liquid

Gearbox :
5-speed

Starter:
Electric

Physical measures

Dry weight:
220.0 kg (485.0 pounds)

Wheelbase :
1,700 mm (66.9 inches)

Overall length:
2,427 mm (95.6 inches)

Overall width:
865 mm (34.1 inches)

Overall height:
1,120 mm (44.1 inches)

Ground clearance:
140 mm (5.5 inches)

Chassis and dimensions

Front tyre dimensions :
120/60- ZR18

Rear tyre dimensions :
200/70- ZR17

Front brakes:
Double disc

Rear brakes:
Single disc

Other specifications

Fuel capacity:
17.00 litres (4.49 gallons)

Specifications and features are subject to change
