2008 KTM 950 Supermoto R

You are here: Home — New 2008 Models — 2008 KTM Motorcycle Models

2008 KTM 950 Supermoto R
Back to 2008 KTM Motorcycle Index Page

Click photos to enlarge for detail.
They make great desktop images.

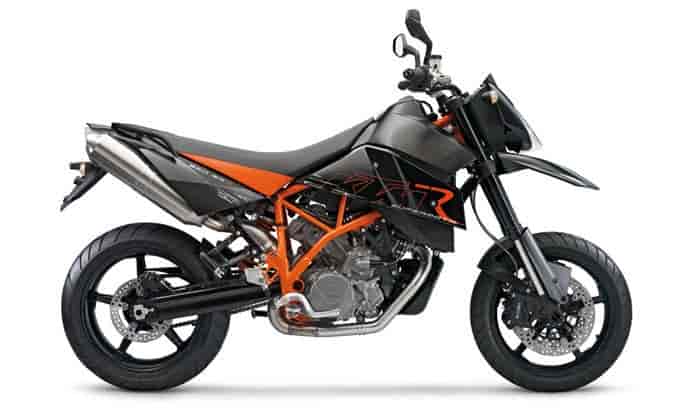

2008 KTM 950 Supermoto R

– 2008 KTM 950 Supermoto R

2008 KTM 950 Supermoto R

The 950 Supermoto R combines irrepressible power and effortless handling. The KTM engineers did their utmost to develop a “machine” that would exploit to the fullest every last inch of leeway in road traffic certification: Fully adjustable 48 WP chassis, ultralight chromium molybdenum tubular trellis frame, enhanced seat ergonomics for perfect drifts as well as “R”adial brake performance from Bembo all ensure pure pleasure in the curves. Out of the rut and into the race.

SPECIFICATIONS:

Engine type Twin cylinder, 4-stroke, V 75°
Displacement 942 cc
Bore x stroke 100 / 60 mm (3.94 / 2.36)
Performance (homologated) 72 kW / 8000 rpm
Max. torque 94 Nm / 6500 rpm
Compression ratio 11,5:1
Starter / Battery E-Starter / 12 V 11.2 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation 2 Keihin constant pressure carburetors CVRD 43
Control 4 V / DOHC
Lubrication Pressure lubrication with 2 oil pumps
Engine lubrication Motorex, fully synthetic, SAE 10W-50
Primary drive 67:35
Final drive 17:41
Cooling Liquid cooled
Clutch Wet multi-disc clutch, hydraulically operated
Ignition Denso battery ignition


Frame Chromium-Molybdenum trellis frame, powder-coated
Subframe Aluminium 7020
Handlebar Aluminium Ø 28/22 mm (1.89″), tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock
Suspension travel front / rear 200 / 210 mm (7.87 / 8.27″)
Front brake 2 x Brembo four piston fixed-caliper, radial bolted, brake disc Ø 305 mm (12.0″), floating
Rear brake Brembo two piston, floating caliper, brake disc Ø 240 mm (9.45″)
Rims, front / rear Cast aluminium wheels 3.5 x 17” / 5.5 x 17”
Tires, front / rear 120/70 ZR 17 – 180/55 ZR 17
Chain X-Ring 5/8 x 5/16″
Battery 12 V / 11.2 Ah
Main silencer Twin stainless-steel silencer with catalytic converters
Steering head angle 65,1°
Trail 110 mm (4.33″)
Wheel base 1510 ± 15 mm (59.45 ± 0.95″)
Ground clearance (unloaded) 190 mm (7.48″)
Seat height 865 mm (34.06″)
Fuel capacity approx. 14.5 litres / 2.5 liters reserve (3.83 / 0.66 gal)
Weight (no fuel) approx. 191 kg
