2009 Buell Ulysses XB12XT

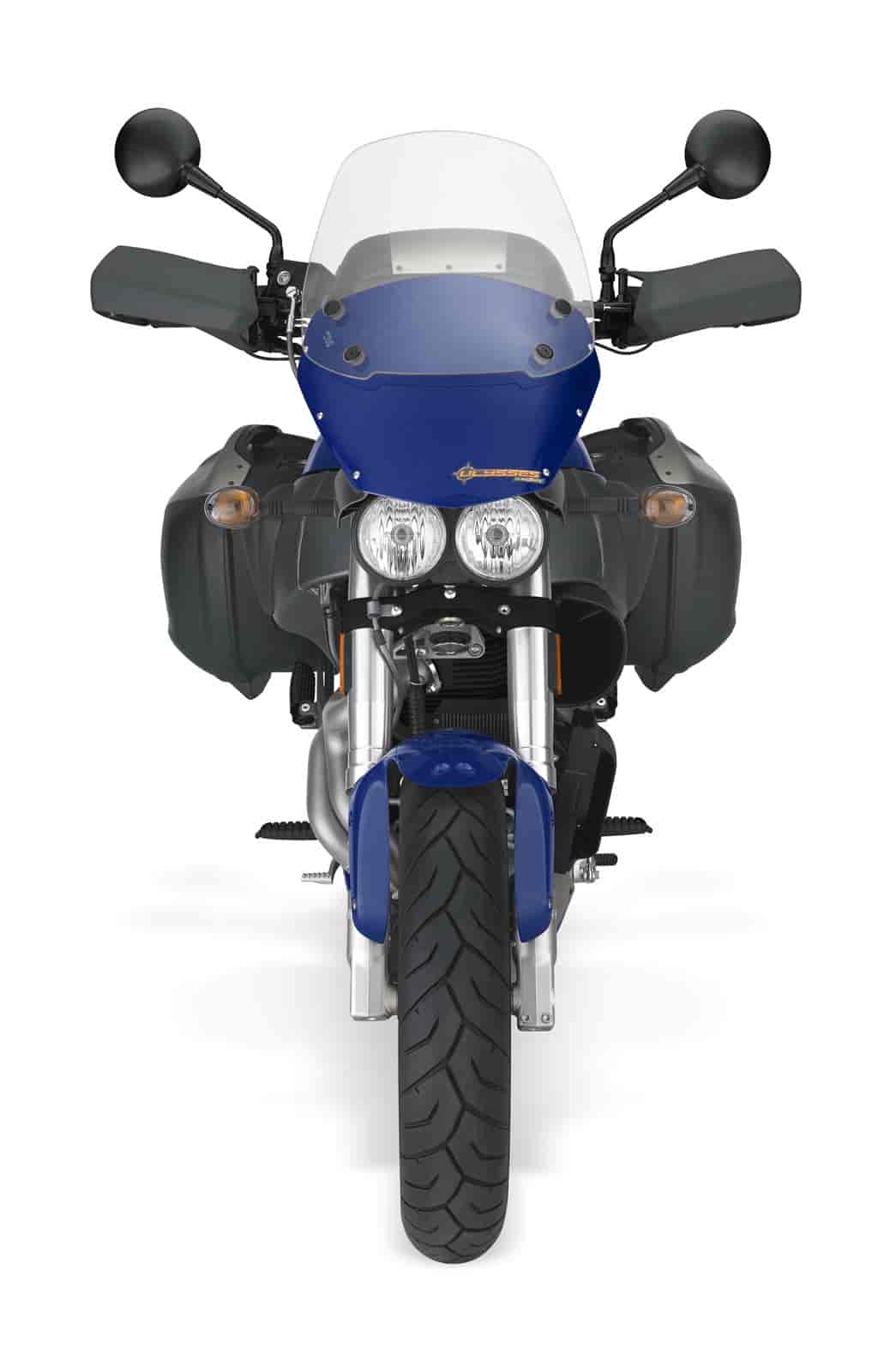

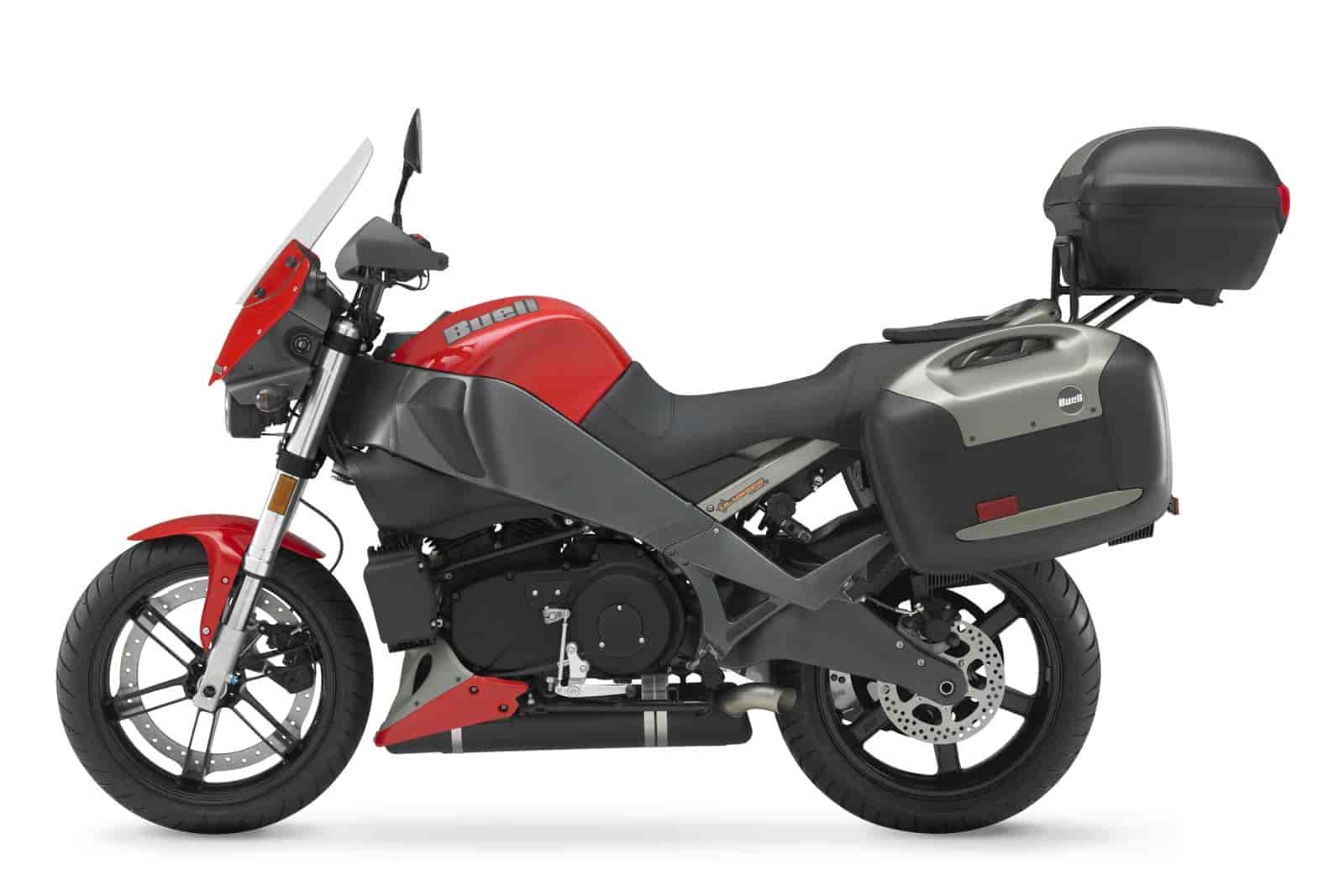

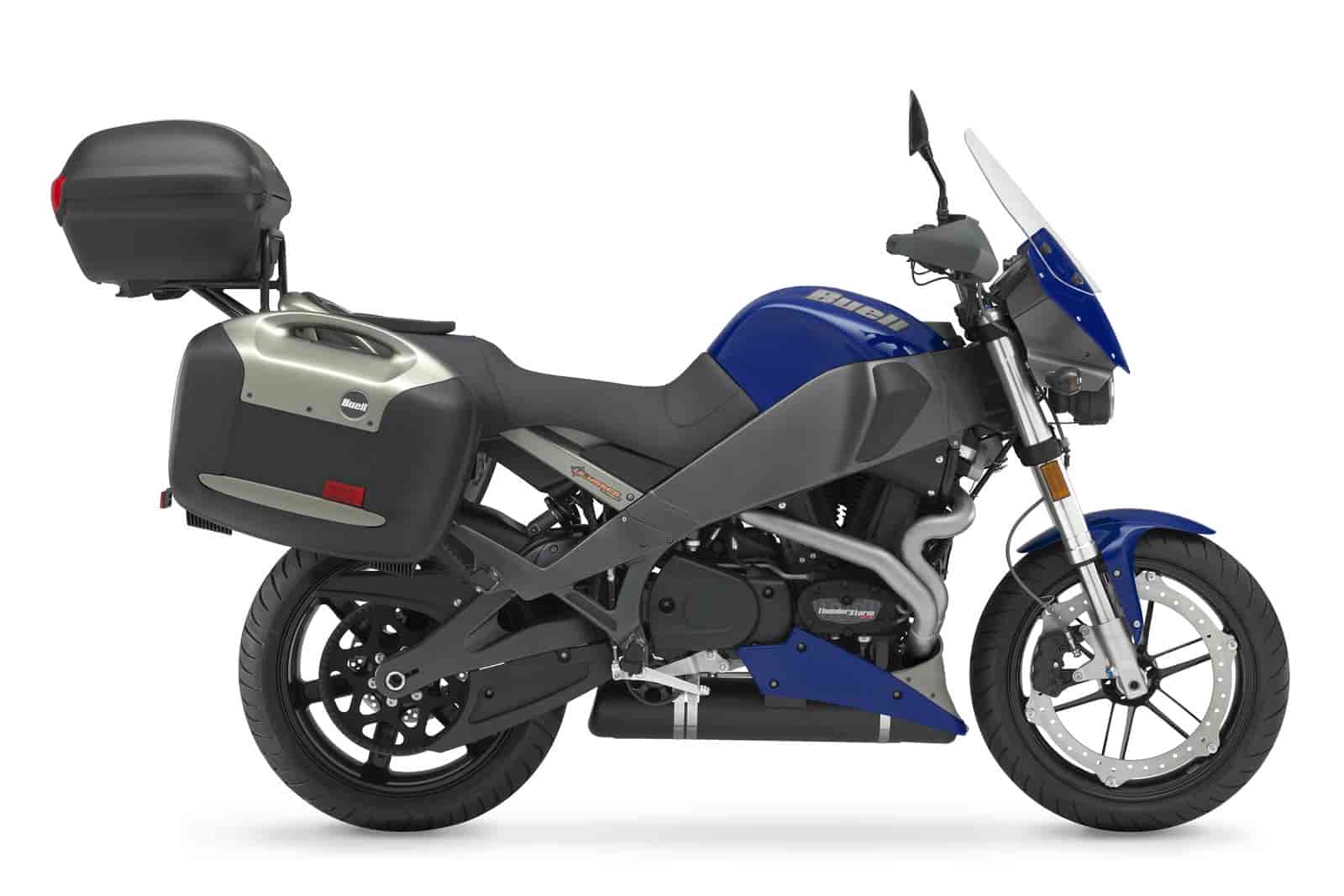

A premium motorcycle equally adept at long-distance touring and the daily commute, the Ulysses XB12XT combines all-day comfort with intuitive Buell handling and V-Twin muscle in one incredibly versatile bike. Fully adjustable Showa suspension is tuned for travel on pavement, with 4.9 inches of travel front and rear. A spacious saddle offers all-day comfort and has a seat height of 30.7 inches. Pirelli Diablo Strada sport touring tires provide outstanding grip in a wide variety of conditions.

The XB12XT places the rider in a comfortable, upright position behind wide handlebars with wind deflectors and a tall, two-piece windscreen. Removable hard-shell side cases and top case are standard equipment. On the XB12XT, the Triple Tail system functions as a luggage rack with tie-down hooks over the rear seat position or a as a cushioned passenger backrest with grab rails. The XB12XT is offered with Racing Red or Thrust Blue bodywork.

Buell Ulysses XB12XT highlights

Buell Thunderstorm 1203cc air/oil/fan-cooled, four-stroke, 45-degree V-Twin engine
103 peak hp @ 6800 rpm (per SAE J607)
84 ft. lbs. peak torque @ 6800 rpm (per SAE J607)
New stronger Goodyear Hibrex drive belt with Flexten Plus technology
New footpegs with aggressive “sawtooth” pattern
Buell InterActive Exhaust
DDFI 3 Electronic Fuel Injection ECM
Eight-row oil cooler with Jiffy-tite fittings
Dry Weight: 465 pounds (fully upfitted with top and side cases)
Wheelbase: 53.9 inches
Seat height: 30.7 inches
Pirelli Diablo Strada tires
Detachable three-bag pannier luggage system with top and side hard cases
Underseat storage
Heated hand grips
Tall, detachable windscreen
Road-tuned suspension for sport touring
Fully adjustable 43 mm Showa inverted fork
Fully adjustable Showa rear shock absorber
Buell ZTL front brake
Frame pucks, handlebar wind deflectors
Triple Tail System
4.4-gallon fuel capacity
Functional tool kit
2 x 12v. power outlets

SPECIFICATIONS:

Dimensions
Overall Length6 91.3 in. (2320 mm)
Overall Width9 39.6 in. (1005 mm)
Seat Height7 30.7 in. (780 mm)
Ground Clearance6 5.94 in. (151 mm)
Rake (steering head) 23.8°
Fork Angle 22.3°
Lean Angle8:
– Soft Contact, Right 39°
– Soft Contact, Left 39°
– Hard Contact, Right 43°
– Hard Contact, Left 40°
Trail7 4.9 in. (123 mm)
Wheelbase6 53.9 in. (1370 mm)
Tires4 (Pirelli® Diablo® Strada®):
– Front 120/70 ZR-17
– Rear 180/55 ZR-17
Fuel Capacity 4.40 gal. (16.7 L)
Reserve Fuel Capacity 0.83 gal. (3.1 L)

Fuel Economy2
(EPA urban/highway test) 47/59 mpg (5.0/4.0 L/100 km)
Weight:
– Dry Weight 465 lbs. (211 kg)
– Gross Vehicle 950 lbs. (431 kg)
Weight Rating Load Capacity 414 lbs. (188 kg)

Engine
Engine Thunderstorm® air/oil/fan-cooled, 4-stroke, 45° V-Twin
Valves OHV, two valves per cylinder, self-adjusting
Bore x Stroke 3.500 in. x 3.812 in. (88.90 mm x 96.82 mm)
Displacement 73.4 cu. in. (1203 cc)
Compression Ratio 10.0:1
Fuel Delivery 49 mm down draft DDFI III

Fuel injection
Intake Zero-resistance airbox
Exhaust Tuned, tri-pass resonance chamber with InterActive valve and masscentralized mounting
Torque
(North America per SAE J607)
84 ft. lbs. @ 6000 rpm
(113.9 nm @ 6000 rpm)
Horsepower
(North America per SAE J607)
103 hp @ 6800 rpm
Lubrication Dry-sump
Oil Capacity10 2.5 qts. (2.4 L)
Oil Filtration Screw-on disposable element

Drivetrain
Primary Drive Chain, 1.500:1 (57/38) ratio
Final Drive3 Constant path, 14 mm pitch aramidreinforced Veyance Hibrex® belt with
Flexten® Plus technology, 2.407:1 (65/27) ratio
Clutch Wet, multi-plate, compensated
Transmission 5-speed, helical gear design
Gear Ratios:
– 1st 2.648
– 2nd 1.892
– 3rd 1.407
– 4th 1.166
– 5th 1.000

Chassis4
Frame Aluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
Front Forks 43 mm Showa® inverted forks, fully adjustable (compression damping, rebound damping, and spring preload)
Rear Shock Showa® coil-over monoshock with remote reservoir and remote spring preload adjustment, fully adjustable (compression damping, rebound damping, and spring preload)
Wheels:
– Front
Designer Black Powdercoat 6-spoke, ZTL™ cast aluminum, 3.5 in. x 17 in. (88.9 mm x 431.8 mm)
– Rear
6-spoke, cast aluminum, 5.5 in. x 17 in. (139.7 mm x 431.8 mm)
Brakes:
– Front
ZTL™ brake, 6-piston, fixed caliper; 375 mm single-sided, inside-out, stainless steel, floating rotor
– Rear
Single-piston, floating caliper; 240 mm stainless steel, fixed rotor
Suspension Travel:
– Front Wheel 4.92 in. (125 mm)
– Rear Wheel 4.92 in. (125 mm)

Electric
Battery (per Battery Council International Rating) Sealed lead acid, maintenance-free, 12V, 12-amp/hour, 200 cca
Charging 30-amp, permanent magnet, singlephase alternator with solid-state regulator (405W @3000 rpm, 405W peak)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamps (twin quartz halogen [H7])
55-watt low beam, 55-watt high beam
– Tail/Stop Lights
Ten segment LED 0.36W/3.36W
– Turn Signal Lights
10W manual canceling
– License Plate Light
5W

Instruments
Electronic speedometer, tachometer, odometer; dual tripmeter; high beam, neutral, oil, low fuel (plus, odometer shows miles traveled on reserve), turn signal and engine diagnostic indicator lamps; clock

Colors5
Racing Red, Thrust Blue

Warranty
Warranty 24 months (unlimited mileage)
1 Specification for non-U.S. markets might differ. Buell reserves the right to
discontinue models or change specifications at any time without incurring any
obligation. Vehicle specifications may vary from country to country depending on
local laws. Some models are not available in certain countries.
2 Based on tests conducted under lab conditions per U.S. E.P.A. test procedures.
Mileage will vary depending on personal riding habits, weather conditions, trip
length and vehicle condition.
3 Hibrex® and Flexten® are registered trademarks of Veyance Technologies, Inc.
4 Showa®, Dunlop® and Pirelli® are registered trademarks of their respective owners.
5 Availability may vary from dealer to dealer, and is subject to change without notice.
6 Unladen, wet configuration (no rider, all fluids).
7 Laden, wet configuration (design rider, all fluids).
8 Bottomed-out configuration (100% suspension compression).
9 Without mirrors.
10 Oil capacity at oil change with filter.

Media Press Release:

BUELL ADVENTURE SPORTBIKES ARE DYNAMIC PERFORMERS
Two Buell Ulysses Models Display Distinct Personalities

EAST TROY, Wis. (July 22, 2008) – The 2009 Buell Adventure Sportbike line includes two Ulysses models created for riders seeking a motorcycling experience beyond the ordinary. While the Ulysses XB12X and Ulysses XB12XT are designed to perform distinctly different missions, each offers a combination of comfort, versatility and performance that make them among the most dynamic motorcycles on any road today.

The Buell Trilogy of Technology – chassis rigidity, mass centralization, and low unsprung weight – forms the foundation of both Ulysses models. The hollow aluminum perimeter frame is the core of a rigid chassis, and doubles as a 4.4-gallon fuel tank to help lower the center of gravity. For the same reason, the muffler is located below the engine, and the Ulysses swingarm is also does double duty as the oil reservoir. The 103-hp Buell Thunderstorm 1203 V-Twin engine is tuned to deliver a broad powerband and the on-demand torque a rider can use in the real world.

An upright riding position, comfortable ergonomics, and rider-focused features like a two-piece windscreen, adjustable suspension and heated hand grips, make these Ulysses models truly multi-function motorcycles, ready for commuting, touring and back-road exploration. Handling is intuitive. The performance is thrilling.

New on Buell Adventure Sport Models for 2009

Improved Drive Belt – A new Veyance Hibrex drive belt with Flexten Plus technology, based on the belt developed for the Buell 1125R, has increased strength and durability.

Improved Footpegs – New black footpegs have an aggressive sawtooth pattern for optimal foot stability in all conditions and riding positions.

New Ulysses Police model – The Ulysses Police XB12XP is designed for use by government agencies in situations requiring travel on paved and unpaved roads and the agility and performance of an adventure sport motorcycle. It is equipped with police-specific lighting, a larger top case and more-compact side cases, and other special equipment. (See separate release for full details.)

2009 Ulysses XB12X

With long-travel suspension, generous 6.75-inch ground clearance, and aggressive Pirelli Scorpion Sync tires, the Buell Ulysses XB12X can carry its rider over dirt, gravel and other unpaved road surfaces. On smooth pavement, the XB12X performs as a high-performance sport motorcycle, ready to blitz through the twisties.

A wide Supermoto-style handlebar gives the rider extra leverage and control behind wind deflectors and a two-piece windscreen designed to limit buffeting. The broad, torque-filled powerband of the 103-hp Buell Thunderstorm 1203 V-Twin engine gives the Ulysses the ability to proceed at lower speeds over unpaved roads with less gear shifting, and the power to bomb down paved backroads.

Premium Showa front (6.51 inches travel) and rear (6.38 inches travel) suspension is fully adjustable. Rear spring preload can be adjusted by turning a dial located below the left side of the seat. Features that help make the XB12X adventure-ready include the Triple Tail system, which folds through three positions to function as a luggage rack with tie-down hooks over the rear seat position, as a cushioned passenger backrest with grab rails, or as a luggage rack extended over the rear fender. Optional top and side cases are also available for the XB12X as accessory items. A dual front fender system provides debris protection for the rider and the bike. The XB12X is offered with Barricade Orange or Thrust Blue bodywork.

Buell Ulysses XB12X highlights

Buell Thunderstorm 1203cc air/oil/fan-cooled, four-stroke, 45-degree V-Twin engine
103 peak hp @ 6800 rpm (per SAE J607)
84 ft. lbs. peak torque @ 6800 rpm (per SAE J607)
New Veyance Hibrex drive belt with Flexten Plus technology
New footpegs with aggressive “sawtooth” pattern
Buell InterActive Exhaust
DDFI 3 Electronic Fuel Injection ECM
Eight-row oil cooler with Jiffy-tite fittings
Dry Weight: 425 pounds
Wheelbase: 54.1 inches
Pirelli Scorpion Sync tires
Fully adjustable 47 mm Showa inverted fork
Fully adjustable Showa rear shock absorber
Buell ZTL front brake
Double front fender design
Two-piece, quick-release windscreen
Frame pucks, handlebar wind deflectors and headlight grille
Triple Tail System
4.4-gallon fuel capacity
Functional tool kit
2 x 12v. power outlets
Heated hand grips
2009 Ulysses XB12XT

A premium motorcycle equally adept at long-distance touring and the daily commute, the Ulysses XB12XT combines all-day comfort with intuitive Buell handling and V-Twin muscle in one incredibly versatile bike. Fully adjustable Showa suspension is tuned for travel on pavement, with 4.9 inches of travel front and rear. A spacious saddle offers all-day comfort and has a seat height of 30.7 inches. Pirelli Diablo Strada sport touring tires provide outstanding grip in a wide variety of conditions.

The XB12XT places the rider in a comfortable, upright position behind wide handlebars with wind deflectors and a tall, two-piece windscreen. Removable hard-shell side cases and top case are standard equipment. On the XB12XT, the Triple Tail system functions as a luggage rack with tie-down hooks over the rear seat position or a as a cushioned passenger backrest with grab rails. The XB12XT is offered with Racing Red or Thrust Blue bodywork.

Buell Ulysses XB12XT highlights

Buell Thunderstorm 1203cc air/oil/fan-cooled, four-stroke, 45-degree V-Twin engine
103 peak hp @ 6800 rpm (per SAE J607)
84 ft. lbs. peak torque @ 6800 rpm (per SAE J607)
New stronger Goodyear Hibrex drive belt with Flexten Plus technology
New footpegs with aggressive “sawtooth” pattern
Buell InterActive Exhaust
DDFI 3 Electronic Fuel Injection ECM
Eight-row oil cooler with Jiffy-tite fittings
Dry Weight: 465 pounds (fully upfitted with top and side cases)
Wheelbase: 53.9 inches
Seat height: 30.7 inches
Pirelli Diablo Strada tires
Detachable three-bag pannier luggage system with top and side hard cases
Underseat storage
Heated hand grips
Tall, detachable windscreen
Road-tuned suspension for sport touring
Fully adjustable 43 mm Showa inverted fork
Fully adjustable Showa rear shock absorber
Buell ZTL front brake
Frame pucks, handlebar wind deflectors
Triple Tail System
4.4-gallon fuel capacity
Functional tool kit
2 x 12v. power outlets

Buell Motorcycle Company, a subsidiary of Harley-Davidson, Inc., produces sport motorcycles, motorcycle parts, accessories and apparel. To learn more about Buell motorcycles, visit your local Buell dealer today and experience the pure streetfighter attitude, style and performance only found on board a Buell. Call 1-800-490-9635 for the Buell dealer nearest you. Or pull into www.buell.com.
