2009 Ducati Multistrada 1100S

You are here: Home2009 Models — 2009 Ducati Motorcycle Models

2009 Ducati Multistrada 1100S
Back to 2009 Ducati Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2009 Ducati Multistrada 1100S
2009 Ducati Multistrada 1100S

2009 Ducati Multistrada 1100S
2009 Ducati Multistrada 1100S

2009 Ducati Multistrada 1100S
2009 Ducati Multistrada 1100S

2009 Ducati Multistrada 1100S
2009 Ducati Multistrada 1100S

2009 Ducati Multistrada 1100S
2009 Ducati Multistrada 1100S

2009 Ducati Multistrada 1100S
2009 Ducati Multistrada 1100S


– 2009 Ducati Multistrada 1100S

2009 Ducati Multistrada 1100S

Thanks to its world-class suspension and componentry, the “S” version is for riders who demand the ultimate in sports performance. It is based on the Multistrada 1100, but features a number of components derived from the Ducati Superbikes, including fully-adjustable Öhlins suspension and carbon fibre components.

The Multistrada 1100 S highlights the sporting character of a model whose main feature is versatility.

The 1100 S features a number of racing components including a front fender and cam belt covers in carbon fibre, as well as tapered alloy handlebars which are fitted with vibration isolating mounts. The prestigious Öhlins suspension, derived from the Ducati Superbikes, deliver superior road handling as well as an exclusive quality finish.

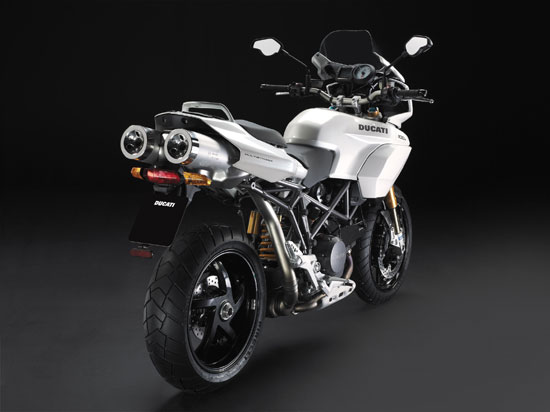

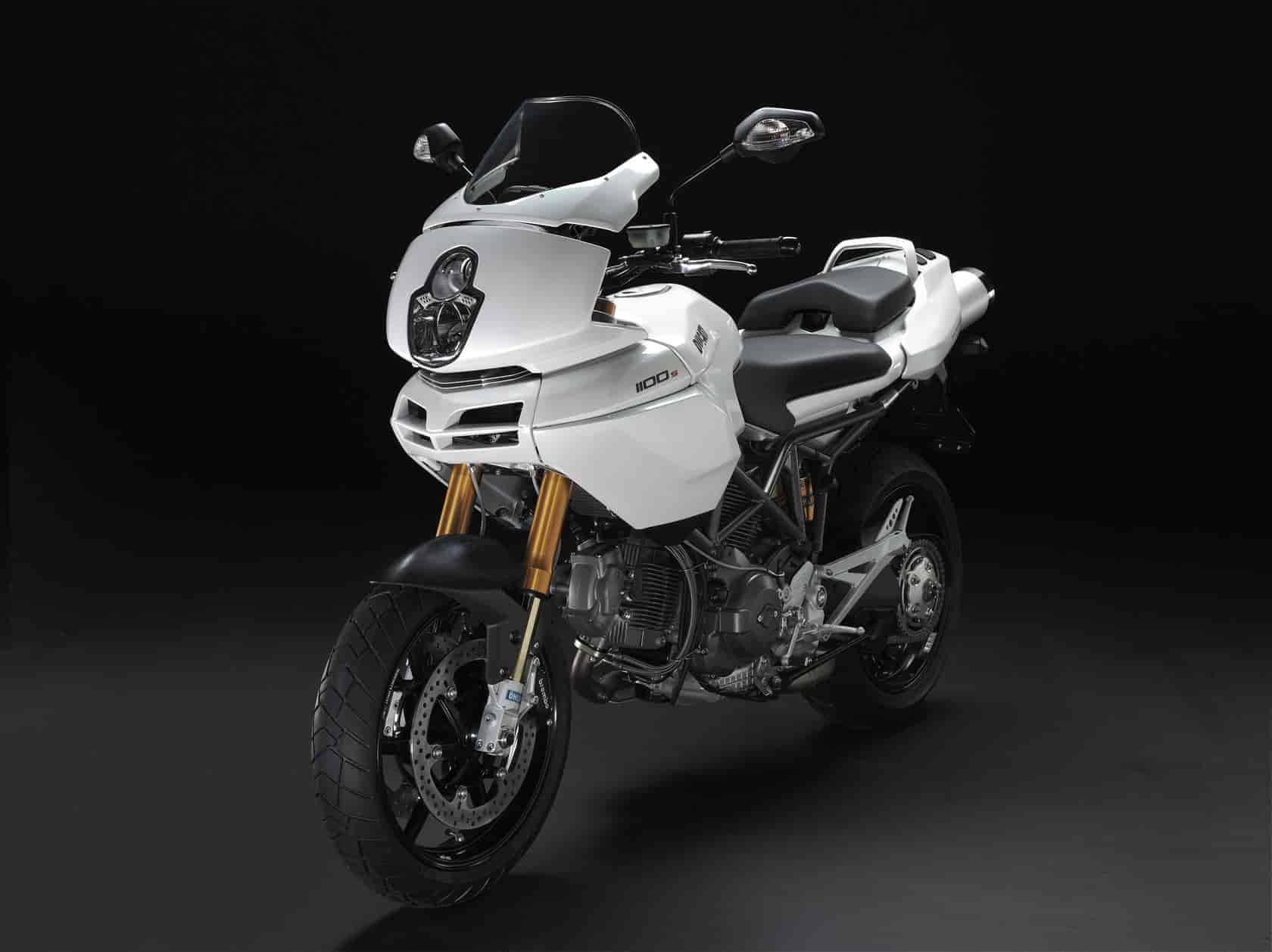

This top-of-the-range model now features the new livery of pearl white with racing grey frame and engine outer casings with a carbon grey finish.

Chassis
It is the chassis that has given the Ducati Multistrada its extreme versatility and all-round performance. The Multistrada 1100 S earns its ‘S’ status by adding sophisticated suspension and a sporting set-up to an already high performance motorcycle. It provides true Superbike performance and is capable of lightning-quick cornering and extreme riding precision.

At the front, 43mm Öhlins forks with low friction TiN fork sliders, fully adjustable and complemented by a fully adjustable Öhlins rear shock with remote preload adjuster for Superbike-class road holding.



The Multistrada family

The Multistrada family of sport bikes excel on every road you challenge with amazing sports performance, outstanding comfort and everyday-use versatility. Ideal for a day in the mountains, the daily commute or a weekend tour, the Multistrada offers sport bike aggression on twisty roads, yet is smooth and relaxed when scenery beckons.

Developed on the winding mountain roads and city streets of Italy, the Multistrada is a real-world motorcycle for real-world riders, a dream come true, a high performance sports bike that doesn’t compromise comfort, versatility or practicality.

The Multistrada breaks down all barriers. Its unique versatility is a matter of design. On mountain roads its impressive cornering performance comes by way of Superbike-spec suspension, world-class brakes and its renowned Ducati Trellis frame. For extended journeys, the longer travel suspension smoothes the way, vibration isolated handlebars reduce fatigue and the relaxed riding position optimises comfort for both rider and passenger. In town the agile chassis, wide bars and broad power of the 1100 engine make crossing busy city traffic an adventure to look forward to.

It is this extreme versatility and all-round performance that prompted magazines to nominate the Multistrada as “Bike of the year” in the street segment.

For the 2009 the Multistrada is available in two versions: the impressive Multistrada 1100 finished in red and, for those who demand ‘S’ version sport performance, the Multistrada 1100 S in red, black or in the new pearl white colour.



COLOUR SCHEME

Fairing Frame Wheels

Multistrada 1100

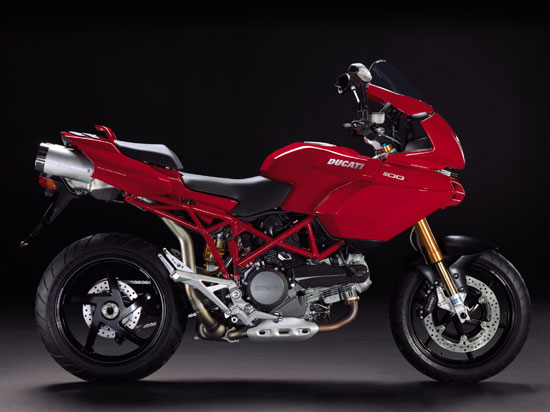

Red Red Black


Multistrada 1100 S
Red Red Black

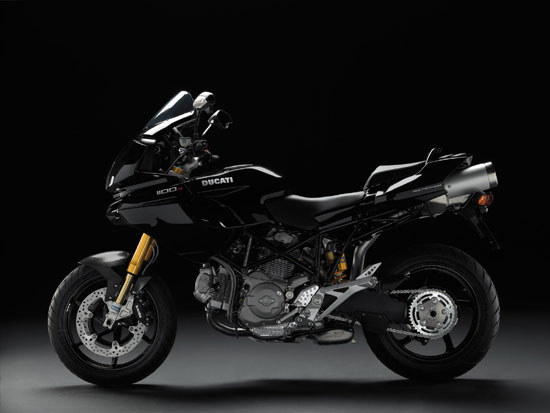

Black Black Black
Pearl White Racing Grey Black





2008 Ducati Multistrada 1100S North American Specifications:
MSRP $TBA USD ($TBA CDN)


Engine
Type L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
Displacement 1078cc
Bore x Stroke 98x 71.5mm
Compression Ratio 10.5:1
*Power 95hp – 70kW @ 7750rpm
*Torque 76lb-ft – 10.5kgm @ 4750rpm
Fuel injection Marelli electronic fuel injection, 45mm throttle body
Exhaust Single steel muffler and pre-silencer with catalytic converter and lambda probe
Emissions Euro 3

Transmission
Gearbox 6 speed
Ratio 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary drive Straight cut gears, Ratio 1.84:1
Final drive Chain; Front sprocket 15; Rear sprocket 42
Clutch Wet multiplate with hydraulic control

Chassis
Frame Tubular steel Trellis frame
Wheelbase 1462mm / 57.6in
Rake 24°
Steering angle 35° right and left
Front suspension Öhlins 43mm fully adjustable upside-down fork with TiN
Front wheel travel 165mm / 6.5in
Front wheel 6-spoke in light alloy 3.50×17
Front tyre 120/70 ZR17
Rear suspension Progressive linkage with fully adjustable Öhlins monoshock; hydraulic remote pre-load control. Aluminium
Rear wheel travel 141mm / 5.6in
Rear wheel 5-spoke light alloy 5.50×17
Rear tyre 180/55 ZR17
Front brake 2 x 320mm semi-floating discs, 4-piston, 2-pad caliper
Rear brake 245mm disc, 2-piston caliper
Fuel tank capacity 20l (of which 6.5l reserve) / 5.3 US gal (of which 1.7 US gal reserve)
**Dry weight 196kg / 432lbs
Seat height 850mm / 33.5in
Max height 1340mm / 52.77in
Max length 2130mm / 83.9in

Instruments
Speedometer, rev counter, clock, scheduled maintenance warning, warning light for low oil pressure, fuel level, oil temperature, fuel reserve, trip fuel, neutral, turn signals, average speed, average fuel consumption, remaining fuel metre, fuel injection diagnostic system, auto light off system, immobilizer.


* Data calculated using an inertia dynamometer.
** The weight excludes battery, lubricants and coolant for liquid cooled models.”

*Manufacturer’s suggested retail price. Price excludes all taxes, title, licensing and registration fees, and transportation costs. Neiman Marcus is acting as the advertiser for this product. All sales will be conducted solely by participating, authorized dealers in the United States. Available for delivery in the United States only. Limit one vehicle per qualified customer. Sorry, no dealer purchases will be permitted. Exhaust system shipped separately.




2008 Ducati Multistrada 1100S International Specifications:
MSRP: $TBA USD


Motore – Engine
Tipo / Type Bicilindrico a L, distribuzione Desmodromica 2 valvole per cilindro, raffreddamento ad aria / L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
Cilindrata / Displacement 1078cc
Alesaggio x Corsa / Bore x Stroke 98x 71.5mm
Rapporto di compressione / Compression Ratio 10.5:1
*Potenza / *Power 95cv – 70kW @ 7750 giri/min / 95hp – 70kW @ 7750rpm
*Coppia / *Torque 10,5kgm – 102,9Nm @ 4750 giri/min / 76lb-ft – 10.5kgm @ 4750rpm
Alimentazione / Fuel injection Iniezione elettronica Marelli, corpo farfallato 45mm / Marelli electronic fuel injection, 45mm throttle body
Scarico / Exhaust Monosilenziatore in acciaio e presilenziatore con catalizzatore e sonda lamba / Single steel muffler and pre-silencer with catalytic converter and lambda probe
Omologazioni / Emissions Euro 3
Trasmissione – Transmission
Cambio / Gearbox 6 marce / 6 speed
Rapporti / Ratio 1a 37/15, 2a 30/17, 3a 27/20, 4a 24/22, 5a 23/24, 6a 24/28 / 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Trasmissione primaria / Primary drive Ingranaggi a denti dritti, Rapporto 1,84:1 / Straight cut gears, Ratio 1.84:1
Trasmissione secondaria / Final drive Catena; Pignone 15; Corona 42 / Chain; Front sprocket 15; Rear sprocket 42
Frizione / Clutch Multidisco in bagno d’olio con comando idraulico / Wet multiplate with hydraulic control
Veicolo – Chassis
Telaio / Frame Traliccio in tubi di acciaio / Tubular steel Trellis frame
Interasse / Wheelbase 1462mm / 57.6in
Inclinazione cannotto / Rake 24°
Angolo di sterzo / Steering angle 35° dx e sx / 35° right and left
Sospensione anteriore / Front suspension Forcella Öhlins a steli rovesciati da 43mm con TiN completamente regolabile / Öhlins 43mm fully adjustable upside-down fork with TiN
Escursione ruota anteriore / Front wheel travel 165mm / 6.5in
Ruota anteriore / Front wheel Lega leggera a 6 razze 3,50×17 / 6-spoke in light alloy 3.50×17
Pneumatico anteriore / Front tyre 120/70 ZR17
Sospensione posteriore / Rear suspension Progressiva con monoammortizzatore Öhlins completamente regolabile; regolazione idraulica remota del precarico. Forcellone monobraccio in alluminio / Progressive linkage with fully adjustable Öhlins monoshock; hydraulic remote pre-load control. Aluminium
Escursione ruota posteriore / Rear wheel travel 141mm / 5.6in
Ruota posteriore / Rear wheel Lega leggera a 5 razze 5,50×17 / 5-spoke light alloy 5.50×17
Pneumatico posteriore / Rear tyre 180/55 ZR17
Freno anteriore / Front brake 2 dischi semiflottanti da 320mm, pinza a 4 pistoncini e 2 pastiglie / 2 x 320mm semi-floating discs, 4-piston, 2-pad caliper
Freno posteriore / Rear brake Disco da 245mm, pinza a 2 pistoncini / 245mm disc, 2-piston caliper
Capacità serbatoio benzina / Fuel tank capacity 20l (di cui 6,5l di riserva) / 20l (of which 6.5l reserve) / 5.3 US gal (of which 1.7 US gal reserve)
**Peso a secco / **Dry weight 196kg / 432lbs
Altezza sella / Seat height 850mm / 33.5in
Altezza max / Max height 1340mm / 52.77in
Lunghezza max / Max length 2130mm / 83.9in
Strumentazione / Instruments Contachilometri, contagiri, orologio, intervalli manutenzione, livello benzina, temperatura olio, spia pressione olio, spia riserva, trip fuel, spia frecce, spia folle, vel. media, cons. medio, autonomia residua, diagnostica impianto iniezione, funzione spegnimento automatico luci dopo 60 sec key-on, immobilizer / Speedometer, rev counter, clock, scheduled maintenance warning, warning light for low oil pressure, fuel level, oil temperature, fuel reserve, trip fuel, neutral, turn signals, average speed, average fuel consumption, remaining fuel metre, fuel injection diagnostic system, auto light off system, immobilizer.


* Dati rilevati al banco inerziale. / * Data calculated using an inertia dynamometer.
“** Ducati indica il peso delle moto esclusi batteria, lubrificanti e liquidi di raffreddamento per i
modelli raffreddati a liquido. / ** The weight excludes battery, lubricants and coolant for liquid cooled models.”

*Manufacturer’s suggested retail price. Price excludes all taxes, title, licensing and registration fees, and transportation costs. Neiman Marcus is acting as the advertiser for this product. All sales will be conducted solely by participating, authorized dealers in the United States. Available for delivery in the United States only. Limit one vehicle per qualified customer. Sorry, no dealer purchases will be permitted. Exhaust system shipped separately.







PRESS/MEDIA RELEASE
November 4th, 2009

DUCATI PRESENTS ITS NEW MODEL RANGE 2009

THE NEW DUCATI MODELS ARE MAKING THEIR DEBUT BEFORE THE HUGE CROWDS OF EICMA. THE GLOBAL PREVIEW OF THE NEW DUCATI STREETFIGHTER WAS A GREAT SUCCESS WHILE THE SUPERBIKE FAMILY WELCOMES THE NEW 1198 AND THE LIMITED EDITION 1098 R ‘BAYLISS’. THE 1100 MONSTER COMPLETES THE NEW ADDITIONS FOR 2009.

Rho (Milan), 3 November 2008 – A real, live runway, as those used during the Milan fashion week, set the scene for the entrance of the 2009 new additions in the Bologna manufacturer’s range. These dream bikes are the result of Italian genius and creativity and will capture the attention of everyone visiting EICMA 2008, Milan’s international motorcycle show being held at the city’s international exhibition centre in Rho, from 4 to 9 November. From here they will go on to setting new standards as they arrive on the international market.

A press conference brimming with information, technical details and new unveilings was held prior to the official opening of the show. Gabriele Del Torchio, CEO of Ducati Motor Holding, met members of the international press and presented the amazing sporting and sales achievements that the Bologna company has recently recorded, as evidence of the Italian manufacturer’s strength and performance.

Before the 2009 models were let loose, the press was also shown the new Ducati logo, an evolution of the historic brand name, which now includes a new red shield featuring a new graphic symbol, alongside the classic Ducati script. This replaces the previous, celebrated, stylised letter ‘D’ and makes this motorcycling logo even more eye-catching and unique in its representation of passion, competition and performance.

“Confidence and passion are the two key words for the coming year. – said Mr Del Torchio as he opened the conference – These words are directly inspired by the results we have achieved in 2008, during which we have continued to grow, despite the shrinking markets, to the extent that our sales have increased by 25% in just two years. Our confidence and passion come from having identified a series of strategic activities that we at Ducati are working on both internally and externally, in order to offer our customers all around the world increasingly innovative, reliable and distinctive products, which are guaranteed to make their dreams come true. We are convinced that by working in this direction, as we have underlined in our company mission, we can generate a positive future for our shareholders and our customers, as ambassadors of Italian products adding prestige to our worldwide standing.

The amazing new products that we have brought to EICMA 2008 represent the fruit of our technological research and development, which Ducati expresses through its updated range, confirming how much this company is focused on the product as well as supporting and sustaining our sales targets for the next few years.”

Claudio Domenicali, General Product Manager of Ducati Motor Holding, introduced the major and eagerly awaited new Ducati products for 2009. The motorcycles made their entrance on the runway ridden by Ducati factory racers and testers: Giulio Malagoli (Monster 1100), Niccolò Canepa (1198), Vittoriano Guareschi (Streetfighter) and Claudio Domenicali (1098 R Bayliss). It was a truly impressive, spectacular presentation that made the occasion even more thrilling.

The real star of the event was the new Ducati Streetfighter, which is already among the top contenders for the title “best bike of the show”.

Stripped to the bare essentials, its combination of state-of-the-art race technology, exposed styling and cultured design takes Ducati’s big naked concept to the very top of the fighter food chain.

With 155hp of awesome Ducati L-Twin muscle harnessed in a stripped-down, super-light bike that packs more punch for its weight than any other contender, this fighter is gloves-off and ready for action.

Whether laying down the miles on open roads or ripping up the urban asphalt, no other bike in town will roll with the same stylish fire-power.

This ultimate naked will be ripping-up the asphalt from Spring 2009.

Ducati Streetfighter is also available in a “S” version equipped with Öhlins suspension, lightweight forged Marchesini wheels, carbon fibre parts and a street-going Ducati Traction Control.

For 2009, the Ducati Superbike family has two major new additions, both made absolutely special by their engine size as well as equipment and components – these are two bikes that are sure to carry on and increase the success achieved with the celebrated 1098.

The new DUCATI 1198, while maintaining the same look as the previous 1098, is in fact a totally new bike. The 1198, which produces a powerful 170hp (125kW) from its new Testastretta Evoluzione engine, and has a dry weight of just 171kg (377lb), incorporates all of the World Superbike technology derived directly from the 2008 World Championship winning race bike of Troy Bayliss.
The Ducati Data Analysis, supplied as standard equipment on the 1198 S model, enables the retrieval and analysis of data collected from a track session or road trip. The innovative road-going Ducati Traction Control (DTC) system monitors front and rear wheel speeds to detect rear wheel-spin under acceleration and electronically reduces engine power to restore traction. DTC, which offers a choice of eight settings, provides a considerable increase in safety during mid-corner acceleration.

EICMA is also the first major opportunity to celebrate the great sporting results Ducati has achieved in 2008. Second place in the MotoGP series and Superbike World Championship titles, both for riders’ and manufacturers’, thanks to the victory of Troy Bayliss – in the debut year of the 1098 F08.
After his resounding victory, Troy announced his retirement from motorcycle racing and Ducati decided to celebrate his career by producing the limited edition ‘1098 R Bayliss’, a worthy conclusion to a career during which he won three World Championship titles aboard three different generations of Ducati Superbikes.

The newly crowned World Superbike Champion, Troy Bayliss will be at the Ducati stand the next Thursday 6th November to meet all his fans and see the new 1098 R Bayliss Limited Edition version.

Ducati add the new Monster 1100 and 1100 S to the 2009 range, both icons of Italian excellence. Dedicated to those who want to make the ultimate expression, this jewel of style and performance is powered by the charismatic two-valve 1100cc Desmodromic twin-cylinder engine, famous the world over for its legendary torque and acceleration.

The 2009 range is completed by the new pearl white colour for the Hypermotard 1100 and Multistrada 1100 S and the new black with white stripe livery version of the GT 1000, available also in a special Touring version.

In addition, Ducati presents many new accessories, special components and a new collection of Ducati clothing.
