2009 KTM 1190 RC8

You are here: Home2009 Models — 2009 KTM Motorcycle Models

2009 KTM 1190 RC8
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

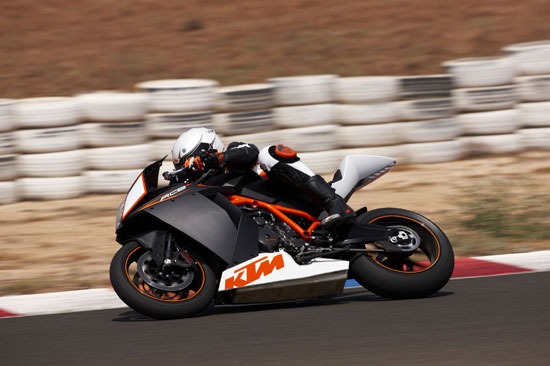

2009 KTM 1190 RC8
2009 KTM 1190 RC8

2009 KTM 1190 RC8
2009 KTM 1190 RC8

2009 KTM 1190 RC8
2009 KTM 1190 RC8

2009 KTM 1190 RC8
2009 KTM 1190 RC8


– 2009 KTM 1190 RC8

2009 KTM 1190 RC8

Sharper and lighter than anything that calls itself competition: 120 Nm torque, 155 HP at 10,000 rpm and withs less than 200 kilos fully tanked.

Nonetheless, thanks to innovative solutions and meticulous detail work, we’ve achieved unsurpassed rideability – on the street and on the racetrack, in every situation – of life or riding.




2009 KTM 1190 RC8 (Lowered) – Specifications

Engine type 2-cylinder, 4-stroke, V 75°
Displacement 1148 cc
Bore x stroke 103 x 69 mm (4.06 x 2.72″)
Performance (homologated) 113.8 kW @ 10000 rpm
Max. torque 120 Nm @ 8000 rpm
Compression ratio 12.5:1
Starter/Battery Electric Starter/12 V 11.2 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation Keihin EFI (throttle body 52 mm (2.05″))
Control 4 V/DOHC
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication Motorex, fully synthetic, SAE 10W-50
Primary drive 40:76
Final drive 17:37
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Motor Management Keihin EMS


Frame Chromium-Molybdenum trellis frame, powder-coated
Subframe Aluminium 7020
Handlebar Aluminium stump handlebar
Front suspension WP-USD Ø 43 mm
Rear suspension WP-Monoshock
Suspension travel front/rear 120/125 mm (4.7/4.9″)
Front brake 2 x Brembo four piston, radially bolted caliper, brake disc 320 mm (12.6″)
Rear brake Brembo two piston, fixed caliper, brake disc 220 mm (8.66″)
Rims, front/rear Cast aluminium wheels 3.5 x 17″; 6 x 17″
Tires, front/rear 120/70 ZR 17; 190/55 ZR 17
Chain X-ring 5/8 x 5/16″
Main silencer Stainless steel underfloor silencer with regulated catalytic converter
Steering head angle 66.7°
Trail 90/92 mm (3.54 / 3.62″)
Wheel base 1430 mm (56.30″)
Ground clearance (unloaded) 110 mm (4.33″)
Seat height 805/825 mm (31.69/32.48″)
Tank capacity approx. 16.5 liters/3.5 liters reserve (4.36/0.92 gal)
Weight (no fuel) approx. 184 kg (405.6 lbs)
