2009 KTM 690 Supermoto
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

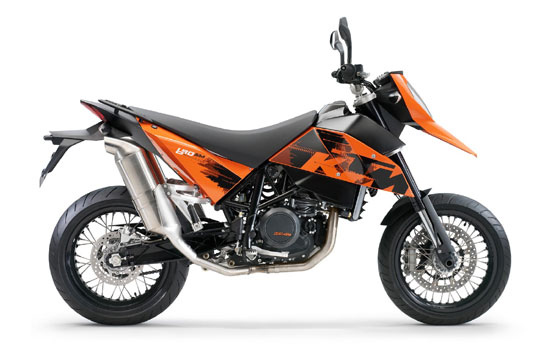

2009 KTM 690 Supermoto
2009 KTM 690 Supermoto

– 2009 KTM 690 Supermoto

2009 KTM 690 Supermoto

The beginning of a new legend: the new 690 Supermoto pulverizes all borders. From the high performance LC4 engine to the sporty six-gear transmission right up to the rally-tested exhaust system – it’s all been newly invented.

New. Feeling Greedy? One look at the new 690 Supermoto says more than a thousand words. And a test ride says more than a thousand looks. So call the dealer, take a look, take a ride and be speechless.


2009 KTM 690 Supermoto – Specifications

Engine type Single cylinder, 4-stroke
Displacement 654 cc
Bore x stroke 102 x 80 mm (4.02 x 3.15″)
Performance (homologated) 46,8 kW / 7500 rpm
Max. torque 65 Nm / 6500 rpm
Compression ratio 11.8:1
Starter/Battery E-Starter / 12 V 8.6 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation Keihin EMS with EPT (Electr. Power Throttle)
Control 4 V / OHC with roller rocker arms
Lubrication Pressure lubrication with 2 oil pumps
Engine lubrication Motorex, fully synthetic, SAE 10W-60
Primary drive 36:79
Final drive 16:40
Cooling Liquid cooled
Clutch APTC slipper clutch, hydraulically operated
Motor Management Keihin EMS

Frame Chromium-Molybdenum trellis frame, powder coated
Subframe Aluminium 7020
Handlebar Aluminium Ø 28/22 mm (1.10/0.87″), tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock with Pro Lever Linkage
Suspension travel front/rear 210 / 210 mm (8.27 / 8.27″)
Front brake Brembo four piston, radially bolted caliper, brake disc Ø 320 mm (12.6″)
Rear brake Brembo single piston, floating caliper, brake disc Ø 240 mm (9.45″)
Rims, front/rear Spoked wheels with aluminium rims, 3.5 x 17″; 5.0 x 17″
Tires, front/rear 120/70 R 17″; 160/60 R 17″
Chain X-Ring 5/8 x 1/4″
Battery 12 V / 8.6 Ah
Main silencer Twin stainless-steel silencer with regulated catalytic converters
Steering head angle 63,5°
Trail 115 mm (4.53″)
Wheel base 1472 ± 15 mm (57.95 ± 0.59″)
Ground clearance (unloaded) 245 mm (9.64″)
Seat height 880 mm (34.64″)
Tank capacity approx. 13.5 liters / 2.5 liters reserve (3.57 / 0.66 gal)
Weight (no fuel) approx. 154 kg (339.51 lbs)
