2009 KTM 990 Adventure S
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

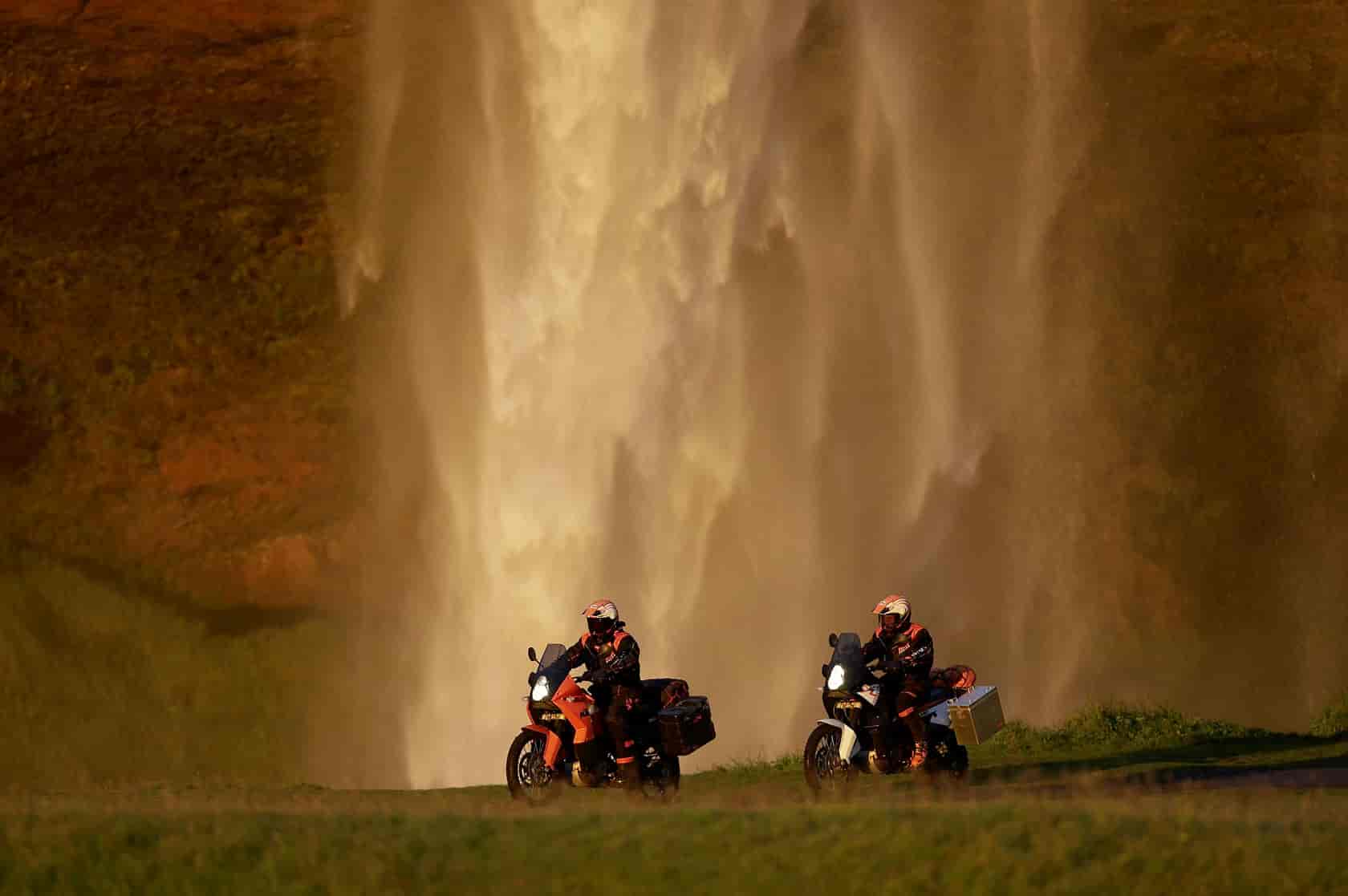

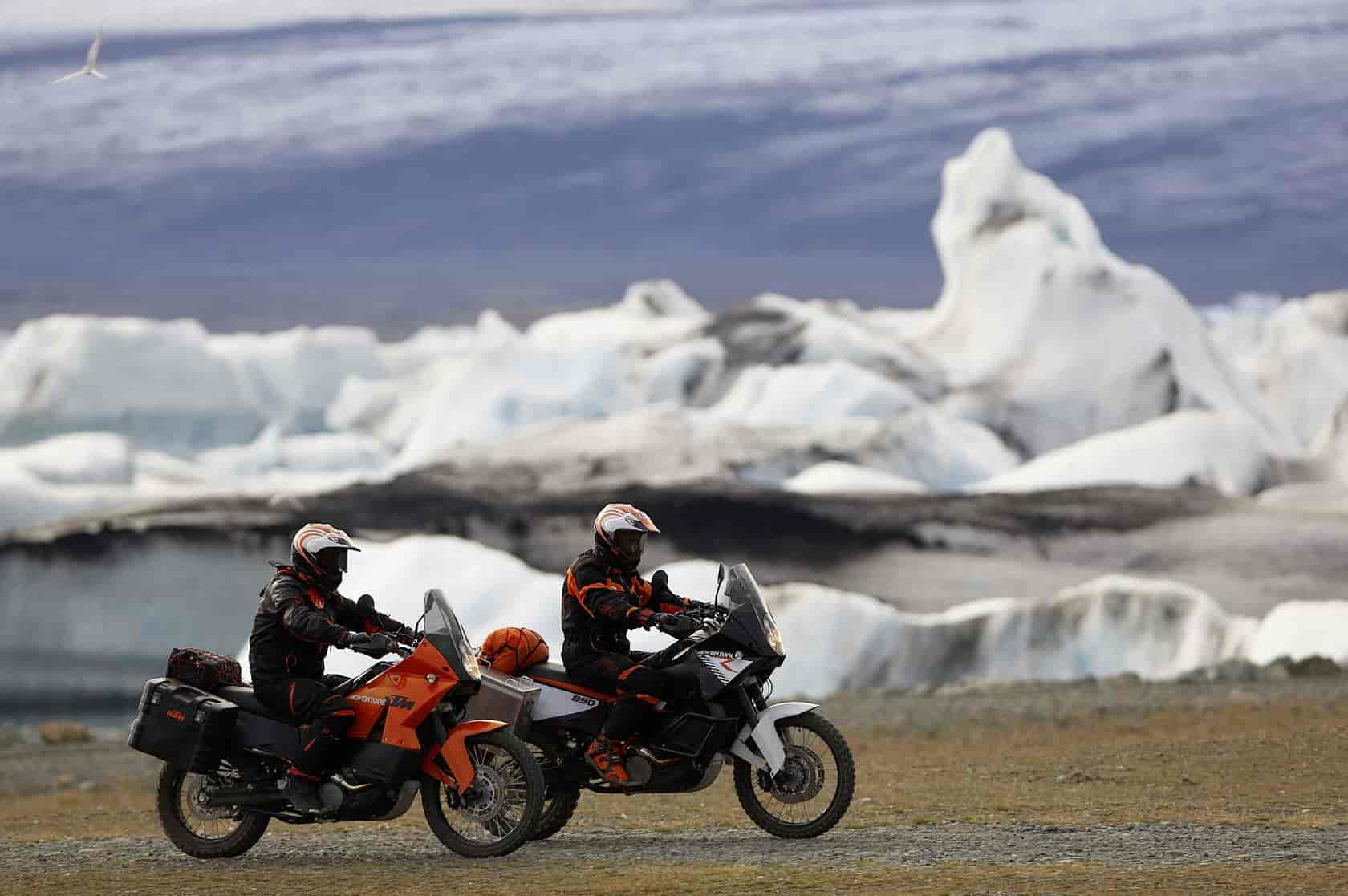

2009 KTM 990 Adventure S

2009 KTM 990 Adventure S

2009 KTM 990 Adventure S

2009 KTM 990 Adventure S

– 2009 KTM 990 Adventure S

2009 KTM 990 Adventure S

The 990 Adventure S is impressive proof of just how sporty a street enduro can be. The chassis is even more extreme than the sister bike, the 990 Adventure, while the new engine has more displacement and electronic fuel injection. The “Dakar” design is a clear signal that the 990 Adventure S comes directly from rally sport.

2009 KTM 990 Adventure S – Specifications

Engine type Twin cylinder, 4-stroke, V 75°
Displacement 999 cc
Bore x stroke 101 x 62.4 mm (3.98 x 2.46″)
Performance (homologated) 72 kW @ 8500 rpm
Max. torque 95 Nm @ 6500 rpm
Compression ratio 11.5:1
Starter/Battery E-Starter/12 V 11.2 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation Keihin electronic fuel injection
Control 4 V/DOHC
Lubrication Pressure lubrication
Engine lubrication Motorex, SAE 10W-50
Primary drive 67:35
Final drive 17:42
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Motor Management Keihin EMS


Frame Chromium-Molybdenum trellis frame, powder-coated
Subframe Aluminium 7020
Handlebar Aluminium, Ø 28/22 mm (1.10/0.87″), tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock PDS with hydr. spring preload
Suspension travel front/rear 265/265 mm (10.43/10.43″)
Front brake 2 x Brembo two piston, floating caliper, floating brake disc Ø 300 mm (11.81″)
Rear brake Brembo two piston, floating caliper, floating brake disc Ø 240 mm (9.45″)
Rims, front/rear 2.15 x 21″; 4.25 x 18″
Tires, front/rear 90/90-21″; 150/70-18″
Chain X-Ring 5/8 x 5/16″
Main silencer Twin stainless steel silencer with regulated catalytic converter
Steering head angle 63.4°
Trail 119 mm (4.69″)
Wheel base 1570 ± 10 mm (61.81 ± 0.39″)
Ground clearance (unloaded) 316 mm (12.44″)
Seat height 915 mm (36.02″)
Tank capacity approx. 22 Liters/4 litres reserve (5.81/1.06 gal)
Weight (dry) approx. 199 kg (438.7 lbs)
