2009 Suzuki Boulevard M109R2

You are here: Home2009 Models — 2009 Suzuki Motorcycle Models

2009 Suzuki Boulevard M109R2
Back to 2009 Suzuki Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

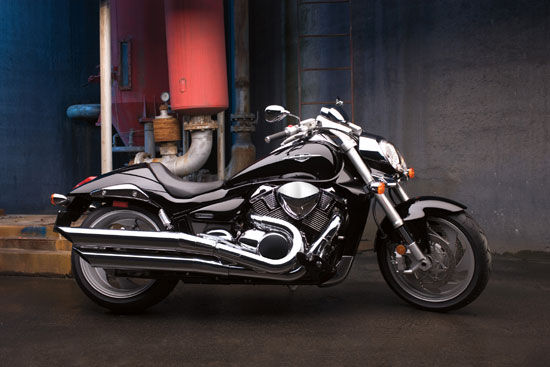

2009 Suzuki Boulevard M109R2
2009 Suzuki Boulevard M109R2

2009 Suzuki Boulevard M109R2
2009 Suzuki Boulevard M109R2

2009 Suzuki Boulevard M109R2
2009 Suzuki Boulevard M109R2


– 2009 Suzuki Boulevard M109R2

2009 Suzuki Boulevard M109R2

In a world of cookie-cutter cruisers, the Boulevard M109R carved out a niche with its own radical cruiser styling. For 2009, Suzuki is taking unrivaled possession of that niche with the Boulevard M109R2.

It’s a variation of the original that features a striking and uniquely designed headlight – matched by stunning performance. Its 1783cc, Suzuki fuel-injected V-twin engine provides massive torque from idle to redline, allowing you to enjoy an incredible blast of acceleration in every gear. The Boulevard M109R2 balances that heart-pounding performance with crisp handling, thanks to a technically advanced chassis, suspension and world-class brakes.

The M109R2, the perfect way to stand out on the Boulevard.



Key Features

– A streamlined headlight cover carrying a unique trapezoidal shaped multi reflector H4 halogen headlight and a maintanance free LED tail light built into the tailsection



Engine Features

– 1783cc, 8-valve DOHC, 54 degree, liquid-cooled, fuel injected V-twin engine designed for strong throttle response and quick acceleration

– Massive 112mm bore and 90.5mm stroke utilizing huge 112mm forged aluminum alloy pistons with short skirts, and cut away sides riding on chrome moly steel connecting rods

– Unique new two-stage cam drive system creates a compact cylinder head design and reduces overall engine height and creates a lower center of gravity

– Each bore is lined with Suzuki’s race proven SCEM (Suzuki Composite Electrochemical Material) for optimum heat transfer, tighter piston-to-cylinder clearances and reduced weight

– A compact dry sump lubrication system SASS (Suzuki Advanced Sump System) provides reduced engine height, a lower crankshaft position and lower center of gravity

– Five speed transmission features carefully selected gear ratios for comfortable cruising in a variety of riding situations

– Three piece airbox uses dual intakes with 9.5 liters of internal volume working through a pleated fabric air cleaner element

– The 2-into-1-into-2 stainless steel chromed exhaust system features Suzuki’s digitally controlled SET (Suzuki Exhaust Tuning) system for optimum engine performance and powerful v-twin sound

– Electronic fuel injection system features the Suzuki Dual Throttle Valve system (SDTV) with 56mm throttle bodies – maintains optimum air velocity for smooth low- to mid-range throttle response

– A new Idle Speed Control (ISC) system improves cold starting and stabilizes engine idle speed in various conditions

– Dual spark plug per cylinder ignition system is controlled by the powerful 32 bit ECM for improved combustion efficiency and reduced exhaust emissions



Chassis Features

– High-tensile double cradle steel frame is built to comfortably handle all the power and torque while delivering agile handling and a plush smooth ride

– Spiral spoke cast aluminum alloy wheels measure a 3.50 x 18 inch up front and a massive 8.50 x 18 inch rear tire wearing a huge 240mm rear Dunlop radial tire

– Front brake system includes radial mounted four piston front calipers and 310mm front brake rotors. Rear brake system includes a dual piston caliper and 275mm rear disc

– A sleek wide fuel tank with 5.2 gallon fuel capacity that flows into integrated side covers, a comfortable low seat and stylish radiator cowl.

– A handlebar mounted digital tachometer and LED indicator lights flow nicely with the tank mounted analog speedometer and LCD odometer, dual tripmeters, fuel gauge and clock

– Inverted cartridge forks with 46mm stanchion tubes proved an aggressive front end look with 5.12 inches of wheel travel

– A cast aluminum alloy swingarm works with a progressive shock linkage and a preload adjustable single rear shock delivering 4.66 inches of wheel travel working through a shaft drive system

– Single seat cover is standard equipment and emphasizes the beautiful flowing lines of the M109R2




2009 Suzuki Boulevard M109R2 – USA Specifications
MSRP: $13,099 USD

Model Number M109R2K9
Type Cruiser
Warranty
Suggested Retail $13099
SEP $0
Engine 1783 cc (108.8 cu. in), 4-stroke, liquid-cooled, DOHC, 54-degree, V-twin
Bore & Stroke 112.0 mm (4.409 in) x 90.5 mm (3.563 in)
Compression Ratio 10.5 : 1
Fuel System Fuel injection
Lubrication Semi-Dry sump
Ignition Electronic ignition (Transistorized)
Starter Electric
Transmission 5-speed constant mesh
Final Drive Shaft Drive
Overall Length 2450 mm (96.5 in)
Overall Width 875 mm (34.4 in)
Overall Height 1185 mm (46.7 in)
Seat Height 705 mm (27.8 in)
Ground Clearance 130 mm (5.1 in)
Wheelbase 1710 mm (67.3 in)
Curb Weight 347 kg (764 lbs)
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Tires Front 130/70R18M/C 63V, tubeless
Tires Rear 240/40R18M/C 79V, tubeless
Fuel Tank Capacity 19.5 L (5.2/4.3 US/Imp gal)
Color Black, Red




2009 Suzuki Boulevard M109R2 – Canada Specifications
MSRP: $15.599 CDN

Chassis:
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Color Black
Curb Weight 347 kg (764 lbs)
Final Drive Shaft Drive
Fuel Tank Capacity 19.5 L (5.2/4.3 US/Imp gal)
Ground Clearance 130 mm (5.1 in)
Overall Length 2450 mm (96.5 in)
Overall Width 875 mm (34.4 in)
Seat Height 705 mm (27.8 in)
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 130/70R18M/C 63V, tubeless
Tires Rear 240/40R18M/C 79V, tubeless
Transmission 5-speed constant mesh
Wheelbase 1710 mm (67.3 in)

Engine:
Bore Stroke 112.0 mm (4.409 in) x 90.5 mm (3.563 in)
Compression Ratio 10.5 : 1
Engine 1783 cc (108.8 cu. in), 4-stroke, liquid-cooled, DOHC, 54-degree, V-twin
Fuel System Fuel injection
Ignition Electronic ignition (Transistorized)
Lubrication Semi-Dry sump
Starter Electric

Warranty:
Warranty 12 Month unlimited mileage limited warranty


Prices and specifications subject to change without notice.
