2009 Suzuki DR-Z125

You are here: Home2009 Models — 2009 Suzuki Motorcycle Models

2009 Suzuki DR-Z125
Back to 2009 Suzuki Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2009 Suzuki DR-Z125
2009 Suzuki DR-Z125

2009 Suzuki DR-Z125
2009 Suzuki DR-Z125


– 2009 Suzuki DR-Z125

2009 Suzuki DR-Z125

Good looks and great handling — that’s what the DR-Z125 and DR-Z125L are all about.
Both bikes feature aggressive new bodywork that makes them stylistic replicas of the championship-winning RM-Z machines. Their performance virtues, though, go a lot deeper than that. Both bikes set the class standard for precise, agile handling.

Beginning and more experienced riders will appreciate their controllable powerband and strong low-end and mid-range power. And larger riders can choose the DR-Z125L, featuring larger wheels and a front disc brake.

The new DR-Z125 and DR-Z125L — race inspired styling with performance to match.




Key Features
Aggressively styled bodywork, number plates and graphics built to look exactly like the race winning RM-Z competition models



Engine Features
Compact 124cc 4-stroke, SOHC, single-cylinder, air-cooled engine designed for ease-of operation and low maintenance

Five-speed transmission with link-type gearshift system for precise operation and positive feel

Mikuni™ VM20SS carburetor for smooth throttle response

Digital-type CDI ignition system with timing set to enhance the engine’s low-rpm power characteristics



Chassis Features
Sharp off-road styling with fuel tank, radiator shrouds and frame covers patterned after the RM-Z series

Optimum wheel/tire combination for smaller riders: F: 70/100-17, R: 90/100-14

Two-tone seat cover and rear fender inspired from the RM-Z series

RM-Z inherited style front fender and number plate

Lightweight and durable steel frame and swingarm

Lightweight aluminum rims for reduced weight provide agile handling and improved suspension performance

Long-travel, oil damped front fork and link-type rear suspension provide a smooth, compliant ride

Strong braking performance provided by lightweight front and rear drum brakes

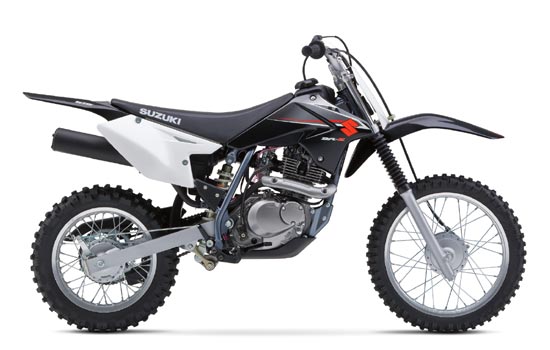

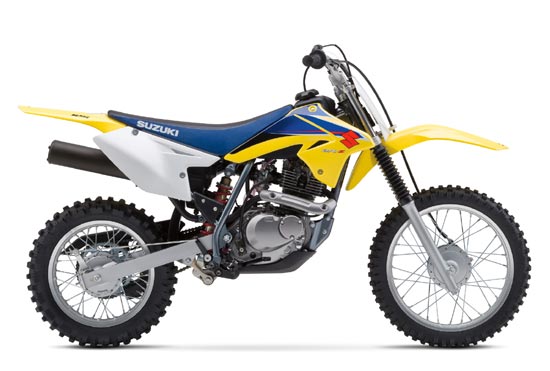

Available in two colors; Factory Suzuki Yellow and cool Black




2009 Suzuki DR-Z125 – USA Specifications
Model Number DRZ125K9
Type Kids
Warranty 6 month limited warranty.

Suggested Retail $2499
SEP $436
Engine 4-stroke, air-cooled, OHC
Bore & Stroke 57.0 mm (2.244 in) x 48.8 mm (1.921 in)
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS
Lubrication Wet sump
Ignition Electronic ignition (CDI)
Starter Primary kick
Transmission 5-speed constant mesh
Final Drive D.I.D 428HG, 122 links
Overall Length 1835 mm (72.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1085 mm (42.7 in)
Seat Height 775 mm (30.5 in)
Ground Clearance 260 mm (10.2 in)
Wheelbase 1245 mm (49.0 in)
Dry Weight 88 kg (194 lbs)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Drum brake
Brakes Rear Drum brake
Tires Front 70/100-17 40M, tube type
Tires Rear 90/100-14 49M, tube type
Fuel Tank Capacity 4.8 L (1.3/1.1 US/Imp gal) – Including Reserve
Color Yellow, Black



2009 Suzuki DR-Z125 – Canada Specifications
MSRP: $2,999 CDN

Chassis:
Brakes Front Drum brake
Brakes Rear Drum brake
Color Yellow, Black
Curb Weight 88 kg (194 lbs)
Final Drive D.I.D 428HG, 122 links
Fuel Tank Capacity 4.8 L (1.3/1.1 US/Imp gal) – Including Reserve
Ground Clearance 260 mm (10.2 in)
Overall Length 1835 mm (72.2 in)
Overall Width 770 mm (30.3 in)
Seat Height 775 mm (30.5 in)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 70/100-17 40M, tube type
Tires Rear 90/100-14 49M, tube type
Transmission 5-speed constant mesh
Wheelbase 1245 mm (49.0 in)

Engine:
Bore Stroke 57.0 mm (2.244 in) x 48.8 mm (1.921 in)
Compression Ratio 9.5 : 1
Engine 4-stroke, air-cooled, OHC
Fuel System MIKUNI VM20SS
Ignition Electronic ignition (CDI)
Lubrication Wet sump
Starter Primary kick

Warranty:
Warranty 6 Month unlimited mileage limited warranty

*Prices and specifications subject to change without notice.
