2009 Suzuki RM-Z450
Back to 2009 Suzuki Motorcycle Index Page

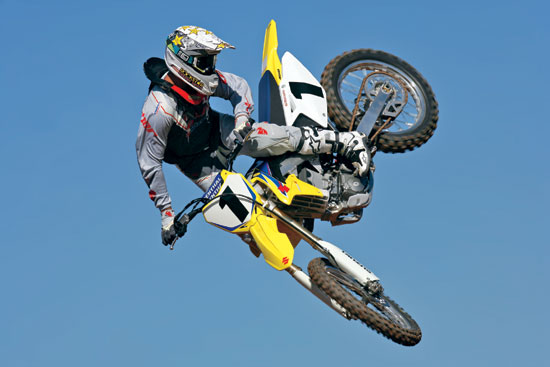

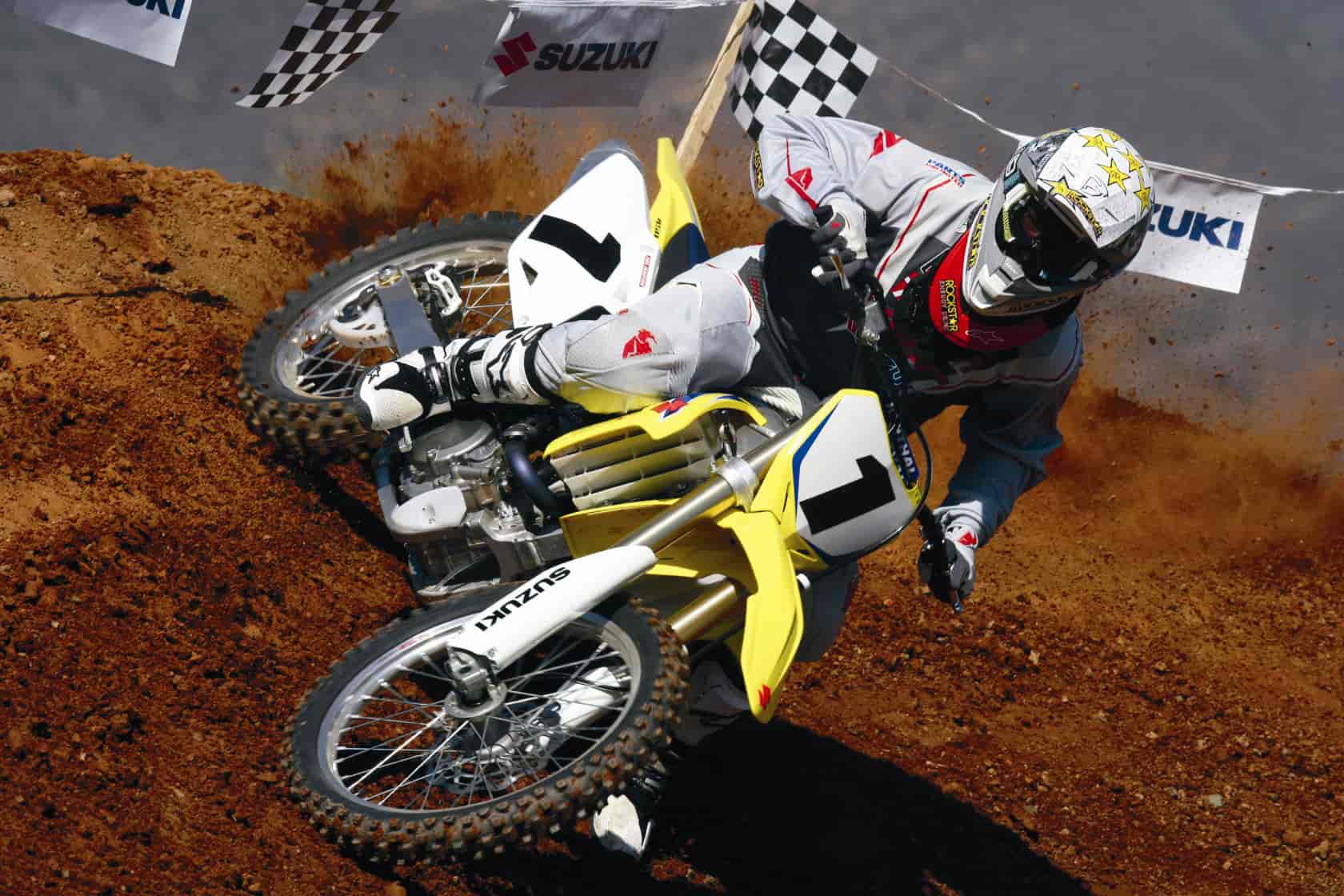

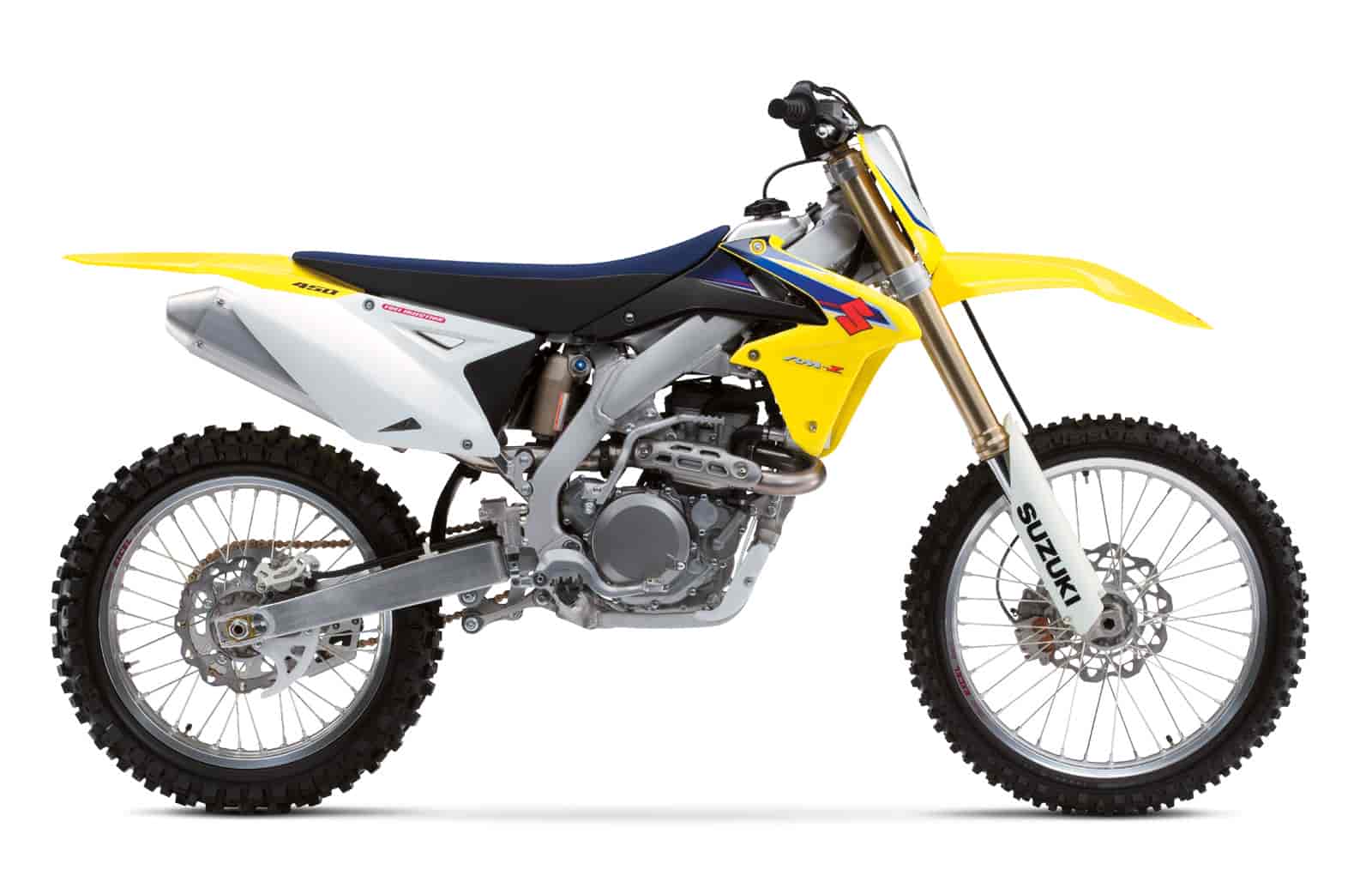

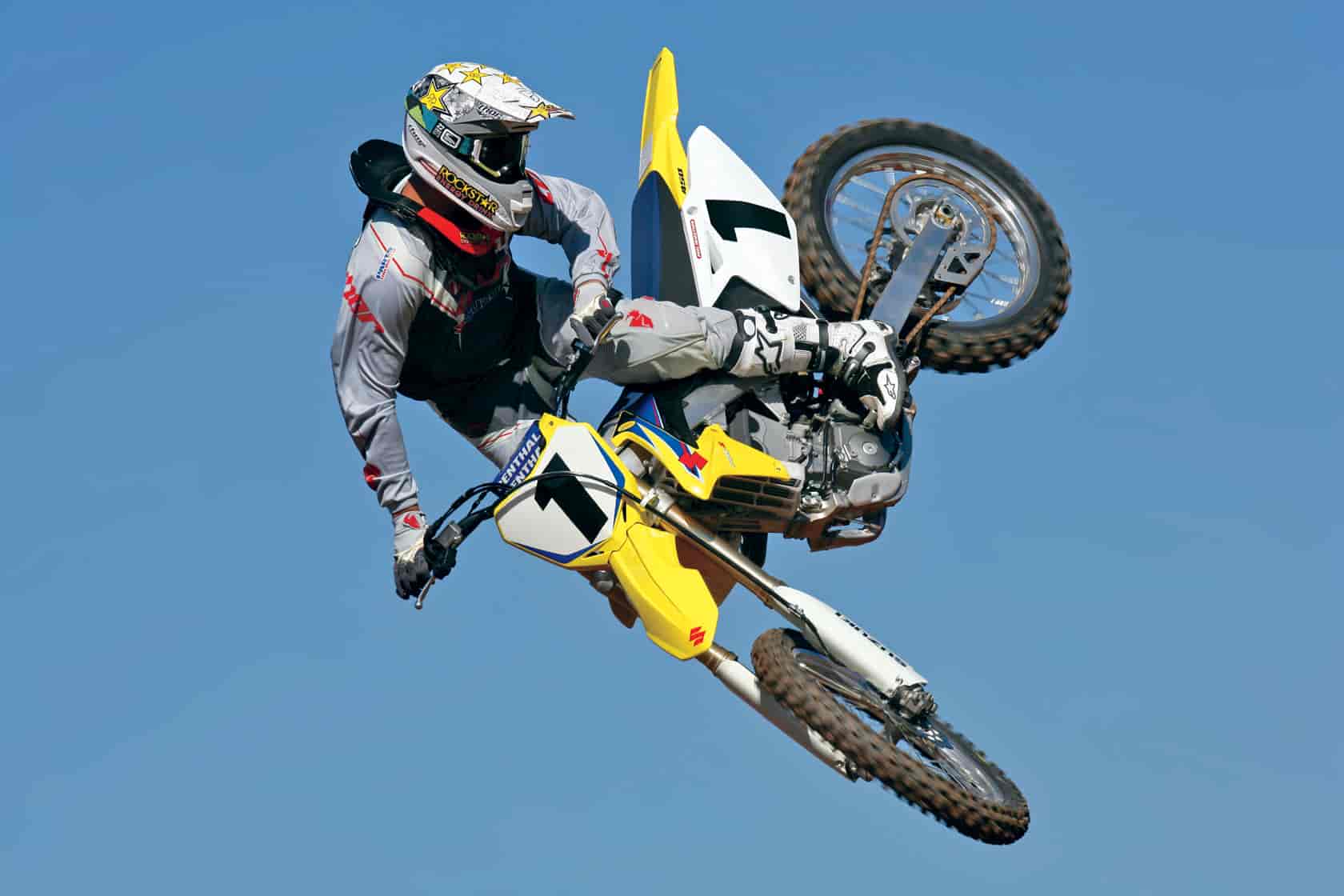

Click photos to enlarge.
They make great desktop images.

2009 Suzuki RM-Z450

2009 Suzuki RM-Z450

2009 Suzuki RM-Z450

– 2009 Suzuki RM-Z450

2009 Suzuki RM-Z450

Introducing the RM-Z450 with Suzuki fuel injection. Our engineers developed the RM-Z450 using experience gained developing fuel-injection systems for Suzuki’s legendary GSX-R road race bikes and the championship-winning QuadRacer R450 ATV.

The result is the world’s only mass-produced, fuel-injected motocross bike, designed to help you blow away the competition. As if that breakthrough technology weren’t enough, our engineers used their experience developing Ricky Carmichael’s championship-winning RM-Z450 to redesign the RM-Z450’s chassis, suspension and brakes. That means it offers sharper handling, smoother suspension performance and more powerful braking than ever.

And just so no one misses the fact that you’re on the hottest bike on the track, the RM-Z450 is also completely restyled, with new aerodynamic bodywork that’s both sleek and functional. The all-new fuel-injected RM-Z450 – it gives you the power to dominate.

Engine Features
Electronic Fuel Injection offers better roll on power and strong low-to-mid range power. KEIHIN throttle body specifically designed for motocross. Fuel is delivered via an internal fuel pump and is a battery-less system

5-Speed Transmission makes the RM-Z450 versatile for various terrain conditions and features a link type shifting mechanism

Intake port angle and cam timing result in reduced intake resistance and heightened intake efficiency. Exhaust port and cam timing are designed to regulate exhaust pulses for maximum engine performance

Battery-less fuel injection system features a single-phase all-charging system with which the magneto supplies all of the necessary power

18-pin magneto-rotor senses feedback on crankshaft position, rotation speed and stroke which is fed back to the ECU to calculate optimum injection and ignition timings.

KEIHIN fuel pump located inside the fuel tank provides stable pressure delivery to operate the fuel injection system

Combustion chamber designed for strong low-to-mid range response as well as top-end pull. Narrower intake and exhaust valve angle guides along with increased squish areas improve air/fuel mixing and faster flame-propagation speed when mixture ignites

Semi-dry-sump lubrication system features separate oil chambers for the transmission and crankshaft using the transmission as the oil sump, allowing low crankshaft placement, reduced engine height and a low center of gravity



Chassis Features
Aluminum-alloy twin spar frame is lightweight and has optimum rigidity balance for incredibly agile handling and unmatched performance over bumps

Aluminum fuel tank houses a KEIHIN fuel pump for optimum performance and a factory bike look

Slim riding position opens up the cockpit for additional room to allow the rider to actively take control of the machine

Showa cartridge-style front fork is fully adjustable for rebound, compression and preload settings and designed for reduced weight and improved shock absorption

Showa-brand rear shock absorber designed to deliver a controlled feel and increased bottoming resistance

Aluminum-alloy swingarm for reduced weight and maximum terrain-traversing performance over bumps

Front fender incorporates a sloped-down shape to efficiently guide wind to the front number plate air ducts for improved cooling performance. Rear fender incorporates air intakes on both sides for heighten intake efficiency

2-tone molded-plastic radiator shrouds give the RM-Z450 a slim feel and stylish look for 2009 while also complimenting an all-new graphics design and color way

Hot start lever is located on the right hand side of the handlebar for easy operation while holding the clutch

Race inspired brake rotors provide better cooling performance and increased mud deflection in muddy conditions

Footpegs include maximum clearance between the mounting bracket and footrest to prevent mud from caking up

Gold-colored chain and axle blocks give a full factory look



2009 Suzuki RM-Z450 – USA Specifications
Model Number RMZ450K9
Type Motorcycles
Warranty
Suggested Retail $7499
SEP $0
Engine 4-stroke, liquid-cooled, DOHC
Bore & Stroke 96.0 mm (3.780 in) x 62.1 mm (2.445 in)
Compression Ratio 12.2 : 1
Fuel System Fuel injection
Lubrication Semi Dry sump
Ignition Electronic ignition (CDI)
Starter Primary kick
Transmission 5-speed constant mesh
Final Drive D.I.D 520MXV, 114 links
Overall Length 2185 mm (86.0 in)
Overall Width 830 mm (32.7 in)
Overall Height 1260 mm (49.6 in)
Seat Height 955 mm (37.6 in)
Ground Clearance 350 mm (13.8 in)
Wheelbase 1480 mm (58.3 in)
Dry Weight 112 kg (247 lbs)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Disc brake
Tires Front 80/100-21
Tires Rear 110/90-19
Fuel Tank Capacity 6.2 L (1.6/1.4US/Imp gal)
Color Solid Black/Champion Yellow No. 2



2009 Suzuki RM-Z450 – Canada Specifications
MSRP: $8,499 CDN

Chassis:
Brakes Front Disc brake
Brakes Rear Disc brake
Color Yellow
Curb Weight 112 kg (247 lbs)
Final Drive D.I.D 520MXV, 114 links
Fuel Tank Capacity 6.2 L (1.6/1.4US/Imp gal)
Ground Clearance 350 mm (13.8 in)
Overall Length 2185 mm (86.0 in)
Overall Width 830 mm (32.7 in)
Seat Height 955 mm (37.6 in)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 80/100-21
Tires Rear 110/90-19
Transmission 5-speed constant mesh
Wheelbase 1480 mm (58.3 in)

Engine:
Bore Stroke 96.0 mm (3.780 in) x 62.1 mm (2.445 in)
Compression Ratio 12.2 : 1
Engine 4-stroke, liquid-cooled, DOHC
Fuel System Fuel injection
Ignition Electronic ignition (CDI)
Lubrication Semi Dry sump
Starter Primary kick

Warranty:
Warranty No warranty

*Prices and specifications subject to change without notice.
