2009 Yamaha TW200

You are here: Home2009 Models — 2009 Yamaha Motorcycle Models

2009 Yamaha TW200
Back to 2009 Yamaha Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

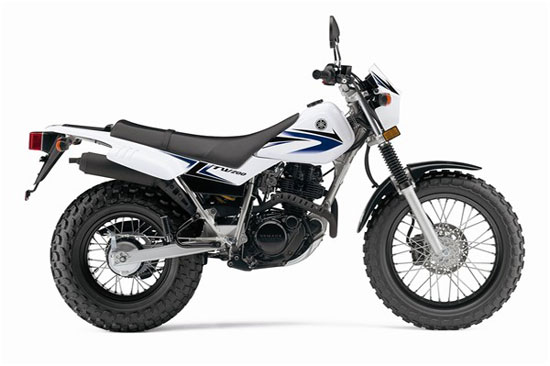

2009 Yamaha TW200
2009 Yamaha TW200

– 2009 Yamaha TW200

2009 Yamaha TW200

Wherever You Go, Whatever You Do.

A low seat, great handling, extra wide tires, and, most importantly, a burly 4-stroke engine, have cemented the TW200’s reputation as a fantastic dual purpose ride. Whether you’re a beginner or a veteran; a camper or a city dweller, this bike guarantees good times.

Where to? Big fat tires that deliver great traction and rider comfort make the TW200 the most distinctive dual purpose around. You also get a durable, reliable engine, electric power start and full street equipment for on/offroad riding.

Break your next trail with the 2009 TW200, a unique machine that’s hugely popular with beginners and veterans alike.

The gritty 4-stroke engine delivers smooth, reliable torque with the push of the electric starter button. Running around town or heading to your favorite campsite or fishing spot the TW200 is always as ready to go anywhere as you are. With a low seat height, superior handling, and unique wide tires, you can get there with confidence and have big-time fun along the way.


– 196cc, 4-stroke single

– Dual purpose adventure



Key Features:


Strong-pulling, 196cc, air-cooled, SOHC, 2-valve, 4-stroke single delivers torquey low- and mid-range power perfectly suited to off-road exploring or riding around town.

Internal engine counterbalancer keeps vibrations down for great all-day comfort.

Easy, reliable, push-button electric starting

Maintenance-free CDI ignition system ensures a precise, reliable spark for peak engine performance at all RPMs and easy starting.

Automatic cam chain tensioner reduces maintenance and mechanical engine noise.

Teikei 28mm carb provides crisp throttle response and great fuel economy.

Smooth-shifting, 5-speed transmission with manual clutch puts power to the ground for great on- and off-road performance.

Washable, foam air filter reduces maintenance costs.

Environmentally friendly exhaust system produces a quiet note. Heat shield protects rider from hot components. US Forestry approved spark arrestor protects Mother Nature.


Rugged, diamond-type, high-tensile steel frame

Lightweight, box section swingarm is fitted with easy-to-use eccentric chain adjusters. There are grease fittings at the swingarm pivot points.

33mm front fork with 160mm (6.3″) of wheel travel soaks up the bumps for a plush ride. Rubber fork boots keep dirt out of fork seals for extended life.

Monocross link rear suspension uses a single rear shock. Rear wheel travel is 150mm (5.9″) to smooth the roughest trails.

220mm front disc brake with twin piston caliper ensures great stopping power.

Wide, 130/80-18 front and 180/80-14 rear tires deliver extra traction and great rider comfort over a wide range of terrain, and also help make the TW200 the most distinct-looking dual purpose machine in the industry.

Low, 790mm (31.1″) seat height and compact chassis design helps inspire confidence by letting most riders put both feet down when stopped, making the TW200 one of the most user-friendly on/off-road bikes on the market.

Rear drum brake with easy-to-use, wing nut style adjuster

Lightweight, aluminum alloy front and rear rims are fitted with street-legal, dual purpose tires.

Long, motocross-style seat creates a balanced riding position for optimal rider movement and comfort.

Durable and wide fenders keeps mud and dirt off the rider when taking one’s exploring off-road.

Frame-mounted passenger footpegs provide two-up riding capability.

Powerful, 60/55-watt, halogen, enduro-style headlight

Small fairing reduces wind buffeting at highway speeds and provides added protection against weather.

Standard instrumentation includes a speedometer with odometer and resettable trip meter, and indicator lights for neutral, high beam and turn signals.

Additional Features:

Rugged, aluminum engine skid plate

Flexible turn signals resist damage.

Helmet lock

Steering lock

Handy rear cargo platform

Bungee cord hook points (4) below the cargo platform

Easy-to-use, eccentric chain adjusters

Serrated, folding, steel footpegs

Passenger footpegs

Locking fuel cap

Push-to-cancel turn signals

On/off/reserve fuel petcock provides peace of mind


2009 Yamaha TW200 – USA Specifications
MSRP* $3,899 (White/Blue) Available from July 2008; CA model from September 2008

Type 196cc air-cooled SOHC 4-stroke; 2 valves

Bore x Stroke 67.0mm x 55.7mm

Compression Ratio 9.5:1

Carburetion Mikuni® 28mm

Ignition CDI

Transmission Constant-mesh 5-speed; multiplate wet clutch

Final Drive Chain

Suspension/Front Telescopic fork; 6.3-in travel

Suspension/Rear Single shock; 5.9-in travel

Brakes/Front 220mm single disc

Brakes/Rear 110mm Drum

Tires/Front 130/80-18

Tires/Rear 180/80-14


Length 82.3 in

Width 32.3 in

Height 44.1 in

Seat Height 31.1 in

Wheelbase 52.2 in

Ground Clearance 10.4 in

Fuel Capacity 1.8 gal

Wet Weight 279 lb

Warranty 1 Year (Limited Factory Warranty)



2009 Yamaha TW200 – Canada Specifications
MSRP* $4,799

Engine 4-stroke, air-cooled, SOHC, 2-valve, single
Displacement 196cc
Bore and Stroke 67 x 55.7mm
Compression Ratio 9.5:1
Maximum Torque 1.4kg-m (10.1ft-lb)@ 6,500 rpm
Fuel Delivery Teikei MV28
Ignition CDI
Transmission 5-speed w/manual clutch
Drive Train O-ring chain

Suspension (Front) 33mm fork, 160mm (6.3″) travel
Suspension (Rear) Monocross, 150mm (5.9″) travel
Brakes (Front) 220mm disc
Brakes (Rear) Drum
Tires (Front) 130/80-18
Tires (Rear) 180/80-14

Length 2,090mm (82.3″)
Width 820mm (32.3″)
Height 1,120mm (44.1″)
Wheelbase 1,325mm (52.2″)
Seat Height 790mm (31.1″)
Fuel Capacity 7 litres (1.5 imp. gallons)
Wet Weight 126kg (277.2 lb)
Colour(s) Purplish White

*Prices and specifications subject to change without notice.
