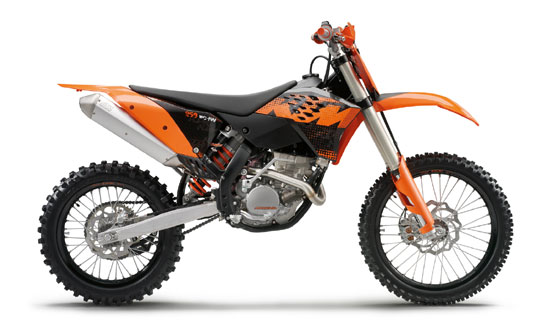

2009 KTM 250XCF-W
2009 KTM 250XCF-W

• 2009 KTM 250XCF-W

2009 KTM 250XCF-W

Out there in offroad heaven you have your hands full without having to think about the mechanics of the motorbike. We know what that means from our own experience so that’s why every screw and every technical detail on your KTM is checked umpteen times, right there, where it is supposed to be. You can really be confident that your bike is never going to let you down.


2009 KTM 250XCF-W – Specifications

Engine type Single cylinder, 4-stroke
Displacement 249.5 cc
Bore x stroke 76/55 mm (2.99/2.17″)
Compression ratio 12.8:1
Starter/Battery Kickstarter/E-Starter / 4 Ah
Transmission 6 gears SX ratio
Carburetor Keihin MX FCR 39
Control 4 V / DOHC with roller rocker levers
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication 10W50
Primary drive 22:68
Final drive 13:48
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital 4K-3

Frame Central double-cradle-type 25CrMo4
Subframe Aluminium7020, removable
Handlebar Magura Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260 mm (10.24″) disc, Brembo double piston caliper
Rear brake 220 mm (8.66″) disc, Brembo single piston caliper
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 80/100-21″; 100/100-18″
Chain 5/8 x 1/4″
Main silencer Aluminium 250 EXC-F
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9.2 liters (2.43 gal)
Weight (no fuel) approx. 101.6 kg (223.98 lbs)
