2009 Victory Hammer S
Back to 2009 Victory Motorcycle Index Page
Click photos to enlarge.
They make great desktop images.

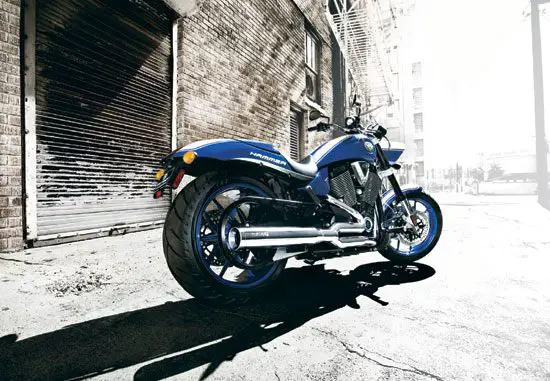

2009 Victory Hammer S
2009 Victory Hammer S
2009 Victory Hammer S
• 2009 Victory Hammer S
2009 Victory Hammer S
Powered by a 97-horsepower Victory Freedom 106/6 V-twin that is calibrated especially for these models, these Muscle Cruisers deliver sporty performance that inspires riders.
New for 2009
– New Freedom 106 6 Speed
– Stage 2 Cams
– 97 HP and 113 Ft Lbs of Torque
– New super light X-Factor wheels are 16.8 lbs lighter
– New LED tail light is twice as bright
– New Headlight lighter and better pattern
Key Features
– Premium Performance Cruiser introduced in 2007
– Blacked-out engine, handlebar, gauges, fuel cap and handlebar, distinctive engine and fender badging, anodized forks, color matched headlight, muscle car inspired custom paint
Features & Benefits
• Freedom 106 Cubic Inch V-Twin Engine
• Ultra Fat 9.84 inch (250mm) rear tire
• Muscle car inspired custom paint
• Removeable Passenger Seat Cowl
• Custom-inspired headlight
• Inverted fork with dual disc brakes
• X Factor wheels
• Mutli LED Tail light
• Chopped rear fender
• 18″ front wheel
2009 Victory Hammer S – USA Specifications
MSRP $18,499.00
ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Gross Horsepower 97 hp
Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover
DIMENSIONS
Length 93.1 in. (2,366 mm)
Weight Dry: 669 lbs. (303 kg)
GVWR: 1,173 lbs. (532 kg)
Ground Clearance 5.8 in. (148 mm)
Wheelbase 65.7 in. (1,669 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 26.5 in. (673 mm)
DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Inverted cartridge telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel
BRAKES/WHEELS/TIRES
Brakes Front: Dual 300 mm floating rotor with 4-piston calipers
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 130/70R18 Dunlop Elite 3
Rear: 250/40R18 Dunlop Elite 3
Rake 32.7°
Trail 5.5 in. (140 mm)
Colors Boardwalk Blue with White Racing stripes
2009 Victory Hammer S – Canada Specifications
MSRP C$20,626.00
ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters
Gross Horsepower 97 hp
Displacement 106 ci (1,731 cc)
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies
Clutch Wet, multi-plate
Cooling Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover
DIMENSIONS
Length 93.1 in. (2,366 mm)
Weight Dry: 669 lbs. (303 kg)
GVWR: 1,173 lbs. (532 kg)
Ground Clearance 5.8 in. (148 mm)
Wheelbase 65.7 in. (1,669 mm)
Fuel Capacity 4.5 gal. (17 l)
Oil Capacity 5 qt. (4.75 l)
Seat Height 26.5 in. (673 mm)
DRIVETRAIN
Transmission 6-speed overdrive constant mesh
Primary Drive Gear drive with torque compensator
Final Drive Carbon fiber reinforced belt
Suspension Front: Inverted cartridge telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel
BRAKES/WHEELS/TIRES
Brakes Front: Dual 300 mm floating rotor with 4-piston calipers
Rear: 300 mm floating rotor with 2-piston caliper
Tires Front: 130/70R18 Dunlop Elite 3
Rear: 250/40R18 Dunlop Elite 3
Rake 32.7°
Trail 5.5 in. (140 mm)
Colors Boardwalk Blue with White Racing stripes
