2009 Victory Vegas
Back to 2009 Victory Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

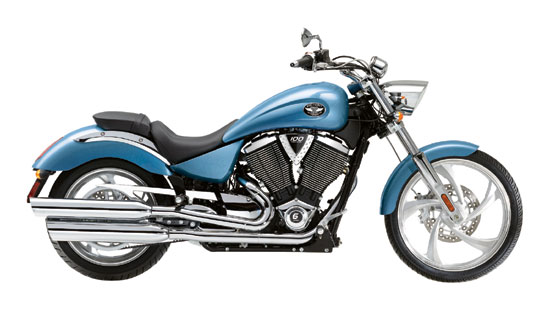

2009 Victory Vegas

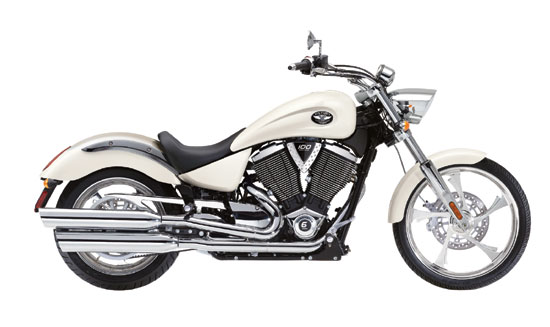

2009 Victory Vegas

2009 Victory Vegas

2009 Victory Vegas

2009 Victory Vegas

2009 Victory Vegas

2009 Victory Vegas

• 2009 Victory Vegas

2009 Victory Vegas

With unique styling that looks like it’s straight from the custom shop, these Custom Cruisers turn heads up and down the street and also deliver a great Victory riding experience.



New for 2009

New Stingray cast wheels that are 15.7 lbs lighter
New Headlight lighter and better pattern
New LED tail light is twice as bright

Features & Benefits

• 21″ custom front wheel

• Mutli LED Tail light

• Raised tip to tail spine

• Split-Tail fuel tank integrated with seat

• Custom-inspired headlight

• Freedom 100 Cubic Inch V-Twin Engine

• Stingray wheels

• Removeable Passenger Seat

Key Features

– Custom Cruiser introduced in 2003 with long and low – smooth flowing lines, 21” front, forward controls
– Signature sculpted tank with bike length spine





2009 Victory Vegas – USA Specifications

MSRP $16,299.00*

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 100 ci (1,634 cc)

Bore x Stroke 101 x 102 mm

Compression Ratio 8.7:1

Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies

Clutch Wet, multi-plate

Cooling Air / oil

Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 96 in. (2,439 mm)

Weight Dry: 642 lbs. (291 kg)
GVWR: 1,151 lbs. (522 kg)

Ground Clearance 5.8 in. (148 mm)

Wheelbase 66.3 in. (1,684 mm)

Fuel Capacity 4.5 gal. (17 l)

Oil Capacity 5 qt. (4.75 l)

Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh

Primary Drive Gear drive with torque compensator

Final Drive Carbon fiber reinforced belt

Suspension Front: Conventional telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel


BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper
Rear: 300 mm floating rotor with 2-piston caliper

Tires Front: 90/90 21 Dunlop Elite 3
Rear: 180 55-B18 Dunlop D417

Rake 32.9°

Trail 4.9 in. (126 mm)

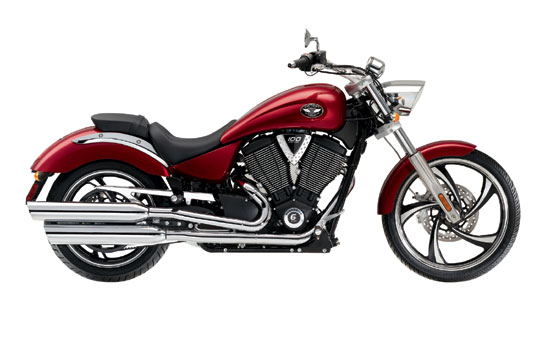

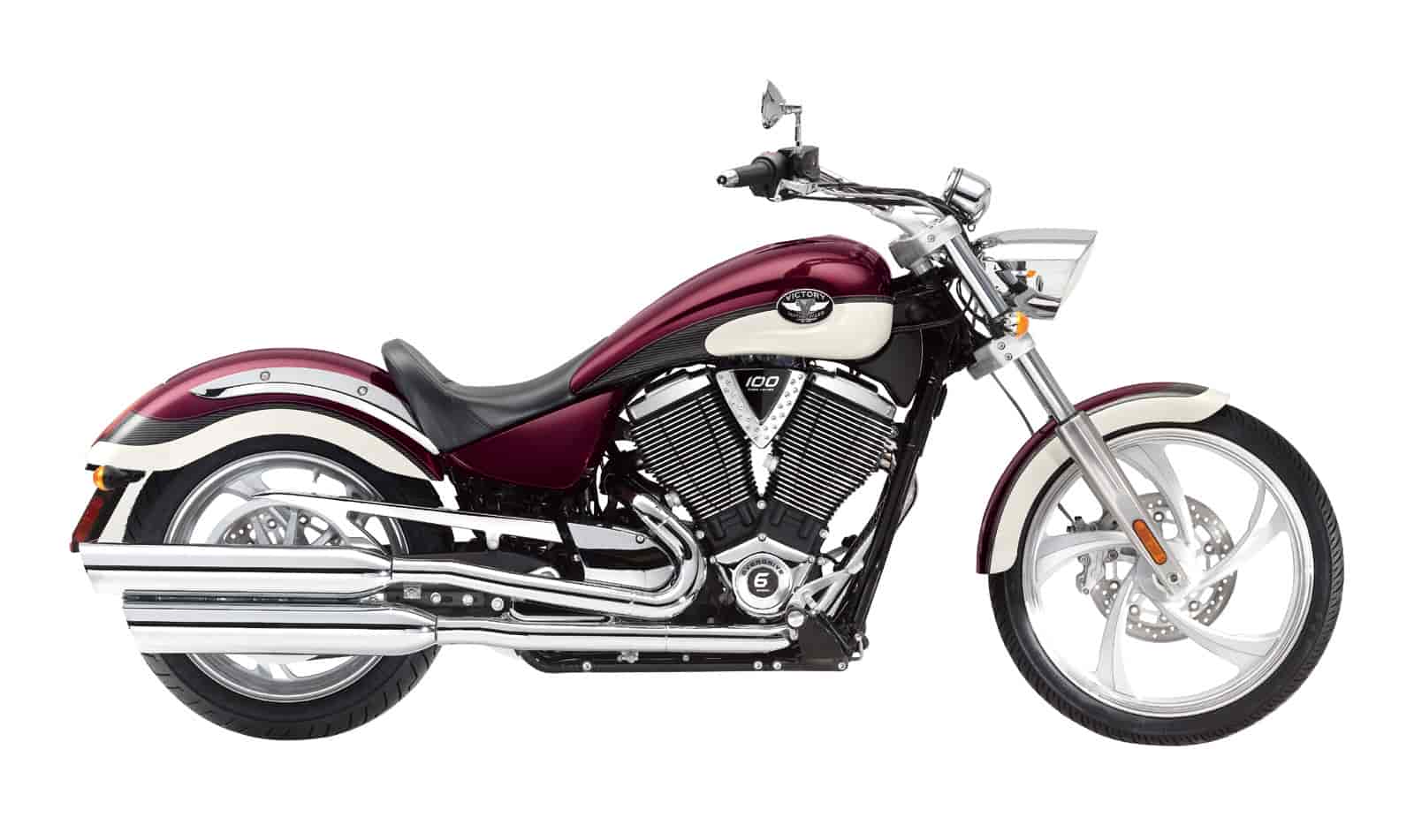

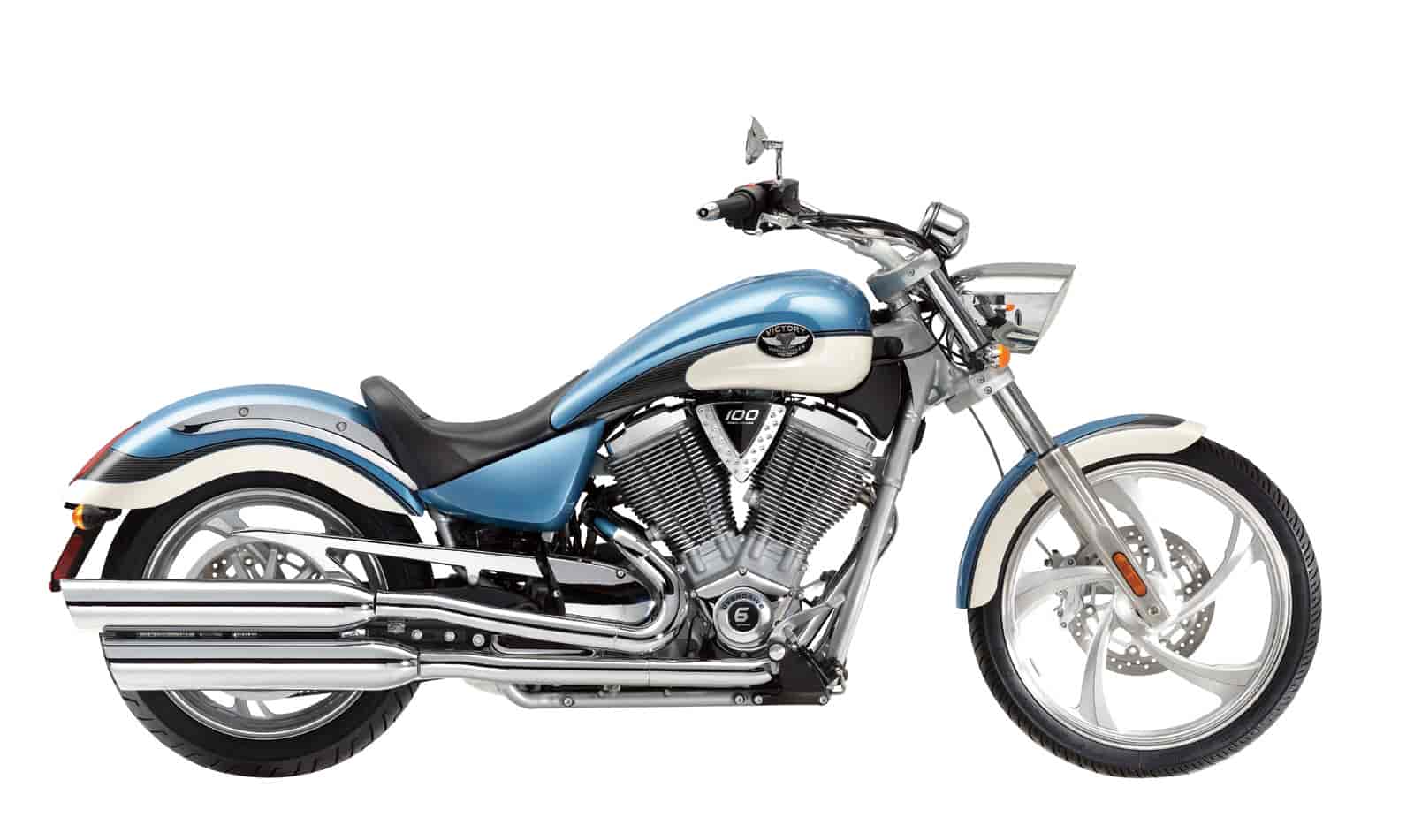

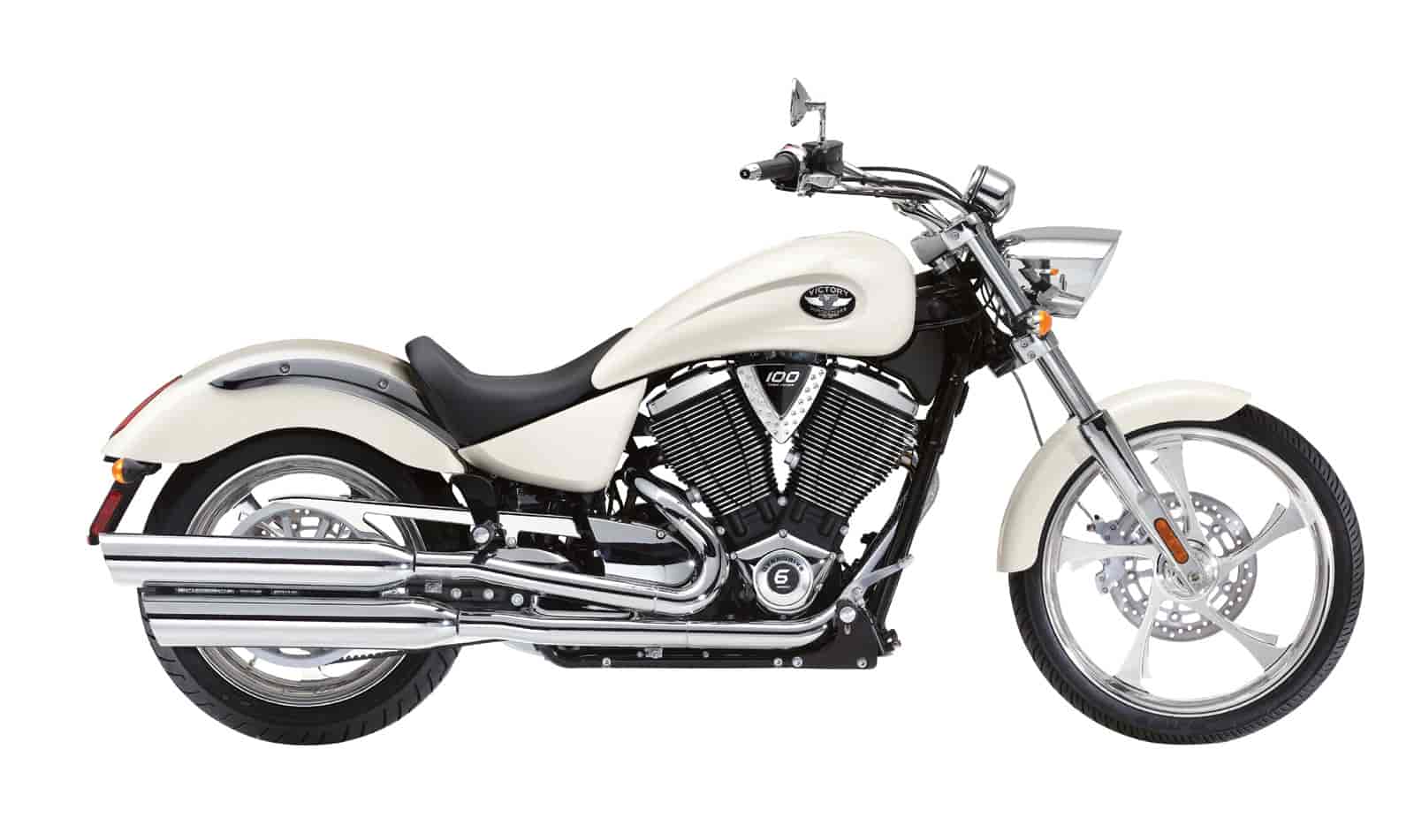

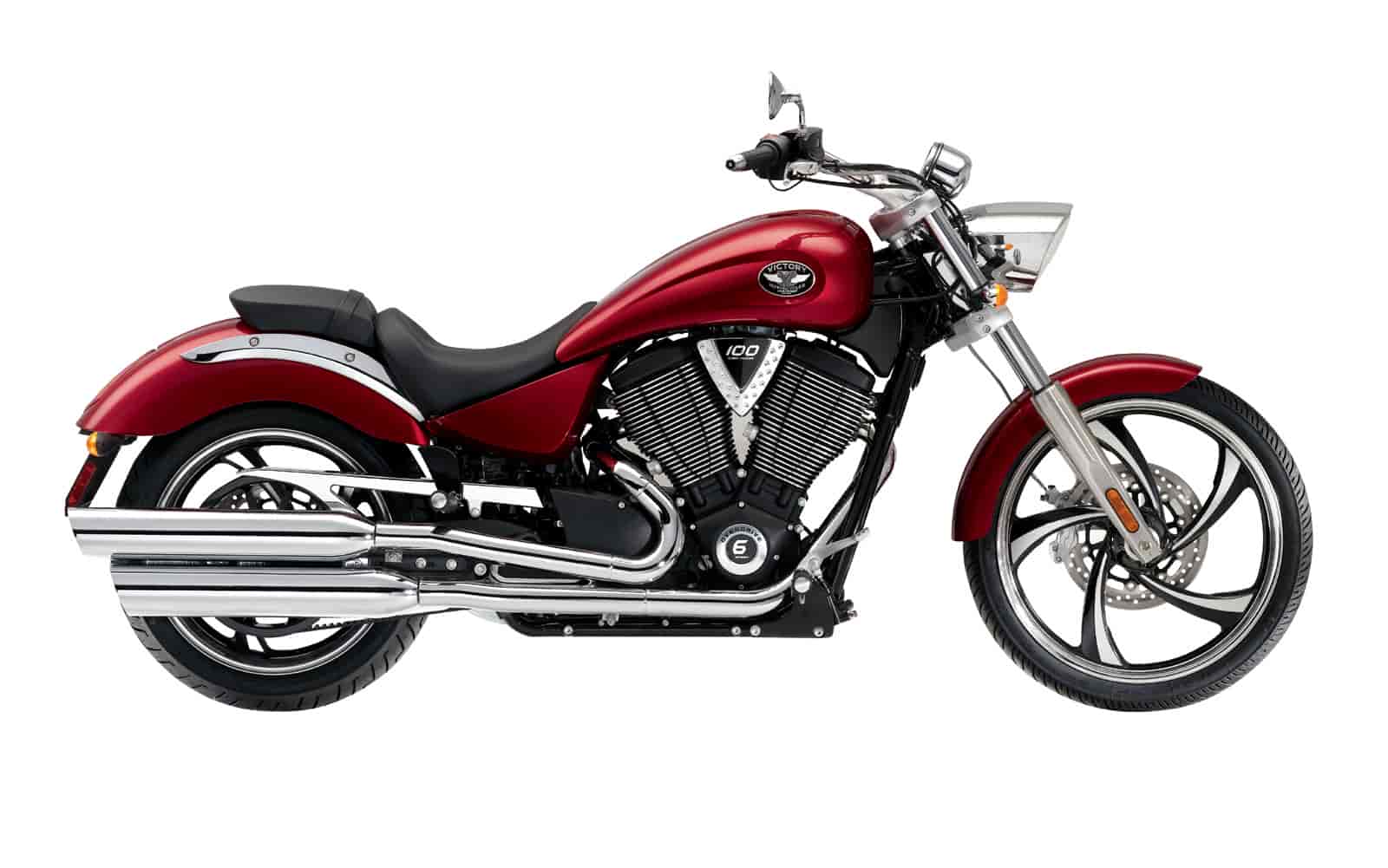

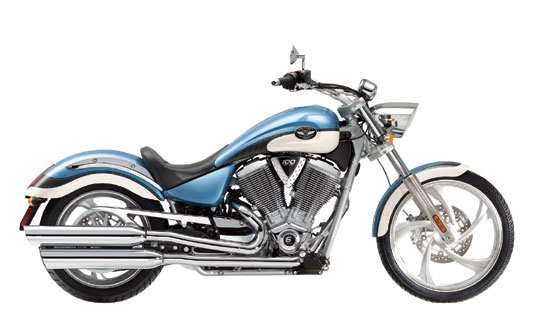

Colors Black, Blue Ice, Pearl White, Sunset Red, Two-tone Midnight Cherry / Pearl White with Carbon stripe, Two-tone Blue Ice / Pearl White with Carbon stripe

Prices listed are MSRP for stock solid Black model. Alternate paint options may increase price.





2009 Victory Vegas – Canada Specifications
MSRP C$18,173.00*

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 100 ci (1,634 cc)

Bore x Stroke 101 x 102 mm

Compression Ratio 8.7:1

Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies

Clutch Wet, multi-plate

Cooling Air / oil

Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 96 in. (2,439 mm)

Weight Dry: 642 lbs. (291 kg)
GVWR: 1,151 lbs. (522 kg)

Ground Clearance 5.8 in. (148 mm)

Wheelbase 66.3 in. (1,684 mm)

Fuel Capacity 4.5 gal. (17 l)

Oil Capacity 5 qt. (4.75 l)

Seat Height 26.5 in. (673 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh

Primary Drive Gear drive with torque compensator

Final Drive Carbon fiber reinforced belt

Suspension Front: Conventional telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel
Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3.9 in. (100 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper
Rear: 300 mm floating rotor with 2-piston caliper

Tires Front: 90/90 21 Dunlop Elite 3
Rear: 180 55-B18 Dunlop D417

Rake 32.9°

Trail 4.9 in. (126 mm)

Colors Black, Blue Ice, Pearl White, Sunset Red, Two-tone Midnight Cherry / Pearl White with Carbon stripe, Two-tone Blue Ice / Pearl White with Carbon stripe

Prices listed are MSRP for stock solid Black model. Alternate paint options may increase price.
