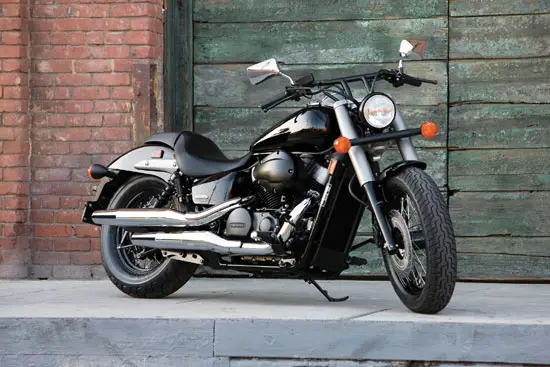

2010 Honda VT750C2A Shadow Phantom
2010 Honda VT750C2A Shadow Phantom

2010 Honda VT750C2A Shadow Phantom
2010 Honda VT750C2A Shadow Phantom

2010 Honda VT750C2A Shadow Phantom
2010 Honda VT750C2A Shadow Phantom

2010 Honda VT750C2A Shadow Phantom
2010 Honda VT750C2A Shadow Phantom

2010 Honda VT750C2A Shadow Phantom
2010 Honda VT750C2A Shadow Phantom

2010 Honda VT750C2A Shadow Phantom
2010 Honda VT750C2A Shadow Phantom

2010 Honda VT750C2A Shadow Phantom
2010 Honda VT750C2A Shadow Phantom

– 2010 Honda VT750C2A Shadow Phantom

2010 Honda VT750C2A Shadow Phantom

The Shadow® Phantom delivers on a minimalist concept with a uniquely clean and uncluttered look accented by an extensive blackout treatment, bringing motorcyclists back to the core essence of cool.

With a torquey 745cc V-twin engine featuring the convenience of sophisticated Programmed Fuel Injection, the Shadow Phantom brings the joy of back-to-basics riding within reach of just about every rider.

Available in Black. In dealerships—November 2009. MSRP: $7999.00





Features/Benefits

o Minimal bodywork and extensive blacked-out and matte finishes.

o New handlebar shape enhances bobber styling.

o 745cc liquid-cooled V-twin engine produces impressive power over a broad rpm range.

o Programmed Fuel Injection (PGM-FI) incorporates a single 34mm-diameter throttle body.

o Incredibly low 25.7-inch seat height.

o Sturdy and responsive 41mm front fork features large-diameter matte-finished shrouds and large billet-aluminum triple-clamp for a distinctive look, neutral handling and a plush 4.6 inches of wheel travel.

o Dual-shock rear suspension features five-position spring preload adjustability and 3.5 inches of wheel travel for a smooth ride.

o Available in Black.



Honda Genuine Accessories
Backrest with Pad (two styles: Tall and Low), Rear Carrier, Backrest/Carrier, Boulevard Screen, Custom Leather Seat, Solo Rider Rear Carrier, Cycle Cover, Front Pouch, Synthetic Leather Saddlebags.







2010 Honda VT750C2A Shadow Phantom – Specifications
MSRP: $7999.00 USD

ENGINE

Model: VT750C2A
Engine Type: 745cc liquid-cooled 52° V-twin
Bore and Stroke: 79mm x 76mm
Compression ratio: 9.6:1
Valve Train: SOHC; three valves per cylinder
Induction: PGM-FI with automatic enrichment circuit, one 34mm throttle body
Ignition: CD with electronic advance, two spark plugs per cylinder

Transmission: Wide-ratio five-speed
Final Drive: Shaft
Suspension Front: 41mm fork; 4.6 inches travel
Rear: Dual shocks with five-position spring preload adjustability; 3.5 inches travel
Brakes Front: Single 296mm disc with twin-piston caliper
Rear: Drum
Tires Front: 120/90-17
Rear: 160/80-15

Wheelbase: 64.5 inches
Rake (Caster angle): 34o
Trail: 161mm (6.3 inches)
Seat Height: 25.7 inches

Fuel Capacity: 3.9 gallons, including 0.9-gallon reserve

Colors: Black

Curb Weight*: 549 pounds

*Includes all standard equipment, required fluids and full tank of fuel- ready to ride.

Meets current EPA standards.

California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
