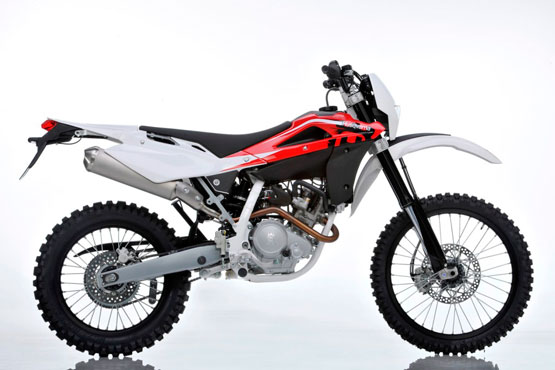

2010 Husqvarna TE125

Back to 2010 Husqvarna Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2010 Husqvarna TE125
2010 Husqvarna TE125


– 2010 Husqvarna TE125

2010 Husqvarna TE125

HUSQVARNA TE 125


NEW MODELS 125 four-stroke enduro and motard FOR HUSQVARNA

TE 125 SMS and 4 are new models Husqvarna four-stroke 125 cc, for the youngest fans of the brand.

TE 125 enduro for the first steps, SMS, supermoto 4 for breathing air and move fast in city traffic.
Inherit both look very aggressive and captivating, replicas of the real bike race courses in the official Husqvarna team riders.

The frame of the two new 4-stroke eighth-liter is a single beam in CrMo steel tube frame with circular cross-section rear seat also steel.

The engine is a four-stroke single cylinder SOHC 124.45 cc, 4-valve, 6 speed, water cooled and equipped with electric start.

Available colors are red and white racing for the TE for SMS4. All graphics are incorporated into the body with innovative In Mould Decoration Plastic.

The new 125 4 T have very little weight, only 117 kg, making them particularly handy and easy to drive in every situation.

With a maximum power of 11KW (15 HP) these new Husqvarna 125 cc can also be driven by drivers with license B.

Available at Husqvarna dealer network since the beginning of June, the new Husqvarna TE 125 and cost the public SMS4 € 4,090 including VAT




ENGINE

The single cylinder SOHC 4-valve and 4-stroke liquid-cooled 124.45 cc is the same for the two versions and TE SMS4. Bore and stroke is 52 mm to 58.6 mm with a compression ratio of 11.2:1.
Both versions take a 6-speed gearbox with final drive ratios for the two different models, to optimize performance in all conditions, in city traffic or on dirt.
The eighth-liter engine that provides low emissions, low consumption and EU3 is approved, has the power to Kehin 29 mm carburetor and electric start.
The wet sump lubrication with lobe pump and cartridge filter.
To ensure responsiveness and power delivery appropriate use, the exhaust systems are designed specifically for the two different versions.


CHASSIS PART

Both of the new 125 4T Husqvarna show to be of “small” big bike. The attention to detail, excellent build quality of all the chassis make these two new entries in the crowded market of 125 specimens as close as aesthetics and design of larger displacement motorcycles dell’ultracentenario Swedish origin marking .
In fact, thanks to the size of the frame design and beauty of the TE 125 el’SMS4 can easily be exchanged for bike Antoine Meo and Adrien Chareyre.
Just like the Husqvarna racing bikes, the tank and seat have been designed to offer maximum comfort and mobility: the pilot can quickly move forward or backward to suit the different needs of the road or driving.
The position of the handlebars and the seat distance / platforms has been specifically designed to allow the rider to feel comfortable and to improve the overall handling of the medium.
For the part sull suspension forks are 40 mm in diameter and 260 mm stroke. The rear suspension shock absorber with progressive system has possibilities for adjusting the spring preload.
For the safety, the front disc brakes are 260 mm in diameter with dual-piston floating caliper while the rear is fitted with a 220 mm disc diameter always floating caliper.
The wheels are alloy wheels with 17 inch motard version that mounts on the rear tire as an element with 140mm section that fits the size of the frame and gives the SMS4 look of a great bike with outstanding performance in the corners.
The Enduro has front wheel 21 “rear and 18”, just like the Husqvarna racing.
The elegant full instrumentation standard equipment of the new Husqvarna four-stroke. The LCD display in addition to the speedometer may provide guidance for tachometer, turn signals, lights, trip odometer and total driving time, clock.


MAIN FEATURES
· Motor single cylinder, SOHC, 4 valve, 4-stroke liquid-cooled 124.45 cc
· Start Electric
· Power maximum 11kW (15cv) at 9000 rpm
Squad maximum 12.1 Nm at 8000 g (min
· Money six-speed transmission
· Euro 3 standards
· Frame steel
° Suspension Long Travel
° Suspension multilink rear shock with adjustable preload
° Instrument complete with LCD
· Graphics integrated with the bodywork system In Mould Decoration Plastic
Children ‘brakes with floating calipers
° Wheels from 21 and 18 for the Enduro version and 17 “for SMS4
· Height 900 mm saddle for motard version, 930 mm version enduro
· Rear tire with a section of 140 mm version motard
· Colors available: white / red, white color for SMS4





2010 Husqvarna TE125 – Specifications
MSRP: $TBA USD

Not available.
