2010 KTM 530 EXC / Champions Edition

Back to 2010 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2010 KTM 530 EXC / Champions Edition
2010 KTM 530 EXC / Champions Edition

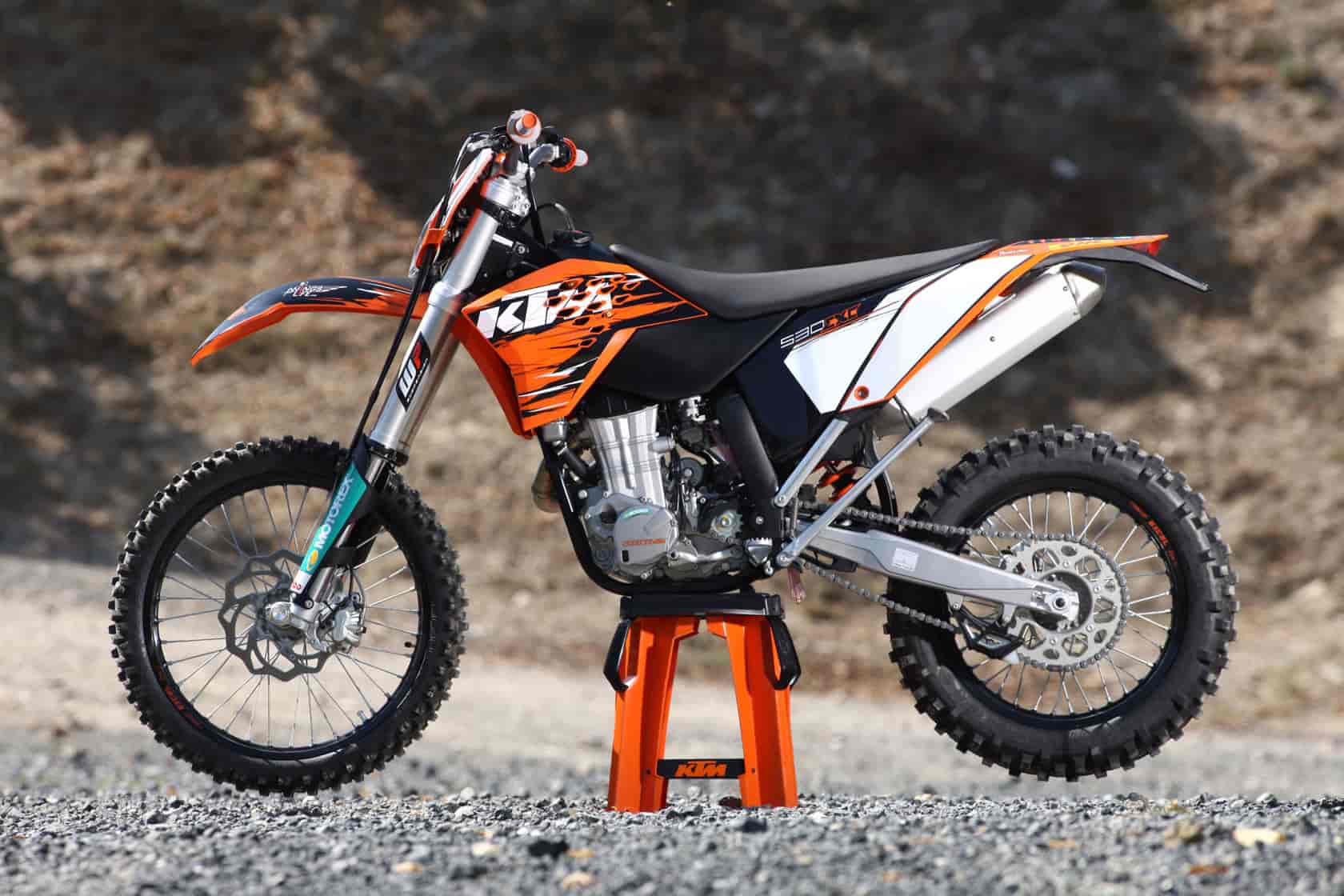

2010 KTM 530 EXC / Champions Edition

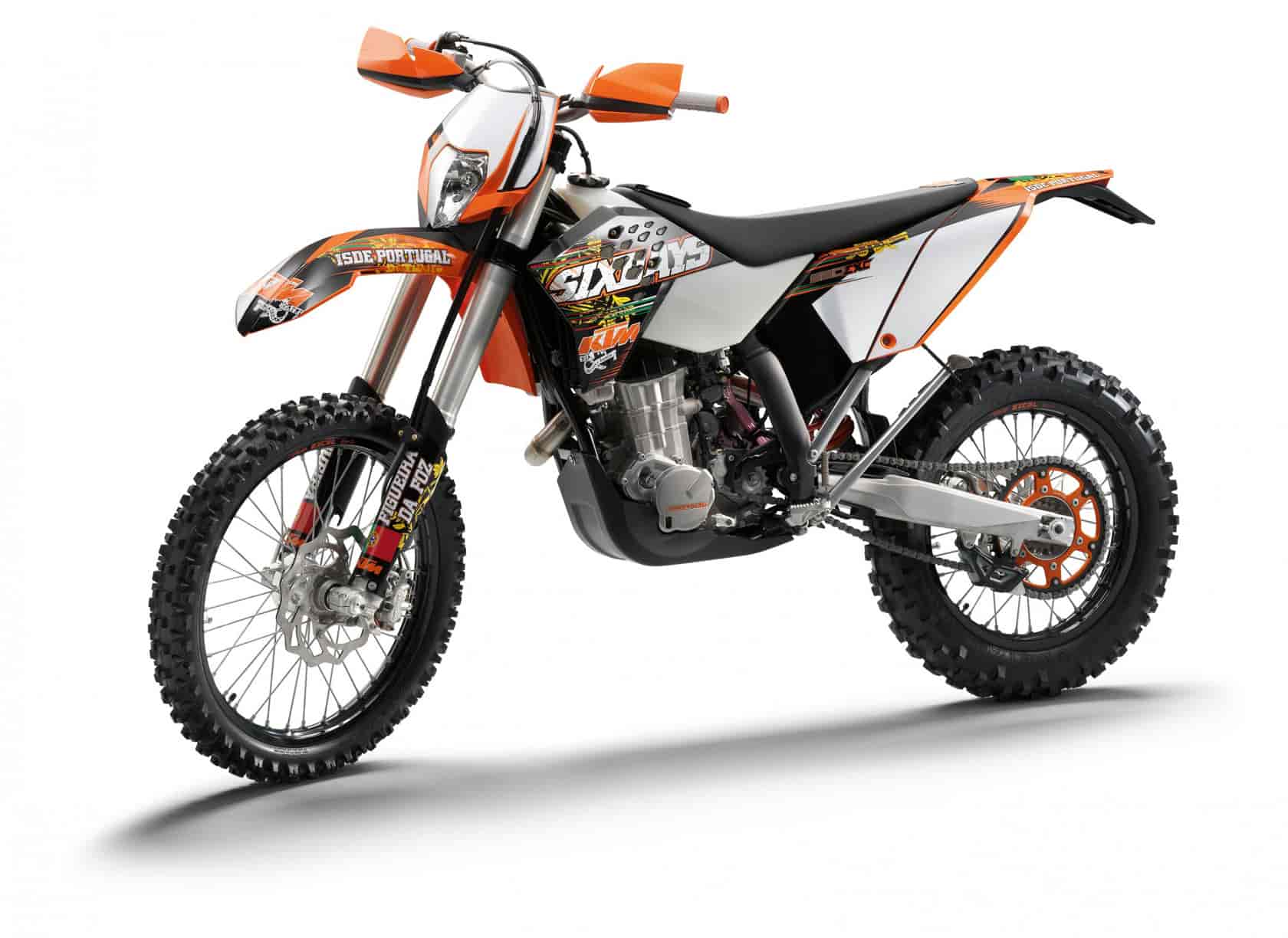

2010 KTM 530 EXC / Champions Edition

2010 KTM 530 EXC / Champions Edition
2010 KTM 530 EXC / Champions Edition

2010 KTM 530 EXC / Champions Edition
2010 KTM 530 EXC / Champions Edition

2010 KTM 530 EXC / Champions Edition
2010 KTM 530 EXC / Champions Edition

2010 KTM 530 EXC / Champions Edition
2010 KTM 530 EXC / Champions Edition



– 2010 KTM 530 EXC / Champions Edition

2010 KTM 530 EXC / Champions Edition

For those who simply can’t get enough, the new 530 EXC is heading to the start line this year with a completely overhauled chassis. An insatiable fighting machine that is unfazed by even the toughest Enduro challenges on the one hand, and a complete workhorse that undeviatingly pursues its course – strong and reliably, on the other. Fed by the powerful SOHC engine, it provides brute four-stroke power but can also impress its with soft power when needed.







2010 KTM 530 EXC / Champions Edition – Specifications
MSRP: See Dealer

Engine type Single cylinder, 4-stroke
Displacement 510.4 cc
Bore x stroke 95 x 72 mm (3.74 x 2.83″)
Compression ratio 11.9:1
Starter/Battery Kickstarter/E-Starter/12V 4 Ah
Transmission 6 gears wide-ratio
Carburetor Keihin FCR MX 39
Control 4 V/OHC with rocker levers
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication Motorex, SAE 10W50
Transmission oil Motorex, SAE 10W50
Primary drive 33:76
Final drive 15:45 (13:50)
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4 steel
Subframe Aluminium
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81 / 13.19″)
Brakes, front/rear Disc brakes 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475 ± 10 mm (58.0 ± 0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9.5 liters (2.51 gal)
Weight (no fuel) approx. 113.9 kg (251.1 lbs)
