2010 Kawasaki KLX140

Back to 2010 Kawasaki Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

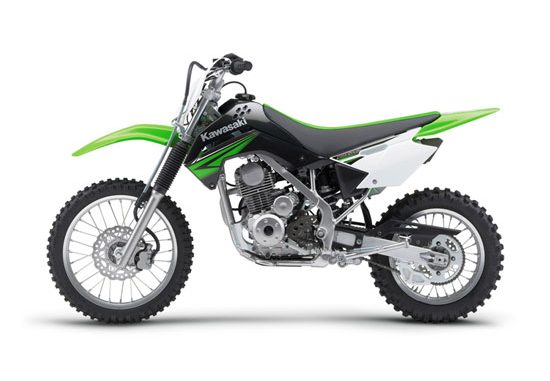

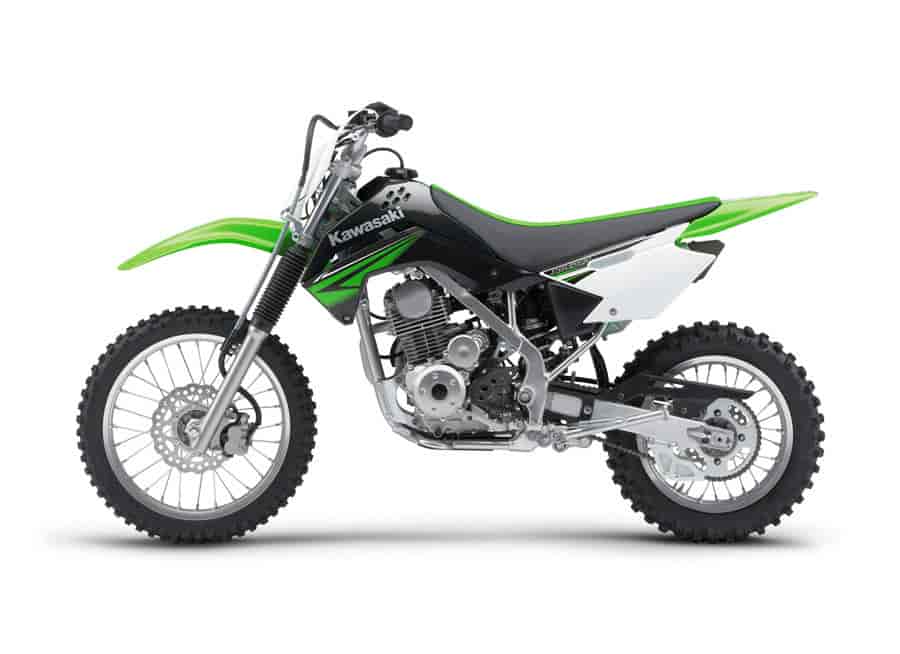

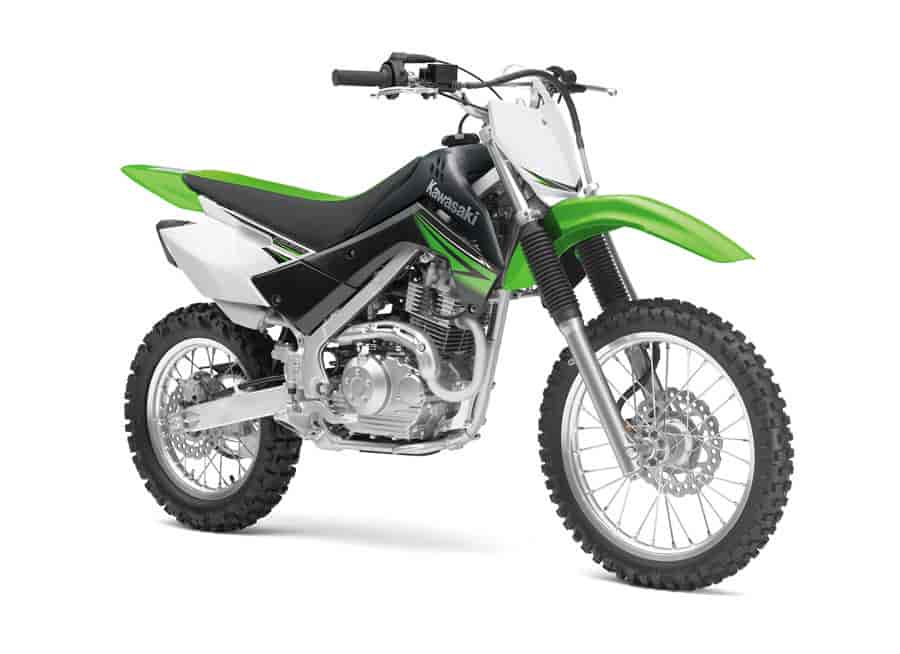

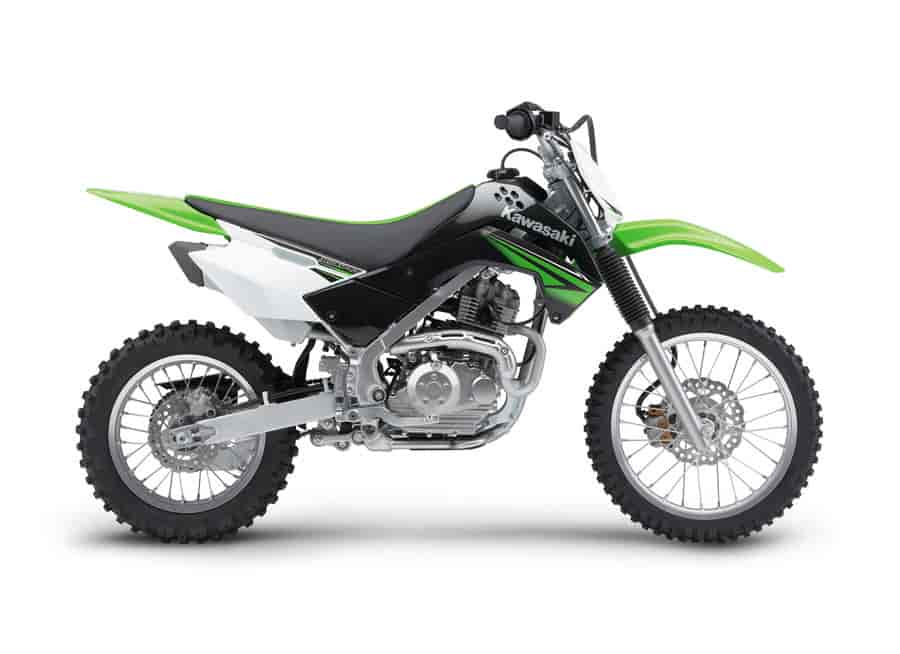

2010 Kawasaki KLX140
2010 Kawasaki KLX140

2010 Kawasaki KLX140
2010 Kawasaki KLX140

2010 Kawasaki KLX140
2010 Kawasaki KLX140


– 2010 Kawasaki KLX140

2010 Kawasaki KLX140





Features and Benefits:


2010 Kawasaki KLX140 Technology

Overview



Engine

Fun is maximised because with the KLX it is so easy to just get on and go. The air-cooled single-cylinder engine offers a simple, easy-to-use, highly reliable power plant. And with electric start, access to fun is a quick push of the button away.

144 cc air-cooled single-cylinder engine offers a lightweight power plant that is both simple (to operate and to maintain) and reliable.

Bore and stroke of 58.0 x 54.4 mm yield a displacement of 144 cc.

The engine revs easily and riders will soon find themselves wanting to use the full range of the engine. A rev limiter at 10,500 rpm ensures a smooth decrease in power in the over-run, contributing to high level of control at high rpm.

Based on the oval piston valve Keihin PB20, the carburettor features many Kawasaki-original modifications to ensure stable fuel delivery even under hard KX-style riding.

Partitions in the float chamber ensure fuel stays centred (sloshing is minimised) under hard riding and an umbrella around the main jet traps fuel when jumping – both modifications to ensure constant fuel supply.

Dual float bowl air vents (instead of single) ensure stable air supply even when the bike is leaned at extreme angles to either side.

The needle valve features a spring which acts like a shock absorber.

The float itself is made of rubber instead of plastic.

Close-ratio transmission contributes to the acceleration performance of the KLX.

Like our KX racers, the gear change position lever features a ball bearing to facilitate easy shifting.

Shift change lever with folding tip resists being damaged in the event of a crash.

While delivering a pleasant exhaust note, the quiet-running muffler makes it easy to use the KLX for long periods of time.

Muffler comes equipped with a spark arrester, meaning the KLX140/L can access designated off-road public riding areas.

Exhaust pipe is curved to achieve optimum length for good power characteristics

Plastic muffler end-cap offers a surface cooler to the touch than steel.

Oil-moistened KX-style air-cleaner element is highly effective in dusty situations. The washable element is reusable.

Starting is via a (keyless) electric starter button just in front of the upper triple clamp.

Starter button features an orange LED light activated when the button is depressed, indicating that the power is “ON.”

Digital CDI ignition ensures quick, reliable starting.

Progressive manual clutch offers young riders the chance to master full control of gear shifting.

The clutch features a spring damper resulting in a progressive, 2-stage clutch engagement that facilitates half-clutch use when riding at extremely low rpm or idling speeds (while receiving coaching on the fly). Additional benefits are direct clutch feel and high durability.




Chassis

Serious about making the KLX140 and KLX140L the ultimate playbikes for youth riders, Kawasaki put together a special development team: youth test riders were joined by pro MX riders and Kawasaki’s top KX engineers. Giving these playbikes the same thorough attention to detail given our KX racers resulted in their high level of off-road performance. In act, many of their parts came directly from KX machines.

KX-based perimeter frame made of high-tensile steel contributes to the high off-road riding potential of the KLX140/L. In fact, the frame uses the same upper tubes as those on the KLX250.

Complementing the highly rigid frame, sturdy suspension front and rear contribute to the KLXs’ high level of off-road fun.

Sturdy 33 mm telescopic front fork has spring rates and damping settings specific to each model.

The handlebar is rubber-mounted for reduced vibration transferred to the rider’s hands.

Grips are the same as those on our top-class MX racers. Raised pattern on half of the surface makes them easier to grip.

The KLX140 rear shock features 5-way preload adjustability.

To allow for its higher average speed, the KLX140L features a rear shock with piggyback reservoir. Both the shock body and reservoir are aluminium. The shock has fully adjustable preload, 4-way compression damping and 22-way rebound dampingTo allow for its higher average speed, the KLX140L features a rear shock with piggyback reservoir. Both the shock body and reservoir are aluminium. The shock has fully adjustable preload, 4-way compression damping and 22-way rebound damping.

Aluminum swingarm offers both light weight and strength. Like those on our KX machines, it features a hairline finish.

KX racing-type chain adjusters allow precise adjustment of chain slack, helping to minimize drivetrain power transfer loss.

KX-style wheels with strong, high-grade die-cast hubs offer the same durability as those found on our KX racers.

Like our KX motocrossers, the KLX140/L feature lightweight RK EXCEL aluminum rims.

While most “playbikes” feature a disc/drum combination, the KLX140/L have disc brakes front and rear for a high level of braking performance.

The 220 mm front petal disc and twin-piston calliper offer strong, easy-to-control braking.

Front brake master cylinder is the same as used on the KLX250.

The 220 mm front disc and large-bore twin-piston caliper offer strong, easy-to-control braking. At 27 mm, the caliper pistons are the same size as those on the KX450F/250F. Front brake master cylinder is the same as used on the KLX250. Petal disc brakes front & rearThe 220 mm front disc and large-bore twin-piston caliper offer strong, easy-to-control braking. At 27 mm, the caliper pistons are the same size as those on the KX450F/250F. Front brake master cylinder is the same as used on the KLX250. Petal disc brakes front & rear.

The rear wheel is slowed by a 186 mm petal disc gripped by single-piston caliper.

The rear brake master cylinder features a large, unitised reservoir that contributes to stable braking performance.




Differences: KLX140 vs KLX140L
IDEAL SIZE FOR YOUTHS
Designing the KLX140 and KLX140L from the ground up has enabled Kawasaki to offer two models that are ideal in size and weight for their target riders: youths.

KLX140 and KLX140L offer two sizes from which youths can choose. Larger than kid’s bikes, and smaller and lighter than “full-size” playbikes, these KLX’sL are a perfect fit for youths.

The largest difference between the two KLX youth models is their wheel size.
KLX140: F=17″ R=14″
KLX140L: F=19″ R=16″

Seat heights are also a nice compromise between kid’s bikes and full-size machines.
KLX140: 785 mm
KLX140L: 810 mm

Weighing 84 and 85 kg (respectively), the KLX140 and KLX140L are easy for youths to handle.

The KLX140 is recommended for youths up to 160 cm tall and 55 kg in weight; the KLX140L is recommended for youths up to 170 cm tall and weighing more than 55 kg.


Colours
Lime Green









2010 Kawasaki KLX140 – USA Specifications
MSRP $NA USD


Not available in the USA


*Note: Specifications and pricing are subject to change.










2010 Kawasaki KLX140 – Canada Specifications
MSRP: $3,599 CDN

ENGINE
Type 4-stroke, Single
Displacement 144 cc
Bore and Stroke 58.0 x 54.4 mm
Compression Ratio 9.5:1
Valve System SOHC, 2 valves, screw type adjusters
Carburetion Keihin PB20
Ignition Digital DC-CDI
Cooling Air
Lubrication Forced lubrication, wet sump
Starting Electric

DRIVETRAIN
Clutch Wet multi-disc, manual, cable operation
Transmission 5-speed, return
Primary Drive Gear
Final Drive Chain
Primary Reduction Rati 2.880 (72/25)
Gear Ratios: 1st 2.666 (40/15)
2nd 1.894 (36/19)
3rd 1.473 (28/19)
4th 1.181 (26/22)
5th 1.000 (24/24)
Final Reduction Ratio 3.571 (50/14)

FRAME
Type Perimeter, box section, high-tensile steel
Wheel Travel: Front 180 mm
Wheel Travel: Rear 180 mm
Tires: Front 70/100-17
Tires: Rear 90/100-14
Caster (Rake) 27°
Trail 85 mm

SUSPENSION
Front 33 mm conventional fork
Rear Uni-Trak with 5-way adjustable spring preload

BRAKES
Rear: Type 186 mm petal disc
Caliper Single-piston
Front: Type 220 mm petal disc
Caliper Dual-piston

DIMENSIONS
Overall Width 790 mm
Overall Height 1049 mm
Wheelbase 1260 mm
Seat Height 780 mm
Curb Mass 93 kg
Fuel Capacity 5.8 L
Overall Length 1821 mm
Ground Clearance 235 mm

DETAILS
MSRP $3,599
Colour Lime Green
Warranty 6 months
Good Times Protection Plan 24 or 36 months (Kawasaki GTPP coverage begins after standard limited warranty expires)

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.
