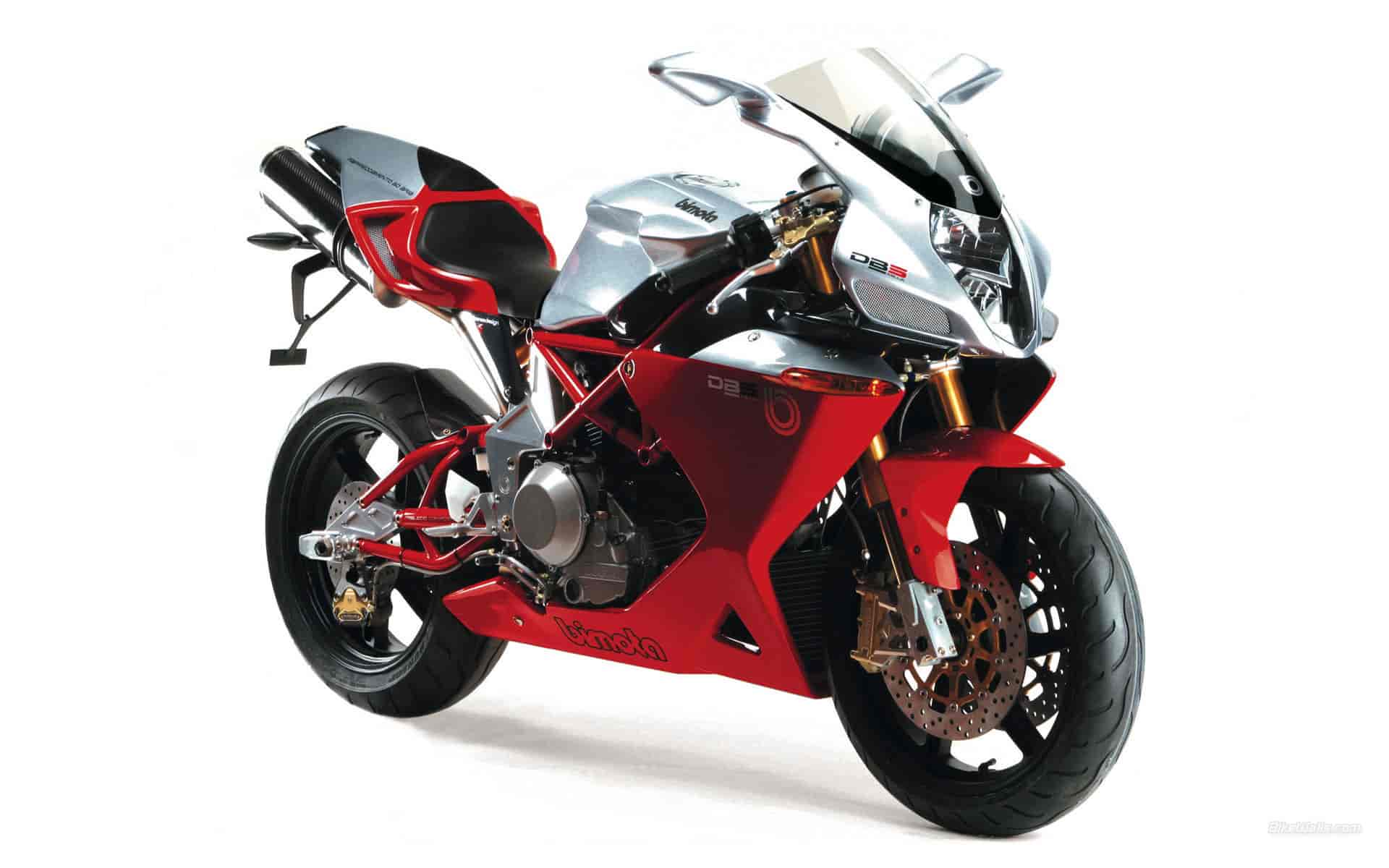

2011 Bimota DB5 1000

– 2011 Bimota DB5 1000

2011 Bimota DB5 1000 Review

The Trellis frame composite outlines the shapes of the smallest hull Bimota line. The Duchy 1100, which equips the bike makes it perfect for road use. This model is split in two versions S and R.

---



2011 Bimota DB5 1000 – International Specifications
USA MSRP – See dealer for pricing in USD
Canada MSRP – See dealer for pricing in CDN

Displacement 1,078 cc
Cylinder No. 2
Joint Cooling (Air / oil)
Magneti Marelli electronic injection power with the bodies of 45 mm
Declared maximum power 95 hp at 7,000 rpm
Clutch Dry multiplate with ABS
Type Tubular steel chassis and aluminum
Type inverted hydraulic fork suspension
Rear Suspension Type 1 buffer
Measure front tire 120/70-ZR 17
Measure 17 180/55-ZR rear tire
Front brake system 2 discs floating
Rear Disc Brake System
Maximum length 2,045 mm
Wheelbase 1,425 mm
Seat height 820 mm
Fuel tank capacity 16 l (5 l reserve)
Declared weight 169 kg

Motor
Exact displacement 1,078 cc
4t Cycle
N ° cylinders 2
Available in L
Joint Cooling (Air / oil)
Distribution DOHC (double overhead camshaft)
2 x cylinder valves
Magneti Marelli electronic injection power with the bodies of 45 mm
Bore x stroke 98 mm x 71.5 mm
Compression 10.0 ± 0.5: 1
Declared maximum power 95 hp at 7,000 rpm
Declared maximum torque 10.5 kgm at 5,500 rpm
95/98 Unleaded Fuel
Antipollution regulations Euro3
Limitation –
Electrical System
Electronic Ignition C.D.I.
Battery
Transmission
Primary transmission Gear
Secondary transmission chain
Clutch Dry multiplate with ABS
Hydraulic Drive
Manual change
Number of gears 6
33/61 primary relationship
Final Report 15/38
Value 1 st 15/37
Value 2 ª 17/30
Value 3 rd 20/27
Value 4 th 22/24
Value 5 th 24/23
Value 6 th 28/24

Party Cycle
Type Tubular steel chassis and aluminum
Front Suspension
Inverted hydraulic fork
Mark UD Öhlins TiN
43 mm diameter bars
120 mm travel
Regulations preload, compression and rebound
Rear Suspension
Double swing arm type trellis
Steel Material ergal
Type 1 buffer suspension
Brand Öhlins
120 mm travel
Regulations compression, preload and rebound
Front brake
Brembo Model
2 discs floating system
320 mm diameter
Bimota caliper 4 piston radial
Radial Pump
Pump Brand Brembo
Rear brake
Brembo Model
Disc System
230 mm diameter
Brembo 2-piston caliper
Pump
Pump Brand Brembo
Front Wheel
Rim diameter 17 ”
3.50 rim Throat
OZ Racing Forged Aluminum Material
Continental tire brand
Sport Attack Model
Tubeless Radial Type
Measure tire 120/70-ZR 17
Rear Wheel
Rim diameter 17 ”
5.50 rim Throat
OZ Racing Forged Aluminum Material
Continental tire brand
Sport Attack Model
Tubeless Radial Type
Measure tire 180/55-ZR 17

Dimensions and Capacities
Maximum length 2,045 mm
Maximum width 750 mm
Maximum height 1,230 mm
Wheelbase 1,425 mm
Seat height 820 mm
Advance
Launch angle
Steering angle 24 º
Fuel tank capacity 16 l (5 l reserve)
Declared weight 169 kg

All specifications are subject to change without notice. The above price is the Manufacturer’s Suggested Retail Price. Price excludes any applicable freight, dealer setup, tax, title, or licensing fees and is subject to change. Actual dealer prices may vary.
