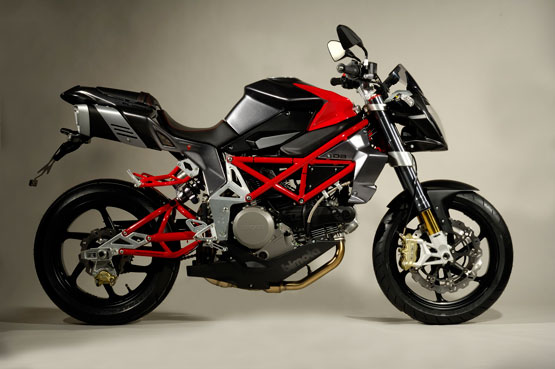

– 2011 Bimota DB6 Delirio 1100
2011 Bimota DB6 Delirio 1100 Review
The feeling of strength and ease when driving takes on already at the first glance. Compact and aggressive shows the DB6 Delirio. Compact and aggressive shows the DB6 Delirio. The exclusive with her BIMOTA composite space frame, which surrounds the impeccable DUCATI L-Twin engine. The BIMOTA with its exclusive composite space frame, the impeccable Ducati two-cylinder engine encloses L. A revised engine management system provides an increased torque across the rev band. A revised engine management system provides An increased torque across the rev band.
The machines form of a lightweight aluminum alloy, the triple clamps, foot rest and swing recordings. The rear fender, chain protection cover and the pinion are made of carbon fiber. The rear fender, chain protection cover and the pinion are made of carbon fiber.
Every detail of the DB6 has been drawn to create an experience that can not give the other motorcycle.
DB6 Delirio – the naked beauty. DB6 Delirio – the naked beauty.
On January 27, 2006, the first prototype of what was to become yet another new Bimota model since the resurrection of the brand, On January 27, 2006, the first prototype of what was to become yet another new Bimota model since the resurrection of the brand, left the manufacturing facility in Rimini, Italy, for the first test ride. In the seat was Engineer Alberto Strada. Already waiting for his return, helmet in hand, was designer Sergio Robbiano, anxiously looking forward to the first ride on the personification of his imagination.
For the second time in the young history of the new Bimota company, Sergio Robbiano had been the creative head behind a project combining pure esthetics of the motorcycle with the highest standards of functionality: The Bimota DB6 Delirio, a naked bike that parallels the full-faired supersport DB5.
After the initial presentation of the DB6 Delirio at the Motorshow in Milano, Italy, in November 2005, the reactions of visitors and special-interest media alike destined the concept for production, ideally in the shortest time possible. Today the DB6 Delirio presents itself as thoroughbred Bimota: The result of intensive technical research, engineered to the highest quality standards, composed to capture emotion by both its static appearance as well as its dynamic experience.
The DB6 Delirio is based upon the DB5’s frame and swing-arm, utilizing the same power-plant – the only technical elements these two motorcycles share.
Components of the DB6 Delirio remain top of the line, manufactured to the Bimota ideology of perfection and style. The aluminum plates located at the lower end of the main frame and the back end of the swing-arm have been re-designed to appear even lighter and convey an even slimmer line of the motorcycle. Further enhancing the appearance and performance of the DB6 Delirio are the exclusive steering plates, solidly embracing the 50mm Marzocchi forks. Completing the rolling chassis of the DB6 is the powerful Brembo radial braking system with its uniquely shaped rotors.
The DB6 Delirio’s frontal view, the face of the motorcycle, is defined by its exclusive headlight assembly, integrating the turn signals and the dashboard which is dominated by a distinctive rev-counter.
The handlebars, like the complete seating position, put the rider in full control over the DB6 Delirio at any time, providing an outstanding experience and the sensation of dominating the road.
The tank has been designed to be narrow at knee-hight, widening just above the rider’s legs. While adding to the unique line of the DB6 Delirio, this design provides a perfect combination of tank-volume and rider-control.
Just like on its counterpart, the DB5, the DB6 Delirio’s rider footrests can be adjusted in three positions. Also the upper control levers, brake and clutch, can be adjusted to each riders specific needs and comfort.
With a seat hight of 800mm and a weight of just 170kg, the DB6 Delirio is a motorcycle fitting shorter riders comfortably while providing enough space and leverage for taller riders, without any compromise to control and handling for any size rider.
All elements of the DB6 Delirio are characterized by two main aspects: They compliment the motorcycle’s exclusive and unique design line, while providing their respectively desired functionality. The passengers aluminum footrests and their supports reflect the trellis concept of the DB6 Delirio’s framework. In combination with the well padded seat, the passenger will experience a far more comfortable position than on most naked bikes on the market today. Also the rider has a more comfortable position, leaning only slightly forward over the tank.
The triangle shaped mufflers, complying with EU emission limit according to EURO3, are placed under the seat, following the motorcycles slim silhouette. Specially designed air intakes provide cooling to the muffler itself and prevent warming of the passenger seat.
Negative acceleration on both wheels is provided by powerful Brembo calipers embracing the distinctively shaped rotors.
The DB6 Delirio’s performance, powerful engine, light weight, and exclusive components, assembled to the highest standards, elevate this Bimota motorcycle above the known world of naked-bikes. Like every Bimota, the DB6 Delirio’s dynamic characteristics are in perfect harmony with its static appearance: beyond average.
Oh, and one more thing: On that rather cold day in January we mentioned earlier, everything went very well with Eng. Strada’s first test ride of the DB6 Delirio prototype. Still, Sergio Robbiano had to wait a long time with the helmet in his hands before he came back …
2011 Bimota S – International Specifications
USA MSRP – See dealer for pricing in USD
Canada MSRP – See dealer for pricing in CDN
European MSRP – â‚¬ 19,542
(DUCATI 1100 DS)
Type: Ducati L-twin cylinder, 2 valves per cylinder Desmodromic; air cooled
Displacement: 1079 ccm
Bore x Stroke: 98.0mm x 71.5mm
Compression Ratio: 10±0.5:1
Engine Redline: 9000rpm
Max Power: 67.6 kW (91 hp) @ 8500 rpm
Max Torque: 9.0 kgm (65.1 ft-lb) @ 4500 rpm
Valve Angle: 28°
Valvetrain Type: Desmodromic
Intake Valve Diameter: Ã˜ 40mm
Exhaust Valve Diameter: Ã˜ 35mm
Fuel Pump: Bitron 3.5 bar, electrical
Fuel Injection: Electronic fuel injection, 45mm throttle body
Lubrication System: Wet Sump
Fuel Tank Capacity: 16 l (4.2gal)
Gearbox: 6 speed
Gear Ratio: 6th 4:1 – 5th 4.5455:1 – 4th 5.263:1 – 3rd 6.25:1 – 2nd 8.333:1 – 1st 12.5:1
Primary Drive: 32/59 teeth
Final Drive: Chain, 15/40 teeth
Clutch: Dry multiplate with hydraulic control
Frame: 20/25mm (0.8/1.0in) tubular chrome molybdenum steel trellis with lateral plates in aircraft alloy
Rear Frame: 15/25/30mm (0.6/1.0/1.2in) tubular chrome molybdenum steel trellis with lateral plates in aircraft alloy
Swingarm Length: 525mm ±20 mm (20.7in ±0.8in)
Front suspension: 50mm Marzocchi upride-down fork with TiN treatment
Front wheel travel: 120 mm (4.7in)
Rear suspension: Extreme Tech Mono Shock, fully adjustable, straight connection
Rear wheel travel: 130 mm (5.1in)
Trail: 100mm (3.9in)
Wheelbase: 1425mm (56.1in)
Seat Height: 830mm (32.7in)
Foot Rest Height: 385mm (15.2in)
Front Wheel: 3.50×17.0 Al Alloy
Front Tyre: 120/70ZR17
Rear Wheel: 5.50×17.0 Al Alloy
Rear Tyre: 180/55ZR17
Front brake: 2x320mm Brembo floating discs, 4-piston radial calipers
Rear brake: 220mm sigle disc
Dry weight: 177kg (390lb)
All specifications are subject to change without notice. The above price is the Manufacturer’s Suggested Retail Price. Price excludes any applicable freight, dealer setup, tax, title, or licensing fees and is subject to change. Actual dealer prices may vary.
