2011 Harley-Davidson FLSTSE2 CVO Softail Convertible

Back to 2011 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2011 Harley-Davidson FLSTSE2 CVO Softail Convertible
2011 Harley-Davidson FLSTSE2 CVO Softail Convertible

2011 Harley-Davidson FLSTSE2 CVO Softail Convertible
2011 Harley-Davidson FLSTSE2 CVO Softail Convertible

2011 Harley-Davidson FLSTSE2 CVO Softail Convertible
2011 Harley-Davidson FLSTSE2 CVO Softail Convertible

2011 Harley-Davidson FLSTSE2 CVO Softail Convertible
2011 Harley-Davidson FLSTSE2 CVO Softail Convertible



– 2011 Harley-Davidson FLSTSE2 CVO Softail Convertible

2011 Harley-Davidson FLSTSE2 CVO Softail Convertible

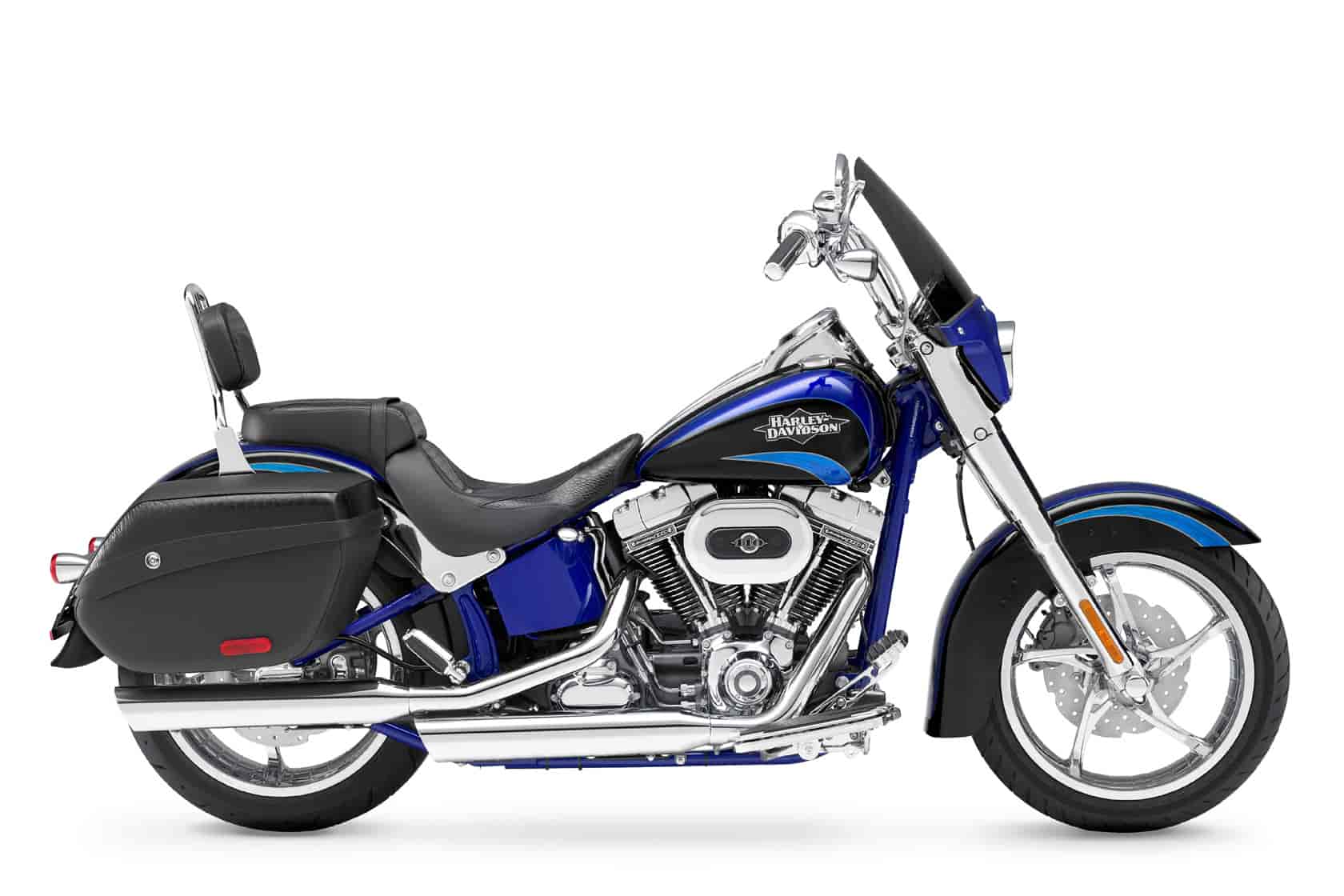

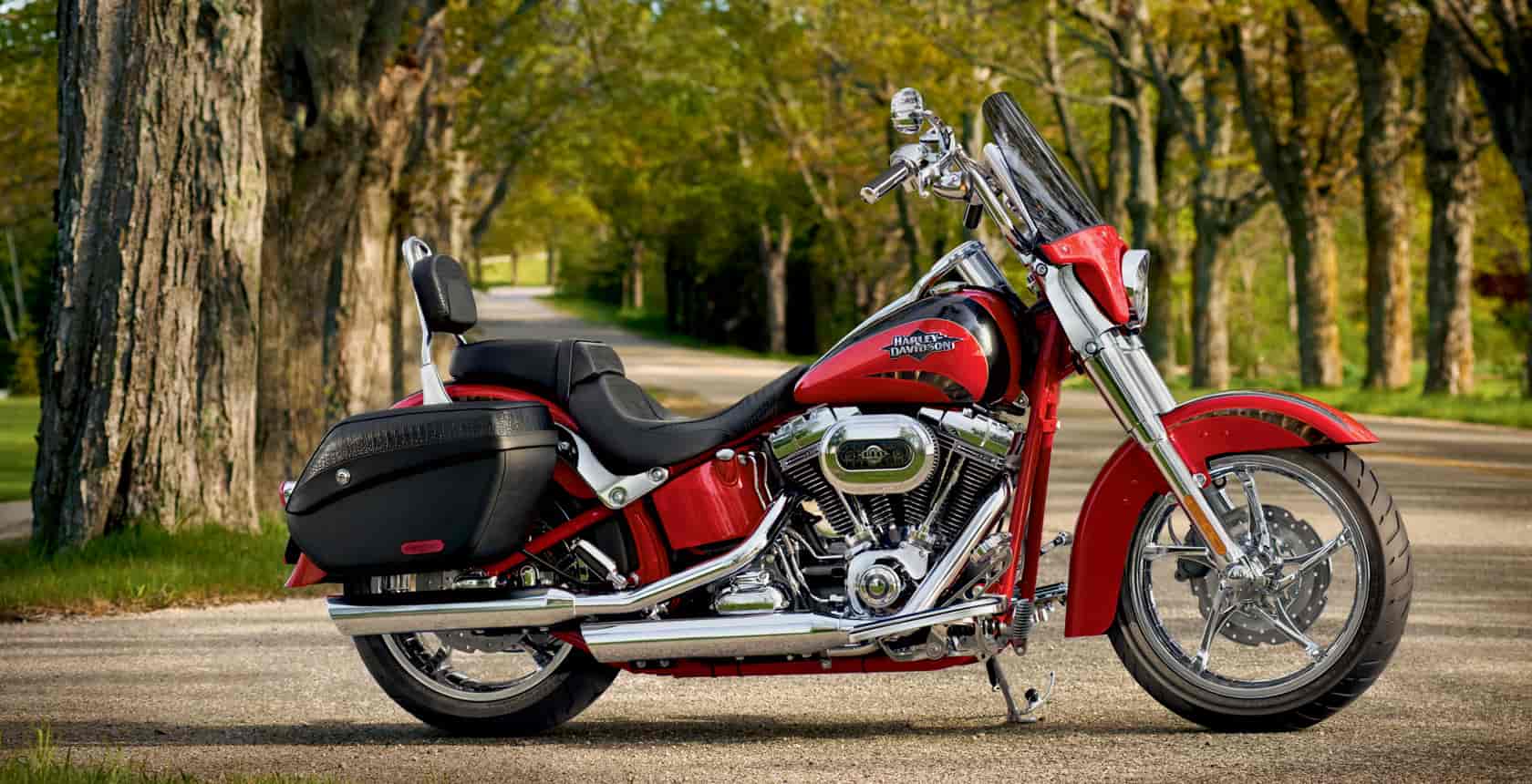

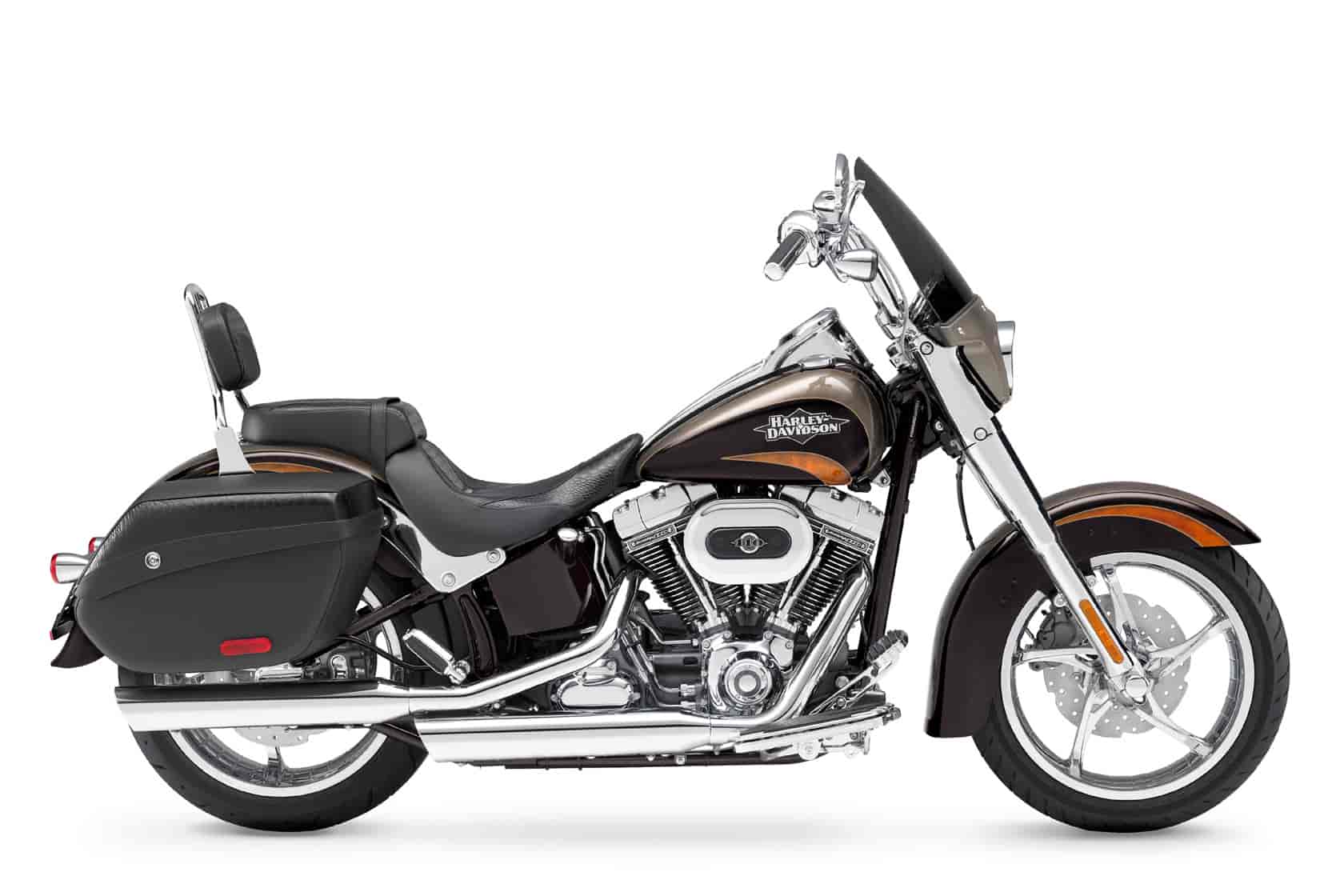

The Harley-Davidson® CVO™ Softail® Convertible is a limited-production custom motorcycle that can be configured for all-day touring, two-up cruising or solo profiling by adding or detaching key components, which can be easily removed or installed without tools. Production will be limited to approximately 2,400 units assembled at the Harley-Davidson Vehicle Operations facility in York, Pa. The Softail rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of modern suspension that is hidden under the chassis. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.





2011 Harley-Davidson FLSTSE2 CVO Softail Convertible Model Highlights


NEW Electronic throttle control with cruise control standard
NEW Anti-lock Braking System (ABS) standard
NEW Detachable compact fairing with integrated audio system featuring 3.5-inch 2-way speakers, 20W per channel amp, and 8GB Apple® iPod nano with etched Bar & Shield logo and protective CVO pouch
NEW Alligator-style leather inserts on the detachable saddlebags, leather seat, passenger pillion and backrest pad
NEW Chrome, 1.25-inch welded mini-ape handlebar
NEW Keyless ignition system with CVO™ backlit medallion on the tank console
NEW Extended jiffy leg is easier to reach
o Detachable leather-covered saddlebags, passenger pillion, upright and backrest pad, and fairing
o Chrome aluminum 18-inch Stinger wheels with matching Stinger chrome sprocket and Stinger floating brake rotors
o 200/50R18 radial rear tire
o Rear light bar with integrated stop/turn/tail lights
o Combination digital speedometer with analog tachometer
o High-flow Ventilator engine air intake with alligator-style insert and rain sock
o Exclusive paint scheme in three color combinations
o Color-coordinated frame and swingarm, frame inserts, saddlebag brackets and horseshoe oil tank
o Screamin’ Eagle® Twin Cam 110B™ Granite powder-coated powertrain with 110 Screamin’ Eagle identifiers on cylinder heads
o Rumble Collection grips, floor boards, passenger and shifter pegs, brake pedal pad and mirrors






2011 Harley-Davidson FLSTSE2 CVO Softail Convertible Key Features


The Harley-Davidson® CVO™ Softail® Convertible is a limited-production custom motorcycle that can be configured for all-day touring, two-up cruising or solo profiling by adding or detaching key components, which can be easily removed or installed without tools.
Production will be limited to approximately 2,400 units assembled at the Harley-Davidson Vehicle Operations facility in York, Pa.
The Softail rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of modern suspension that is hidden under the chassis.
The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.
o Polished stainless steel shift linkage
o Smoked front turn signal lenses with amber bulbs
o Chrome Accessories
– Clutch line and brake line clamps
– Derby and timer covers with engine turn inserts
– Headlight trim ring, nacelle and back plate
– Front sliders
– Wheel spacers
– Handlebar risers and caps
– Shifter, rear brake lever and forward control mounts
– Coil cover and voltage regulator
– Rear brake master cylinder cover
– Switch housings
– Upper belt guard and debris deflector
– Sprocket bolt covers
– Valve stem caps
– Front and rear axle nut covers
– Pivot shaft covers
o Black high-torque 1.4kW starter
o High-performance clutch with hydraulic actuation
o Harley-Davidson® Smart Security System with siren









2011 Harley-Davidson FLSTSE2 CVO Softail Convertible – USA Specifications
U.S. MSRP – $29,599

DIMENSIONS
Length 94.9 in. (2410 mm)
Overall Width 35.8 in. (909 mm)
Overall Height 50.8 in. (1290 mm)
Seat Height:
– Laden2 24.4 in. (620 mm)
– Unladen 26.2 in. (665 mm)

Ground Clearance 4.3 in. (109 mm)
Rake (steering head) 32°
Fork Angle 31°
Trail 5.8 in. (147 mm)
Wheelbase 64.2 in. (1631 mm)
Tires (Dunlop® Harley-Davidson Series, radial blackwall front and rear):
– Front – D407 130/70R18 63V
– Rear – D407 200/50R18 76V

Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.0 qts.
Weight:
– As Shipped 754 lbs. (342.0 kg)
– In Running Order 781 lbs. (354.3 kg)
– Gross Vehicle Weight Rating 1160 lbs. (526.2 kg)
– Gross Axle Weight Rating:
– Front 430 lbs. (195.0 kg)
– Rear 730 lbs. (331.1 kg)



ENGINE
Engine4 Air-cooled, Twin Cam 110B™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 4 in. x 4.38 in. (101.6 mm x 111.3 mm)
Displacement 110 cu. in. (1803 cc)
Compression Ratio 9.15:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Ventilator Intake with Chrome cover,
Fiberglass media, washable, exposed element with rain sock
Lubrication System Pressurized, dry-sump



DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Hydraulically actuated, 9-plate, wet,
with high-performance spring
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
– 1st 9.311
– 2nd 6.454
– 3rd 4.793
– 4th 3.882
– 5th 3.307
– 6th 2.79



CHASSIS
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; color coordinated with vehicle
Swingarm Mild steel tube sections, forged junctions; MIG welded; color coordinated with vehicle
Front Forks 41.3 mm telescopic, chrome upper fork-slider covers
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Chrome Stinger™ Cast Aluminum
– Front 18 in. x 3.5 in. (457 mm x 89 mm)
– Rear 18 in. x 6 in. (457 mm x 152 mm)
Brakes:
– Caliper Type 4-piston fixed front; 2-piston floating rear
– Rotor Type (diameter x width): Single floating Stinger Waved Rotor
– Front 11.5 in. x .2 in. (292 mm x 5 mm)
– Rear 11.5 in. x .23 in. (292 mm x 5 mm)
– Anti-lock Braking System (option) Standard
Suspension Travel:
– Front Wheel 5.1 in. (130 mm)
– Rear Wheel 3.3 in. (84 mm)



PERFORMANCE
Engine Torque6 (per SAE J1349):
– North America 110 ft. lbs. @ 3000 RPM (149 Nm @ 3000 RPM)
Lean Angle:
– Right 26°
– Left 26°
Fuel Economy7
(EPA urban/highway test)
34/50 mpg (6.90/4.70 L/100 km)



ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.4 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Rear Tail/Stop Lights 8W/28W self-canceling
– Front Signal Lights 8W/28W self-canceling
– Indicator Lamps – High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8, 6-speed, low fuel warning, cruise control, ABS




COLOR OPTIONS
Custom Colors
o Scarlet Red Pearl and Dark Slate Pearl with Metal Grind Graphics
o Midnight Sky and Candy Cobalt with Blue Ice Graphics
o Maple Metallic and Roman Gold with Burnished Copper Graphics



WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter



1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7) kg operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm spring.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.






2011 Harley-Davidson FLSTSE2 CVO Softail Convertible – Canada Specifications
Canadian MSRP – See your local retailer for pricing information


DIMENSIONS Metric Units
Length 2385 mm
Seat Height
Laden 1
Unladen 1 650 mm
Ground Clearance 110 mm
Rake Steering Head
Trail 147 mm
Wheelbase 1620 mm
Fuel Capacity 18.9 L
Oil Capacity 2.8 L
Weight
Dry Weight 343 kg
Running Order 355 kg
Luggage Capacity
Volume
Weight



POWERTRAIN
Engine 2 Air-cooled, Twin Cam 110B™Air-cooled, Twin Cam 110B™
Displacement 1584 cc
Bore x Stroke in. / in.101.6 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm145 Nm @ 2750 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.9 l/100km
Fuel Economy Hwy 5 4.7 l/100km
Gear Ratio (Overall)
1st 9.311
2nd 6.454
3rd 4.793
4th 3.882
5th 3.307
6th 2.79



WHEELS / TIRES
Wheels
Front 6 Chrome Stinger™ Cast AluminumChrome Stinger™ cast aluminum
Wheel Option 6
Rear 6 Chrome Stinger™ Cast aluminumChrome Stinger™ cast aluminum
Tire Size
Front
Rear



ELECTRICAL
Instruments Digital speedometer and analog tachometer with gray satin tint aluminum face. Time of day clock on odometer, dual tripmeter, engine diagnostics readout, LED indicator lights.Digital speedometer & analog tachometer w/ gray satin tint aluminum face Time of day clock on odometer, Dual tripmeter, Engine diagnostics readout, LED indicator lights
Indicator Lamps 7 Low fuel, battery, engine diagnostics, 6-speed, cruise control, ABS, security system, turn signals, neutral, high beam, low oil pressureLow fuel, battery, engine diagnostics, 6-speed, cruise control, ABS, security system, turn signals, neutral, high beam, low oil pressure


CHASSIS
Brakes 4-piston fixed front , and 2-piston floating rear4-piston fixed front , and 2-piston floating rear
Parking Brake
Lean Angle
Exhaust System Chrome, shorty-dual exhaust w/chrome mufflers and muffler shieldsChrome, shorty-dual exhaust with chrome mufflers and muffler shields



COLOR OPTIONS
Scarlet Red Pearl & Dark Slate Pearl / Metal Grind Graphics
Midnight Sky & Candy Cobalt / Blue Ice Graphics
Maple Metallic & Roman Gold / Burnished Copper GraphicsScarlet Red Pearl & Dark Slate Pearl / Metal Grind Graphics
Midnight Sky & Candy Cobalt / Blue Ice Graphics
Maple Metallic & Roman Gold / Burnished Copper Graphics



1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
