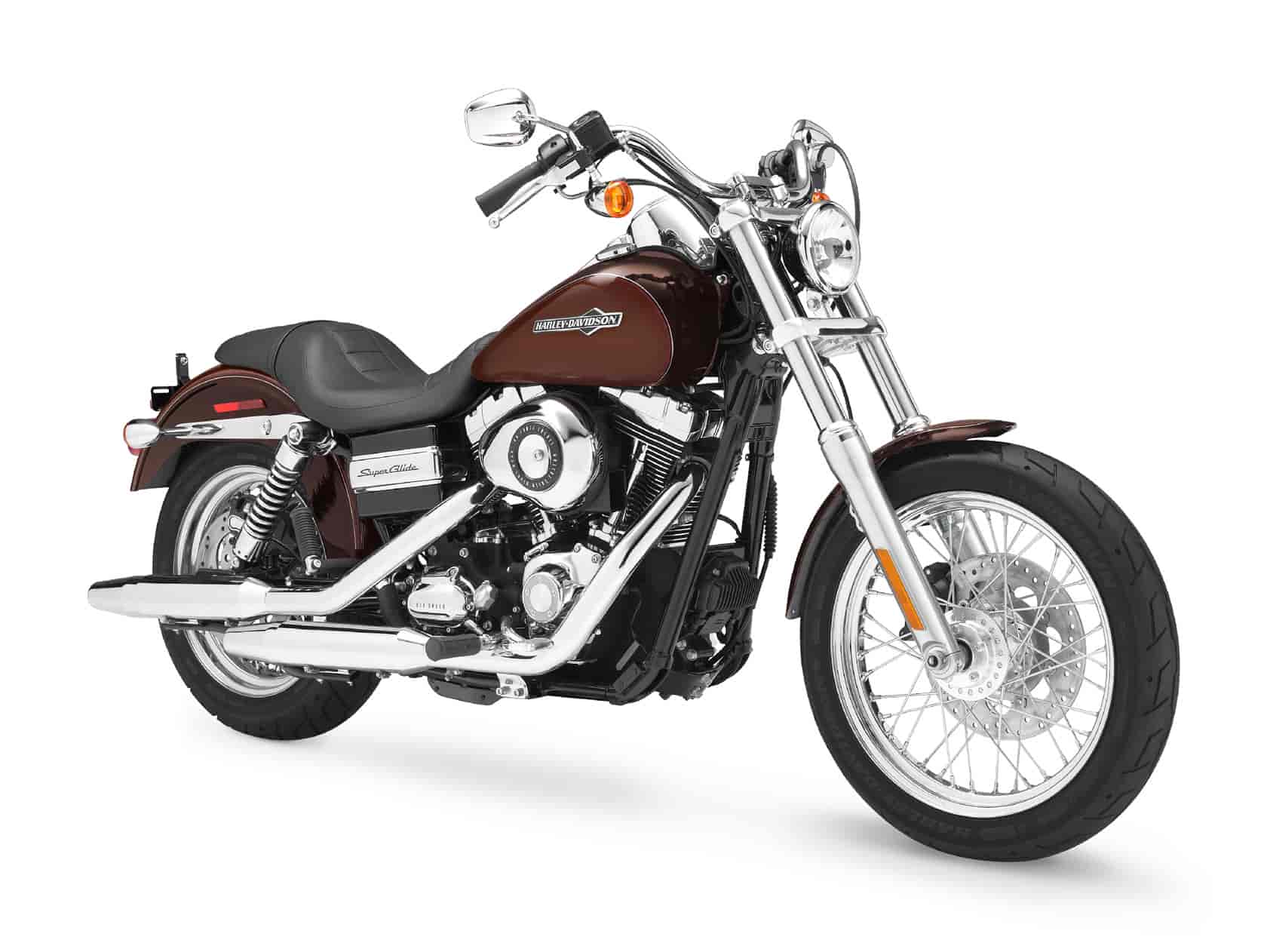

2011 Harley-Davidson FXDC Dyna Super Glide Custom

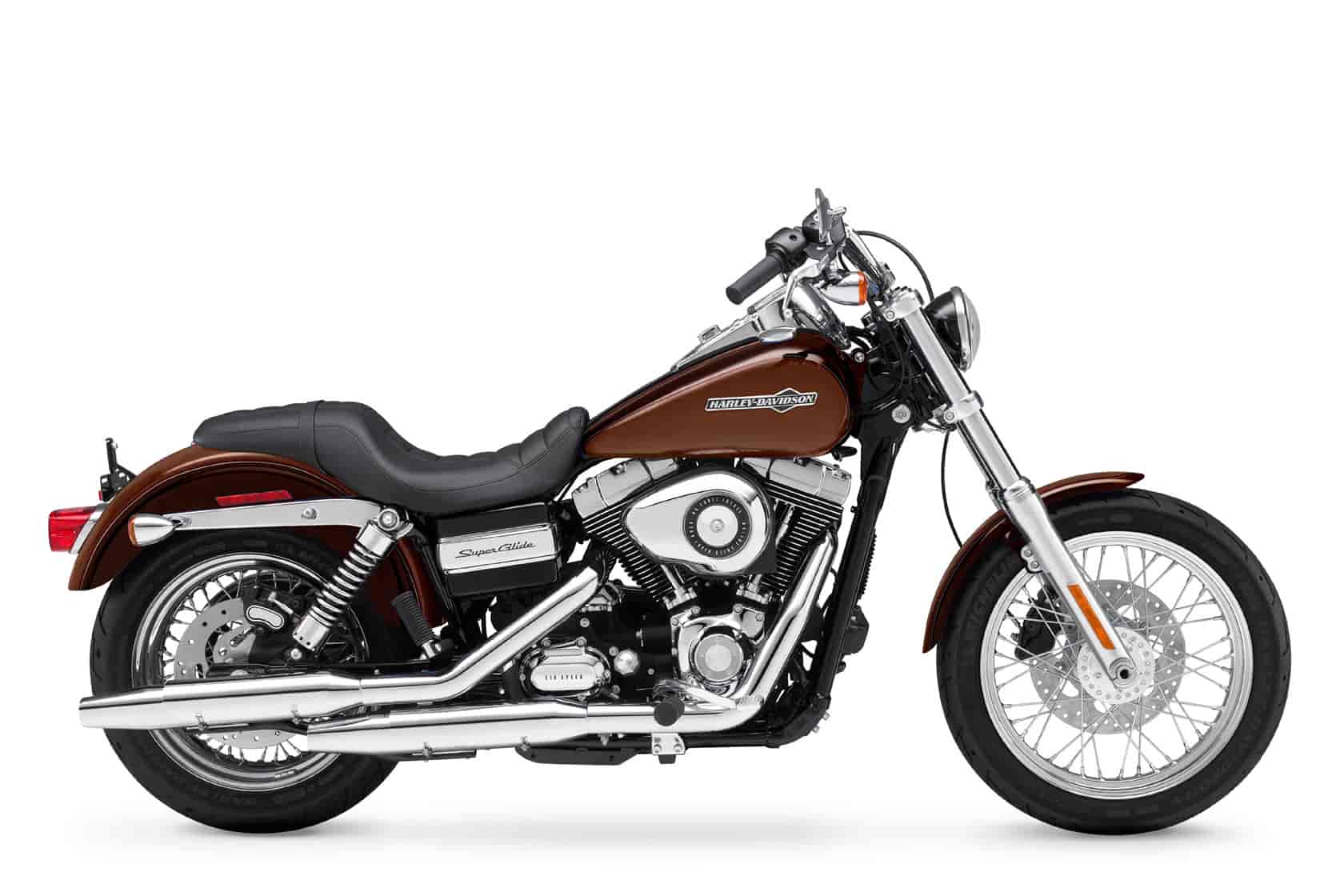

2011 Harley-Davidson FXDC Dyna Super Glide Custom

2011 Harley-Davidson FXDC Dyna Super Glide Custom
2011 Harley-Davidson FXDC Dyna Super Glide Custom

2011 Harley-Davidson FXDC Dyna Super Glide Custom
2011 Harley-Davidson FXDC Dyna Super Glide Custom


– 2011 Harley-Davidson FXDC Dyna Super Glide Custom

2011 Harley-Davidson FXDC Dyna Super Glide Custom

For riders who want a head start on building their dream custom motorcycle or for those who just want a little more straight from the showroom floor, the Dyna® Super Glide® Custom model may be the perfect bike. This stylish performer’s long, low profile is enhanced by a low-slung, two-up ribbed seat. Steel Laced wheels and the Fat Bob® fuel tank add to the classic look. A mini pull-back handlebar creates a clean look for the front end, which draws attention to the tank-mounted speedometer/ignition console. With a nimble frame, Twin Cam 96™ engine and smooth-shifting 6-Speed Cruise Drive® gearbox, the Dyna® Super Glide® Custom is just plain fun to ride.



Harley-Davidson FXDC Dyna Super Glide Custom Model Highlights

NEW Paint color options
o Michelin® Scorcher™ tires
o Black powertrain with chrome covers
o Chrome exhaust with dual staggered shorty mufflers
o 5.0-gallon Super Glide Custom fuel tank
o Chrome, Laced Steel wheels
o Low profile front fender
o Sport wrap-around rear fender with painted supports
o One-piece, two-up Dyna classic seat
o Stainless steel, mini pull-back handlebar
o Chrome low-profile tank console with electronic speedometer







Key Harley-Davidson FXDC Dyna Super Glide Custom Key Features

For riders who want a little head start on building their dream custom motorcycle – or those who just want a little more ‘bling’ straight from the showroom floor – the Dyna® Super Glide® Custom model may be the perfect bike.

This stylish performer’s long, low profile is enhanced by a low-slung, two-up ribbed seat. Steel Laced wheels and the Fat Bob® fuel tank add to the classic look. A mini pull-back handlebar creates a clean look for the front end, which draws attention to the tank-mounted speedometer/ignition console. And thanks to the nimble frame, Twin Cam 96™ engine and smooth-shifting 6-Speed Cruise Drive® gearbox, the Dyna® Super Glide® Custom is just plain fun to ride.

o Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), rated at 92 ft. lbs. of torque
o 6-speed Cruise Drive® transmission
o Exposed under-seat battery box
o Exposed rear coil-over shock absorbers
o Mid-mounted rider footpegs with brake and shift levers
o Optional Harley-Davidson® Smart Security System with hands-free security fob
o Optional Chrome Aluminum Profile laced wheels
o Optional Original Equipment Custom Color paint program






2011 Harley-Davidson FXDC Dyna Super Glide Custom – USA Specifications
U.S. MSRP – Vivid Black $12,999. Solids $13,374. Two-Tones $13,694. Custom Colors $13,864

DIMENSIONS
Length 92.9 in. (2360 mm)
Overall Width 38.9 in. (988 mm)
Overall Height 48.5 in. (1232 mm)
Seat Height:
– Laden2 26.3 in. (668 mm)
– Unladen 26.5 in. (673 mm)
Ground Clearance 4.6 in. (117 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.7 in. (119 mm)
Wheelbase 64.2 in. (1631 mm)
Tires (Michelin® Scorcher™ “31” front and rear):
– Front – Scorcher™ “31” 100/90-19 57H
– Rear – Scorcher™ “31” 160/70-17 73V

Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.0 qts.
Weight:
– As Shipped 645 lbs. (292.6 kg)
– In Running Order 676 lbs. (306.7 kg)
– Gross Vehicle Weight Rating 1085 lbs. (492.2 kg)
– Gross Axle Weight Rating:
– Front 390 lbs. (176.9 kg)
– Rear 695 lbs. (315.3 kg)



ENGINE
Engine4 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump



DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
– 1st 9.311
– 2nd 6.454
– 3rd 4.793
– 4th 3.882
– 5th 3.307
– 6th 2.79



CHASSIS
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels5 (Chrome, Profile Laced Aluminum, front and rear option):
Chrome, Laced Steel
– Front 19 in. x 2.5 in. (483 mm x 64 mm)
– Rear 17 in. x 4.5 in. (432 mm x 114 mm)
Brakes:
– Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
– Rotor Type (diameter x width): Patented, uniform expansion rotors (floating, front only)
– Front (floating) 11.8 in. x .2 in. (300 mm x 5 mm)
– Rear 11.5 in. x .23 in. (292 mm x 6 mm)
Suspension Travel:
– Front Wheel 5 in. (127 mm)
– Rear Wheel 3.1 in. (78.74 mm)



PERFORMANCE
Engine Torque6 (per SAE J1349):
– North America 92 ft. lbs. @ 3000 RPM (125 Nm @ 3000 RPM)
Lean Angle:
– Right 29.5°
– Left 30.9°
Fuel Economy7
(EPA urban/highway test) 34/53 mpg (6.90/4.40 L/100 km)



ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system
(493W @ 13.5V, 2000 RPM, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Tail/Stop Lights 8W/28W (5W/21W)
– Turn Signal Lights 28W (21W) self-canceling
– Indicator Lamps – High beam, directional light bar, neutral, low oil pressure, engine diagnostics,
turn signals, security system8 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard

COLOR OPTIONS
Solids

– Vivid Black
– Scarlet Red

Two-Tones

– Cool Blue Pearl/Vivid Black
– Dark Candy Root Beer/Light Candy Root Beer

Custom Colors

– Pyschedelic Purple/Vivid Black
– Apple Green/Vivid Black



WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.






2011 Harley-Davidson FXDC Dyna Super Glide Custom – Canada Specifications
Canadian MSRP – See your local retailer for pricing information.


2011 Motorcycles
Close Window
FXDC Super Glide® Custom
Send to Printer


MSRP See your local retailer for pricing information.
DIMENSIONS Metric Units
Length 2345 mm
Seat Height
Laden 1
Unladen 1 710 mm
Ground Clearance 120 mm
Rake Steering Head
Trail 119 mm
Wheelbase 1625 mm
Fuel Capacity 18.78 L
Oil Capacity 2.8 L
Weight
Dry Weight 295 kg
Running Order 310 kg
Luggage Capacity
Volume
Weight
POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96™Air-cooled, Twin Cam 96™
Displacement 1584 cc
Bore x Stroke in. / in.95.3 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm123 Nm @ 3000 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.72 l/100km
Fuel Economy Hwy 5 4.36 l/100km
Gear Ratio (Overall)
1st 9.31
2nd 6.453
3rd 4.793
4th 3.881
5th 3.306
6th 2.79
WHEELS / TIRES
Wheels
Front 6 Chrome, Laced SteelChrome, Laced Steel
Wheel Option 6 Chrome, Aluminum Profile LacedChrome, Aluminum Profile Laced
Rear 6 Chrome, Laced SteelChrome, Laced Steel
Tire Size
Front
Rear
ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator lightTank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Indicator Lamps 7 High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warningsHigh beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings

CHASSIS
Brakes 4-piston fixed front , and 2-piston torque-free floating rear4-piston fixed front , and 2-piston torque-free floating rear
Parking Brake
Lean Angle
Exhaust System Chrome, staggered shorty exhaust with dual mufflersChrome, staggered shorty exhaust with dual mufflers



COLOR OPTIONS
Vivid Black
Scarlet Red
Cool Blue Pearl / Vivid Black
Dark Candy Root Beer / Light Candy Root Beer
Psychedelic Purple / Vivid Black
Apple Green / Vivid Black



1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
