2011 KTM 250 SX

Back to 2011 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

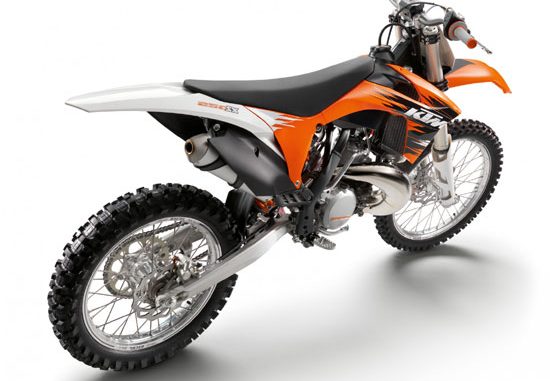

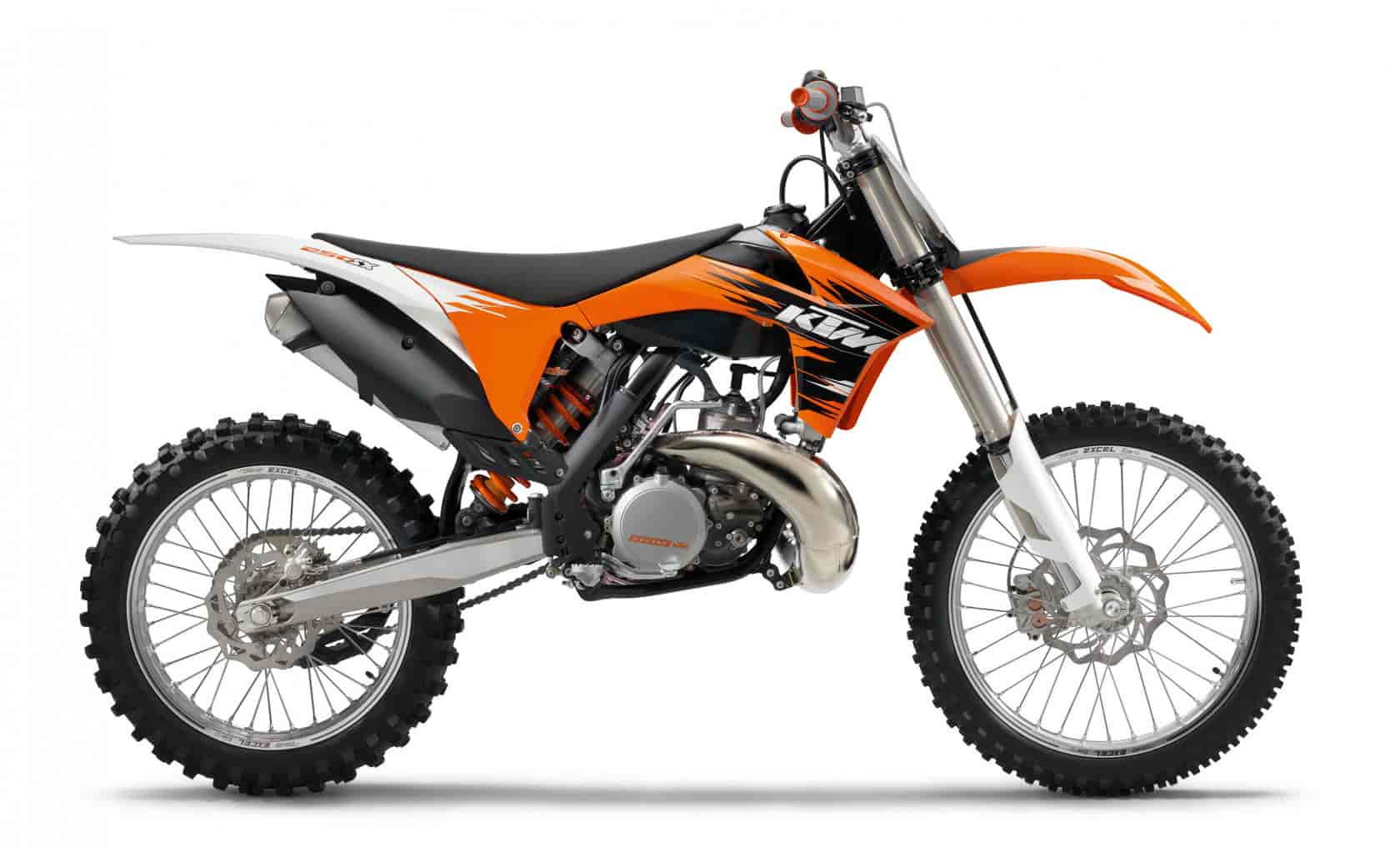

2011 KTM 250 SX
2011 KTM 250 SX

2011 KTM 250 SX
2011 KTM 250 SX

2011 KTM 250 SX
2011 KTM 250 SX


– 2011 KTM 250 SX

2011 KTM 250 SX

For years KTM has committed to the development of 2-stroke engines which are an advantage against 4-strokes in many aspects. With an unbeatable power-to-weight ratio, lower cost of acquisition and easy to maintain and service – there is no better choice than a two-stroke.

A precision racing tool with an unbeatable power-to-weight ratio. Perfect knee contact in the area of the fuel tank, airbox and lateral frame tube due to the revolutionary new bodywork. With more peak power and torque for the 2011 model year thanks to extensive reworking of the drive unit. Never has it been easier or more playful to ride onto the podium in the MX1 class.

New for 2011:

– New chassis (PDS)
– New airbox
– Air flow optimized intake boot between filter and carburetor
– New exhaust (new shape with bigger diameter at connection pipe)
– New two component rear silencer (better connection and bigger inner diameter)
– Newly developed cylinder (lower exhaust port, new timing and optimized exhaust control)
– Noticeable increase in power performance
– Higher torque
– Better rideability




2011 KTM 250 SX – USA Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore x stroke 66.4 x 72 mm (2.61 x 2.83″)
Starter Kickstarter
Transmission 5 gears
Carburetor Keihin PWK 36S AG
Control TVC power valve
Lubrication Mixture oil lubrication 1:60
Transmission oil Motorex, SAE 15W50
Primary drive 26:72
Final drive 13:48
Cooling Liquid cooling
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Renthal, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Brakes, front/rear Disc brakes 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 19″ Excel
Tires, front/rear 80/100-21″; 110/90-19″
Chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475±10 mm (58.07 ± 0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 985 mm (38.78″)
Tank capacity approx. 8 liters (2.11 gal)
Weight (no fuel) approx. 95.4 kg (208 lbs)




2011 KTM 250 SX – Canada Specifications
MSRP: See KTM Dealer for prices

Engine

Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore x stroke 66.4 x 72 mm (2.61 x 2.83″)
Starter Kickstarter
Transmission 5 gears
Carburetor Keihin PWK 36S AG
Control TVC power valve
Lubrication Mixture oil lubrication 1:60
Transmission oil Motorex, SAE 15W50
Primary drive 26:72
Final drive 13:48
Cooling Liquid cooling
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan



Chassis

Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Renthal, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/336 mm
Brakes, front rear Disc brakes 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 19″ Excel
Tires, front/rear 80/100-21″; 110/90-19″
Chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1495±10 mm
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 992 mm
Tank capacity approx. 7,5 liters
Weight (no fuel) approx. 93,8 kg






2011 KTM 250 SX – International Specifications
MSRP: See KTM Dealer for prices

Engine

Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore x stroke 66.4 x 72 mm (2.61 x 2.83″)
Starter Kickstarter
Transmission 5 gears
Carburetor Keihin PWK 36S AG
Control TVC power valve
Lubrication Mixture oil lubrication 1:60
Transmission oil Motorex, SAE 15W50
Primary drive 26:72
Final drive 13:48
Cooling Liquid cooling
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan



Chassis

Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Renthal, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/336 mm
Brakes, front rear Disc brakes 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 19″ Excel
Tires, front/rear 80/100-21″; 110/90-19″
Chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1495±10 mm
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 992 mm
Tank capacity approx. 7,5 liters
Weight (no fuel) approx. 93,8 kg






KTM PRESS RELEASE

PERFECTLY POSITIONED: THE KTM OFFROAD MODEL YEAR 2011

KTM’s Mattighofen factory in Austria has invested a huge amount of effort in developing the latest Offroad motorcycles for the 2010 season with the clear aim of improving the advantage on loose ground even more. Star of the KTM model range is the revolutionary MX1 innovation, the 350 SX-F.

The current motorsport season is well underway and the KTM factory riders have already claimed a slew of podiums on the latest “Made in Austria“ Offroaders. Now the sports brand from Austria presents the line-up of brand new motorcycles for the Model Year 2011.

With three high quality and competitive Minicycle variants for the youngest offroad enthusiasts, a total of six uncompromising Motocross motorcycles especially designed for winning races as well as eight versions of Sport Enduros, the Austrian manufacturer presents the perfect line-up for the coming season. In doing so, KTM once again underlines its leading role in the world of Offroad sports activity.

The huge amount of depth of development in the new Offroad model range extends all the way from the 50 cc two-stroke (50 SX) right up to the powerful displacement of the Enduro 530 EXC-R. In between there is a whole range of tailor-made sports machines for every type of offroad riding and for every rider profile, all absolutely true to the KTM “Ready to Race” philosophy. KTM has just the right machine, regardless of whether it’s for the ambitious hobby rider or the ruling world champion.

As well as the huge development effort that the KTM technicians have applied to the entire model range, these new motorcycles still include some very special innovations. This especially applies to the 350 SX-F, which was first exhibited last autumn. This, the first ever 350 cc bike deployed in the MX1 World Championship, has already been mastered by factory riders Antonio “Tony” Cairoli and his Red Bull KTM teammate Rui Goncalves. Cairoli not only won the premiere race for the 350 machine; after his GP victories, he is also leading the championship standings.

In addition to the unique engine concept, the MX lineup for the 2011 also includes a newly developed frame and chassis components.

The Enduro models, which have been similarly decorated with world championship titles all also profit from the massive amount of experience gathered by not less than 176 World Championship titles. This can be seen both in the feather light two-stroke versions as well as the highly modern and performance powerful four-stroke models. With significant improvements in a while range of areas as well as the extensive series equipment, these machines are prepared in the best possible way for the new racing season.

The new Motocross, Enduro and Minicycle models will be delivered to KTM dealers from June of this year.
