2011 KTM 250 XC

Back to 2011 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

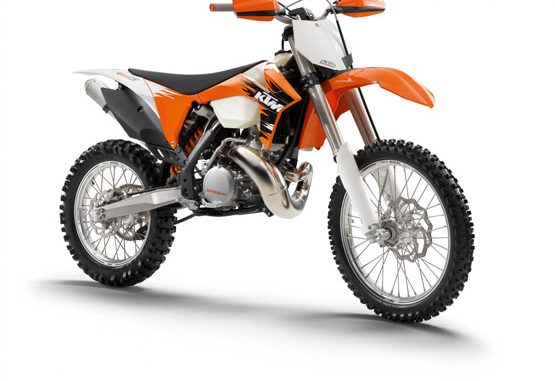

2011 KTM 250 XC
2011 KTM 250 XC

2011 KTM 250 XC
2011 KTM 250 XC


– 2011 KTM 250 XC

2011 KTM 250 XC

The 250 XC is an all-around light-weight bike with powerful torque that is easy to control at all times.


NEW For 2011
– New frame and swingarm with new PDS shock
– New silver EXCEL wheels with ninc/nickel coated spokes
– New bodywork and airbox
– Airflow optimized intake boot between filter and carburetor
– New 2-component silencer with bigger inner tubing and new bracket à more torque, cooler running engine and better connection to the bike
– Noticeable increase in performance
– Higher torque
– Better rideability
– Newly developed cylinder with lower exhaust port, new timing and optimized exhaust control with new main spring
– This provides an increase in overall performance with more torque and improved ridability
– New two component exhaust with a larger diameter at the the connection pipe
– New 6-speed gearbox




2011 KTM 250 XC – USA Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore x stroke 66.4 x 72 mm (2.61 x 2.83″)
Starter Kick start/Electric Start
Transmission 6 gears XC semi-close-ratio
Carburetor Keihin PWK 36 S AG
Control TVC twin valve control
Lubrication Mixture oil lubrication 1:60
Transmission oil 15W50
Primary drive 26:72
Final drive 14:50
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital E


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260 mm (10.24″) disc, Brembo double piston
Rear brake 220 mm (8.66″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 985 mm (38.78″)
Tank capacity approx. 11.5 liters (3.04 gal.)
Weight (no fuel) approx. 97.6 kg (215.20 lbs)








2011 KTM 250 XC – Canada Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 2-stroke
Displacement 249 cc
Bore x stroke 66.4 x 72 mm (2.61 x 2.83″)
Starter Kick start/Electric Start
Transmission 6 gears XC semi-close-ratio
Carburetor Keihin PWK 36 S AG
Control TVC twin valve control
Lubrication Mixture oil lubrication 1:60
Transmission oil 15W50
Primary drive 26:72
Final drive 14:50
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital E


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260 mm (10.24″) disc, Brembo double piston
Rear brake 220 mm (8.66″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 985 mm (38.78″)
Tank capacity approx. 11.5 liters (3.04 gal.)
Weight (no fuel) approx. 97.6 kg (215.20 lbs)





2011 KTM 250 XC – International Specifications
MSRP: See KTM Dealer for prices

TBA
