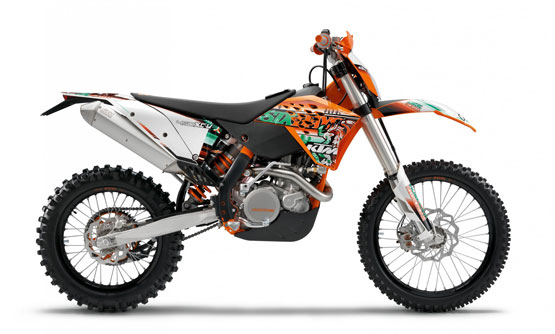

2011 KTM 450 XC-W Sixdays
2011 KTM 450 XC-W Sixdays


– 2011 KTM 450 XC-W Sixdays

2011 KTM 450 XC-W Sixdays

These special editions are fitted with every detail necessary for top competition straight from KTM. They feature: exclusive Six Days graphics, Enduro Racing headlight, tail light, quick-release plastic skid plate, Selle Dalla Valle Italian seat with card holder, radiator cooling fan, Stealth orange chain sprocket, front axle pull, handlebar pad, fork bleeder valves and rear brake retaining pin.


Sixdays Features:
– Mexico Six Day limited edition graphics
– Frame powder coated in Orange
– Quick release plastic engine protector
– Radiator fan
– Black anodized CNC machined triple clamps
– Selle Dalla Valle Italian seat cover with card pocket
– Stealth rear sprocket
– Front axle puller
– Quick-change rear brake pad pin
– Breather valves for front fork




2011 KTM 450 XC-W Sixdays – USA Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 4-stroke, SOHC, 4 valves
Displacement 449.3 cc
Bore x stroke 95 x 63.4 mm (3.74 x 2.5″)
Compression ratio 11.9:1
Starter/Battery Kickstarter and E-Starter/12 V 4 Ah
Transmission 6 gears wide-ratio
Carburetor Keihin FCR-MX 39
Control 4 V/OHC with cam levers
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication Motorex, SAE 10W50
Primary drive 33:76
Final drive 13:52
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium, removable
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260 mm (10.24″) disc, Brembo double piston
Rear brake 220 mm (8.6″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium with USFS spark arrestor
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9.2 liters (2.43 gal)
Weight (no fuel) approx. 112.2 kg (247.36 lbs)







2011 KTM 450 XC-W Sixdays – Canada Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 4-stroke, SOHC, 4 valves
Displacement 449.3 cc
Bore x stroke 95 x 63.4 mm (3.74 x 2.5″)
Compression ratio 11.9:1
Starter/Battery Kickstarter and E-Starter/12 V 4 Ah
Transmission 6 gears wide-ratio
Carburetor Keihin FCR-MX 39
Control 4 V/OHC with cam levers
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication Motorex, SAE 10W50
Primary drive 33:76
Final drive 13:52
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium, removable
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260 mm (10.24″) disc, Brembo double piston
Rear brake 220 mm (8.6″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium with USFS spark arrestor
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9.2 liters (2.43 gal)
Weight (no fuel) approx. 112.2 kg (247.36 lbs)








2011 KTM 450 XC-W Sixdays – International Specifications
MSRP: See KTM Dealer for prices

TBA
