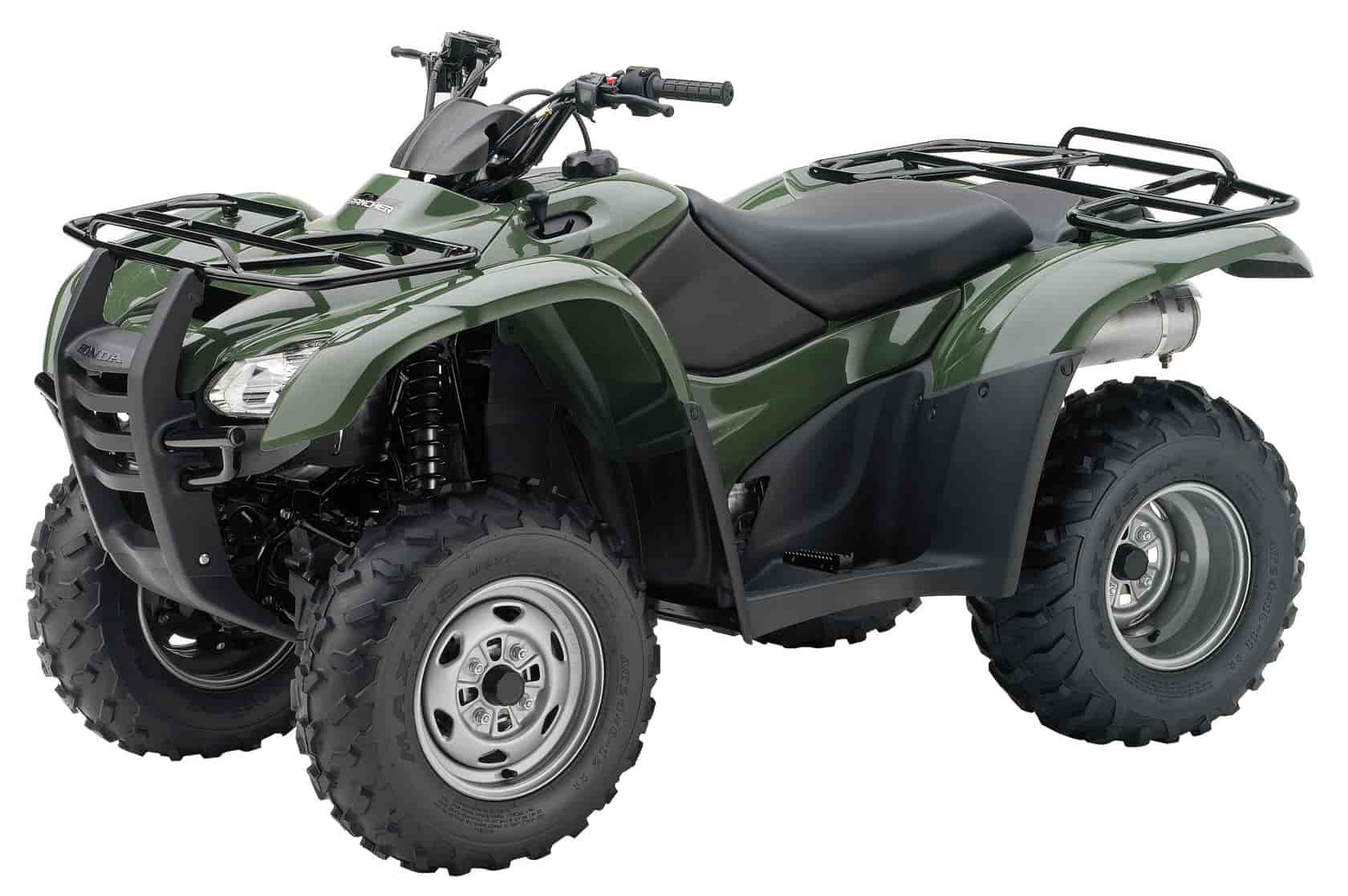

2011 Honda FourTrax Rancher 4×4 ES with Power Steering TRX420FPE
– 2011 Honda FourTrax Rancher 4×4 ES with Power Steering TRX420FPE
2011 Honda FourTrax Rancher 4×4 ES with Power Steering TRX420FPE
FourTrax Rancher
Features & Options
– Programmed Fuel Injection (PGM-FI)
– America’s favorite ATV
– Five-speed manual transmission with reverse
FourTrax Rancher ES
Features & Options
– Programmed Fuel Injection (PGM-FI)
– Electric Shift Program
– Fully sealed rear driveshaft
FourTrax Rancher 4×4
Features & Options
– Programmed Fuel Injection (PGM-FI)
– TraxLok 2WD/4WD
– Five-speed manual transmission with reverse
FourTrax Rancher 4×4 ES
Features & Options
– Programmed Fuel Injection (PGM-FI)
– TraxLok 2WD/4WD
– Electric Shift Program
FourTrax Rancher 4×4 with Power Steering
Features & Options
– 420cc single-cylinder four-stroke
– Revolutionary Electric Power Steering
FourTrax Rancher 4×4 ES with Power Steering
Features & Options
– 420cc single-cylinder four-stroke
– TraxLok 2WD/4WD with 5-speed transmission and Electric Shift Program
Important Safety Information
Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
2011 Honda FourTrax Rancher 4×4 ES with Power Steering TRX420FPE Features:
2011 Honda FourTrax Rancher 4×4 ES with Power Steering TRX420FPE – Specifications
American MSRP: See Dealer for Details
Canadian MSRP: See Dealer for Details
Engine
Engine Type 420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke 86.5mm x 71.5mm
Induction Keihin 34mm throttle-body fuel-injection system
Ignition Full-transistorized type with electronic advance
Starter Electric with optional auxiliary recoil
Drive Train
Clutch Automatic
Transmission ESP five-speed with Reverse
Driveline Direct front and rear driveshafts
Chassis / Suspension / Brakes
Front Suspension Independent double-wishbone; 6.3 inches travel
Rear Suspension Swingarm with single shock; 6.3 inches travel
Front Brakes Dual hydraulic disc
Rear Brakes Sealed mechanical drum
Front Tires 24 x 8-12
Rear Tires 24 x 10-11
Dimensions
Length 80.9 inches
Width 46.1 inches
Height 45.1 inches
Wheelbase 49.2 inches
Seat Height 32.4 inches
Ground Clearance 6.5 inches
Turning Radius 10.5 feet
Curb Weight 605 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity 3.5 gallons, including 1.0-gallon reserve
Other
Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red, Olive, Camo
Model Id TRX420FPE
Factory Warranty Information
Duration One year
Description Transferable limited warranty; extended coverage available with a Honda Protection Plan.
