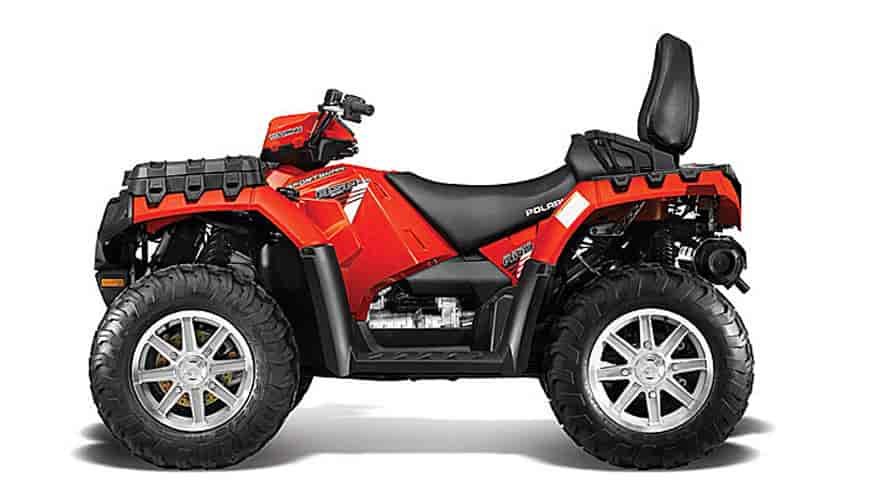

2013 Polaris Sportsman Touring 850 HO EPS Solar Red
2013 Polaris Sportsman Touring 850 HO EPS Solar Red
– 2013 Polaris Sportsman Touring 850 HO EPS Solar Red Review
2013 Polaris Sportsman Touring 850 HO EPS Solar Red
FIRST-EVER SEAT SUSPENSION – The exclusive Comfort Ride Seat Suspension™ features a spring beneath the passenger seat, adding another 1″ of travel to the 10.25″ of travel on the legendary Polaris IRS. Our IRS is angled rearward for even greater comfort and to reduce squat while accelerating.
•Strong, powerful 850 Twin EFI engine for 2-up riding
•Electronic Power Steering (EPS)
•Rolled IRS with 10.25” travel
2013 Polaris Sportsman Touring 850 HO EPS Solar Red Key Features
•Two lights are located in the front bumper and one mounted in the handlebar pod. Maximize your lighting with the ability to have all three on at once for 150 W of power.
2013 Polaris Sportsman Touring 850 HO EPS Solar Red Features and Benefits
Hardest Working
850 EFI High Output Engine – The High-Output 850 Twin EFI engine with a SOHC cranks out 77 HP. It delivers unbeatable acceleration off the line with incredible power to the ground. Add-in a clean fuel burn and smooth power delivery with dual-balanced shafts and you’ve got the power you’re looking for to trail ride and hunt.
ON-DEMAND TRUE ALL-WHEEL DRIVE (AWD) – Still the best automatic 4×4 system out there, the AWD engages all four tires when the rear wheels slip and you need more forward traction. Reverts back to 2WD when you don’t.
ACTIVE DESCENT CONTROL (ADC) AND ENGINE BRAKING SYSTEM (EBS) – Work together to monitor and control downhill braking to give you optimum control and smooth, even deceleration during descents (less than 15 mph).
STANDARD FRONT STORAGE AND ACCESSORY REAR BOX – Large front storage has 8.2 gallons of capacity. For more storage, remove the passenger seat and Lock & Ride® hand grips and replace it with an optional Lock & Ride accessory box with 2.5-gallon capacity.
HIGH CAPACITY, HIGH-MOUNTED RADIATOR – The radiator is raised high to keep it out of the mud. It’s large surface area provides more cooling capacity to your machine. And with removable Lock & Ride® front box it’s easily accessible and easier to clean.
Smoothest Riding
FIRST-EVER SEAT SUSPENSION – The exclusive Comfort Ride Seat Suspension™ features a spring beneath the passenger seat, adding another 1″ of travel to the 10.25″ of travel on the legendary Polaris IRS. Our IRS is angled rearward for even greater comfort and to reduce squat while accelerating.
ELECTRONIC POWER STEERING – The smoothest, most responsive power steering available. Plus Variable Assist for easier steering at lower speeds. Our EPS let’s you ride all day with less fatigue from steering.
LEGENDARY SMOOTH ROLLED IRS – Years of innovation and relentless tuning have refined the ride to a level unmatched in the industry. Rolled Independent Rear Suspension (IRS) angles the shocks rearward for 10.25″ of travel leading to a smoother ride and less squat during acceleration.
ERGONOMICS FOR YOUR COMFORT – With the engine rotated 90 degrees, riders enjoy 33% wider floorboards and narrow vehicle width at the knees and ankles. The narrower seat reduces leg fatigue and increases rider comfort.
ANTI-KICKBACK STEERING – Placing the steering axis near the neutral center of the tire and having the long Dual A-Arm Front Suspension dramatically reduces kickback and minimizes rider fatigue that comes with jolts to the handlebars from trail and ground obstacle
2013 Polaris Sportsman Touring 850 HO EPS Solar Red – United States of America Specifications / Technical Details
USA MSRP: $10,999 USD
Engine
Engine Type4-Stroke SOHC Twin Cylinder
Displacement850cc High Output (H.O)
Fuel SystemElectronic Fuel Injected
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlStandard/Standard
Suspension
Front SuspensionDual A-Arm 9″ (22.9 cm) Travel
Rear SuspensionDual A-Arm, Rolled 10.25″ (26 cm) Travel
Brakes
Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever
Tires / Wheels
Front Tires26 x 8-14; Maxxis M9805
Rear Tires26 x 10-14; Maxxis M9806
WheelsCast Aluminum
Dimensions / Capacities
Wheelbase57″ (144.8 cm)
Dry Weight798 lb (362 kg)
Overall Vehicle Size (L x W x H)86.5 x 47.6 x 58.25″ (219.7 x 120.9 x 147.9 cm)
Ground Clearance11.25″ (28.5 cm)
Seat Height35.75″ (90.8 cm)
Fuel Capacity5.25 gal (19.9 L)
Bed Box Dimensions (L x W x H)N.A.
Front/Rear Rack or Box Capacity120 lb (55 kg)/240 lb (110 kg)
Payload Capacity575 lbs (261 kg)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity1,995 lb (905 kg)
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingTriple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/Taillights
Electronic Power SteeringStandard
InstrumentationAnalog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Indicator, Diagnostic Indicator, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
2013 Polaris Sportsman Touring 850 HO EPS Solar Red – Canada Specifications / Technical Details
Canadian MSRP: $12,499 CDN
Engine
Engine Type4-Stroke SOHC Twin Cylinder
Displacement850cc High Output (H.O)
Fuel SystemElectronic Fuel Injected
CoolingLiquid
Drivetrain
Transmission/Final DriveAutomatic PVT P/R/N/L/H; Shaft
Drive SystemOn-Demand True AWD/2WD
Engine Braking System / Active Descent ControlStandard/Standard
Suspension
Front SuspensionDual A-Arm 9″ (22.9 cm) Travel
Rear SuspensionDual A-Arm, Rolled 10.25″ (26 cm) Travel
Brakes
Front/Rear BrakesSingle Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark in Transmission/Lockable Hand Lever
Tires / Wheels
Front Tires26 x 8-14; Maxxis M9805
Rear Tires26 x 10-14; Maxxis M9806
WheelsCast Aluminum
Dimensions / Capacities
Wheelbase57″ (144.8 cm)
Dry Weight798 lb (362 kg)
Overall Vehicle Size (L x W x H)86.5 x 47.6 x 58.25″ (219.7 x 120.9 x 147.9 cm)
Ground Clearance11.25″ (28.5 cm)
Seat Height35.75″ (90.8 cm)
Fuel Capacity5.25 gal (19.9 L)
Bed Box Dimensions (L x W x H)N.A.
Front/Rear Rack or Box Capacity120 lb (55 kg)/240 lb (110 kg)
Payload Capacity575 lbs (261 kg)
Hitch Towing Rating1,500 lb (680.4 kg)
Unbraked Trailer Towing Capacity1,995 lb (905 kg)
Hitch/TypeStandard/1.25″ Receiver
Features
Cargo SystemLock & Ride
LightingTriple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/Taillights
Electronic Power SteeringStandard
InstrumentationAnalog Speedometer, Digital Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Indicator, Diagnostic Indicator, Gear Indicator, Fuel Gauge, AWD Indicator, Hi-Temp/Low-Batt Lights, DC Outlet
Specifications, appearance, and price of product are subject to change without notice.
