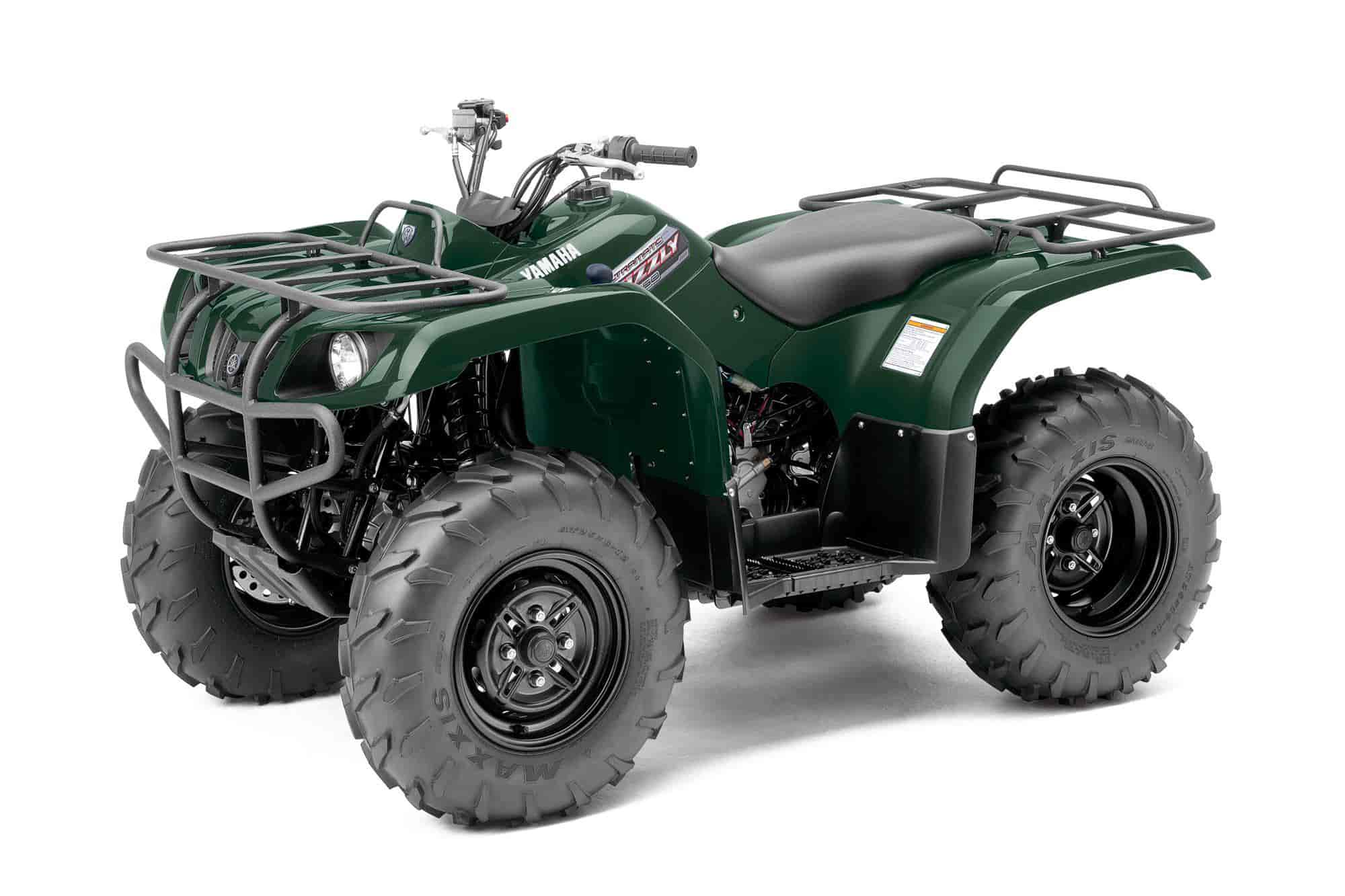

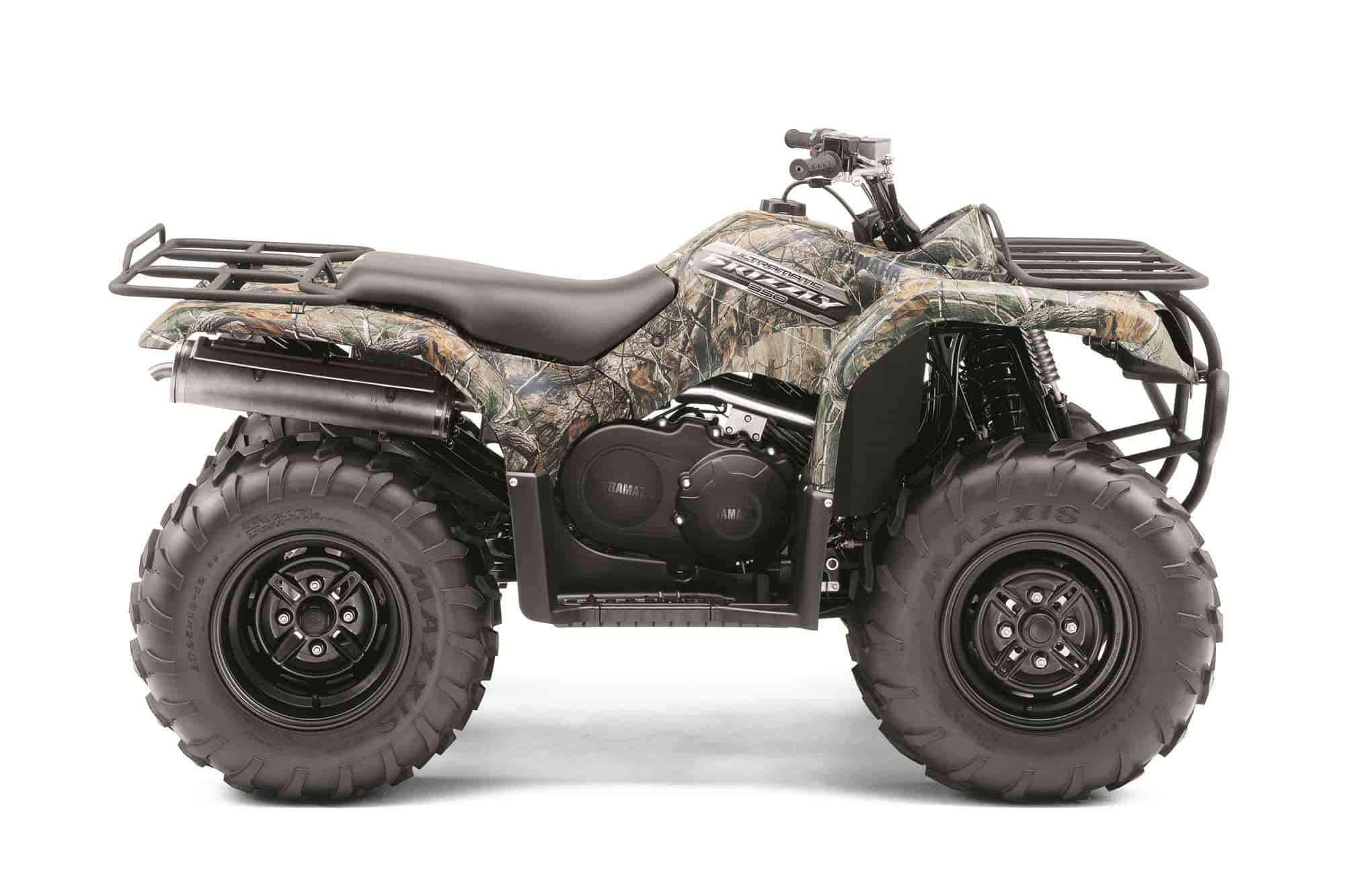

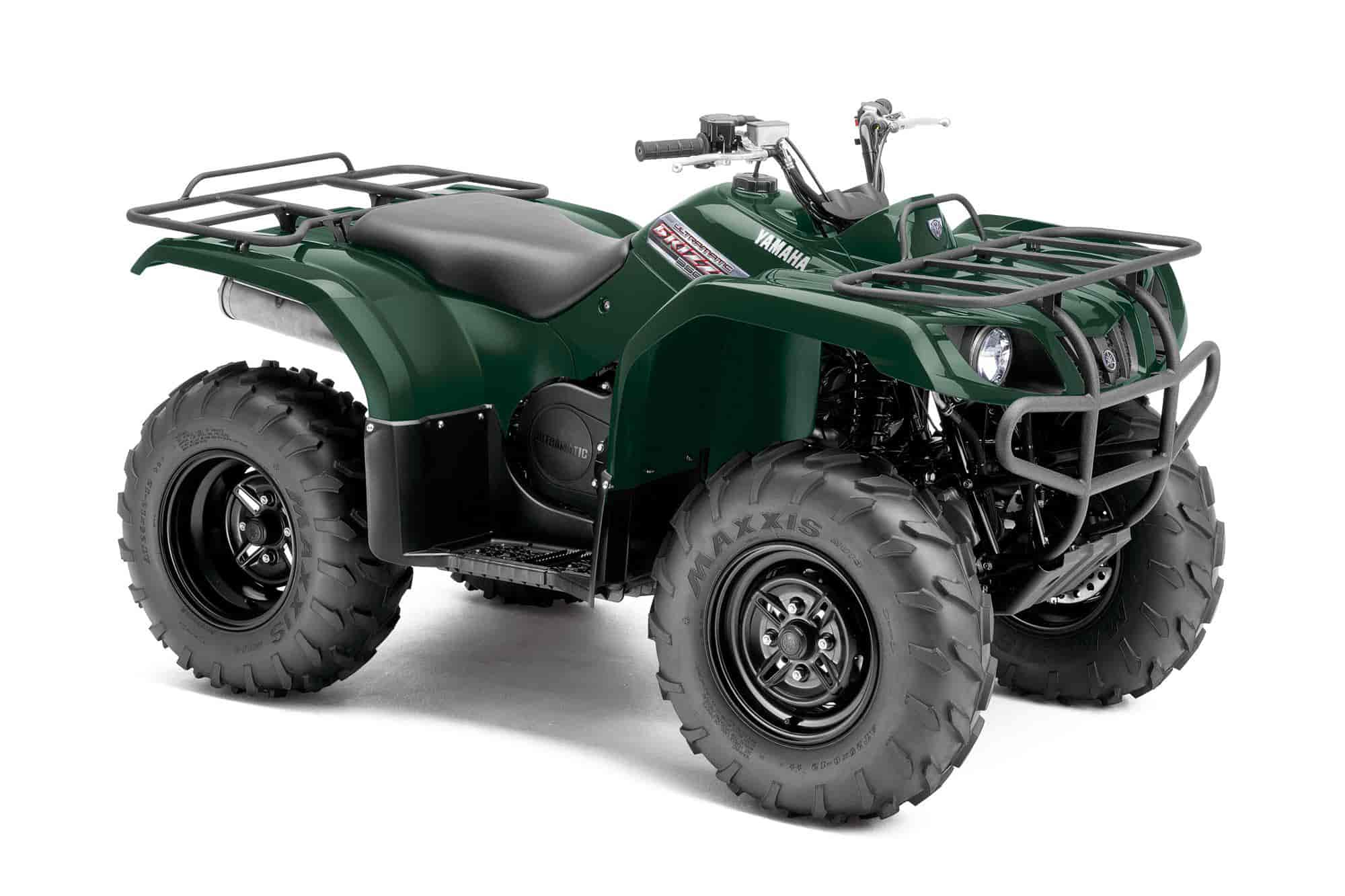

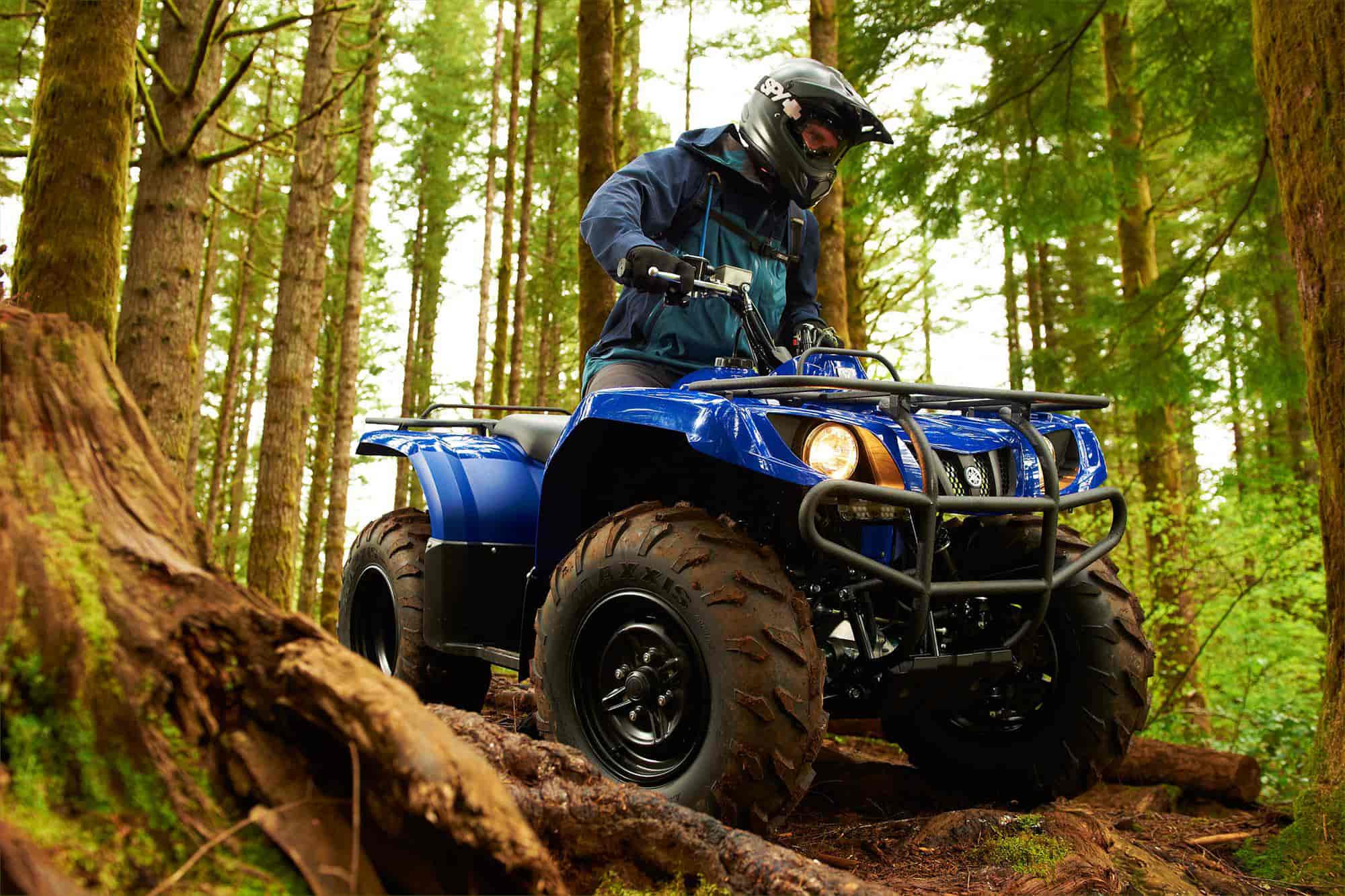

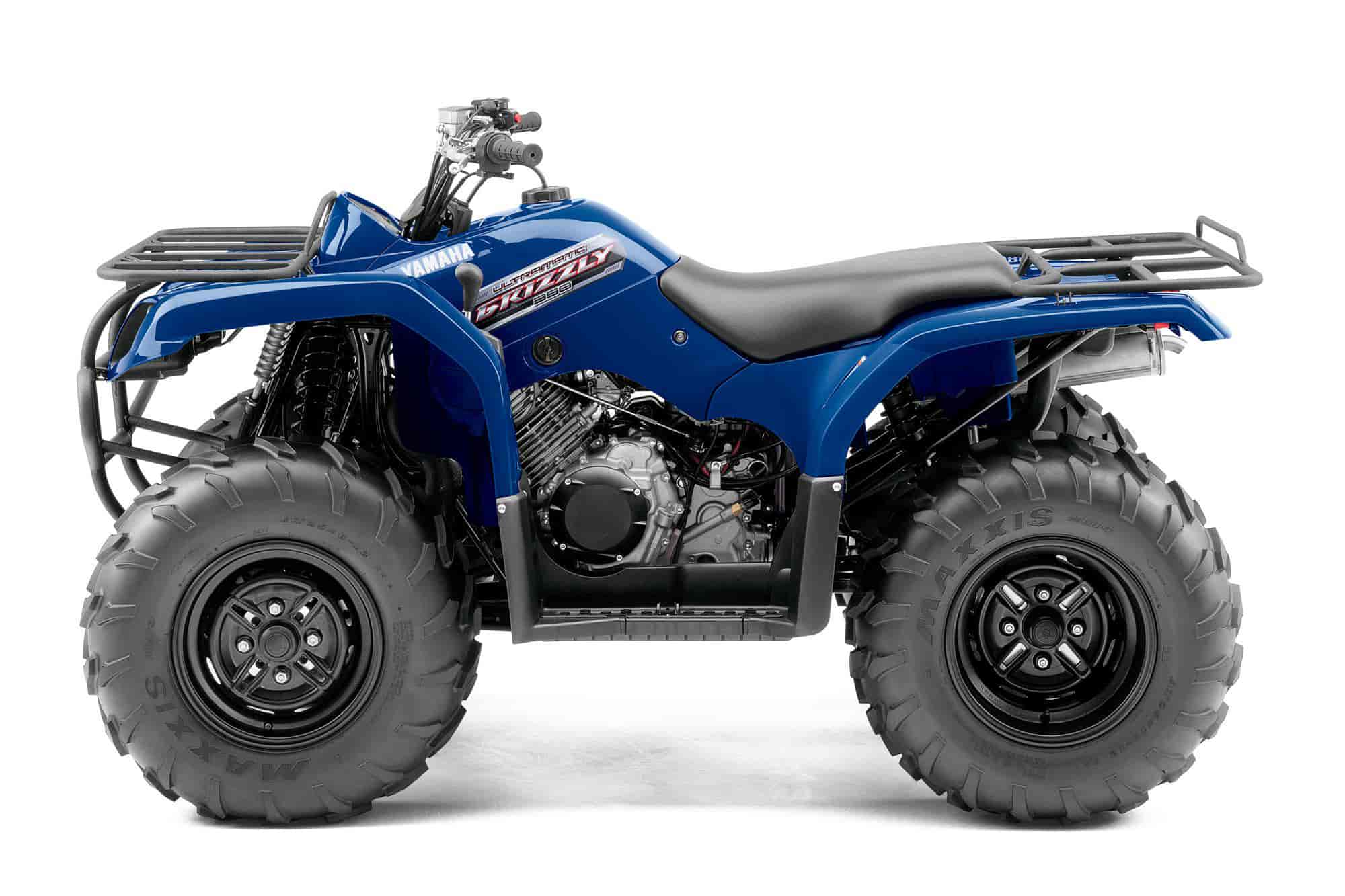

2013 Yamaha Grizzly 350 Auto 4×4
2013 Yamaha Grizzly 350 Auto 4×4
2013 Yamaha Grizzly 350 Auto 4×4
2013 Yamaha Grizzly 350 Auto 4×4
2013 Yamaha Grizzly 350 Auto 4×4
– 2013 Yamaha Grizzly 350 Auto 4×4 Review
2013 Yamaha Grizzly 350 Auto 4×4
Mid-size stance, full-featured skill set.
The Grizzly 350 touts toughness with the help of an Ultramatic automatic transmission, On Command 4WD and more.
Boasting 348cc of air cooled, bullet proof power and performance, the 2013 Yamaha Grizzly 350 is assembled in the USA and also features Ultramatic automatic transmission and on-command 2WD/4WD.
2013 Yamaha Grizzly 350 Auto 4×4 Key Features:
•The power-packed, full-featured Grizzly 350 Automatic 4×4 solid axle carries a lot of advanced Yamaha ATV technology in an affordable package.
•Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for all-wheel downhill engine braking in 4WD mode.
•Class-exclusive On-Command® 4WD means switching from 2WD to 4WD is as simple as pushing a handlebar-mounted button.
•Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling—even in 4WD.
•Left-side-mounted F/N/R shift lever keeps throttle hand free while shifting.
•Wide, fully integrated floorboards help keep feet dry, and serrated footpegs provide extra grip in wet conditions.
•Large-diameter ventilated hydraulic dual front disc and single rear drum brakes deliver tremendous stopping power in a variety of conditions.
•Aggressive 25×8-12 front and 25×10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.
2013 Yamaha Grizzly 350 Auto 4×4 Features and Benefits:
•Rugged and reliable 348cc air/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.
•Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
•Pushbutton electric starting.
•Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
•Sealed drive case keeps out water and debris to minimize belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.
•Automatic cam chain tensioner reduces engine maintenance.
Chassis/Suspension:
•Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
•9.7 inches of ground clearance and high-impact plastic skidplate improve maneuverability and undercarriage protection.
•Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
•32.6-inch seat height for great handling.
•Independent double-wishbone front suspension features five-way preload-adjustable shocks and 6.3 inches of travel.
•Sturdy steel swingarm and single rear shock feature five-way adjustable preload and 7.1 inches of travel.
•Heavy-duty front carry bar and CV joint guards help prevent damage to boot covers.
Additional Features:
•Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
•Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
•Large front and rear fenders with inner guards offer excellent mud/splash protection.
•Water-resistant, large-capacity underseat storage box provides added convenience.
•Plush, specially designed seat is widely contoured for incomparable rider comfort.
•Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock valve.
•Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
•Easy-access, tool-free air filter box allows for quick maintenance.
•Maintenance-free 12-amp-hour battery provides reliable cold-weather starting power.
•Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
•Dual, bright, multireflector 30-watt Krypton bulb headlights with high and low beams.
•Easy, handlebar-mounted choke lever.
•Assembled in Newnan, GA, U.S.A.
2013 Yamaha Grizzly 350 Auto 4×4 – Unitied States of America Specifications / Technical Details
USA MSRP: $5,599 (Hunter Green) Available from June 2012; $5,599 (Steel Blue) Available from June 2012; $5,599 (Red) Available from June 2012; $5,949 (Realtree AP HD Camo) Available from June 2012
Engine
Type 348cc, 4-stroke, air/oil-cooled single; SOHC
Bore x Stroke 83.0mm x 64.5mm
Compression Ratio 9.2:1
Fuel Delivery Mikuni® 33mm BSR
Ignition DC – CDI
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with front/rear-wheel engine braking/F, N, R
Drive Train Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive
Chassis
Suspension / Front Independent double wishbone; 6.3-in travel
Suspension / Rear Swingarm; 7.1-in travel
Brakes / Front Dual hydraulic discs
Brakes / Rear Fully sealed drum
Tires / Front AT25x8-12
Tires / Rear AT25x10-12
Dimensions
L x W x H 78.1 x 42.7 x 44.1 in
Seat Height 32.6 in
Wheelbase 48.5 in
Turning Radius 118 in
Ground Clearance 9.7 in
Fuel Capacity 3.8 gal
Wet Weight 568 lb
Rack Capacity 88 lb Fr./176 lb Rr.
Towing Capacity 1102 lb
Other
Instrumentation None
Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)
2013 Yamaha Grizzly 350 Auto 4×4 – Canada Specifications / Technical Details
Canadian MSRP: $NA CDN
Model Not Available in Canada
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
** Provincial regulations may require additional equipment for use on public trails.
