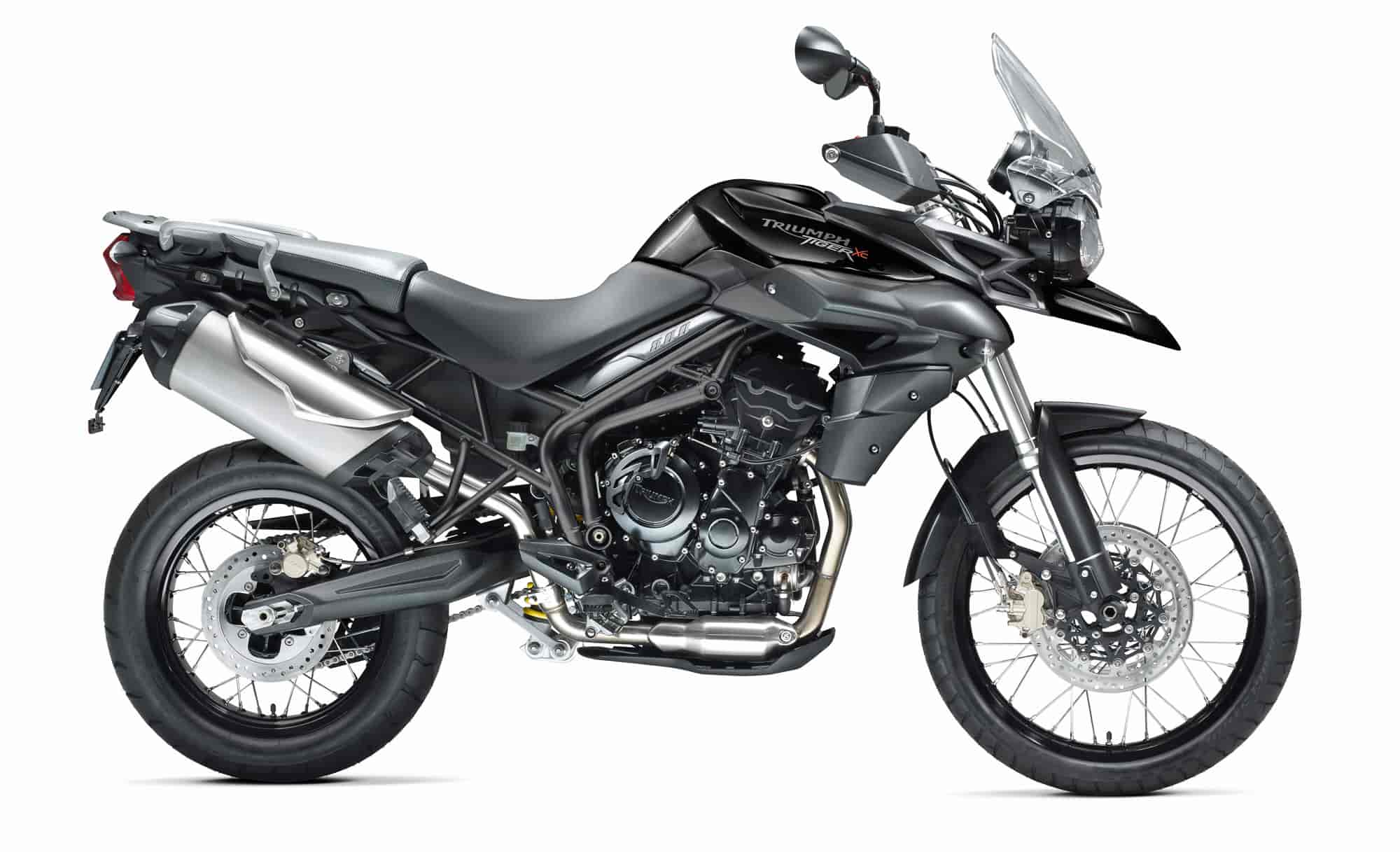

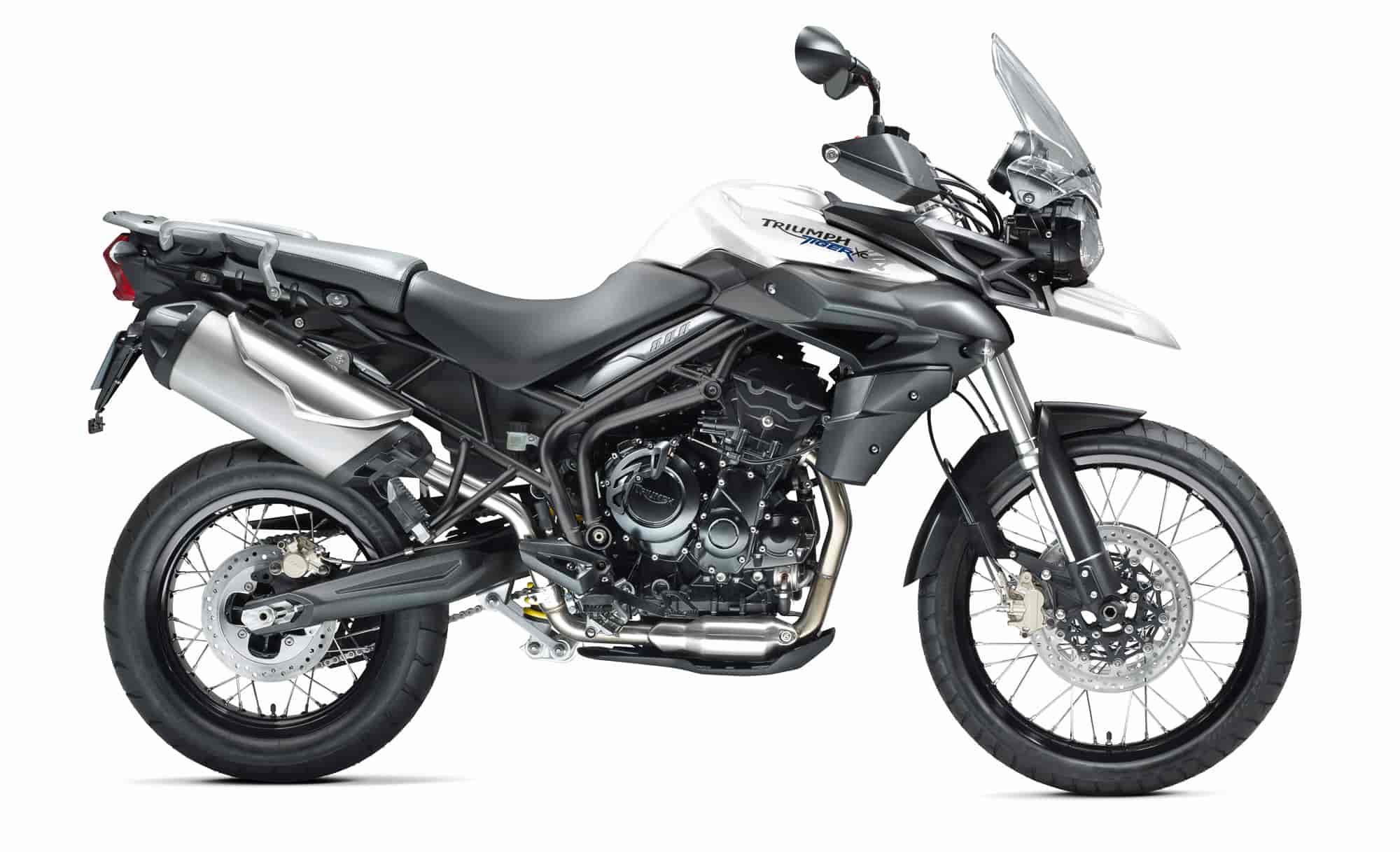

2012 Triumph Tiger 800XC

2012 Triumph Tiger 800XC

2012 Triumph Tiger 800XC

2012 Triumph Tiger 800XC

2012 Triumph Tiger 800XC

– 2012 Triumph Tiger 800XC Review

2012 Triumph Tiger 800XC

Tiger 800XC. Built to take it.

Tough. Rugged. Built to last. Loves the open road, devours the rough stuff. The one bike that can do it all, Tiger 800XC sets new standards in the adventure bike sector. With its big wheels and long suspension travel, the Tiger 800XC just loves getting its claws dirty. Let the adventure begin.

Built to take the worst you can throw at it, the Tiger 800 XC has been fully equipped to handle autobahns and green lanes with equal aplomb.

The 800cc three-cylinder engine sets new standards in the adventure bike class, smoothly delivering plentiful torque at low revs for accurate off-road riding and combining it with more than adequate top end power for relaxed high-speed cruising.

With its rugged steel frame and long travel suspension the Tiger 800 XC has been designed for the rough stuff, with a host of optional accessories available for riders planning to spend more time off the pavement than on it.

The high specification includes a factory-fitted immobilizer, adjustable 45mm upside down front forks, adjustable rider seat and hand guards. Adjustable tapered aluminum handlebars add a touch of class and off-road durability to the Tiger 800 XC, while the optional anti-lock braking system can be switched off for off-road riding.

TRIUMPH TIGER 800XC

– Smooth long-stroke three-cylinder engine ensures excellent on and off-road manners
– Adjustable seat height and handlebar position
– Switchable ABS option
– 21” front wheel and long travel suspension endows Tiger 800XC with genuine offroad capability
– Coded key immobiliser for added security
– 645w generator allows fitment of multiple electrical accessories
– Wide range of official accessories available even more practicality

Triumph’s new Tiger 800XC is the British company’s first truly ‘go everywhere’ motorcycle, a machine designed and built for adventurers looking for a strong and reliable companion to take them on a round the world trip.

The Tiger 800XC is as tough as they come and capable of coping with the demands of off-piste riding thanks to its tough steel chassis and torque 799cc three-cylinder engine.

Long travel 45mm upside down front forks and rear suspension unit combine with a 21” spoked front wheel to deliver maximum ground clearance and the ability to cope with rough trails. With a high-level front mudguard and sturdy handguards, there can be no
doubt that the latest Tiger has been developed to cope with demanding conditions.

The same qualities that make the Tiger 800XC so competent off-road also lead to an excellent road bike. The rider can adjust both the handlebar position and seat height and whether it is set at 845 or 865mm the Tiger 800XC offers a commanding view above the traffic and a comfortable perch from which to devour the miles. A classleading 19 litre fuel tank ensures infrequent stops for the Tiger 800XC rider, with cavernous hard and soft luggage options available for those who need to take the ‘kitchen sink’ on their two-wheeled tours.

Powering the Tiger 800XC is a new long-stroke triple delivering 95PS and an extremely accessible 79Nm of torque. With its flat torque curve and gentle power delivery, the Tiger 800XC is a pleasure to ride in even the most demanding of conditions.

A sophisticated anti-lock braking system is available as an option and can be deactivated for off-road riding, while the high-specification extends to a standard coded-key immobilizer and rear rack with generous pillion grab handles. Three colour options are available for the Tiger 800XC: Intense Orange, Phantom Black and Crystal White. For 2012, the Tiger 800XC has adopted a graphite colour frame for greater aesthetic appeal.

The comprehensive instrumentation includes a fuel gauge and trip computer, while a high-specification 645w generator is fitted to allow riders to safely fit electrical accessories such as heated grips, auxiliary lights and satellite navigation equipment. A huge range of official Triumph accessories have been developed for the Tiger 800XC’s launch, these include numerous hard and soft luggage
solutions, adjustable touring screen, centre stand and off-road style engine protection bars and sump guard.





2012 Triumph Tiger 800XC Features and Benefits

Maximum Adjustability

Handlebars and rider seat are both adjustable for optimal rider comfort.

Suspension

Chunky 45mm upside down forks adorn the front of the Tiger 800 XC. Plus there’s long travel for comfort on road and compliance, when you take to the rough stuff.

Switchable ABS

Anti-lock brakes can be switched off for off-road riding.

Built In Rear Rack

Well appointed rear rack doubles as generously proportioned passenger grab rail.

High Capacity Generator

Class leading 645w generator allows the Tiger 800 XC to be fully loaded with journey-enhancing electrical accessories.

Fuel Efficiency:

41 MPG City / 63 MPG Highway

Engine:

799cc Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder

Frame:

Tubular steel trellis frame

Exhaust:

Stainless steel 3 into 1, high level stainless steel mufflers

Front Suspension:

Showa 45mm upside down forks, 220mm travel



---



2012 Triumph Tiger 800XC – US Specifications/Technical Details
USA MSRP Price: On The Road $11,999 (with ABS)

Engine and Transmission
Type Liquid-cooled, 12 valve, DOHC, in-line three-cylinder
Capacity 799cc
Bore/Stroke 74.0 x 61.9mm
Fuel System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1, high level stainless steel silencer
Final Drive O ring chain
Clutch Wet, multi-plate
Gearbox 6-speed
Oil Capacity 3.7 liters (1.0 US gals)
Chassis, Running Gear and Displays
Frame Tubular steel trellis frame
Swingarm Twin-sided, cast aluminum alloy
Wheel Front 36-spoke 21 x 2.5in, aluminum rim
Rear 32-spoke 17 x 4.25in, aluminum rim
Tire Front 90/90 ZR 21
Rear 150/70 ZR 17
Suspension Front Showa 45mm upside down forks, 220mm travel
Rear Showa monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 215mm rear wheel travel
Brakes Front Twin 308mm floating discs, Nissin 2-piston floating calipers, (ABS model available)
Rear Single 255mm disc, Nissin single piston floating caliper, (ABS model available)
Instrument Display/Functions LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, TPMS ready, switchable ABS and clock

Dimensions and Capacities
Length 2215mm (87.1in)
Width (handlebars) 865mm (34.0in)
Height without mirrors 1390mm (54.7in)
Seat Height 845mm (33.2in) – 865mm (34.0in)
Wheelbase 1545mm (60.8in)
Rake/Trail 24.3°/95.3mm
Fuel Tank Capacity / Efficiency 19.0 liters (5.0 US gals)
Wet Weight (ready to ride) 215 kg (473 lbs)
Performance (measured at crankshaft to 95/1/EC)
Maximum Power 95PS / 94bhp / 70 kW @ 9300rpm
Maximum Torque 79Nm / 58 ft.lbs @ 7850rpm
Fuel Efficiency 41 MPG City / 63 MPG Highway *Estimated from fuel economy tests on a sample motorcycle conducted under ideal laboratory conditions. Actual mileage may vary based upon personal riding habits, weather, vehicle condition, and other factors.

Price
On The Road $11,999 (with ABS) *Actual price determined by dealer. Price excludes taxes, license, options and $495 in destination/handling charges. Prices and specifications subject to change without notice.



---



2012 Triumph Tiger 800XC – Canadian Specifications/Technical Details
Canada MSRP Price: On The Road $12,199 / ABS $13,099

Engine and Transmission
Type Liquid-cooled, 12 valve, DOHC, in-line three-cylinder
Capacity 799cc
Bore/Stroke 74.0 x 61.9mm
Fuel System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1, high level stainless steel silencer
Final Drive O ring chain
Clutch Wet, multi-plate
Gearbox 6-speed
Oil Capacity 3.7 litres (1.0 US gals)
Chassis, Running Gear and Displays
Frame Tubular steel trellis frame
Swingarm Twin-sided, cast aluminium alloy
Wheel Front 36-spoke 21 x 2.5in, aluminium rim
Rear 32-spoke 17 x 4.25in, aluminium rim
Tyre Front 90/90 ZR 21
Rear 150/70 ZR 17
Suspension Front Showa 45mm upside down forks, 220mm travel
Rear Showa monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 215mm rear wheel travel
Brakes Front Twin 308mm floating discs, Nissin 2-piston floating calipers, (ABS model available)
Rear Single 255mm disc, Nissin single piston floating caliper, (ABS model available)
Instrument Display/Functions LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, TPMS ready, switchable ABS and clock

Dimensions and Capacities
Length 2215mm (87.1in)
Width (handlebars) 865mm (34.0in)
Height without mirrors 1390mm (54.7in)
Seat Height 845mm (33.2in) – 865mm (34.0in)
Wheelbase 1545mm (60.8in)
Rake/Trail 24.3°/95.3mm
Fuel Tank Capacity 19.0 litres (5.0 US gals)
Wet Weight (ready to ride) 215 kg (473 lbs)
Performance (measured at crankshaft to 95/1/EC)
Maximum Power 95PS / 94bhp / 70 kW @ 9300rpm
Maximum Torque 79Nm / 58 ft.lbs @ 7850rpm
Fuel Efficiency

Price
On The Road $12,199 / ABS $13,099 *Suggested Retail pricing only, actual price is determined by dealer. Price excludes $550 in destination & handling charges, taxes, license, options & pre-delivery expense. Prices and specifications subject to change without notice.

---



2012 Triumph Tiger 800XC – International Specifications/Technical Details
Europe MSRP Price: On The Road £7,899 (+ £600 for optional ABS)

Engine and Transmission
Type Liquid-cooled, 12 valve, DOHC, in-line three-cylinder
Capacity 799cc
Bore/Stroke 74.0 x 61.9mm
Fuel System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1, high level stainless steel silencer
Final Drive O ring chain
Clutch Wet, multi-plate
Gearbox 6-speed
Oil Capacity 3.7 litres (1.0 US gals)
Chassis, Running Gear and Displays
Frame Tubular steel trellis frame
Swingarm Twin-sided, cast aluminium alloy
Wheel Front 36-spoke 21 x 2.5in, aluminium rim
Rear 32-spoke 17 x 4.25in, aluminium rim
Tyre Front 90/90ZR 21
Rear 150/70 ZR 17
Suspension Front Showa 45mm upside down forks, 220mm travel
Rear Showa monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 215mm rear wheel travel
Brakes Front Twin 308mm floating discs, Nissin 2-piston floating calipers, (ABS model available)
Rear Single 255mm disc, Nissin single piston floating caliper, (ABS model available)
Instrument Display/Functions LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable ABS and clock

Dimensions and Capacities
Length 2215mm (87.1in)
Width (handlebars) 865mm (34.0in)
Height without mirrors 1390mm (54.7in)
Seat Height 845mm (33.2in) – 865mm (34.0in)
Wheelbase 1545mm (60.8in)
Rake/Trail 24.3°/95.3mm
Fuel Tank Capacity 19.0 litres (5.0 US gals)
Wet Weight (ready to ride) 215 kg (473 lbs)
Performance (measured at crankshaft to 95/1/EC)
Maximum Power 95PS / 94bhp / 70 kW @ 9300rpm
Maximum Torque 79Nm / 58 ft.lbs @ 7850rpm
Fuel Efficiency Urban: 49.6 mpg (5.7 l/100km) – 56mph: 75.3mpg (3.7l/100km) – 75mph: 74.3mpg (3.8l/100km)

Price
On The Road £7,899 (+ £600 for optional ABS)

* Manufacturer’s suggested retail price (MSRP), the actual sale prices can vary.
