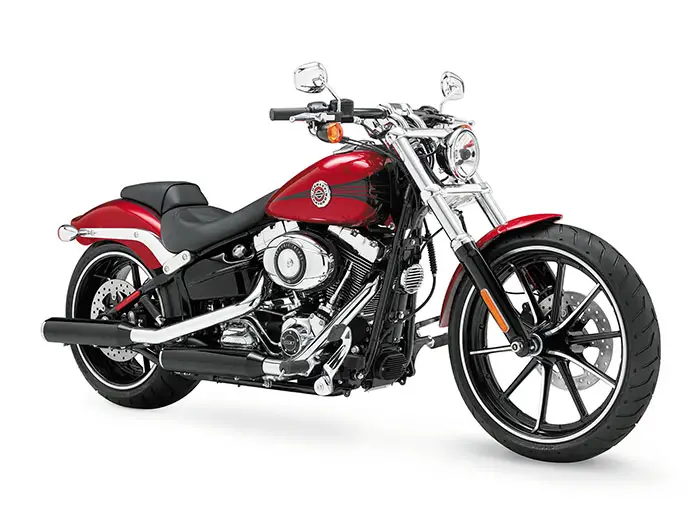

2013 Harley-Davidson FXSB Breakout

2013 Harley-Davidson FXSB Breakout Review

2013 Harley-Davidson FXSB Breakout

The New Harley-Davidson Breakout Belongs to the Street.

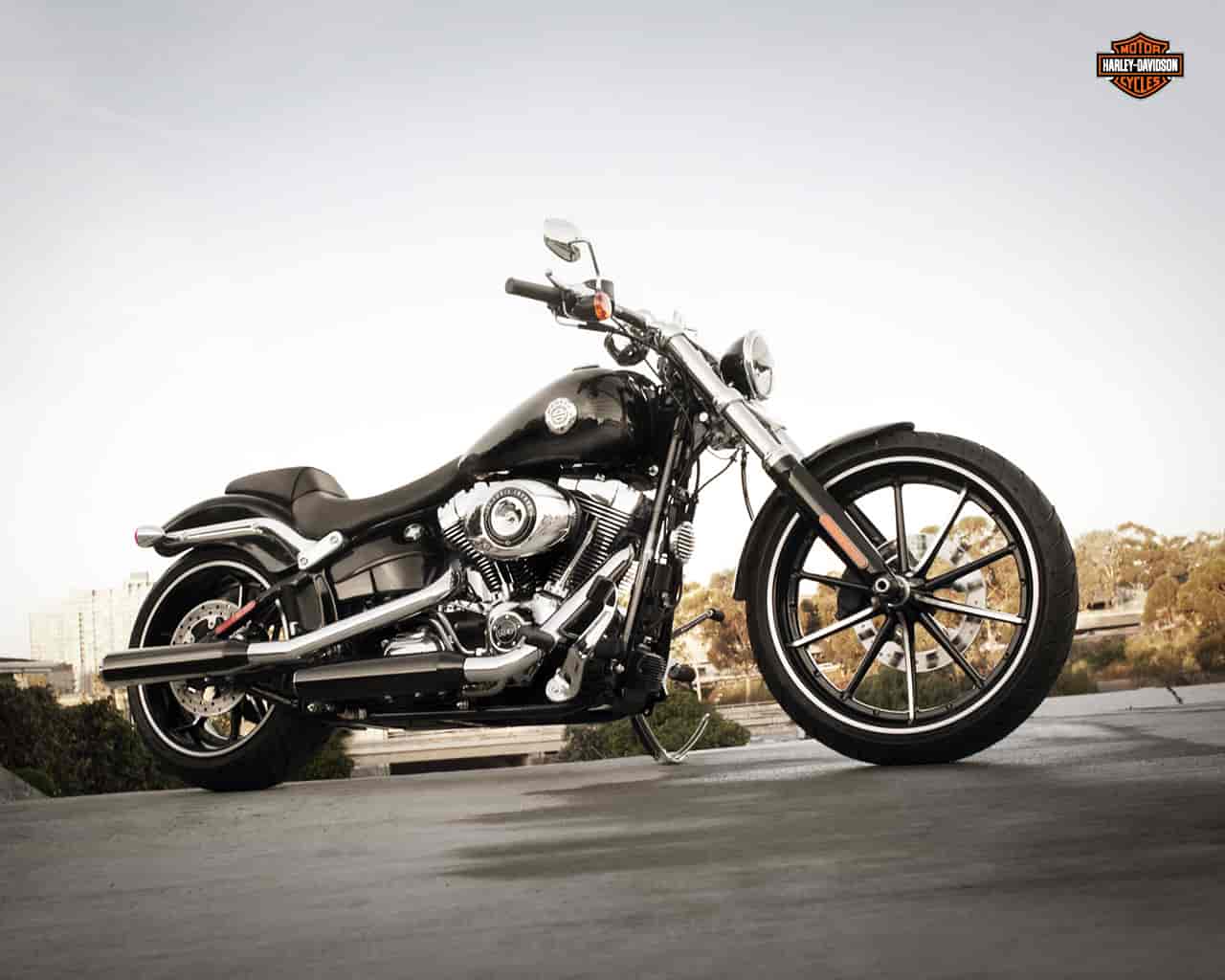

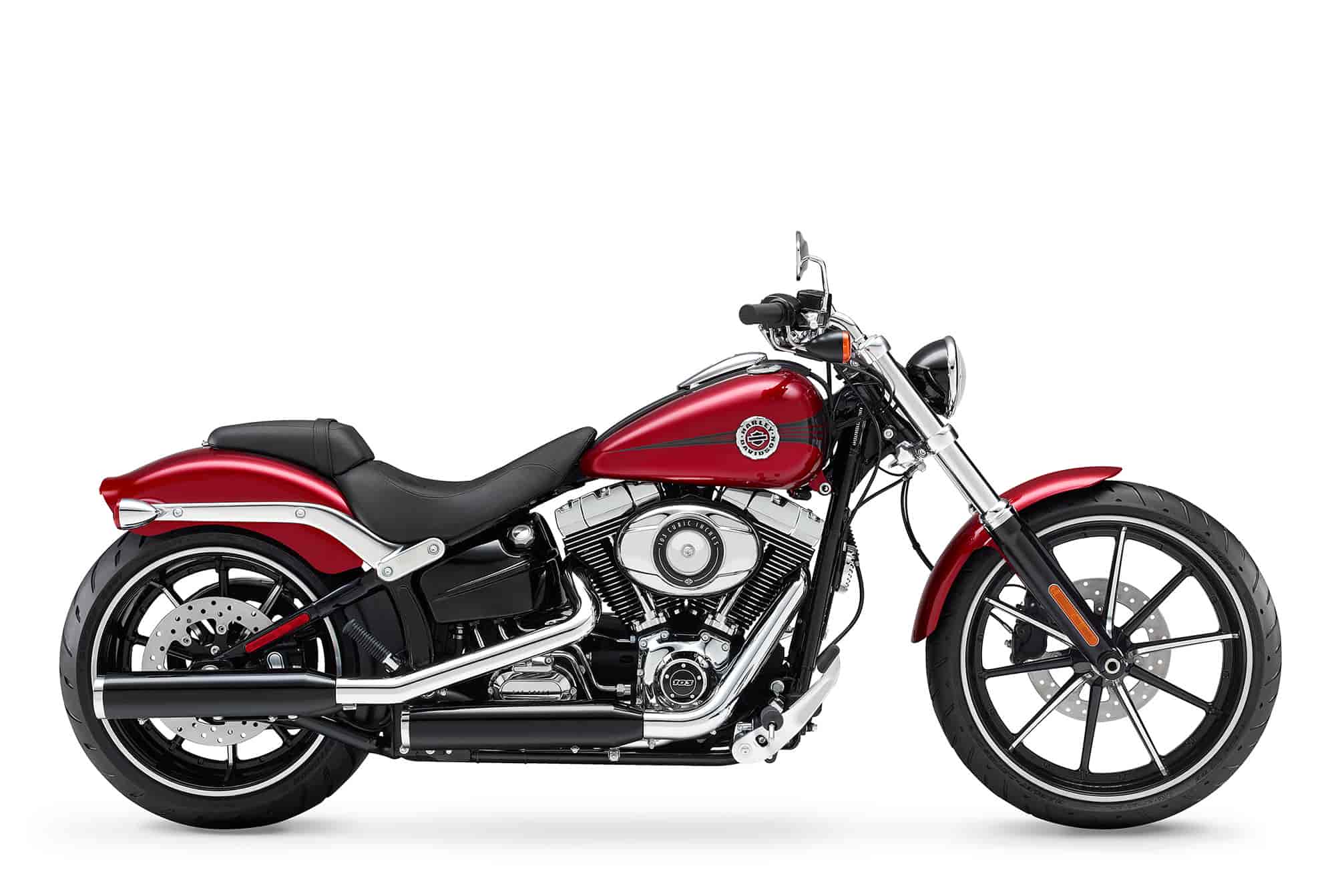

The 2013 Harley-Davidson® Breakout® motorcycle is a long and low-slung Softail® model with distinctive finishes and specific components. The Breakout® model features a wide rear tire visually balanced with thick forks and chopped fenders, while a shaved tank console and a drag handlebar keep the profile low. A Twin Cam 103™ powertrain and other components are trimmed in gleaming chrome and gloss black paint.

The Softail® chassis mimics the clean lines of a vintage hardtail frame, but utilizes rear suspension control provided by coil-over shock absorbers mounted horizontally and out of sight within the frame rails. The rigid-mounted, counter-balanced powertrain creates a solid connection between the rider and the power that moves the motorcycle, enhancing the emotional experience of riding.

Big wheels, big paint and classic drag-bike attitude meets premium modern refinement in this all-new attention-grabbing performance cruiser.

Aggressive Styling and Gritty Attitude from a Premium Softail® Chopper

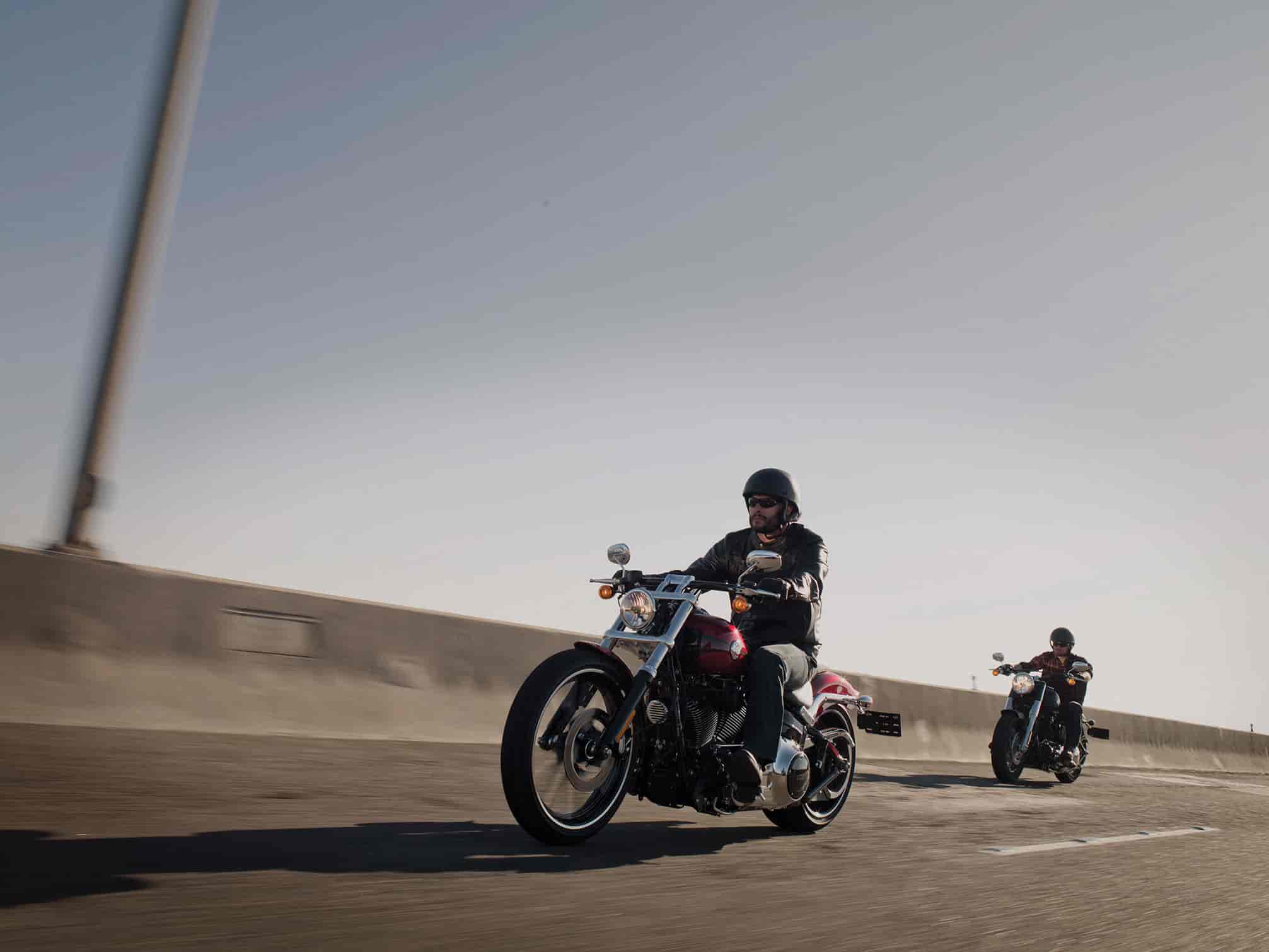

The 2013 Harley-Davidson® Breakout® motorcycle is an urban prowler, a bike ready for a midnight ramble to the roadhouse or a rib joint rendezvous with the crew. Green light? Crack the throttle to deliver a muscular dose of American V-Twin torque and etch the asphalt with a fat rear tire. The Breakout will be long gone, along with its rider’s inhibitions.

With authentic swagger that turns heads in traffic and a proud stance certain to draw a curb-side crowd on bike night, the Breakout is presented as a premium model in its segment with distinctive finishes and specific components not available on other Harley-Davidson bikes. Long and low-slung, the Breakout features a 240mm rear tire visually balanced with thick forks and chopped fenders, while a shaved tank console and a drag handlebar keep the profile low. A Twin Cam 103B™ powertrain and other components are trimmed in gleaming chrome and gloss-black paint.

Like the acclaimed 2013 Custom Vehicle Operations™ (CVO™) Breakout® model that precedes it, the Breakout features styling that’s smooth, tight, and intended to showcase the engine and the tires.

“With Breakout we got down to motorcycle essentials, which means emphasizing the powertrain and the wheels,” says Harley-Davidson Styling Manager Kirk Rasmussen. “The black and chrome engine visually pops out of the center the bike, and then to maximize the impact of the tires, the fenders are chopped. We wanted a lot of rubber showing to give the Breakout a tough, muscular look.”

The Gasser wheels are new and specific to the Breakout, according to Rasmussen.

“We’ve always loved the gasser-style drag racing wheels from the 1960s and ’70s,” says Rasmussen. “Our wheels are loosely inspired by those classics. Each wheel has 10 half-round spokes. The gloss-black powdercoat is machined away on alternating spokes and the rim edge to expose the aluminum under the paint.”

A gloss-black finish is also applied to the new cast aluminum oil tank, as well as fork lowers, brake rotors, muffler shields and the handlebar.

“To lower Breakout’s overall profile, we placed the speedometer on the handlebar riser,” says Rasmussen, “and topped the fuel tank with a black leather strip that covers the seam, and a chrome-plated pod that’s just high enough to conceal necessary wiring and vent lines. The handlebar is a new curved drag bend that which I think feels aggressive when you ride.”

The Softail® chassis mimics the clean lines of a vintage hardtail frame, but utilizes rear suspension control provided by coil-over shock absorbers mounted horizontally and out of sight within the frame rails. The Breakout is available with ABS (Anti-Lock Braking System) and the Harley-Davidson security system as a factory-installed option.

2013 Harley-Davidson FXSB Breakout Key Features

The 2013 Harley-Davidson® Breakout® motorcycle is a long and low-slung Softail® model with distinctive finishes and specific
components. The Breakout® model features a wide rear tire visually balanced with thick forks and chopped fenders, while a shaved tank console and a drag handlebar keep the profile low. A Twin Cam 103™ powertrain and other components are trimmed in gleaming chrome and gloss black paint.

• Rigid-mounted, air-cooled, 1690 cc Twin Cam 103B™ counter-balanced engine with Electronic Sequential Port Fuel Injection
(ESPFI), Automatic Compression Release (ACR), rated at 95.5 ft. lbs. peak torque at 3000 rpm

• 6-speed Cruise Drive® transmission

• H-D® Smart Security System with proximity-based, hands-free security fob and Anti-lock Braking System (ABS) are factory-installed options

• The Twin Cam 103B™ engine with 103-cid (1690cc), counter-balanced and rigid-mounted within the frame, is rated at 95.5 ft. lbs. of torque at 3000 rpm. The engine is equipped with Electronic Sequential Port Fuel Injection (ESPFI), and Automatic Compression Release (ACR), and is mated to a 6-speed Cruise Drive transmission.

• The powertrain is finished in black powdercoat with chrome covers and gloss-black shields over chrome dual-staggered mufflers.

• Gasser-style 10-spoke cast aluminum wheels are finished in gloss-black powdercoat with machined highlights; 8 by 18-inch rear and 3.5 by 21-inch front.

• Floating front and rear brake rotors have gloss-black carriers.

• Front and rear fenders are chopped. The front fender location and bracket are specific to the Breakout. The rear fender is shaped and positioned to fit close to the 240mm tire. One-piece forged aluminum rear fender supports are highly polished.

• The front end spreads 49mm forks approximately 1.75-inches wider than previous FX Softail models to allow fitment of a 130mm front tire. The fork lowers and headlight bucket are finished in gloss black.

• New Single-Rib Cast Aluminum Oil Tank is finished in gloss black.

• A five-gallon fuel tank is topped with a black molded-leather strip and a low-profile
chrome cover.

• The two-piece seat features a passenger pillion that may be removed without tools for solo riding and to fully expose the rear fender. Laden seat height is 24.7 inches.

• An all-new wide drag-style handlebar is finished in gloss black. The speedometer is mounted on the chrome pull-back handlebar riser.

• The side-mounted license plate and combination stop/turn/tail lights leave the wide rear
fender uncluttered.

• The glass-filled fuel tank medallions and graphics are exclusive to the Breakout.

• Available solid colors include Vivid Black, Big Blue Pearl and Ember Red Sunglo.

2013 Harley-Davidson FXSB Breakout Features and Benefits

• Available solid colors include Vivid Black, Big Blue Pearl and Ember Red Sunglo

• Twin Cam 103B™ powertrain finished in Black powder-coat with chrome covers

• NEW Gloss Black single-rib cast aluminum oil tank

• Staggered, straight cut chrome mufflers with Gloss Black muffler shields

• Gloss Black Gasser Cast Aluminum wheels with machined highlights

• Chopped front and rear fenders

• Polished forged aluminum rear fender supports

• Wide front end with Gloss Black fork lowers and headlamp bucket

• 1.25-inch Gloss Black drag-style handlebar on pull-back riser

• Four-inch riser-mounted speedometer

• Chrome-plated low-profile console

• Black two-piece, two-up seat with removable pillion

• Side-mounted license plate and combination stop/turn/tail light

• Glass-filled fuel tank medallions

2013 Harley-Davidson FXSB Breakout – USA Specifications/Technical Details
US MSRP Price: $17,899 – $18,299 USD

DIMENSIONS
Length 96.3 in.
Seat Height, Laden 724.7 in.
Seat Height, Unladen 726 in.
Ground Clearance 4.7 in.
Rake (steering head) (deg) 35
Trai l5.7 in.
Wheelbase 67.3 in.
Tires, Front Specification 130/60B21 63H
Tires, Rear Specification 240/40R18 79V
Fuel Capacity 5 gal.
Oil Capacity (w/filter) 3.5 qt.
Weight, As Shipped 680 lb.
Weight, In Running Order 710 lb.
Luggage Capacity -Volume N/A
Luggage Capacity -Weight N/A

ENGINE
Engine Air-cooled, Twin Cam 103B™
Bore 3.875 in.
Stroke 4.38 in.
Displacement 103 cu in
Compression Ratio 9.6:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79

CHASSIS
ExhaustStaggered, straight-cut chrome mufflers with gloss black exhaust shields
Wheels, Optional Style Type 9 N/A
Wheels, Front Type 9 Gasser Cast Aluminum
Wheels, Rear Type 9 Gasser Cast Aluminum
Brakes, Caliper Type 4-piston fixed front; 2-piston floating rear

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 95.5 ft-lb
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 23.4
Lean Angle, Left (deg.) 23.4
Fuel Economy: Combined City/Hwy 42 mpg

PRICING
Vivid Black $17,899
Color Option $18,299
Two-Tone Option N/A
Custom Color Option N/A
Security Option Only offered as part of Security Package
Wheel Option N/A
ABS Option Only offered as part of Security Package
Reverse Option N/A
Cruise Control Option N/A
California Emissions $200
Freight $335
Security Package (Security and ABS) $1,195

Recommended 91 octane or higher fuel (R+M)/2.

Values shown are nominal. Performance may vary by country and region.

Standard and optional fuel systems may vary by country.

See motorcycle owner’s manual for complete details.

Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

Measurement reflects 180 lb. (81.7 kg) operator weight.

North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

Standard and optional wheels may vary by country and region.

2013 Harley-Davidson FXSB Breakout – Canadian Specifications/Technical Details
Canada MSRP Price: $20,329 – $20,779 CDN

PRICING
Vivid Black $ 20,329
Color Option $ 20,779
Two-Tone Option N/A
Custom Color Option N/A
Security Option N/A
Wheel Option N/A
ABS Option N/A
Reverse Option N/A
Cruise Control Option N/A
California Emissions N/A
Freight N/A
Security Package (Security and ABS) $ 1,360

DIMENSIONS
Length 2,445 mm
Seat Height, Unladen 660 mm
Ground Clearance 120 mm
Rake (steering head) (deg) 35
Trail 146 mm
Wheelbase 1,710 mm
Tires, Front Specification 130/60B21 63H
Tires, Rear Specification 240/40R18 79V
Fuel Capacity 18.9 l
Oil Capacity (w/filter) 3.3 l
Weight, As Shipped 308 kg
Weight, In Running Order 322 kg

ENGINE
Engine Air-cooled, Twin Cam 103B™
Bore 98.4 mm
Stroke 111.1 mm
Displacement 1,690 cc
Compression Ratio 9.6:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

CHASSIS
Exhaust Staggered, straight cut chrome mufflers with gloss black exhaust shields
Wheels, Optional Style Type 8 N/A
Wheels, Front Type 8 Gasser Cast Aluminum
Wheels, Rear Type 8 Gasser Cast Aluminum
Brakes, Caliper Type 4-piston fixed front; 2-piston floating rear

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 129 Nm
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 23.4
Lean Angle, Left (deg.) 23.4
Fuel Economy: Combined City/Hwy 5.6 l/100 km

ELECTRIC
Lights (as per country regulation), Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
GaugesClean, low center tank console
1Recommended 91 octane or higher fuel (R+M)/2.
2Values shown are nominal. Performance may vary by country and region.
3Standard and optional fuel systems may vary by country.
4See motorcycle owner’s manual for complete details.
5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6Measurement reflects 180 lb. (81.7 kg) operator weight.
7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8Standard and optional wheels may vary by country and region.

2013 Harley-Davidson FXSB Breakout – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £15,645 – £15,945 GBP

PRICING
Vivid Black£ 15,645
Color Option£ 15,945
Two-Tone OptionN/A
Custom Color OptionN/A
Security OptionN/A
Wheel OptionN/A
ABS OptionN/A
Reverse OptionN/A
Cruise Control OptionN/A
California EmissionsN/A
FreightN/A
Security Package (Security and ABS)N/A
DIMENSIONS
Length2,445 mm
Seat Height, Unladen 5660 mm
Ground Clearance120 mm
Rake (steering head) (deg)35
Trail146 mm
Wheelbase1,710 mm
Tires, Front Specification130/60B21 63H
Tires, Rear Specification240/40R18 79V
Fuel Capacity18.9 l
Oil Capacity (w/filter)3.3 l
Weight, As Shipped308 kg
Weight, In Running Order322 kg
ENGINE
Engine 2Air-cooled, Twin Cam 103B™
Bore98.4 mm
Stroke111.1 mm
Displacement1,690 cc
Compression Ratio9.6:1
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary DriveChain, 34/46 ratio
Gear Ratios (overall) 1st9.311
Gear Ratios (overall) 2nd6.454
Gear Ratios (overall) 3rd4.793
Gear Ratios (overall) 4th3.882
Gear Ratios (overall) 5th3.307
Gear Ratios (overall) 6th2.79
CHASSIS
ExhaustStaggered, straight cut chrome mufflers with gloss black exhaust shields
Wheels, Optional Style Type 7N/A
Wheels, Front Type 7Gasser Cast Aluminum
Wheels, Rear Type 7Gasser Cast Aluminum
Brakes, Caliper Type4-piston fixed front; 2-piston floating rear
PERFORMANCE
Engine Torque Testing MethodEEC/95/1
Engine Torque 3130 Nm
Engine Torque (rpm)3,000
Lean Angle, Right (deg.)23.4
Lean Angle, Left (deg.)23.4
Fuel Economy: Combined City/Hwy5.6 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps 6High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
GaugesClean, low center tank console
1Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2Recommended 95 octane or higher fuel (R+M)/2.
3Values shown are nominal. Performance may vary by country and region.
4See motorcycle owner’s manual for complete details.
5Measurement reflects 81.7 kg operator weight.
6Security system includes immobiliser and siren.
7Standard and optional wheels may vary by country and region.

2013 Harley-Davidson FXSB Breakout – Australia Specifications/Technical Details
Australian MSRP Price: $28,995 AUD – $31,995 NZD

PRICING
Vivid Black AU $28,995 NZ $31,995
Color Option N/A
Two-Tone Option N/A
Custom Color Option N/A
Security Option N/A
Wheel Option N/A
ABS Option N/A
Reverse Option N/A
Cruise Control Option N/A
California Emissions N/A
Freight N/A
Security Package (Security and ABS) N/A

DIMENSIONS
Length 2,445 mm
Seat Height, Unladen 660 mm
Ground Clearance 120 mm
Rake (steering head) (deg) 35
Trail 146 mm
Wheelbase 1,710 mm
Tyres, Front Specification 130/60B21 63H
Tyres, Rear Specification 240/40R18 79V
Fuel Capacity 18.9 l
Oil Capacity (w/filter) 3.3 l
Weight, As Shipped 308 kg
Weight, In Running Order 322 kg

ENGINE
Engine Air-cooled, Twin Cam 103B™
Bore 98.4 mm
Stroke 111.1 mm
Displacement 1,690 cc
Compression Ratio 9.6:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

CHASSIS
Exhaust Staggered, straight cut chrome mufflers with gloss black exhaust shields
Wheels, Optional Style Type 8 N/A
Wheels, Front Type 8 Gasser Cast Aluminium
Wheels, Rear Type 8 Gasser Cast Aluminium
Brakes, Caliper Type 4-piston fixed front; 2-piston floating rear

PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 132 Nm
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 23.4
Lean Angle, Left (deg.) 23.4
Fuel Economy: Combined City/Hwy 5.6 l/100 km

1Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2Recommended 95 octane or higher fuel (R+M)/2.
3Values shown are nominal. Performance may vary by country and region.
4See motorcycle owner’s manual for complete details.
5All models include security system, 24 months Harley Assist, and 12 months International HOG membership. Maximum dealer ride away prices. Offer ends Aug 31, 2013 unless extended. The ride away price includes 12 months private registration, 12 months Compulsory third party Insurance, dealer delivery and stamp duty #. Optional extras not included. Harley-Davidson Australia Pty Ltd ABN 83 098 483 259. Full details on pricing can be obtained from your local authorised dealer. # Based on a purchaser with a good riding record- may be higher for other purchasers.
6Measurement reflects 81.7 kg operator weight.
7Security system includes immobiliser and siren.
8Standard and optional wheels may vary by country and region.

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.

2013 Harley-Davidson FXSB Breakout – Press Release

MILWAUKEE, March 8, 2013 /PRNewswire/ — The new Harley-Davidson® Breakout® motorcycle will be revealed to the public today in Daytona Beach, Fla., during the annual Daytona Bike Week motorcycle rally. With authentic swagger that turns heads in traffic and a proud stance certain to draw a curb-side crowd on bike night, the Breakout is presented as a premium model in its segment with distinctive finishes and specific components not available on other Harley-Davidson bikes.

Like the acclaimed 2013 Custom Vehicle Operations™ Breakout® model that precedes it, the Breakout features styling that’s smooth, tight, and intended to showcase the engine and the tires.

“With Breakout we got down to motorcycle essentials, which means emphasizing the powertrain and the wheels,” says Harley-Davidson Styling Manager Kirk Rasmussen . “The black and chrome engine visually pops out of the center the bike, and then to maximize the impact of the tires, the fenders are chopped. We wanted a lot of rubber showing to give the Breakout a tough, muscular look.”

Long and low-slung, the Breakout features a 240mm rear tire visually balanced with thick forks and chopped fenders, while a shaved tank console and a drag handlebar keep the profile low. A Twin Cam 103B™ powertrain and other components are trimmed in gleaming chrome and gloss-black paint. The new 10-spoke cast-aluminum Gasser wheels are finished in gloss-black powdercoat. A gloss-black finish is applied to the new cast-aluminum oil tank, as well as fork lowers, muffler shields and the wide, drag-style handlebar. The side-mounted license plate and combination stop/turn/tail lights leave the wide rear fender uncluttered.

The Breakout is available with ABS (Anti-Lock Braking System) and the Harley-Davidson security system as a factory-installed option. The Breakout MSRP is $17,899 in Vivid Black, and $18,299 in either Big Blue Pearl or Ember Red Sunglo.

2013 Harley-Davidson FXSB Breakout

Back to 2013 Harley-Davidson Motorcycle Model Review Page

2013 Harley-Davidson FXSB Breakout Review

Be the first to comment

Leave a Reply Cancel reply

2024 KTM Unprecedented Levels of Performance!

Happy Easter From Total Motorcycle!

All 82 Yamaha 2024 Motorcycles Now Online!

Inspiration Friday: Goodbye Yamaha YZF-R1!
