2013 Suzuki GSX-R1000 Commemorative Edition

Back to 2013 Suzuki Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2013 Suzuki GSX-R1000 Commemorative Edition
2013 Suzuki GSX-R1000 Commemorative Edition

2013 Suzuki GSX-R1000 Commemorative Edition
2013 Suzuki GSX-R1000 Commemorative Edition

2013 Suzuki GSX-R1000 Commemorative Edition
2013 Suzuki GSX-R1000 Commemorative Edition

2013 Suzuki GSX-R1000 Commemorative Edition
2013 Suzuki GSX-R1000 Commemorative Edition

2013 Suzuki GSX-R1000 Commemorative Edition
2013 Suzuki GSX-R1000 Commemorative Edition

2013 Suzuki GSX-R1000 Commemorative Edition
2013 Suzuki GSX-R1000 Commemorative Edition


2013 Suzuki GSX-R1000 Commemorative Edition Review

2013 Suzuki GSX-R1000 Commemorative Edition

Suzuki Celebrates One Million GSX-Rs With Commemorative Motorcycle

Suzuki has recently produced its one millionth GSX-R motorcycle and is celebrating this special milestone with a commemorative edition of its flagship sportsbike, the GSX-R1000.

Worldwide there will be 1,985 commemorative editions of the GSX-R1000 available, to celebrate the very first year the GSX-R was born.

The GSX-R legend began in 1985 with the launch of the GSX-R750, the range propelling Suzuki to the forefront of motorcycle racing, making the GSX-R series the flagship of the brand and a favourite amongst professional racers and riding enthusiasts.

From the beginning, Suzuki has constantly redefined the GSX-R range into a super sport line-up that delivers the pure excitement of racing performance.

The introduction of the GSX-R750 changed the world of sportsbikes forever, as the first mass produced race replica, it was a race bike first and a street bike second.

Joining the GSX-R750 was the GSX-R600 and GSX-R1000, which equally dominated racetracks and sales in Australia and internationally.

Since its introduction just over a decade ago, the GSX-R1000 has won multiple championships and filled 1,000cc production based road racing grids worldwide and currently holds the Australian Superbike Champion title.

Ridden by 2009 and 2012 Australian Superbike Champion Josh Waters, four-time New Zealand Superbike Champion Robbie Bugden and also recently retired three-time Australian Superbike Champion Shawn Giles, the GSX-R1000 continues to own the racetrack.

Featuring class-mastering performance, cutting-edge technology, design and engineering, the GSX-R1000 is the ultimate fusion of performance and design and delivers excellent mid-range power and acceleration.

The commemorative edition of the GSX-R1000 features a brand-new colour scheme reflecting its race heritage, decals on wheels, special anniversary decals and matching seat cowl.




2013 Suzuki GSX-R1000 Commemorative Edition Key Features

GSX-R 1 Million Commemorative Edition
The Special Edition GSX-R will feature Commemorative graphics celebrating the first GSX-R produced in 1985.

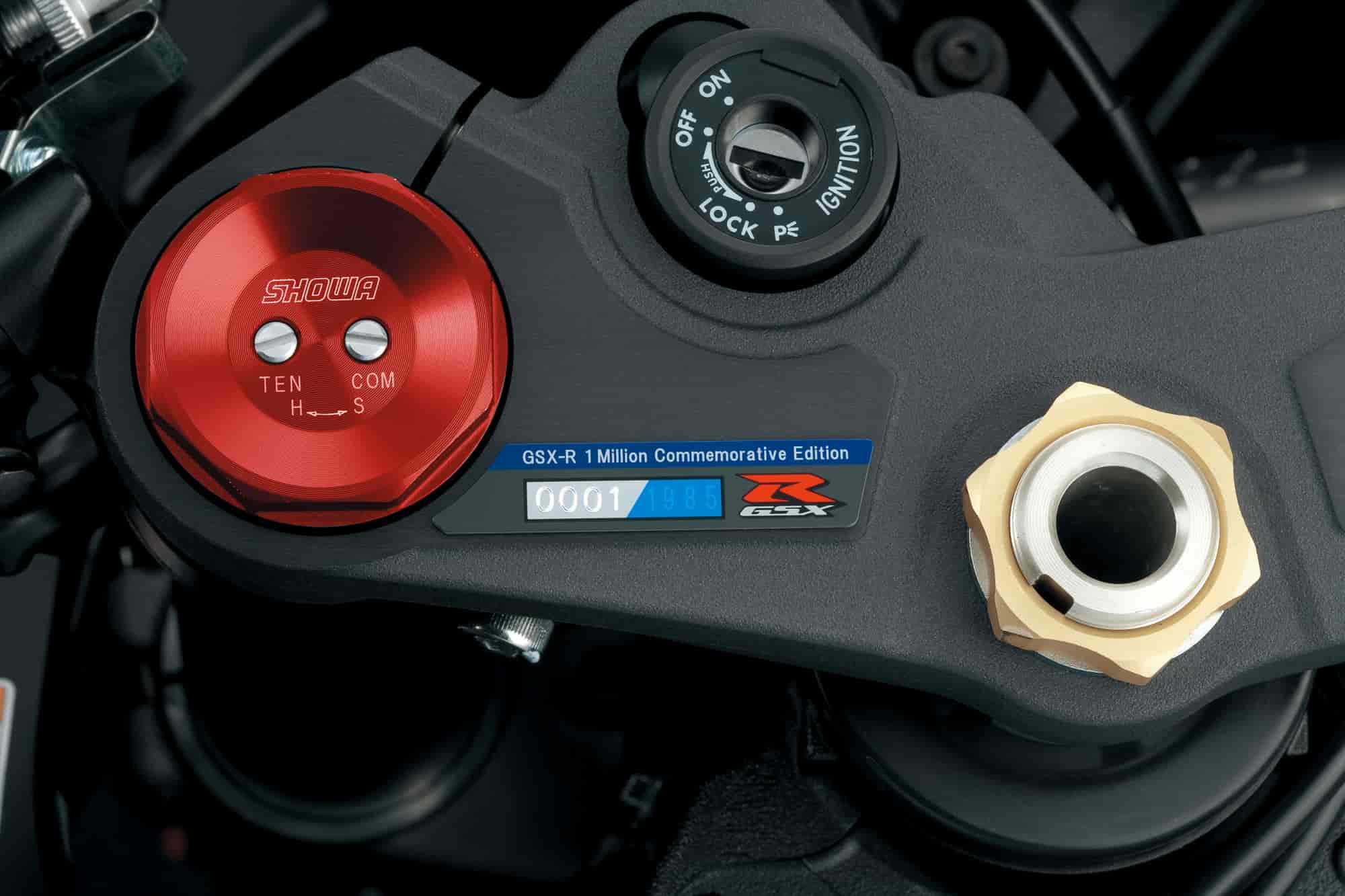

A serial plate will be attached on the upper front fork bracket.

Red-anodized front fork caps to further enhance the bike.

Gold-colored front fork outer tube.

Red-Colored rear suspension spring.

Black Brembo brake calipers with red lettering.

Unique pin stripe design on the wheels.

A special key fob with “R” logo printed.

Only 1,985 units will be produced worldwide and distributed worldwide



2013 Suzuki GSX-R1000 Commemorative Edition Key Features

Engine Features

A 999cc four-cylinder powerplant, with Bore x Stroke of 74.5mm x 57.3mm brings enhanced throttle response across the entire rpm range and high potential for racetrack performance.

Lightweight, durable forged pistons are designed with the Finite Element Method (FEM) and fatigue analysis technology and optimized camshaft profiles was developed using proven MotoGP racing technology.

Optimally shaped combustion chambers and a compression ratio of 12.9:1 promote low-range and mid-range performance and help realize a broad torque curve. 12-hole fuel injectors produce a fine fuel mist for more complete combustion, reducing fuel consumption and exhaust emissions.

Pentagonal shaped ventilation holes in the side of each cylinder bore reduce pumping losses, further improving throttle response. The shape of the ventilation holes – wider at the top, narrower at the bottom – matches the actual flow of the trapped air, reducing pumping losses due to internal crankcase air-pressure resistance to downward piston movement.

The 4-2-1 exhaust system, carrying a Suzuki Exhaust Tuning (SET) valve maximizing torque and improving throttle response, especially in the low-to-mid rpm range

Large, efficient radiator with a trapezoidal shape developed on factory team racebikes and a trapezoidal engine oil cooler both help reduce drag.

Suzuki Composite Electrochemical Material (SCEM) plated cylinders integrated into the upper crankcase helps reduce friction, improve heat transfer, increase durability and provide better ring seal.

Suzuki Ram Air-Direct (SRAD) air intakes are positioned close to the centerline of the fairing to provide optimum intake efficiency. The intake-duct openings feature a louvered design that heightens intake efficiency, while also contributing to weight reduction.

Suzuki Dual Throttle Valve (SDTV) system uses two butterfly valves (primary and secondary) in each throttle body barrel. As the rider opens and closes the primary valve, the ECM reads the throttle position, engine speed, and gear position and incrementally adjusts the secondary valve to maximize the intake-charge velocity. The result is a system that realizes the benefits of near-linear throttle response and torque output across the entire rpm range.

Suzuki Drive Mode Selector (S-DMS) system allows the rider to select one of three fuel injection and ignition system maps, adjusting power delivery to suit personal preference. The mode selection switch is mounted on the left handlebar and its two buttons can be easily operated by the thumb and index finger.



Transmission Features

A six-speed close-ratio transmission

Race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry.



Chassis Features

A lightweight and compact twin-spar frame is made of five cast sections. It is mated with an arched swingarm made of three castings and one-piece die-cast rear subframe.

The compact engine allows a longer swingarm and shorter overall wheelbase for improved racetrack performance.

Lightweight, fully adjustable 43mm Showa Big Piston Front forks (BPF) with an endurance-race-proven design deliver superb feedback and responsive, stable operation, and are lightweight.

Rear shock absorber features adjustable rebound damping, spring preload, and both high-speed and low-speed compression damping allowing adjustability for a wide range of conditions.

Electronically controlled steering damper contributes to handling stability and a more alert and agile feel by increasing the damping force at higher speeds and reducing it at lower speeds.

The front disc brakes are equipped with the top-of-the–line radial-mount Brembo monobloc calipers.

The rear disc brake works with a single piston Nissin caliper mounted above the swingarm. The caliper’s compact design contributes to a reduction of unsprung weight.

The front and rear tires tread patterns and lighter weight contribute to lower unsprung weight and sharper handling



Additional Features

Instruments include a silver-ringed analog tachometer with LCD speedometer. LCD readouts include odometer, dual trip meters, reserve trip meter, clock, coolant temperature/oil pressure warning indicator, gear position indicator, lap timer/stopwatch, S-DMS setting indicator and bar-graph indicating the instrument lighting level, or brightness.

The footpegs can be adjusted to any of three positions in a 14mm horizontal and vertical range. The rear brake pedal and master cylinder move with the right footpeg assembly, and the shift-lever linkage can be adjusted to accommodate changes in the position of the left footpeg.

A high-grip leather seat features outstanding holding properties, providing the rider with a greater sense of stability when accelerating.












2013 Suzuki GSX-R1000 Commemorative Edition – USA Specifications/Technical Details
US MSRP Price: $13,999 USD

Engine
Engine 999 cc, 4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke 74.5 mm x 57.3 mm (2.9 in x 2.3 in)
Compression Ratio 12.9 : 1
Fuel System Suzuki Fuel Injection
Starter Electric
Lubrication Wet sump
DriveTrain
Transmission 6-speed, constant mesh
Final Drive Chain, DID50VAZ, 114 links
Chassis
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, Twin
Brakes Rear Disc
Tires Front 120/70ZR17 M/C (58W), tubeless
Tires Rear 190/50ZR17M/C (73W), tubeless
Fuel Tank Capacity 4.6 US
Color Pearl Glacier White
Electrical
Ignition Electronic ignition (Transistorized)
DimensionsandCurbWeight
Overall Length 2045 mm (80.5 in)
Overall Width 705 mm (27.8 in)
Ground Clearance 130 mm (5.1 in)
Seat Height 810 mm (31.9 in)
Curb Weight 203 kg (448 lbs)
Warranty
Warranty 12 month unlimited mileage limited warranty.


All information is subject to change without notice. At Total Motorcycle, we want every ride to be safe and enjoyable. So always wear a helmet, eye protection and protective clothing. Never ride under the influence of alcohol or other drugs. Avoid excessive speeds. Never engage in stunt riding. Study your owner’s manual and always inspect your Suzuki before riding. Take a riding skills course or the course nearest you call the Motorcycle Safety Foundation at 1-800-446-9227.

Suggested Starting Price shown does not include tax, title, or destination charge. Dealer prices may vary.








2013 Suzuki GSX-R1000 Commemorative Edition – Canadian Specifications/Technical Details
Canada MSRP Price: $15,099 CDN

Engine
Engine 999 cc, 4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore Stroke 74.5 mm x 57.3 mm (2.9 in x 2.3 in)
Compression Ratio 12.9 : 1
Fuel System Suzuki Fuel Injection
Starter Electric
Lubrication Wet sump
DriveTrain
Transmission 6-speed, constant mesh
Final Drive Chain, DID50VAZ, 114 links
Chassis
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, Twin
Brakes Rear Disc
Tires Front 120/70ZR17 M/C (58W), tubeless
Tires Rear 190/50ZR17M/C (73W), tubeless
Fuel Tank Capacity 17.5 L (4.6 US gal)
Color 1 Million Commemorative Edition Pearl Glacier White
Electrical
Ignition Electronic ignition (Transistorized)
DimensionsandCurbWeight
Overall Length 2045 mm (80.5 in)
Overall Width 705 mm (27.8 in)
Wheelbase 1405 mm (55.3 in)
Ground Clearance 130 mm (5.1 in)
Seat Height 810 mm (31.9 in)
Curb Weight 203 kg (448 lbs)
Warranty
Warranty 12 Month unlimited mileage limited warranty



2013 Suzuki GSX-R1000 Commemorative Edition – UK/Europe Specifications/Technical Details
UK MSRP Price: £See dealer

DIMENSIONS AND WEIGHTS

Overall length: 2045mm (80.5in)
Overall width: 705mm (27.8in)
Overall height: 1130mm (44.5in)
Wheelbase: 1405mm (55.3in)
Seat height: 810mm (31.9in)
Kerb Mass: 203kg (447.5lbs)
Fuel capacity: 17.5litres (3.8 UK gallons)

ENGINE SPECIFICATIONS

Engine capacity: 999cc
Engine: 4-stroke, liquid-cooled, DOHC
Bore: 74.5mm x 57.3mm
Compression ratio: 12.9:1
Lubrication: Wet sump
Ignition: Electronic ignition (Transisorised)
Fuel system: Fuel injection
Transmission: 6-speed constant mesh
Drive: Chain
MPG: 54.80*

CHASSIS SPECIFICATION

Front suspension: nverted telescopic, coil spring, oil damped
Rear suspension: Link type, coil spring, oil damped
Front brakes: Disc, twin
Rear brakes: Disc
Front tyres: 120/70R17M/C (58W), tubeless
Rear tyres: 190/50ZR17M/C (73W), tubeless
* Data resulting from tests made by Suzuki in compliance with WMTC. These tests were conducted by a single pilot with no additional optional equipment. Fuel consumption may vary depending on your riding style, how you maintain your vehicle, weather, road conditions, tyre pressure, the presence of accessories, the load, the weight of the crew and many other parameters.






2013 Suzuki GSX-R1000 Commemorative Edition – Australian Specifications/Technical Details
Australia MSRP Price: $18,490 AUD

Just 100 commemorative GSX-R1000s will be available in Australia and are expected to arrive by January 2013.

ENGINE
999cc, 4-cylinder, 4-stroke, liquid-cooled, DOHC
STARTER
Electric
TRANSMISSION
6-speed constant mesh
FRONT SUSPENSION
Inverted telescopic, coil spring, oil damped
REAR SUSPENSION
Link type, coil spring, oil damped
FRONT BRAKES
Disc, twin
REAR BRAKES
Disc
WHEELBASE
1,405mm
SEAT HEIGHT
810mm
LENGTH
2,045mm
WIDTH
705mm
HEIGHT
1,130mm
WET WEIGHT
203kg
FUEL CAPACITY
17.5 litres
COLOURS
Pearl Glacier White
WARRANTY
2 year unlimited kilometre
