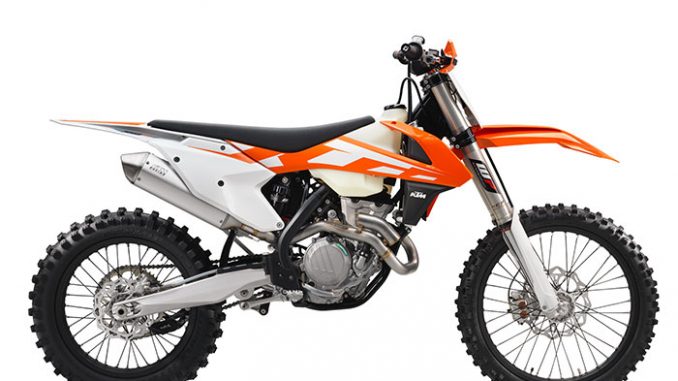

2016 KTM 350 XC-F
2016 KTM 350 XC-F



2016 KTM 350 XC-F Review

2016 KTM 350 XC-F on www.Totalmotorcycle.com

The ultimate combination…

With the arrival of the new generation 350 XC-F the success story can continue. The nimble but powerful bike comprises of almost as much power as a 450, but with the agility of a 250 – so the basic idea is easily summarized, and has been a concept with success from the start.


2016 KTM 350 XC-F www.Totalmotorcycle.com Key Features

See Below





2016 KTM 350 XC-F www.Totalmotorcycle.com Features and Benefits

250 agility with 450 power


Engine
The new DOHC (Double Overhead Camshaft) engine of the 350 XC-F features a completely new construction in order to make it even more compact and powerful than before. Fitted with the latest electronic fuel injection system, it has a very wide and usable power spread while still delivering high performance. The new design has made the engine 20 mm shorter than before, while reducing the weight by 2 lbs.


Cylinder head
The new cylinder head features an improved combustion chamber geometry, two overhead camshafts with a friction-optimized super-fine surface, new finger followers with a 30 % harder DLC coating and high-flow ports. In conjunction with new valve springs and retainers for the four lightweight titanium valves (intake 36.3 mm, exhaust 29.1 mm) the flow rate has been maximized for an optimal power band with more performance across the entire range, which peaks at 13,400 rpm. The peak performance now is at 58 hp.


Cylinder and piston
In the redesigned and shorter cylinder, with a bore of 88 mm, works a weight-reduced forged bridged box-type piston made by CP. Its new piston crown geometry is adapted to the new high-compression combustion chamber and stands out with its extra rigid structure and low weight. Thanks to the low oscillating masses, the engine is extremely lively. The compression ratio is14:1.


Crankshaft
The new 350 XC-F’s crankshaft is lighter and features a stiffer design than before. It utilizes a shorter connecting rod, contributing to the compact and light engine with a snappy power delivery. This design is a major prerequisite for the extremely high engine speed levels and the unrivalled maximum power of the 350 cm³ engine. Not only that, it enhances the engine’s durability, allowing long crankshaft service intervals.


Electric starter
The new 350 XC-F is fitted with an electric starter as standard, which a clear advantage when it comes to crunch time in the heat of battle. A new starter motor made by Mitsuba (modified for easy disassembly) and a weight reduced starter drive guarantees more efficient and reliable starting.


Clutch
The highly compact CSS clutch (Coil Spring Steel) features a weight reduced, wear-free steel basket, and now seven instead of eight clutch plates, which are extremely heat resistant due to their steel carrier discs. In addition, a reworked inner hub and a pressure plate guarantees a better oil supply along with even better cooling of the clutch. A smaller master cylinder diameter of the Brembo hydraulic clutch system provides lighter pull and precise modulation.


Transmission
The new engine is fitted with an all-new and weight reduced, six-speed semi-close ratio gearbox. One of the new and special features on the bike is an advanced “NO-DIRT” gear lever design, which prevents dirt from blocking the joint of the lever and guarantees a safe activation of the transmission.


350 SX-F engine cases and covers
The completely new design of the die-cast engine cases allowed for a much more centralized shaft configuration, raising the crankshaft by 6 mm closer to the bike’s center of gravity. Newly designed engine covers made of magnesium feature an advanced surface structure, which reduce the wear caused by the rider’s boots.


Engine management system
The completely reworked Keihin Engine Management System, with electronic fuel injection, features an all-new 44 mm throttle body, which provides instantaneous response and maximum performance thanks to a revolutionary injector position. The new ECU (Engine Control Unit) includes a launch control for more efficient starts with the provision of different maps according to the gear sensor selection. In addition, the rider can activate an optional map for a different power delivery via the map select switch on the handlebar.


Counter balance shaft
In order to balance the high-revving engine, the new 350 XC-F engine uses a multifunctional counter balance shaft driving the water pump and timing chain. It features new sprockets fitted to the new timing chain.




Massive weight reduction


Airbox
The new airbox design offers maximum protection of the air filter against soiling, while ensuring maximum airflow in conjunction with lighter intake snorkel that is made of a new material to reduce the deformation due to air intake pulse for improved performance. The new Twin Air filter is easier and safer to mount and can be changed without tools in seconds – a standard and original KTM feature.


Battery and wiring harness
As in the past, all new XC-F engines are fitted with the proven electric starter – a unique KTM feature and a major benefit at all levels of motocross racing. For 2016 the XC-F range fits a super compact and lightweight lithium-ion starter battery, providing safe starting of the engine while reducing the weight significantly.


Brakes
High-tech Brembo brakes have always been standard equipment on KTM off-road bikes, and now are combined with newly designed and weight-reduced Wave discs made by GALFER featuring improved heat resistance. Weight reduction is 63g on the front disc, and 32 g for the rear. This is the ultimate solution in braking technology.


Seat
Ergonomically perfect, the new seat has a higher foam volume, which offers great comfort and durability, while weighing the same as the previous model.




Newly designed chassis


Frame
The new frame design provides approximately 20 % higher torsional rigidity and 30 % less longitudinal stiffness, with newly designed engine stays for less vibration. This increased flexibility results in better absorption of the energy created from the front and rear wheel loads supporting the suspension for more comfort and less rider fatigue. A 0.4° steeper steering angle and a 10 mm shorter wheel base contribute to better handling and last but not least it´s lighter than the previous model.


Footpeg
A new sophisticated “No-Dirt” footpeg solution prevents dirt from blocking the pegs in order to keep them in the correct position, even when dragging in deep ruts. In addition, the new footpegs are larger, lighter and more stable, providing better grip .


Swingarm
As on the predecessor models, the new XC-F generation features a reworked cast aluminum swingarm. The updated design offers reduced weight and an optimized flex behavior supporting the frame and suspension created with a single-component casting process. The weight reduction is 250 grams.


Bodywork
For the new generation of XC models the KTM factory riders were involved in shaping the bodywork together with the specialists from KTM R&D and Kiska Design. The goal was to achieve complete harmony between rider and bike down to the finest details. The results are all-new plastics that provide perfect ergonomics and contact points for the rider, maximum freedom of movement, a lower seat height of between 10 to 20 mm (rear end) and better comfort, especially in the rear part of the seat.


Fuel tank
All XC-F models have new lightweight polyethylene tanks fitted with an integrated fuel pump system and capacity of 2.25 gallons. Inside threads on the filler cap make for an easy and reliable closure.


Graphics
New modern in-mold graphics highlight the Ready to Race character of the cutting-edge 2016 XC-F range of bikes.


Cooling system
The proven integrated KTM cooling system routes the coolant from the cylinder head through the frame triangle, directly to newly developed aluminum radiators made by WP, which have a new filler cap system and are made of a stiffer alloy. Due to flow-optimized internal circulation and CFD-calculated air ventilation, the cooling efficiency has been improved by approximately 10 %. Sophisticated radiator guards provide efficient protection in case of crashes.


Handlebar
The new generation XC-F models are equipped with a new tapered handlebar made of high-strength aluminum by NEKEN, which is fixed in a new rubber damped handlebar clamp allowing the handlebar to be mounted in two different positions. All 4-Stroke models feature a new throttle assembly with model-specific throttle cams for different opening characteristics and new ODI grips featuring lock-on fixing clamp on the left-hand side. In addition the handlebar-mounted map switch allows easy selection of different maps and the activation of a launch control.




State-of-the-art suspension


Monoshock
The new generation of monoshock made by WP Suspension has been developed for the new XC models in conjunction with the new frame and swingarm architecture, including the reworked linkage system and the new WP forks. The new body features a revised reservoir for a larger gas chamber to reduce performance fade. The linkage system has also been reworked with a revised geometry and longer pull rods.


Forks
The KTM XC models feature the advanced WP 4CS four-chamber closed cartridge fork with an updated setting for 2016. The 4CS fork has been specifically designed and adapted for off-road riding conditions in the USA.


Triple clamp
Top quality, CNC-machined triple clamps have been something of a KTM trademark for years. Ensuring precise handling, they provide proper clamping force for correct flex characteristics, thus improving the action of the forks. For 2016 the upper triple clamp features a newly developed rubber damping system for the handlebar clamp in order to reduce the vibration levels felt through the handlebar. The clamps retain their forward and back adjustability for rider preference.


Weight reduction
The main target for the KTM engineers when developing the new XC-F generation was a massive weight reduction in conjunction with improved handling. The resulting loss of nearly 7 lbs is outstanding, making the new KTM models the lightest bikes on the track, even with electric starting.




Unrivalled handling


Wheels
The 350 XC-F is fitted with lightweight, CNC-machined hubs, high-end Giant rims and black spokes with lightweight aluminum nipples providing maximum stability at minimum weight. The latest Dunlop Geomax AT81 tires guarantee perfect traction and outstanding performance.


Brakes
High-tech Brembo brakes have always been standard equipment on KTM off-road bikes, and now are combined with newly designed and weight-reduced Wave discs made by GALFER featuring improved heat resistance. Weight reduction is 63g on the front disc, and 32 g for the rear. This is the ultimate solution in braking technology.









2016 KTM 350 XC-F – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See Local Dealer for Pricing in USD

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
349.7 cm³
” Bore
88 mm
” Stroke
57.5 mm
” Starter
Kick and electric starter
” Transmission
6-speed
” Primary drive
24:73
” Secondary gear ratio
13:50
” Clutch
Wet, CSS multi-disc clutch, Brembo hydraulics
” EMS
Keihin EMS
Chassis
” Frame design
Chrome-molybdenum steel central-tube frame
” Front suspension
WP USD Ø 48 mm 4CS closed cartridge
” Rear suspension
WP monoshock with linkage
” Suspension travel (front)
300 mm
” Suspension travel (rear)
317 mm
” Front brake
Disc brake
” Rear brake
Disc brake
” Front brake disc diameter
260 mm
” Rear brake disc diameter
220 mm
” Chain
520 X-Ring
” Steering head angle
63.5 °
” Wheelbase
1495 ± 10 mm
” Ground clearance
375 mm
” Seat height
992 mm
” Tank capacity (approx.)
9.5 l
” Weight READY TO RACE (without fuel)
105.7 kg








2016 KTM 350 XC-F – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN

NA





2016 KTM 350 XC-F – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

NA



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
