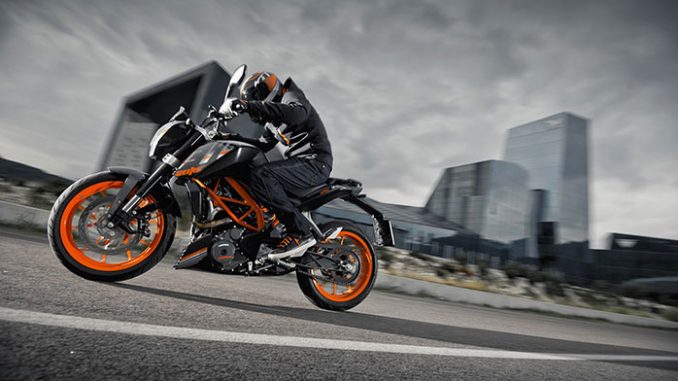

2016 KTM 390 Duke

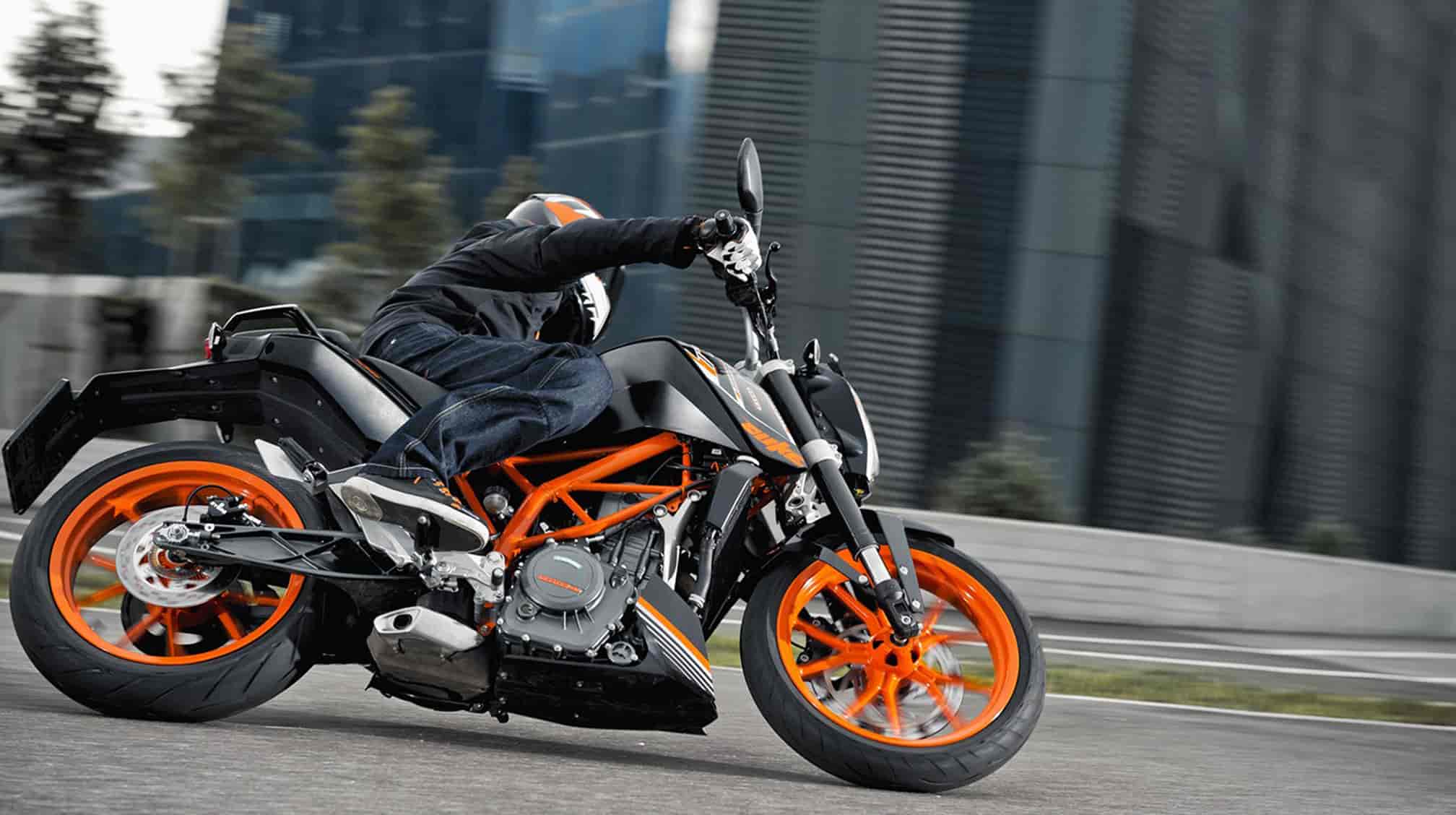

2016 KTM 390 Duke

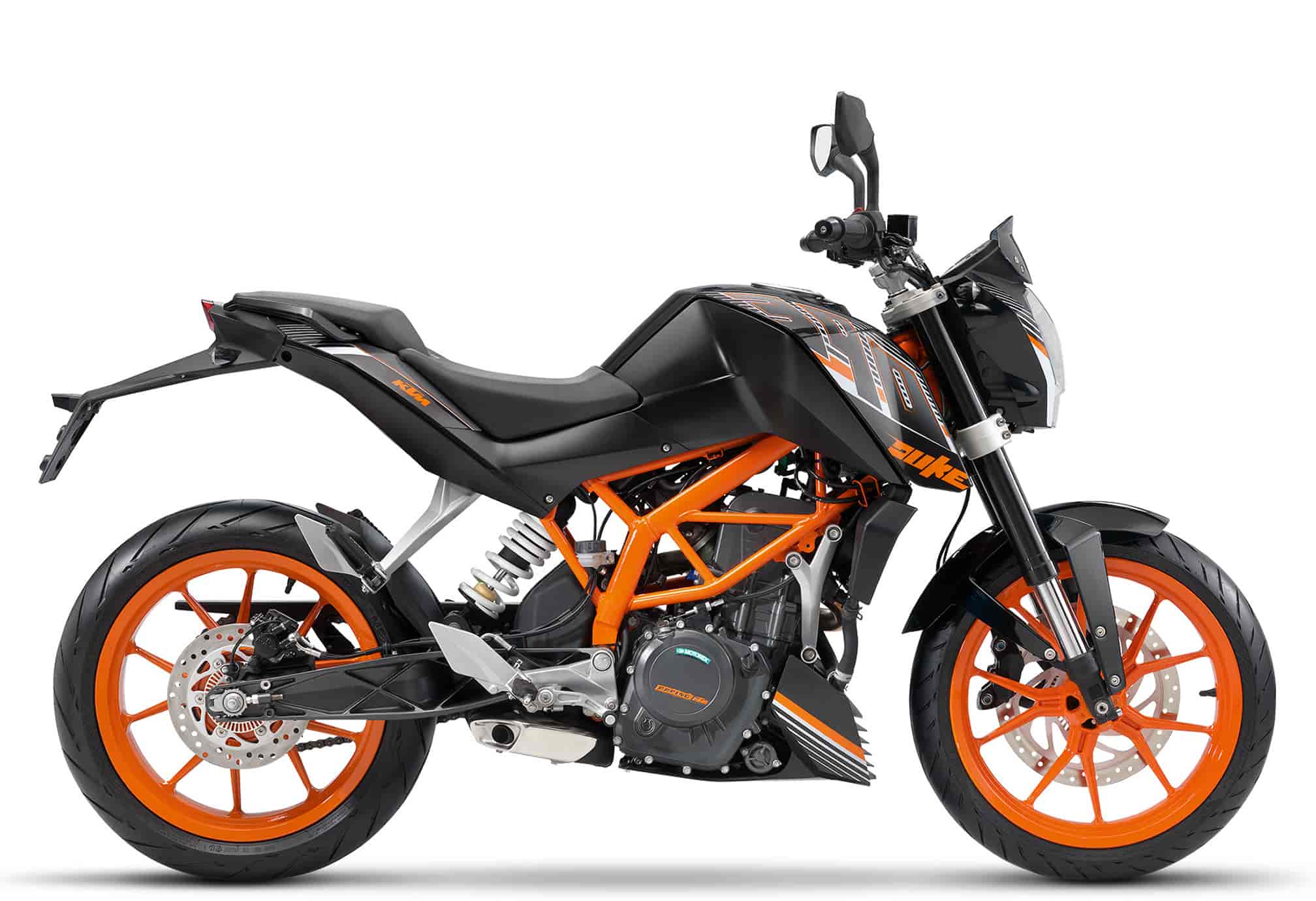

2016 KTM 390 Duke
2016 KTM 390 Duke

2016 KTM 390 Duke
2016 KTM 390 Duke



2016 KTM 390 Duke Review

2016 KTM 390 Duke on www.Totalmotorcycle.com

One for All…

The 390 Duke breathes life into values that have made motorcycling so amazing for decades. It combines maximum riding pleasure with optimum user value and is superior everywhere where really nimble handling counts. Light as a feather, powerful and packed with state-of-the-art technology, it guarantees undreamed of dynamic fun, whether you’re in the urban jungle or a forest of bends. 390 Duke– nowhere you will find more motorcycle per euro.


2016 KTM 390 Duke www.Totalmotorcycle.com Key Features

See Below





2016 KTM 390 Duke www.Totalmotorcycle.com Features and Benefits

Dynamic cornering fun


Brakes
A state-of-the-art Bosch 9MB ABS makes the pleasure of the impressive Duke dynamics even safer and adds the finishing touch to its peerless chassis qualities. The ABS on the KTM 390 Duke monitors the effect of the potent brake system with radially-bolted, four-piston calliper and 300 mm disc diameter – fun with no regrets, developed in close collaboration with the specialists from Bosch and Brembo. And for the stunt riders among us: the ABS is naturally disengageable


Frame
32 kW (44 hp) power plus a dry weight of only 139 kg guarantee immense, agile riding fun with the new 390 Duke. The first-class chassis, with lightweight still trellis frame in the proven KTM design, turns it into a real surfer through the bends. Masses grouped close to the centre of gravity maximise manoeuvrability and precision – and prepare the 390 Duke perfectly for the rush hour slalom.


Telescopic fork
The KTM 390 Duke’s high-quality upside-down fork from WP Suspension has the same 43 mm outer tube diameter as the RC8 R – in other words: real racing equipment that guarantees highest levels of stability and precision.


Swingarm
The 390 Duke’s lightweight, high-quality, pin-jointed, die-cast swingarm is designed and produced according to the same principle as the 390 Duke. The light alloy swingarm with directly linked WP shock absorber excels with extreme torsional stiffness and outstanding tracking stability.


Wheels and tyres
Equally lightweight and delicate as they are stable, the 17 in cast light alloy wheels are fitted with grippy Metzeler tyres – 110 mm wide at the front and an impressive 150 mm at the rear. The tyres impress with tremendous grip in both wet and dry conditions, as well as providing supreme durability.





Low fuel consumption


Injection
The intricate engine design, state-of-the-art injection electronics and the close-ratio, six-speed transmission not only help the KTM 390 Duke to achieve impressive performance, but also extremely low fuel consumption. Thanks to the regulated catalytic converter, it produces only minimal emissions.


Fuel tank
The shapely 11 l fuel tank of the 390 Duke not only provides the rider with perfect knee contact, but also with a greater range, even when ridden on the edge, thanks to the economic engine.





One size fits all


Ergonomics
The KTM 390 Duke provides plenty of space and freedom of movement. The gathered sitting position supports relaxed touring, alone or two-up, as well as committed cornering. Unsurpassed operability and large contact surfaces ensure optimum control and maximum feedback, with the upright, relaxed sitting position providing a perfect overview everytime.


Instrument
The 390 Duke has everything that distinguishes a genuine KTM from the high-quality chassis components to the multi-function cockpit, which keeps you up to date with fuel consumption and remaining range. The extensive KTM PowerParts range gives you the option of adding your own individual style.


Suitable for A2 driver’s license holder
A restricted A2 version (30kW) is available for those riders who just got an A2 driver´s license. Power restriction is requested due to the extremely lightweight of 390 Duke, in order to fulfill the limit of 0,2 kW/kg. Being so light means dynamic agility and ease to manouver for all riders.





Powerful, smooth-running single


Engine
Completely new, the KTM 390 Duke’s state-of-the-art, single-cylinder engine once again underlines KTM’s development strength. It’s clear that the latest materials and production technologies not only deliver the bike’s bountiful torque and overwhelming acceleration at all engine speeds, but also good manners in everyday use and outstanding fuel economy. With 375 cc, the single-cylinder engine only weighs 36 kg, thanks to the compact design – typical of KTM – with transmission shafts arranged one above another. Moreover, it delivers a punchy 44 hp with such technical refinements as NaCaSil cylinder coating and forced oil lubrication with performance-boosting casing evacuation (the suction pump not only transfers oil, but also pressure from the crankcase, thereby reducing the running resistance of the crank drive).


Cylinder head
Just as on the RC8 R, the four valves in the cylinder head of the 390 Duke are actuated by two overhead camshafts and cam levers. This design is not only extremely reliable, but also very durable and almost frictionless, thanks to the ultra-hard carbon coating of the cam levers – releasing even more power.


Silencer
The compact, three-chamber silencer is positioned close to the bike’s overall centre of gravity. This aids the centralisation of masses and enhances the playful handling of the 390 Duke. Thanks to a regulated catalytic converter, the emissions are exemplary. .










2016 KTM 390 Duke – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See Local Dealer for Pricing in USD

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
373.2 cm³
” Bore
89 mm
” Stroke
60 mm
” Power in KW
32 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 2 oil pumps
” Transmission
6-speed
” Primary drive
30:80
” Secondary gear ratio
15:45
” Cooling
Liquid cooled
” Clutch
PASC™ antihopping clutch, mechanically operated
” EMS
Bosch EMS
Chassis
” Frame design
Steel trellis frame, powder coated
” Front suspension
WP upside-down Ø 43 mm
” Rear suspension
WP monoshock
” Suspension travel (front)
150 mm
” Suspension travel (rear)
150 mm
” Front brake
Four-piston radial fixed calliper, brake disc
” Rear brake
Single-piston floating calliper, brake disc
” Front brake disc diameter
300 mm
” Rear brake disc diameter
230 mm
” ABS
Bosch 9MB two-channel ABS
” Chain
X-Ring 5/8 x 1/4″
” Steering head angle
65 °
” Wheelbase
1367 ± 15 mm
” Ground clearance
170 mm
” Seat height
800 mm
” Tank capacity (approx.)
11 l
” Weight READY TO RACE (without fuel)
139 kg








2016 KTM 390 Duke – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See dealer for pricing in CDN

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
373.2 cm³
” Bore
89 mm
” Stroke
60 mm
” Power in KW
32 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 2 oil pumps
” Transmission
6-speed
” Primary drive
30:80
” Secondary gear ratio
15:45
” Cooling
Liquid cooled
” Clutch
PASC™ antihopping clutch, mechanically operated
” EMS
Bosch EMS
Chassis
” Frame design
Steel trellis frame, powder coated
” Front suspension
WP upside-down Ø 43 mm
” Rear suspension
WP monoshock
” Suspension travel (front)
150 mm
” Suspension travel (rear)
150 mm
” Front brake
Four-piston radial fixed calliper, brake disc
” Rear brake
Single-piston floating calliper, brake disc
” Front brake disc diameter
300 mm
” Rear brake disc diameter
230 mm
” ABS
Bosch 9MB two-channel ABS
” Chain
X-Ring 5/8 x 1/4″
” Steering head angle
65 °
” Wheelbase
1367 ± 15 mm
” Ground clearance
170 mm
” Seat height
800 mm
” Tank capacity (approx.)
11 l
” Weight READY TO RACE (without fuel)
139 kg






2016 KTM 390 Duke – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £4499 GBP (On The Road inc 20% Vat)

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
373.2 cm³
” Bore
89 mm
” Stroke
60 mm
” Power in KW
32 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 2 oil pumps
” Transmission
6-speed
” Primary drive
30:80
” Secondary gear ratio
15:45
” Cooling
Liquid cooled
” Clutch
PASC™ antihopping clutch, mechanically operated
” EMS
Bosch EMS
Chassis
” Frame design
Steel trellis frame, powder coated
” Front suspension
WP upside-down Ø 43 mm
” Rear suspension
WP monoshock
” Suspension travel (front)
150 mm
” Suspension travel (rear)
150 mm
” Front brake
Four-piston radial fixed calliper, brake disc
” Rear brake
Single-piston floating calliper, brake disc
” Front brake disc diameter
300 mm
” Rear brake disc diameter
230 mm
” ABS
Bosch 9MB two-channel ABS
” Chain
X-Ring 5/8 x 1/4″
” Steering head angle
65 °
” Wheelbase
1367 ± 15 mm
” Ground clearance
170 mm
” Seat height
800 mm
” Tank capacity (approx.)
11 l
” Weight READY TO RACE (without fuel)
139 kg



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
