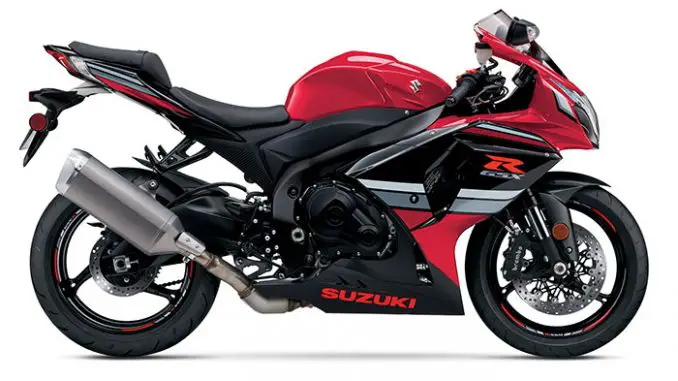

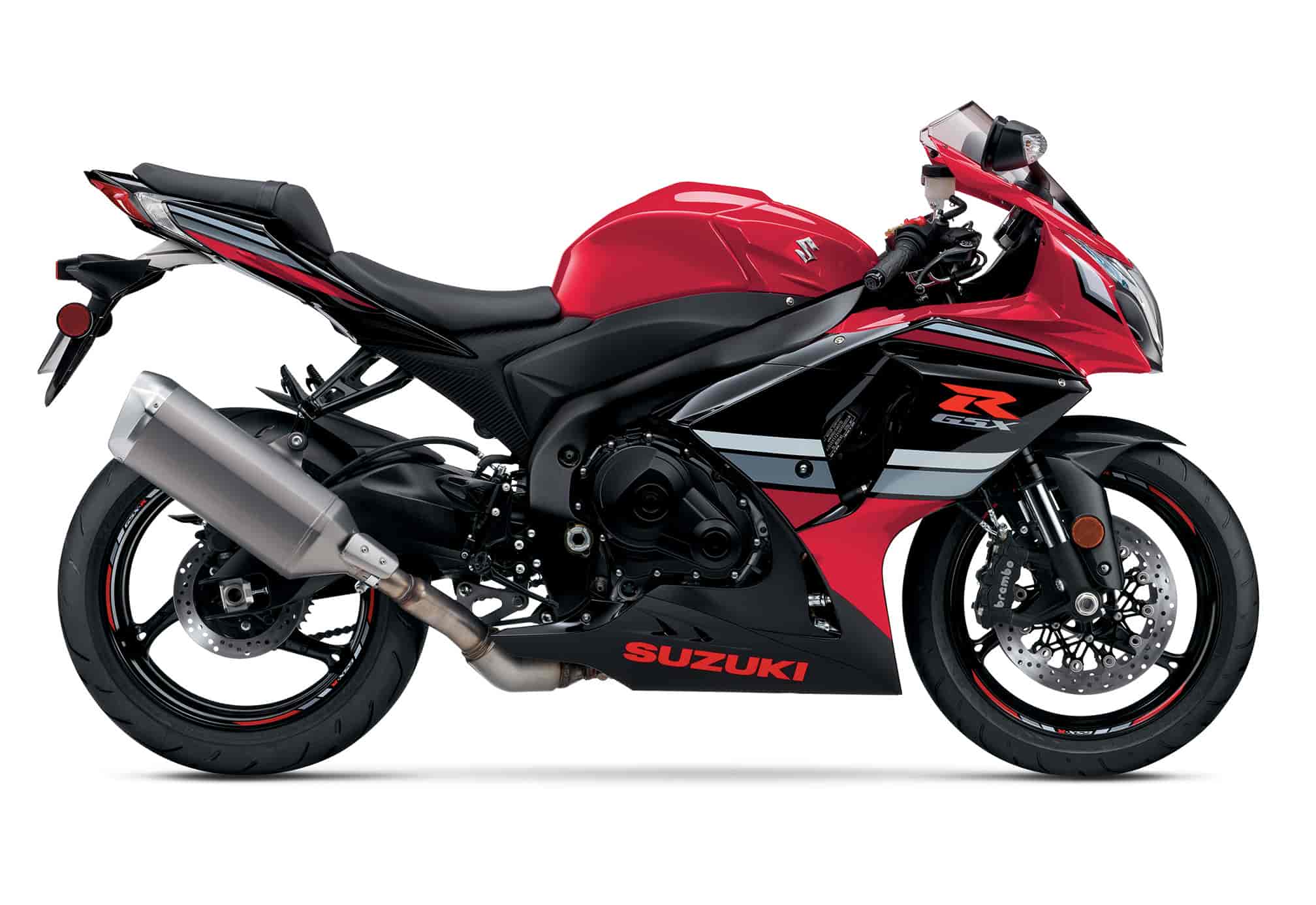

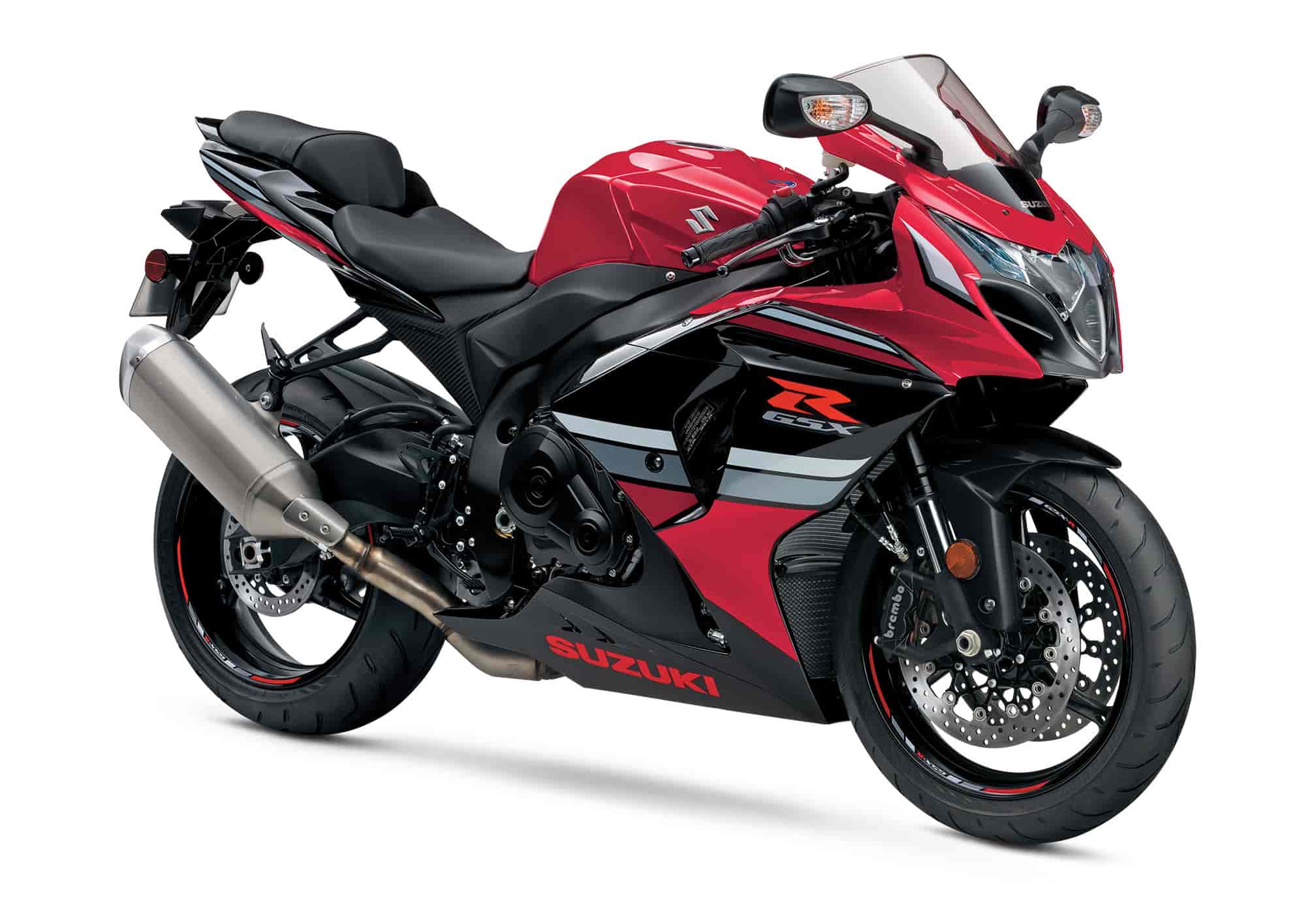

2016 Suzuki GSX-R1000 Commemorative Edition Review
2016 Suzuki GSX-R1000 Commemorative Edition on www.Totalmotorcycle.com
1980’s Honors, 2016 Technology…
A pair of Commemorative Edition GSX-R1000 models celebrate the revolutionary 1985 introduction of the GSX-R750. A Blue-White model pays homage to the original GSX-R750, which featured classic blue-on-white stripes. A Red-Black model honors the Yoshimura Suzuki riders who excelled at the Suzuka 8 Hour endurance races in the 1980s. Both have an exclusive “30 Years of Performance” badge and special wheel striping to signify their limited production status.
The secret to the GSX-R1000’s legendary performance is an unrivaled combination of awesome power and precision handling. Its powerplant features cutting-edge designs like lightweight, forged pistons designed using Finite Element Method analysis, helping it provide incredible acceleration out of corners, matched by stunning top-end performance. Its chassis is designed for optimum rigidity, providing responsive steering and rock-solid stability even through wide-open sweepers.
2016 Suzuki GSX-R1000 Commemorative Edition www.Totalmotorcycle.com Key Features
1 Potent 999cc, 4-cylinder powerplant, with a bore and stroke of 74.5 x 57.3mm brings enhanced throttle response across the entire RPM range plus a true potential for racetrack dominance.
2 Suzuki Drive Mode Selector (S-DMS) offers push-button selection of three performance settings to suit riding conditions and personal tastes. The switch is located on the left handlebar control module.
3 SHOWA Big Piston front forks (BPF) with an endurance-race-proven lightweight design that delivers superb feedback and response. Spring preload, rebound and compression damping are all fully adjustable.
4 The dual front disc brakes are equipped with the premier, radial-mount Brembo monobloc calipers grasping 310mm floating brake rotors.
5 Electronically controlled steering damper provides lighter steering at slower speeds and more damping force at racetrack and highway speeds.
2016 Suzuki GSX-R1000 Commemorative Edition www.Totalmotorcycle.com Features and Benefits
Potent 999cc, 4-cylinder powerplant, with a bore and stroke of 74.5 x 57.3mm brings enhanced throttle response across the entire RPM range plus a true potential for racetrack dominance.
The compact engine enables short wheelbase with a long swingarm to create racetrack-capable handling characteristics.
Lightweight, durable forged pistons are designed using the same Finite Element Method (FEM) and fatigue analysis technology used for MotoGP racing engines.
Pentagonal shaped ventilation holes in the sides of each cylinder bore reduce pumping losses due to internal crankcase air-pressure resistance to downward piston movement.
The camshaft profiles were developed using proven MotoGP racing engine technology to produce power delivery capable of racetrack performance.
Carefully shaped combustion chambers and a compression ratio of 12.9:1 creates strong low-range and mid-range performance to create a broad torque curve.
Iridium spark plugs produce more complete combustion and last longer than conventional plugs.
An Engine Control Module (ECM) provides state-of-the-art engine management and has enhanced settings to suit the single muffler, resulting in better fuel economy and linear throttle response.
Suzuki Drive Mode Selector (S-DMS) offers push-button selection of three performance settings to suit riding conditions and personal tastes. The switch is located on the left handlebar control module.
The 4-2-1 exhaust system carries a Suzuki Exhaust Tuning (SET) valve to maximize torque and improve throttle response, especially in the low-to-mid RPM range.
Race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry.
Large, efficient radiator with a curved shape developed on factory team racebikes and a trapezoidal engine oil cooler shed heat while reducing drag.
SHOWA Big Piston front forks (BPF) with an endurance-race-proven lightweight design that delivers superb feedback and response. Spring preload, rebound and compression damping are all fully adjustable.
Single, link-style rear shock absorber features adjustable rebound damping, spring preload, and both high-speed and low-speed compression damping.
The dual front disc brakes are equipped with the premier, radial-mount Brembo monobloc calipers grasping 310mm floating brake rotors.
The rear brake system with single-piston caliper contributes low unsprung weight.
Electronically controlled steering damper provides lighter steering at slower speeds and more damping force at racetrack and highway speeds.
Three-way adjustable footpegs, adjustable shift lever and short fuel tank help compose a comfortable riding position.
Instruments include a silver-ringed analog tachometer with LCD speedometer. LCD readouts include odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure warning indicator, gear position indicator, lap timer/stopwatch, S-DMS setting indicator and bar-graph indicating the instrument lighting level, or brightness.
The edgy and clean GSX-R race-inspired styling incorporates fairing and bodywork details aimed at reducing turbulence and drag.
Distinctive multi-reflector headlight with vertically stacked high and low-beam halogen bulbs is centered between position lights on each side.
Bright, durable LED taillight, with clear inner lens and red outer lens.
The front turn signal are integrated into the rear-view mirrors while the rear tail section houses the rear signals.
Attention to rider comfort and confidence includes a carefully shaped seat with a high-grip cover.
The wheel rims have pin stripes punctuated by “R” logos that highlight the bike’s identity.
Special Pearl Vigor Blue / Pearl Glacier White paint scheme pays homage to the original 1986 blue and white GSX-R750.
Special Pearl Mira Red / Glass Sparkle Black paint scheme pays homage historic Yoshimura endurance racers from the 1980’s and the 1987 US-spec GSX-R750
A special “30 Years of Performance” GSX-R logo is on the top of the fuel tank.
Stylized Suzuki “S” 3-D emblems on the fuel tank and the fork upper bracket denotes the quality, sophistication and performance legacy of the brand.
Optional single seat cowl can replace the passenger seat for an even more aggressive look or for use on solo rides, or track days.
A variety of Genuine Suzuki Accessories for GSX-R owners are available including a large selection of Suzuki logo apparel.
12-month limited warranty
2016 Suzuki GSX-R1000 Commemorative Edition – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $13899 USD
Engine 999cc, 4-stroke, liquid-cooled, 4-cylinder, DOHC
Bore x Stroke 74.5 mm x 57.3 mm (2.9 in x 2.3 in)
Compression Ratio 12.9 : 1
Fuel System Suzuki Fuel Injection
Lubrication Wet sump
Transmission 6-speed constant mesh
Final Drive Chain drive
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, Twin
Brakes Rear Disc
Tires Front 120/70ZR17 M/C (58W), tubeless
Tires Rear 190/50ZR17M/C (73W), tubeless
Fuel Tank Capacity 17.5 L (4.6 US gallons), 16.5 L (4.4 US gallons) CA model
Metallic Triton Blue
Ignition Electronic ignition (Transistorized)
Dimensions and Curb Weight
Overall Length 2045 mm (80.5 in)
Overall Width 705 mm (27.8 in)
Ground Clearance 130 mm (5.1 in)
Seat Height 810 mm (31.9 in)
Curb Weight 203 kg (448 lbs)
Warranty 12 month unlimited mileage limited warranty.
2016 Suzuki GSX-R1000 Commemorative Edition – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN
2016 Suzuki GSX-R1000 Commemorative Edition – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £10599 GBP (On The Road inc 20% Vat)
Dimensions and Weights
Overall length: 2045mm (80.5in)
Overall width: 705mm (27.8in)
Overall height: 1130mm (44.5in)
Wheelbase: 1405mm (55.3in)
Seat height: 810mm (31.9in)
Kerb Mass: 203.0kg (447.5lbs)
Fuel capacity: 17.5litres (3.8 UK gallons)
Ground clearance: 130mm (5.1in)
Engine capacity: 999cc
Engine: 4-stroke, liquid-cooled, DOHC
Bore: 74.5 mm x 57.3 mm
Compression ratio: 12.9 : 1
Lubrication: Wet sump
Ignition: Electronic ignition ( Transistorized)
Fuel system: Fuel injection
Transmission: 6-speed constant mesh
Power: 136.10kW @ 12000rpm (182.50hp)†
Torque: 116.70N.m @ 10000rpm (86.00lb.ft)†
Front suspension: Inverted telescopic, coil spring, oil damped
Rear suspension: Link type, coil spring, oil damped
Front brakes: Disc,twin
Rear brakes: Disc
Front tyres: 120/70ZR17M/C (58W), tubeless
Rear tyres: 190/50ZR17M/C (73W), tubeless
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
