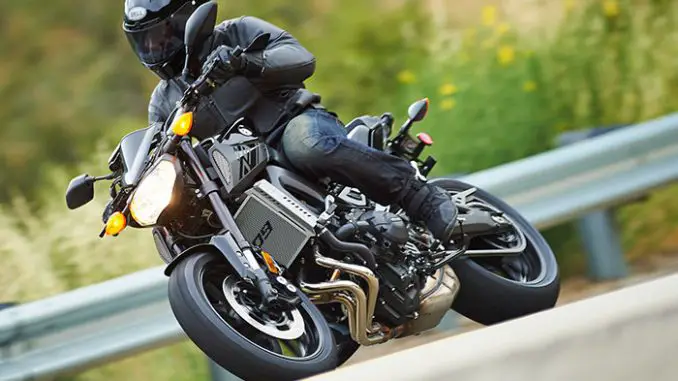

2016 Yamaha FZ-09
2016 Yamaha FZ-09

2016 Yamaha FZ-09
2016 Yamaha FZ-09

2016 Yamaha FZ-09
2016 Yamaha FZ-09

2016 Yamaha FZ-09
2016 Yamaha FZ-09

2016 Yamaha FZ-09
2016 Yamaha FZ-09



2016 Yamaha FZ-09 Review

2016 Yamaha FZ-09 on www.Totalmotorcycle.com

Powerful 847cc in-line 3-cylinder crossplane crankshaft concept engine delivers huge torque combined with a lightweight chassis and slim design…

TOTAL BLAST – TOTAL DEAL – FZ-09

The FZ-09’s powerful 847cc in-line 3-cylinder crossplane crankshaft concept engine delivers huge torque combined with a lightweight chassis and slim design for incredible handling.

Conquer Road

The 2015 FZ-09, a naked sports roadster powered by a liquid-cooled, 850 cc in-line 3-cylinder, fuel-injected engine. The FZ-09 has been developed around the concept of a “Synchronized Performance”, that allows a rider to enjoy the feeling of complete control in typical everyday riding situations. In other words, the FZ-09 has been designed to respond to your every command.

/// Power
Liquid-cooled 4-stroke, 850cc in-line 3-cylinder fuel-injected engine with a downdraft intake. The engine has been tuned to provide plenty of low to mid-range torque with strong yet linear throttle response.

/// 3 into 1 Exhaust
Stylish, compact, low mounted, 3 into 1 exhaust system features stainless steel header pipes with special “Nano-film” coating to help prevent rusting and discolouration.

/// Style
Stylish, one piece, multi-reflector 65/55 watt halogen headlight highlights the naked roadster styling of the FZ-09.



Yamaha FZ-09 is the MT-09 in Europe:

Yamaha MT-09 is a whole new concept in sport bike design. With a compact new chassis and high-torque 3-cylinder engine, this new generation performance machine is designed for riders who appreciate character and soul.

The beating heart of this new kind of animal is a lightweight 850cc 3-cylinder engine that kicks out a wide band of raw, linear torque giving outstanding acceleration that gets your adrenaline flowing.

And for agile handling this dynamic new naked motard-style bike is equipped with a compact aluminium chassis and upright riding position that make light work of everything – from weekday urban riding through to Sunday morning blasts.





2016 Yamaha FZ-09 www.Totalmotorcycle.com Key Features

Powerful Inline-Triple
847cc liquid-cooled, in-line 3-cylinder, DOHC, 12-valve engine with fuel injection. This FZ-09™ engine combines advanced high tech components including YCC-T® and Yamaha D-Mode, with a crossplane concept crankshaft to deliver an exciting, torquey and quick-revving engine character.
•Crossplane Concept
“Crossplane Crankshaft Concept” provides linear torque development in response to the rider’s throttle input. The FZ-09’s in-line 3-cylinder engine provides linear torque development, even firing intervals for smooth torque characteristics and a good feeling of power in the low- to mid-rpm range. The CP3® engine is also light, slim and compact and offers performance that combines the best characteristics of both 2-cylinder and 4-cylinder engines.
•Advanced YCC-T
The ride-by-wire Yamaha Chip Controlled Throttle (YCC-T) system senses the slightest throttle input by the rider, relays the data to the ECU, which instantaneously calculates the ideal throttle valve opening based on engine rpm and throttle opening, and then sends commands to a servo-motor actuator that moves the throttle valve which actively controls the intake airflow volume. This is a technology contributing to the rider’s feeling of torque and controllability from the 3-cylinder engine.
•Selectable D-MODE
The FZ-09 is equipped with Yamaha’s D-MODE (“Drive Mode”) variable throttle control system to allow the rider to choose the optimum engine character for their riding situation. The rider can choose from three throttle valve control maps (Standard Mode, “A” Mode, and “B” Mode) for different performance characteristics at the push of a button. STD Mode is set to accommodate a wide range of riding conditions, for a linear torque feeling from low speeds all the way up to high speeds. A-Mode gives the rider a sharper throttle response in the low-to mid-rpm range than the STD Mode, while B-Mode lets the rider enjoy milder throttle response.




2016 Yamaha FZ-09 www.Totalmotorcycle.com Features and Benefits

ENGINE:

Advanced 3-Cylinder Engine
847cc liquid-cooled 4-stroke, in-line 3-cylinder, DOHC, 4-valve engine with downdraft intake and fuel injection. With a 78mm x 59.1mm bore x stroke and 11.5:1 compression ratio, it produces an exciting, torquey and quick-revving engine character.
•Crossplane Concept CP3® Engine
Some of the advantages of the 3-cylinder engine in the FZ-09 include linear torque development due to the even firing intervals that provide smooth torque characteristics and a good feeling of power up into the low- to mid-rpm range, as well as combining desirable characteristics of both 2-cylinder and 4-cylinder engines. In addition, the engine design can be light, slim and compact.
•Vibration-Reducing Counterbalancer
To reduce vibration and help give a smoother ride, the engine has a primary coupled-force balancer that revolves in the opposite direction and at the same speed as the crankshaft.
•Fracture-Split Connecting Rods
The forged connecting rods are made using the fracture split (FS) method to ensure a high degree of precision in the rod’s big-end ring for a precise fit and smoother crank revolution. The fracture split method is where the big-end ring of a connecting rod is split in two by applying a sharp impact. This creates a perfectly matching split surface that naturally produces a much more precise mating surface when they are bolted together again around the crankshaft.
•Unique Staggered Intake Funnels
To provide both exciting and quick revving torque characteristics and a unique intake sound, the 3-cylinder intake funnels have been designed with uneven lengths. The first cylinder funnel is 102.8mm, the second 82.8mm and the third is 122.8mm. This combines with the effects of the YCC-T system to contribute to an excellent torquey engine character.
•Compact 6-Speed Transmission
The FZ-09 transmission takes full advantage of the low-to-mid-range torque and excellent response characteristics of this in-line, 3-cylinder fuel-injected engine. The 6-speed transmission has been designed to be very compact, enhancing the overall narrow 3-cylinder design.



CHASSIS/SUSPENSION:

Compact, Sporty Chassis
The wheelbase, seat height, fuel tank width, rake and other dimensions are all set to work with the qualities of the compact 3-cylinder engine to achieve a sporty, light and neutral handling character, an upright riding position and a narrow feeling chassis at the seat/tank junction.
•Adjustable Inverted Fork
For excellent damping characteristics, the front suspension is an inverted fork with 41mm inner tubes with 5.4 inches of travel. The front suspension features adjustment for spring preload and rebound damping.
•Adjustable Horizontal Monocross® Shock
The rear suspension features a linked-type Monocross® shock. The shock is positioned below the seat and features an almost horizontal alignment. This unique positioning contributes to mass centralization and a slimmer body design. The rear suspension is also adjustable for spring preload and rebound damping.
•Lightweight Wheels
10-spoke lightweight cast aluminum wheels are used, fitted with a 120/70ZR17 front tire and 180/55ZR17 rear tire. The tires have been designed with an optimally-tuned internal structure that contributes to good handling stability.
•Powerful Braking
Front brakes consist of two floating 298mm discs with radially-mounted 4-pot opposed piston calipers.



ADDITIONAL FEATURES:

Tapered Handlebar
The aluminum, tapered-type handlebars – a first for a Yamaha sportbike – provide a good balance of strength and light weight.
•Ergonomically Designed Fuel Tank
The fuel tank, with its deeply recessed knee grip area, contributes to a narrow seat/tank juncture.
•Stylish, Functional Mirrors
Compact, hexagonal-type rearview mirrors match the “mass forward” design of the rest of the bike.
•Advanced Instrumentation and Controls
A newly designed lightweight, compact, full LCD instrument panel is adopted. The tachometer has a digital bar-type display with gear position indicator. The electric starter button is a new slide-type that incorporates the engine cut-off switch for a modern, high-quality appearance.
•Forged Controls
The brake pedal, shift pedal and footrests are made of forged aluminum for light weight and excellent appearance.
•LED Lighting
The LED taillight has separate left and right lamps that illuminate when the taillight is on and across the entire lens when the brake light is on.







2016 Yamaha FZ-09 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8,190 – Raven – Available from September 2015
$8,190 – Impact Blue – Available from September 2015

Engine
Engine Type
847cc liquid-cooled DOHC inline 3-cylinder 4-stroke; 12 valves
Bore x Stroke
78.0mm x 59.1mm
Compression Ratio
11.5:1
Fuel Delivery
Yamaha Fuel Injection with YCC-T
Ignition
TCI: Transistor Controlled Ignition
Transmission
6-speed; multiplate wet clutch
Final Drive
Chain

Chassis
Suspension / Front
41mm inverted fork, adjustable preload and rebound damping; 5.4-in travel
Suspension / Rear
Single shock, adjustable preload and rebound damping; 5.1-in travel
Brakes / Front
Dual hydraulic disc, 298mm
Brakes / Rear
Hydraulic disc, 245mm
Tires / Front
120/70ZR17
Tires / Rear
180/55ZR17


Dimensions
L x W x H
81.7 in x 32.1 in x 44.7 in
Seat Height
32.1 in
Wheelbase
56.7 in
Rake (Caster Angle)
25.0°
Trail
4.1 in
Ground Clearance
5.3 in
Fuel Capacity
3.7 gal
Fuel Economy**
44 mpg
Wet Weight***
414 lb


Warranty
1 Year (Limited Factory Warranty)


** Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha.
Your actual mileage will vary depending on road conditions, how you ride and maintain your vehicle,
accessories, cargo and operator/passenger weight.
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.







2016 Yamaha FZ-09 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Starting from $8999 CDN

/// ENGINE
ENGINE
Liquid-cooled, DOHC, 12-valve (4-valves/cyl), inline-three cylinder
DISPLACEMENT
847cc
BORE AND STROKE
78 x 59.1 mm
COMPRESSION RATIO
11.5:1
MAXIMUM TORQUE
8.9 kg-m (64.3 ft-lbs.) @ 8,500 rpm
ENGINE MANAGEMENT
YCC-T & D-Mode (3 positions)
FUEL DELIVERY
Mikuni 41mm throttle body F.I.
ESTIMATED FUEL CONSUMPTION±
18.6kpl / 52.5 mpg (Imp.)
LUBRICATION
Wet sump
IGNITION / STARTING
TCI / Electric
TRANSMISSION
6-speed
FINAL DRIVE
“O”-ring chain


/// CHASSIS
SUSPENSION (FRONT)
Adjustable 41mm inverted fork
SUSPENSION (REAR)
Adjustable link Monocross
BRAKES (FRONT)
Dual 298mm discs / radial mount 4-piston calipers
BRAKES (REAR)
245mm disc / single piston caliper
TIRES (FRONT)
120/70ZR17
TIRES (REAR)
180/55ZR17


/// CRITICAL DATA
LENGTH
2,075mm (81.7″)
WIDTH
815mm (32.1″)
HEIGHT
1,135mm (44.7″)
WHEELBASE
1,440mm (56.7″)
RAKE / TRAIL
25° / 103mm
SEAT HEIGHT
815mm (32.1″)
FUEL CAPACITY
14 litres (3.1 imp. gallons)
WET WEIGHT
188 kg (414 lb.)
COLOUR(S)
Metallic Black
Vivid Purplish Blue


Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.







2016 Yamaha FZ-09 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: See Dealer for pricing in GBP (On The Road inc 20% Vat)

Engine
Engine type 3-Cylinder, liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement 847 cm³
Bore x stroke 78.0 mm x 59.1 mm
Compression ratio 11.5 : 1
Maximum power 84.6 kW (115PS) @ 10,000 rpm
Maximum Torque 87.5 Nm (8.9 kg-m) @ 8,500 rpm
Lubrication system Wet sump
Clutch Type Wet, Multiple Disc
Carburettor Fuel Injection
Ignition system TCI
Starter system Electric
Transmission system Constant Mesh, 6-speed
Final transmission Chain
Chassis
Frame Diamond
Front suspension system Telescopic forks
Front travel 137 mm
Caster Angle 25º
Trail 103 mm
Rear suspension system Swingarm, (Link type suspension)
Rear Travel 130 mm
Front brake Hydraulic dual disc, Ø 298 mm
Rear brake Hydraulic single disc, Ø 245 mm
Front tyre 120/70ZR17M/C (58W) (Tubeless)
Rear tyre 180/55ZR17M/C (73W) (Tubeless)
Dimensions
Overall length 2,075 mm
Overall width 815 mm
Overall height 1,135 mm
Seat height 815 mm
Wheel base 1,440 mm
Minimum ground clearance 135 mm
Wet weight (including full oil and fuel tank) 188 kg / ABS 191 kg
Fuel tank capacity 14 L
Oil tank capacity 3.4 L



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
